Electrolux W455H User manual

487 03 34 31/EN

2010.06.02

Operating manual

Tumble dryers

PD9

Type N2...

Operating manual in original language

Contents

Safety precautions ...................................................................................... 5

Operating panel............................................................................................ 7

Buttons and symbols............................................................................... 8

Instructions for use ...................................................................................... 9

Programmes............................................................................................ 9

Tumble dryer with manual operation..................................................... 10

Tumble dryer with payment................................................................... 11

Error codes................................................................................................. 13

Maintenance............................................................................................... 17

The manufacturer reserves the right to make changes in design

and materials speciﬁcations.

Safety Precautions

Do not dry unwashed items in the machine

The machine is not to be used if industrial chemicals have been used for cleaning.

Do not allow minors to use the machine.

Do not hose down the machine with water.

The machine's door lock must under no circumstances be bypassed.

Items that have been soiled with substances such as cooking oil, acetone, alcohol,

petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

washed in hot water with an extra amount of detergent before being dried in the

machine.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber

backed articles and clothes or pillows tted with foam rubber pads should not be

dried in the machine.

Fabric softeners or similar products should be used as specied by the fabric

softener instructions.

The machine may not be used to dry oor mops that contain polypropylene.

The nal part of a drying cycle occurs without heat (cool down cycle) to ensure that

the items are left at a temperature that ensures that the items will not be damaged.

WARNING. Never stop the machine before the end of the drying cycle unless all items

are quickly removed and spread out so that the heat is dissipiated.

Remove garments from the machine as soon as they are dried. This prevents them

from becoming creased and reduces the risk of spontaneous ignition.

If the machine develops a fault, this must be reported to the person in charge as soon

as possible. This is important both for your safety and that of others.

The machine must not be located where a door, sliding door, etc., can block the

machine's door

The machine is not intended to be used by people (including minors) with reduced

physical or mental capacity or lack of experience and knowledge. Such people must

be instructed in the use of the machine by a person who has responsibility for their

safety. Minors must be supervised to ensure that they do not play with the machine.

Adequate ventilation has to be provided to avoid the back ow of gases into the room

for appliances burning other fuels, including open res.

Gas heated tumble dryer:

The machine is not to be installed in rooms containing cleaning machines with

perchloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING

HYDROCARBONS as cleaning agents.

If you can smell gas,

• Do not switch on any equipment

• Do not use electrical switches

• Do not use telephones in the building

• Evacuate the room, building or area

• Contact the person responsible for the machine

In order to prevent damage to the electronics (and other parts) that may occur as the

result of condensation, the machine should be placed in room temperature for 24 hours

before being used for the rst time.

487 22 93 50.00

Operating panel

The operating panel below is mounted on all dryers.

Please note that the Time Button does not have any function on Coin-operated dryers.

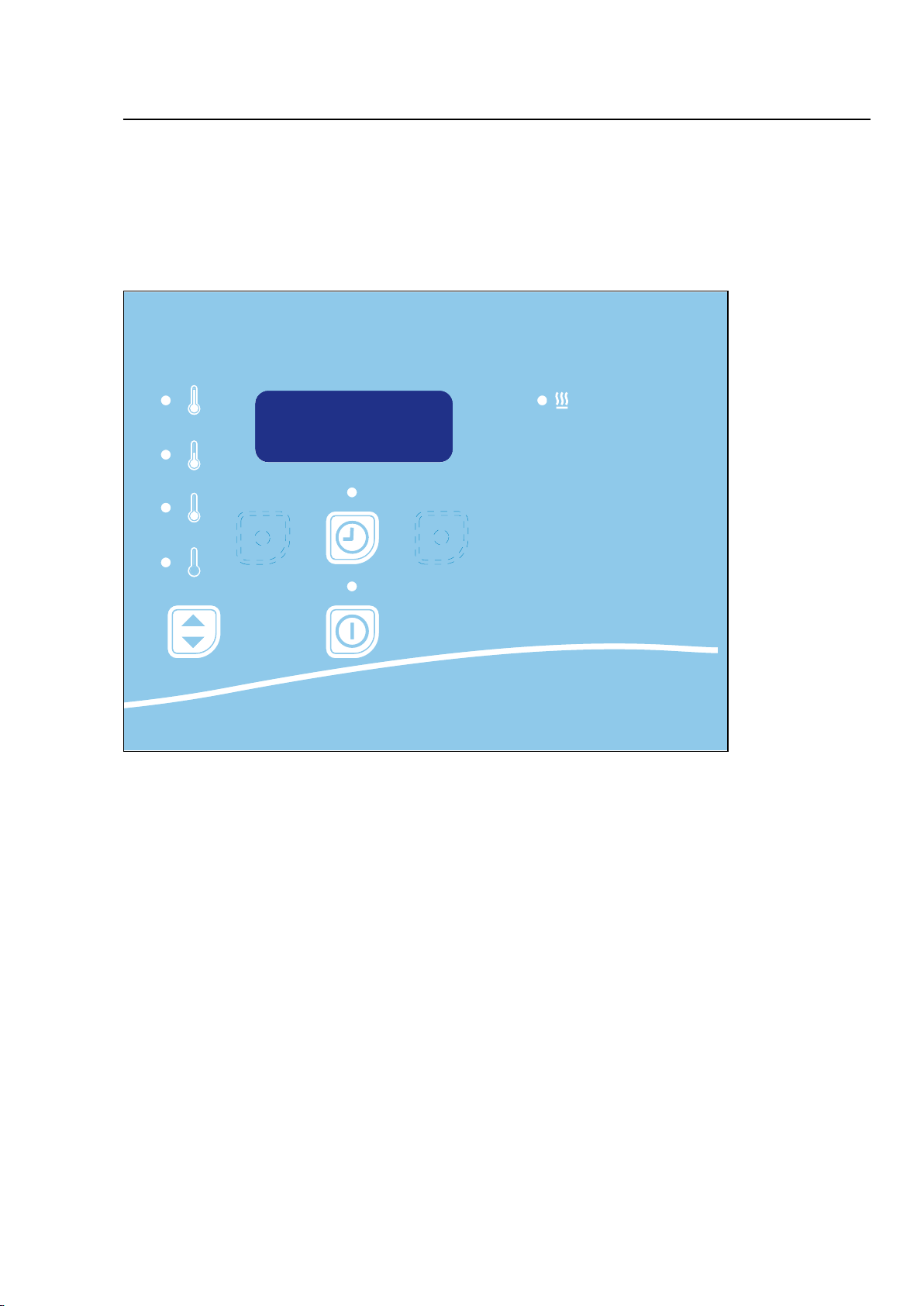

Operating panel

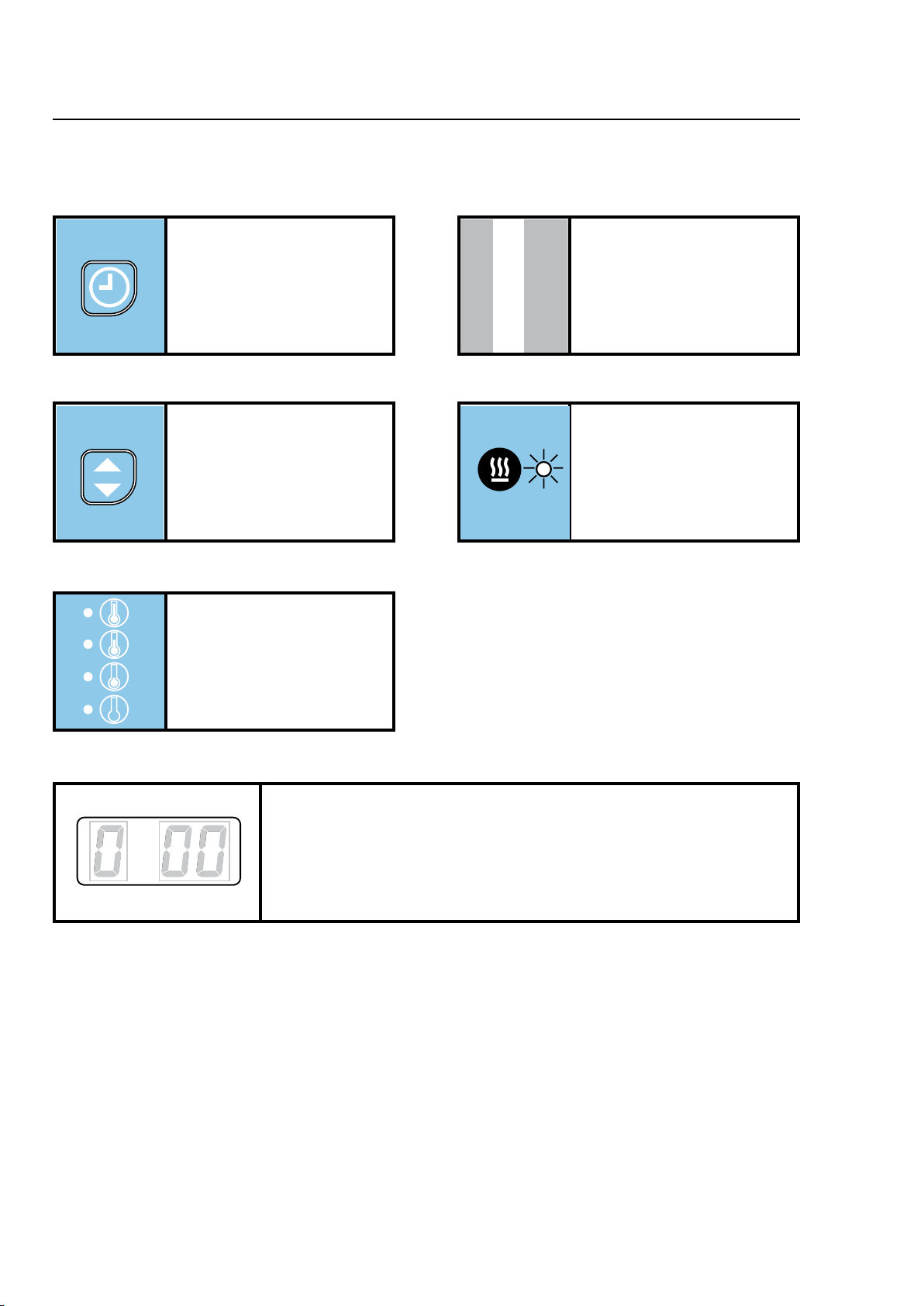

Buttons and symbols

Heat

When lamp is lit the heat is on.

Time button

Setting of drying time. Not active

on pay machines.

Program status

“d xx” = Time controlled drying - xx indicates the time.

“c xx” = Time controlled cool-down - xx indicates the time.

“c - -” = Temperature controlled cool-down.

“ 00” = Standby. The dryer runs an anti-crease program for 120 minutes or

until the door is opened.

Start/stop button

Start: Push button.

Stop: Push button or open door.

Temperature button

Temperature selection button.

Push button during operation,

display shows: the outlet tempe-

rature.

Selected temperature

Lamp is lit at selected

temperature.

Instructions for use

Programmes

Temperature

High Non-iron/normal wash Cotton and mixed fabrics

Medium Non-iron/normal wash Cotton and mixed fabrics

Low Fine wash/mild wash Delicate fabrics

No heat Airing bedspreads, duvets and bedclothes.

Load

Full loads are recommended in order to achieve the best result.

Full load is indicated in kilos of dry textile.

Dryer type PD9 = 9 kg

Instructions for use

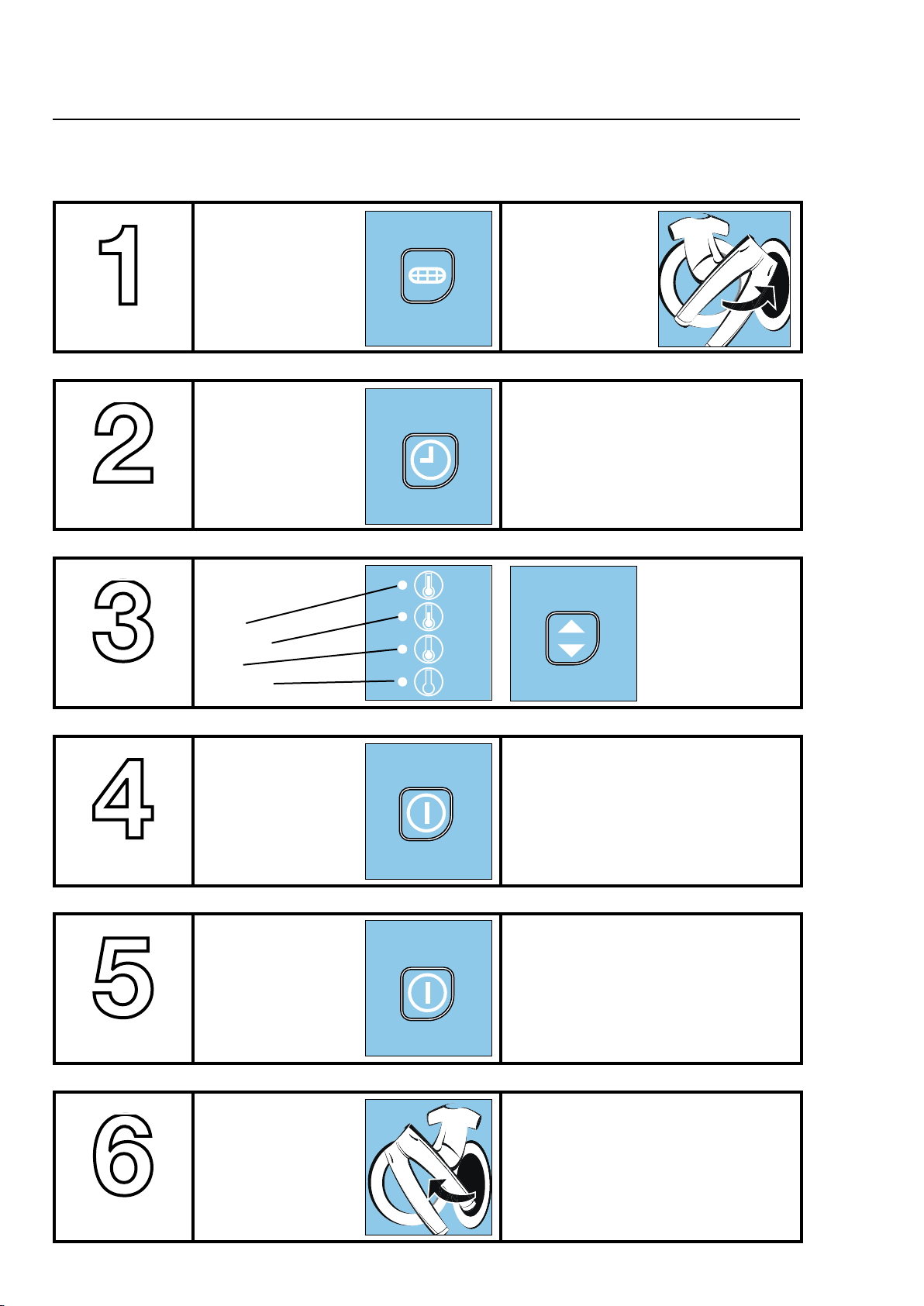

Tumble dryer with manual operation

Fill garments

into the drum

Close the door

Clean ﬁlter

Wait for the dryer to

stop or press stop.

Restart

Close the door and press

start.

If the tumble dryer is not emptied

immediately after the drying time has

ended, an anti-crease programme is

automatically engaged.

This means that the drum rotates at

short intervals, thereby almost com-

pletely avoiding creasing.

Press start The tumble dryer stops

Automatically when the clothes are

dry

when the selected time has expired.

Set the drying time

Select tempera-

ture

High

Medium

Low

No heat

To prevent crea-

sing:

Empty the tumble

dryer as soon as the

program has ended.
