EGO LM2010E User manual
REPAIR GUIDELINE
PART 1: Blade Replacement - LM2010E Lawn Mower
Table of Contents
NO. Contents Page
1 Blade Removal 3-5
2 Blade Installation 6-9
LM2010E Lawn Mower
1. Release switches and remove the battery pack from the mower.
2. While wearing protective gloves, turn the mower on its side (Fig. 1).
3. Place a metal rod (e.g., a thick bit) with a diameter less than 11mm into the fixing hole to act as a
stabilizer and place another metal rod (e.g., a thin bit) with a diameter less than 6.35 mm into the
holes (the through holes in the fan with the holes in the blade) to act as another stabilizer (Fig. 2).
1. Blade Removal
3
Another
Stabilizer
Stabilizer
2
LM2010E Lawn Mower
1
Fixing hole
4. Use a 14mm wrench to turn the blade bolt counterclockwise to loosen it.
1. Blade Removal
4
Another Stabilizer
Loosen
Stabilizer
LM2010E Lawn Mower
5. Remove the bolt, outer flange and the blade. Replace any broken or worn parts.
6. Remove the inner flange and fan from the motor shaft, then replace any broken or worn parts.
1. Blade Removal
Description
Part Number
SPEC
Flange Bolt
5640226001
M10×25
Outer Flange
5650510001
---
Blade
3706023001
---
Inner Flange
3520852002
---
Fan
3127847001
---
5
Motor shaft
Blade
Fan
Outer flange
Bolt
Inner flange
LM2010E Lawn Mower
Fan
Inner flange
1. Fix the inner flange into the fan.
2. Mount the fan and the inner flange onto the motor shaft with the fan blades towards the deck.
2. Blade Installation
6
Wrong assembly of
the fan
Fan blades towards deck
Fan
Motor shaft
LM2010E Lawn Mower
3. Mount the blade onto the inner flange with the
surface stating “THIS SIDE FACING GRASS” facing
outwards (Fig. 1) .
4. Aligning the flat position of the outer flange with
the corresponding flat position on the motor
shaft, mount the outer flange in place(Fig. 2).
2. Blade Installation
Flat position
Out flange
2
Flat position
7
This side facing outside
Flat position on the motor shaft
1
LM2010E Lawn Mower
5. Mount the bolt into the shaft and pre-tighten it in a clockwise direction by hand.
2. Blade Installation
8
Out flange
Bolt
Pre-tighten by hand
LM2010E Lawn Mower

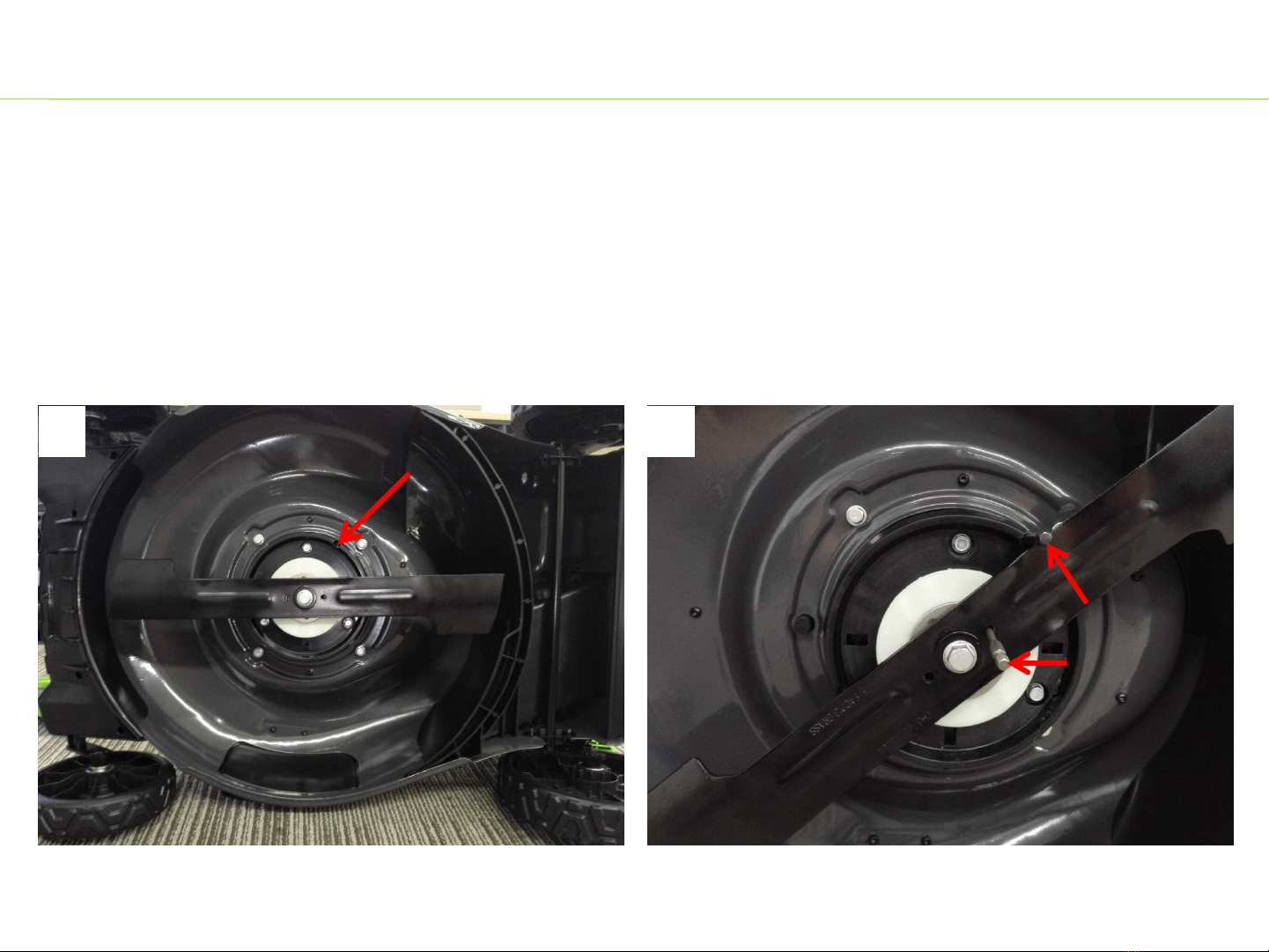

6. Turn the blade by hand to align the holes in blade with the through holes in the inner flange(Fig. 1).
7. Place a metal rod (e.g. a thin bit) with a diameter less than 6.35mm into the aligning holes to act as
a stabilizer. Place another metal rod (e.g. a thick bit) with a diameter less than 11mm into the fixing
hole on the deck to act as another stabilizer(Fig. 2).
8. Use a torque wrench(S=14mm) to tighten the bolt clockwise. The recommended torque for the
blade bolt is 50±5N·m.
2. Blade Installation
9
Stabilizer 2
Stabilizer 1
Tighten
2
Align the hole
1
THE END
LM2010E Lawn Mower
REPAIR GUIDELINE
PART 2: Side Discharge Door Replacement_LM2010E Lawn Mower
