Introduction
The osiTector 6000 hand-held, electronic instrument non-
destructively measures the thickness of coatings on metals,
quickly and accurately. It consists of a body (Standard or
Advanced) and probe.
Press the button to power up the Gage. To conserve battery
life, the gage will automatically go to sleep after 5 minutes of
inactivity. While in Sleep Mode, the gage powers up significantly
faster— convenient when moving between parts or locations. The
gage will completely power off after 4 hours of inactivity.
Alternatively, select ower Off from the main menu. All settings
are retained.
1
1. Remove the protective rubber cap (if supplied) from probe.
2. Power-up Gage by pressing the center navigation button .
3. Verify accuracy and adjust if necessary (pg. 3).
4. Place the probe FLAT on the surface to be measured.
HOLD STEADY. When a valid measurement is obtained,
the Gage BEEPS twice and the measurement is displayed.
5. Lift probe AT LEAST 2 INCHES (5 cm) from the surface
between measurements - OR - leave probe on the surface
in the same location for continuous measurements.
Quick Start
Menu Operation
To access the Menu, power-up the gage, then press the center
navigation button . Either the keypad or touch screen can be
used to navigate the menu. If desired, touch screen functionality
can be disabled within the Setup menu (See Touch, pg. 8).
Select a menu option by touching it, or use the and but-
tons to highlight the desired option and press to select it.
On menus longer than one page, the current page number is dis-
played below the menu name. Navigate between pages using
when the first menu item is selected, or when the last
menu item is selected. If using touch, navigate between pages
by touching or , or by swiping up or down.
2

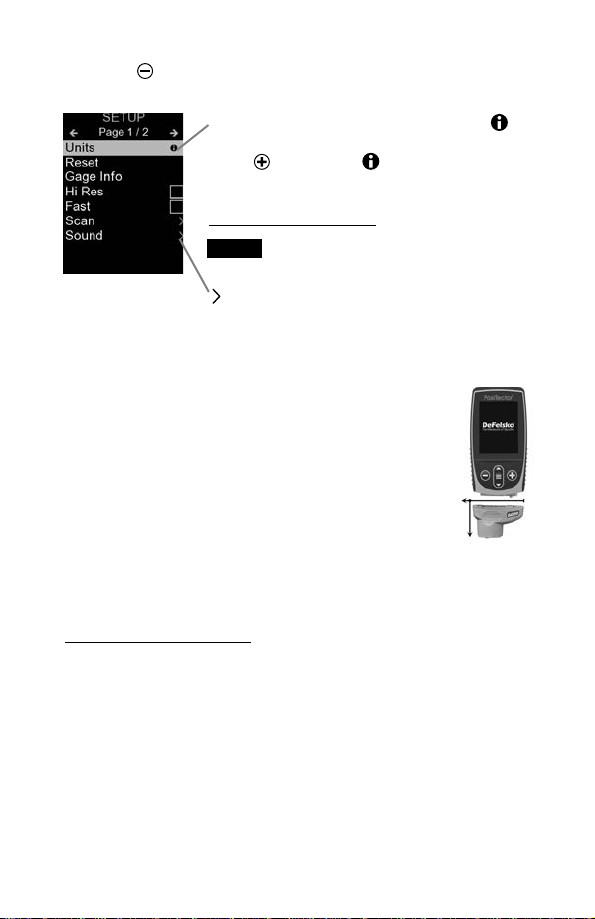

Press the button or swipe right to return to a previous screen.
Select Exit to close the Menu.
When powered-up, the osiTector automatically
determines which probe is attached and does a self-
check.
To disconnect a probe from a body, slide the plastic
probe connector horizontally (in the direction of the
arrow) away from the body. Reverse these steps to
attach a different probe. It is not necessary to power-
down the Gage when switching probes.
The osiTector gage body accepts a wide variety of probe
types including magnetic, eddy-current, and ultrasonic coating
thickness, surface profile, environmental, hardness, salt
contamination, and ultrasonic wall thickness probes. See
www.defelsko.com/probes
When a Menu option is highlighted, the
icon indicates on-gage help is available.
Press or touch the icon to display the
help. A formatted PDF containing all on-
gage help items is available at
www.defelsko.com/help
indicates that a sub-menu exists for the
Menu option. Select the option to display its
sub menu.
Update your gage to ensure that you
have the latest on-gage help information.
NOTE:
robes
Calibration, Verification, and Adjustment
The osiTector 6000 non-destructively measures the thickness
of coatings on metals.Three steps ensure best accuracy…
1. Calibration: typically performed by the manufacturer.
All probes include a Certificate of Calibration.
2. Verification of Accuracy: typically performed by the user on
known reference standards such as the included plastic shims
or optional coated thickness standards.
3. Adjustment: Adjustment, or Cal Adjustment is the act of
aligning the Gage’s thickness readings to match that of a
known sample in order to improve the accuracy of the Gage
on a specific surface or in a specific portion of its measurement
range. 1-point or 2-point Cal Adjustments are possible.
Probes are factory calibrated and perform an automatic self-
check each time a measurement is taken. For many applications
no further adjustment is necessary after a Reset (pg. 6).
Just check ZERO on the uncoated substrate, then measure.
However, sometimes readings can be influenced by changes in
substrate, such as shape, composition, and surface roughness.
That is why Cal Adjustments are made possible. The symbol
disappears whenever a Cal Adjustment is made to the Gage.
0
3
Where a Cal Adjustment method has not been specified, use
a 1-point method first. If measuring the included shims on your
surface reveals inaccuracies, use the 2-point method. Factory
Cal settings can be restored at any time by performing a Reset
(pg. 6), creating a NEW Cal setting (See Cal Memory, pg. 5),
or by DELETING the adjustments made to the Cal 1 calibration
setting (pg. 5). The symbol appears on the display
whenever factory Cal settings are in use.
For “FN” gages, calibration adjustments are made independently
to the “F” or “N” modes, and are stored together within a particu-
lar Cal.
0
4
Cal Settings Menu
A 1- t Cal Adjustment, also known as an offset or correction
value, can be performed in five ways:
(i) Simple Zero Adjustment- Measure the uncoated part. Lift the
probe and adjust to "0" using the and buttons.
(ii) Average Zero Adjustment A preferred method
to (i) is to average 3 to 10 measurements on the uncoated part.
(iii)
Simple Adjustment to a Known Thickness-
Measure a shim
of known thickness placed on the uncoated part. Lift the probe
and adjust to the shim thickness using the and buttons.
(iv)
Average Adjustment to a Known Thickness
A preferred method to (iii) is to average 3 to 10 measurements
of a shim of known thickness placed on the uncoated part.
1 t Adjust
Zero
1 t Adjust
A Simple Zero Adjustment cannot be performed when
Calibration Lock is enabled (default). Disable Calibration
Lock (pg. 5) to perform this adjustment.
NOTE:
A Simple Adjustment to a Known Thickness cannot
be performed when Calibration Lock is enabled (default).
Disable Calibration Lock (pg. 5) to perform this adjustment.
NOTE:
1
(v) Zero Offset- Useful when measuring coating thickness over
rough or blasted substrates without access to the uncoated
representative substrate. Predefined Zero Offset values can be
selected according to the blast profile height in accordance with
ISO 19840. Alternatively, a custom Zero Offset can be entered.
The Zero Offset value is subtracted from each reading.
If the uncoated representative substrate is available,
performing an Average Adjustment to a Known Thickness
(above) is recommended for best accuracy.
NOTE:
2 t Adjust
Provides greater accuracy within a limited, defined range.
Measure known coating thicknesses that are thinner (often zero)
and thicker than the expected thickness range.
2
5
When enabled (default), the Calibration Lock icon will
appear on the display. This prevents an adjustment from
being performed inadvertently if the or buttons are
pressed.
Cal Lock
C
The current Cal Setting (ex. Cal 3) is displayed in the upper right
corner of the display. A stored Cal Setting can be selected when
returning to a particular part. Cal 1 can be adjusted but never
deleted, and is always made active with factory settings after a
Reset (pg. 6). A new Cal Setting cannot be created if a batch is
open with readings present.
Cal Memory (Advanced models only)
Create meaningful Cal Memory names directly on the Gage
using the onscreen QWERTY touch keyboard — helpful when
storing multiple Cal Memory adjustments.
Edit
Use when operating regularly on non-ferrous substrates.
The icon appears and the probe will only use the eddy current
principle to shorten measurement time and extend battery life.
Also useful when measuring coatings over plated or partially
magnetic grades of stainless steel.
(FN ferrous/non-ferrous combination probes only)
N Lock
N
Reset (menu Reset) restores factory settings and returns the
Gage to a known condition. The following occurs:
- All batches, stored measurements, batch names and screen
captures are erased.
- Calibration adjustments are returned to factory settings.
- Menu settings are returned to the following:
Reset
Setup Menu
Memory = OFF
Hi Res = OFF
Statistics = OFF
Hi Lo Alarm = OFF
Scan Mode = OFF
Auto Dim = ON
Cal Lock = On
Bluetooth & Stream = OFF
WiFi & Access oint = OFF
USB Keyboard & Stream = OFF
BLE Keyboard = OFF
Display = None
N Lock = OFF
Units
Converts the display from metric to imperial and vice versa.
1. Power down the Gage and wait 5 seconds.
2. Simultaneously press and hold the and buttons
until the Reset symbol appears.
This returns the Gage to a known, “out-of-the-box” condition.
It
performs the same function as a menu Reset with the addition of:
Perform a more thorough Hard Reset as follows:
6
Units = Metric
Touch = ON
Flip Lock = OFF
Auto Sync .net = ON
Battery Type = Alkaline
Bluetooth Smart = OFF
USB Drive = ON
- Bluetooth Pairing info is cleared.
- Menu settings are returned to the following status:
Fast Mode = OFF
Sound = Medium
Language = English
Backlight = Normal
- eep the gage away from metal during a Reset.
- Date, Time and WiFi settings are not affected by either Reset.
NOTES:
Increases the displayed resolution. Accuracy is not affected.
Hi Res
Increases measurement speed. Useful for quick inspection or
when measuring large areas with thick coatings where proper
probe positioning is not critical. Swift up/down probe movement is
required. Reduced accuracy may be noted.
By default, the osiTector 6000 takes approximately 1 reading
per second. Scan mode allows the user to take multiple readings
in rapid succession (3 readings per second) without lifting the
probe. Choose from 3 Scan modes:
•Normal - continuously measures when placed on the surface
•Statistics - displays real-time scan statistics when placed on the
surface. Average, max., min., and standard deviation are displayed.
•Limited # Avg. - continuously measures until user-specified number
of readings is reached, then displays the average for the scan.
When Memory is on (pg.9), Scan measurement data is
recorded. However, in Statistics and Limited # Avg. Scan
modes, only the statistics and/or avergage is saved, not
individual readings. Note that performing a scan may reduce the
life of the probe and is recommended for smooth surfaces only.
For additional information concerning Scan mode, visit
http://www.defelsko.com/scan
Scan
Fast
(Advanced models only)
7
Adjusts the volume of built-in speaker (Off, Low, Medium, High).
Sound
Disables the Auto Rotate feature by locking the display in its
current orientation.
Flip Lock
For FN probe models, the Nmode is disabled in
Fast Mode.
NOTE:
Statistics Mode
A statistical summary will appear on the display. Remove the last
reading by pressing the button. Press to clear statistics.
Statistics
HiLo Alarm
Allows Gage to visibly and audibly alert the user when readings
exceed user-specified limits.
–Average
–Maximum Value
–Standard Deviation
–Minimum Value
Selects the type of batteries used in the Gage from a choice of
“Alkaline”, “Lithium” or “NiMH” (nickel-metal hydride rechargeable).
The battery state indicator symbol is calibrated for the selected
battery type. No damage will occur if the battery type used in the
Gage does not match the selected battery type.
Battery Type
X
X
8
All measurements are date and time stamped (24-hour format)
when stored into memory. It is therefore important to set the
correct date and time. Use the and buttons to select a
value, and the and buttons to adjust it. The current date
and time setting can also be viewed at the top of the main menu.
Set Clock
Allows the touch screen functionality to be disabled. All gage
functions can also be controlled using the navigation buttons.
Touch
9
Advanced models store 250,000 readings in up to 1,000
batches. “New Batch” closes any currently opened batch and
creates a new batch name using the lowest available number.
New batch names are date-stamped when they are created.
The osiTector 6000 has internal memory storage for recording
measurement data. Stored measurements can be reviewed on-
screen or accessed via computers, tablets and smart phones. All
stored measurements are date and time-stamped. The symbol
appears when the Gage is set to store measurement data.
Standard models store up to 1,000 readings in one batch.
Memory Management
Helps determine if a coating system complies with the IMO
performance standard for protective coatings.
See www.defelsko.com/9010
New A2
New 90/10
Helps determine if film thickness over a large area conforms
to user specified min/max levels. See www.defelsko.com/pa2
Screen Capture
Press both and buttons simultaneously to save an image of
the current display. The last 100 screen captures are stored in
memory and can be accessed when connected to a computer
(see osiSoft USB Drive pg. 10).
Helps determine if a protective coating system complies with the
ISO 19840 acceptance criteria for measuring coating thickness
on rough substrates. See www.defelsko.com/19840
New 19840
Create a new batch
(Advanced only)
Scroll through display
modes (Advanced only)
Delete last reading
Restore brightness
after dimming
Access the Menu
Other manuals for PosiTector 6000
7
Table of contents
Languages:
Other DeFelsko Measuring Instrument manuals
DeFelsko
DeFelsko POSITECTOR SMARTLINK User manual
DeFelsko
DeFelsko DF-SPG3-E User manual
DeFelsko
DeFelsko PosiTest AIR User manual
DeFelsko
DeFelsko PosiTector SPG User manual
DeFelsko
DeFelsko PosiTector DPM Service manual
DeFelsko
DeFelsko PosiTector BHI User manual
DeFelsko
DeFelsko PosiTector 6000 User manual
DeFelsko
DeFelsko PosiTector SPG User manual
DeFelsko
DeFelsko PosiTector 6000 User manual
DeFelsko
DeFelsko PosiTector UTG Manual
DeFelsko
DeFelsko PosiTest CMM User manual
DeFelsko
DeFelsko PosiTector SPG User manual
DeFelsko
DeFelsko PosiTest HHD Verifier User manual
DeFelsko
DeFelsko PosiTector DPM User manual
DeFelsko
DeFelsko PosiTector UTG User manual
DeFelsko
DeFelsko PosiTector UTG User manual
DeFelsko
DeFelsko PosiTector DPM User manual
DeFelsko
DeFelsko PosiTector RTR H User manual
DeFelsko
DeFelsko PosiTector 200 User manual
DeFelsko
DeFelsko PosiTest AT 50 mm C1583 Kit Installation and operating instructions
