Datacolor 650™
Datacolor 600™
Datacolor 400™
User’s Guide
Datacolor 650/600/400 User’s Guide
Part No. 4230-0395M Rev 1, January, 2007
All efforts have een made to ensure the accuracy of the information presented in this format. However,
should any errors e detected, Datacolor appreciates your efforts to notify us of these oversights.
©2007 Datacolor. Datacolor, SPECTRUM and other Datacolor product trademarks are the property of
Datacolor. Microsoft and Windows are either registered trademarks of Microsoft Corporation in the United
States and/or other countries.
To o tain information on local agents, contact either of the offices listed elow, or visit our we site at
www.datacolor.com.
Support Questions?
If you need help with a Datacolor product, please contact one of our top-rated technical support teams
located around the world for your convenience. You can find contact information elow for the Datacolor
office in your area.
Americas
+1.609.895.7465
+1.800.982.6496 (toll-free)
+1.609.895.7404 (fax)
Europe
+41.44.835.3740
+41.44.835.3749 (fax)
Asia Paci ic
+852.2420.8606
+852.2420.8320 (fax)
Or Contact Your Local Representative
Datacolor has representatives in over 60 countries. For a complete list, visit
www.datacolor.com/locations.
Manu actured by Datacolor
288 Shengpu Road, Suzhou Industrial Park, Suzhou, China
+86 512 625 80338
Committed to Excellence. Dedicated to Quality. Certified to ISO 9001
in Manufacturing Centers Worldwide. .
Datacolor 650/600/400 User's Guide Contents • i
Contents
Datacolor Spectrophotometers ........................................................................ 1
A out Datacolor Spectrophotometers ..................................................................................1
Adjustable UV Filter Option ..........................................................................................2
Transmission Option (Datacolor 650/650V ..................................................................2
Vertical Mount Option (Datacolor 650V/600V/400V ....................................................2
Electrical/Environmental Requirements ........................................................................2
Safety Features ............................................................................................................3
Light Source ..........................................................................................................3
Power ....................................................................................................................3
Feature Summary .........................................................................................................3
Accessories .........................................................................................................................4
Calibration Tiles ............................................................................................................4
Aperture Plates .............................................................................................................4
Standard Aperture Plates ......................................................................................4
Optional Aperture Plates .......................................................................................4
Optional Accessories ....................................................................................................5
Cable Installation ............................................................................................... 7
Overview .............................................................................................................................7
Power Ca le ........................................................................................................................7
Serial Ca le Installation .......................................................................................................8
USB Ca le Installation .........................................................................................................9
Cable Installation ..........................................................................................................9
Driver Installation ........................................................................................................ 10
Viewing/Changing System Port Assignment .............................................................. 11
Changing the COM Port Assignment in Datacolor Programs ..................................... 15
Controls and Indicators .................................................................................. 17
Controls and Indicators Panel............................................................................................ 17
Datacolor 600/650 ...................................................................................................... 17
Datacolor 400 ............................................................................................................. 18
Powering Up ...................................................................................................................... 18
Instrument Calibration .................................................................................... 21
Overview ........................................................................................................................... 21
Installing Calibration Data........................................................................................... 21
Reflectance Cali ration ..................................................................................................... 23
Reflectance Calibration Procedure ............................................................................. 23
UV Filter Cali ration .......................................................................................................... 24
Datacolor 650 Transmittance Options ............................................................................... 24
Accessing the Transmission Compartment ....................................................................... 25
Transmission Accessories .......................................................................................... 26
Transmission Sample Holder Base ..................................................................... 27
Transmission Sample Holders ............................................................................ 27
Spill Tray ............................................................................................................. 28
Installing the Transmission Accessories ..................................................................... 28
Transmission Sample Holder Base ..................................................................... 28
Transmission Sample Holders ............................................................................ 29
Transmittance Calibration........................................................................................... 31
Calibration Procedure ................................................................................................. 31
ii • Contents Datacolor 650/600/400 User's Guide
Sample Presentation and Measurement ........................................................ 33
Sample Presentation and Measurement Overview ............................................................ 33
Reflectance Measurements ........................................................................................ 33
Sample Viewing Port .................................................................................................. 34
Transmittance Measurements .................................................................................... 35
Remote Measure Button ..................................................................................... 37
Maintenance ..................................................................................................... 39
A out Instrument Maintenance .......................................................................................... 39
Sphere Cleaning ......................................................................................................... 39
Operating the Minivac Porta le Cleaning System ............................................... 39
Tile Handling/Cleaning ............................................................................................... 40
Handling Tiles ..................................................................................................... 40
Cleaning Tiles ..................................................................................................... 40
Storage ................................................................................................................ 41
Cleaning the Black Trap ...................................................................................... 41
Cleaning the Spectralon® Plaque ....................................................................... 41
Appendix .......................................................................................................... 43
Optical Block Diagram ....................................................................................................... 43
Datacolor 650/600/400 Instrument Specifications ............................................................. 44
Features y Model ............................................................................................................. 45
Dimension Comparison - Horizontal vs. Vertical Mount ............................................. 46
Optional Accessories ......................................................................................................... 46
Miscellaneous Technical Information ................................................................................. 47
System Requirements for USB Connection ................................................................ 47
RS-232C Connector Pin Assignments ....................................................................... 47
Compliance Statements .................................................................................................... 47
FCC Compliance Statement ....................................................................................... 47
Canadian Compliance Statement ............................................................................... 48
Index ................................................................................................................. 49
Datacolor 650/600/400 User's Guide A out Datacolor Spectrophotometers • 1
Datacolor Spectrophotometers
About Datacolor Spectrophotometers
The Datacolor high performance enchtop spectrophotometers (Datacolor 650™,
Datacolor 600™, Datacolor 400™) are the newest generation of ench top color measuring
instruments, incorporating state-of-the-art CMOS integrated circuit technology in the
instrument design. All are intended for use as a device for measuring, specifying and
evaluating color in oth la oratory and production settings.
Datacolor 600
Below is a summary of the standard and optional features included with instruments.
Standard features include the following:
• Pulsed xenon light source
• Multiple aperture sizes to accommodate samples of different sizes
• Automated specular port
Optional features including the following:
• Automated aperture detection
• Automated zoom lens
• Automated, adjusta le ultra-violet filters for measuring fluorescent samples
Please refer to Appendix, Features by Model to determine the standard and optional
features available for a specific model.
2 • A out Datacolor Spectrophotometers Datacolor 650/600/400 User's Guide
Adjustable UV Filter Option
This option offers the a ility to control the amount of UV light emitted from the light source.
This is used for applications that need to identify the presence of optical rightening
agents, or other types of fluorescent materials in the samples eing evaluated.
The configuration of the adjusta le UV filter is handled through the software. See also
Datacolor TOOLS user Guide for detailed instructions to configure the option and cali rate
the instrument.
Transmission Option (Datacolor 650/650V)
The Datacolor 650 includes an option to measure the transmission properties of
transparent and translucent samples. It can measure the “regular” transmittance of
transparent solid and liquid samples, as well as the “total” and “diffuse” transmittance of
translucent samples. The transmission option is also availa le with the Datacolor 650V
vertical mount model.
Vertical Mount Option (Datacolor 650V/600V/400V)
This is a modification to the instrument that provides the a ility to mount the unit vertically.
The vertical mount unit is fitted with a viewing port to verify that the sample completely
covers the aperture.
Datacolor 650V
• The Datacolor 600V and 400V are typically used y the paper industry.
• The Datacolor 650V offers the option to make transmission measurements in a
vertical configuration.
Electrical/Environmental Requirements
Power 85 to 264 VAC, 47 to 63 Hz, 80 VA peak, 35 VA typical
Absolute Operating
Environment
5º to 40º C, 20-85% RH, non-condensing
Inter aces Serial: RS232 9600/115200 aud (shipped at 19200 aud)
USB: 1.1 or higher
Datacolor 650/600/400 User's Guide A out Datacolor Spectrophotometers • 3
Sa ety Features
If the equipment is used in a manner not specified y the manufacturer, the protection
provided y the equipment may e impaired.
CAUTION
There are no user-servicea le parts for this equipment.
Light Source
Do not stare directly into the open port located in the front door panel when the
measurement is in progress. Staring directly into the light source can result in eye
discom ort similar to that o staring at a camera lash.
Power
CAUTION
Disconnect power efore servicing.
The power cord supplied with the unit must e used.
Feature Summary
These instruments employ state-of-the-art features including the spectrometer, integrating
sphere, light source, and optics. Below is a summary of those features:
FEATURE DESCRIPTION PURPOSE/BENEFIT
Integrating sphere Barium coated sphere. Industry standard.
Measurement
Geometry
D/8º geometry, Specular
Component Included (SCI) or
Excluded (SCE).
Provides for more uniform
measurement of samples with
irregular surfaces.
SP2000 Spectral
Analyzer
Proprietary dual-channel
holographic grating. 256-
photodiode linear arrays used
for oth the reference and
sample channels.
Dual channel design provides
continuous monitoring of sample
illumination and compensates for
changes. 256-photodiode array
enhances the precision of the
measurement.
Light source Pulsed xenon flash lamp Filtered to provide D65 illumination
including UV component.
E ective
Bandwidth
5nm or 10nm Based on reporting interval.
4 • Accessories Datacolor 650/600/400 User's Guide
Accessories
All models come with the following standard accessories:
• Six foot power ca le
• Serial ca le with connectors on either end
• Black Trap
• White Tile
• Green Tile
• USB Ca le

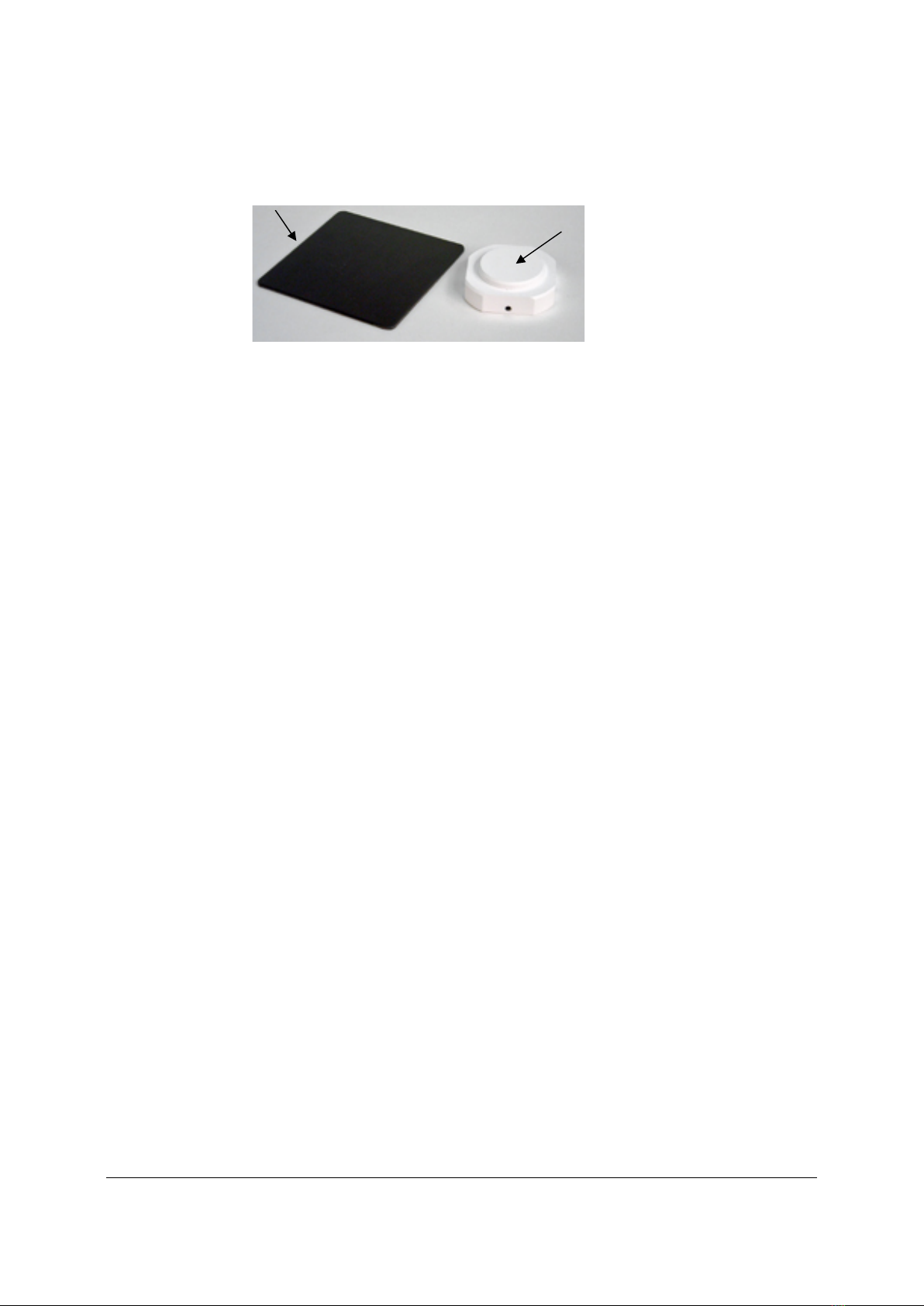

Calibration Tiles
A lack trap, white tile and green tile are provided with all
instruments:
• The lack trap and white tile are used each time the
instrument is cali rated.
• The green tile is used to perform an optional diagnostic
test.
• A CD and diskette containing the cali ration values for
the white tile are also provided.
Aperture Plates
Multiple aperture plates with openings of different sizes
are included as standard accessories with all models.
The identification is engraved on each plate.
Please refer to Appendix, Features by Model to
determine the standard and optional aperture plates
availa le for a specific model.
Standard Aperture Plates
The apertures listed elow are provided with every model:
• Large Area View (LAV)
• Ultra-Small Area View (USAV)
Optional Aperture Plates
• Medium Area View (MAV)
• Small Area View (SAV)
• Extra Ultra Small Area View (XUSAV)
• Medium Area View (MAV), arium coated (standard with the Datacolor 650)
NOTE
Some of these apertures are standard accessories, depending on instrument model.
Datacolor 650/600/400 User's Guide Accessories • 5
Below are aperture plate specifications:
Aperture
Identi ication
Sample Area
Measured
Sample Area
Illuminated
LAV 26mm 30mm
MAV 16mm 20mm
SAV 5mm 9mm
USAV 2.5mm 6.5mm
XUSAV 2.5mm 3.0mm
NOTE
The area illuminated is always 4mm greater than the diameter measured to reduce
translucency errors. The exception to this is the XUSAV plate.
Tips or Aperture Selection
• Always use the largest possi le aperture size.
• The Large Area View (LAV) plate is recommended for averaging samples with
irregular surfaces and textured samples.
• Small (SAV) and ultra-small (USAV) plates should only e used for
measurements of samples that do not completely cover the opening of the larger
aperture plates.
• Medium (MAV) with arium coating must e used for transmission
measurements.
Optional Accessories
If you have purchased a Datacolor 650 or Datacolor 650V, you will receive the following
accessories to make transmission measurements:
Transmission sample holder base
Solid sample holder
Liquid sample holder
and cell
Barium
-
coated MAV aperture plate
6 • Accessories Datacolor 650/600/400 User's Guide
• Transmission Sample Holder Base. Datacolor 650 users must install this
holder into the transmission cham er. For Datacolor 650V (vertical mount) units,
the sample holder ase is installed at the factory.
• Transmission Sample Holders. Used to secure the transmission sample in the
cham er. One is used for liquids and the other for solid samples. Each has two
dowels on the ottom that fit into the holes on the transmission sample holder
ase.
• Transmission Cell. Used as a container for liquid materials. It is placed into the
liquid sample holder.
• Medium Area View, Barium Coated Aperture Plate. The inside of this plate
has a arium coating around the opening. This aperture plate must e used for
all transmission measurements.
• Black Calibration Card. This is used instead of the lack trap for the zero
cali ration.
• Spectralon® (White) Plaque. This white standard must e used for
transmission cali ration. In addition, it is placed at the port for most transmission
measurements. Consult the standard procedure (ASTM, ISO, etc.) you are
following to determine if this sample should e placed at the port.
Black Calibration Card
Spectralon (White)
Transmission Calibration
Standard
This manual suits for next models
2
Table of contents
Other Datacolor Measuring Instrument manuals
Datacolor
Datacolor Spyder3 Elite Reference guide
Datacolor
Datacolor 20D User manual
Datacolor
Datacolor CHECK II User manual
Datacolor
Datacolor 800 User manual
Datacolor
Datacolor ELREPHO User manual
Datacolor
Datacolor ColorReaderPRO DC10-1 User manual
Datacolor
Datacolor 45 User manual
Datacolor
Datacolor Elrepho 3000 User manual
Datacolor
Datacolor 45 Programming manual
Datacolor
Datacolor ColorReader DC10-2 User manual
