Cub Cadet Commercial Z-Wing 48 Setup guide

Hydrostatic Zero-Turn

Commercial Riding Mower

Professional Turf Equipment

ILLUSTRATED PARTS LIST

Z-Wing 48

TABLE OF CONTENTS

Frame Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

48" Fold Fabricated Cutter Deck. . . . . . . . . . . . . . . . . 4 and 5

48" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 6 and 7

Drive Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 and 9

Brake Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 and 11

Control Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 12 and 13

23HP Kohler Engine Assembly. . . . . . . . . . . . . . . . 14 and 15

23HP Electrical Assembly Kohler . . . . . . . . . . . . . . . . . . . . 16

48" Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 and 19

Seat Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

MODEL LISTED IN THIS MANUAL

23HP Tank,

53AI5BBY750

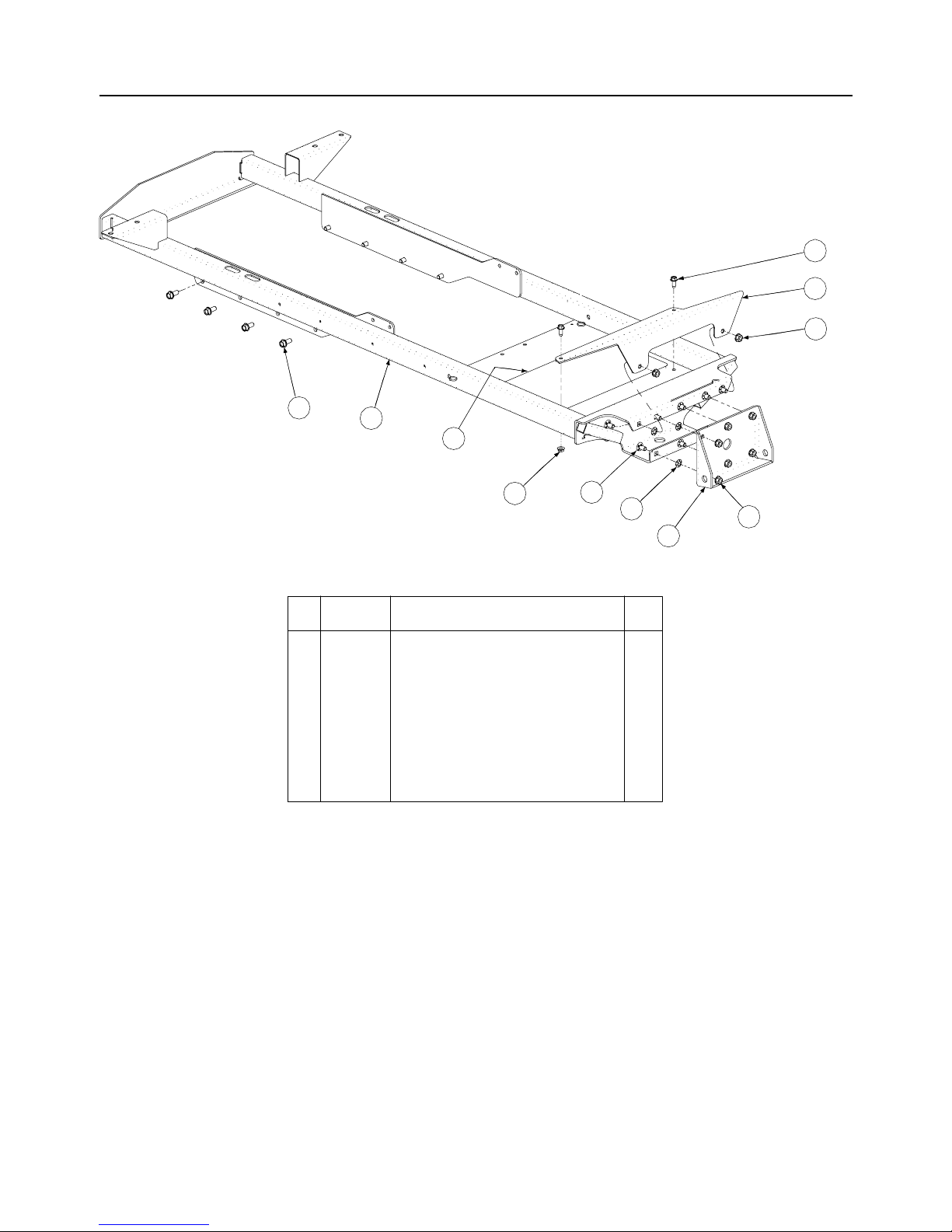

Frame Assembly- Figure 1 and Parts List

Ref.

No. Part No. Description Qty.

1 00022560 Flange Lock Hex Nut, 3/8-16 8

2 01000372 Carriage Bolt, 3/8-16 x .75 Lg 8

3 01000635 Hex Flange Lock Nut, 5/16-18 2

4 01008225 Push Retainer, 3/8 8

5 01008620 Self Tapping Screw 5/16-18 x .750 2

6 01008722 Self Tapping Screw 3/8-16 x .875 8

7 02000214 Frame Assembly 1

8 02000374 Foot Rest Bracket 1

9 02000670 Abrasive Pad 1

10 02000825 Front Axle Bracket Assembly 1

GD: 02000202-12/22/04

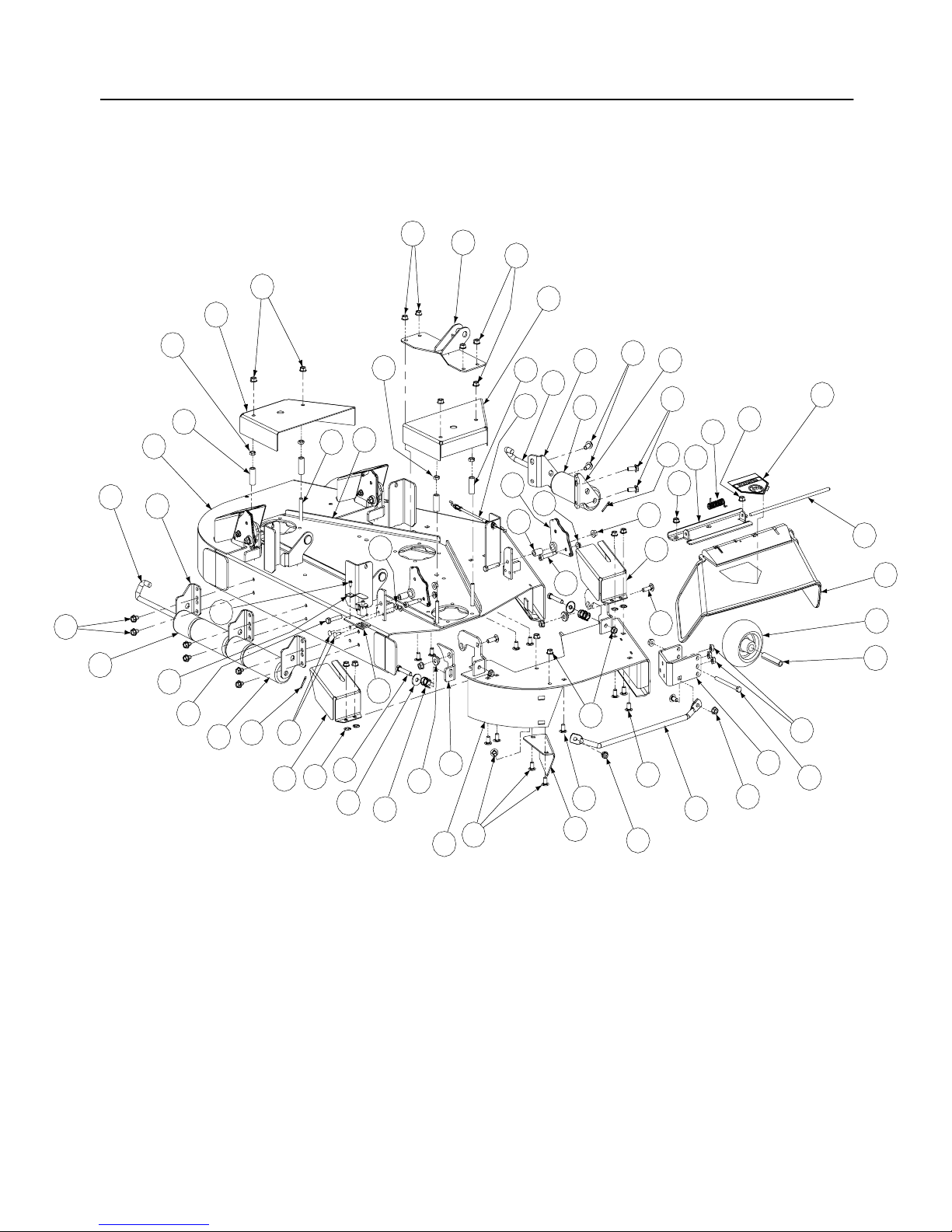

48" Fold Fabricated Cutter Deck - Figure 2

546

22 41

92 4

13 26

GD: 02000299-02/01/05

48" Fold Fabricated Cutter Deck - Parts List for Figure 2

Ref.

No. Part No. Description Qty.

1 00002528 Hex Cap Screw 3/8-16 x 2.00 4

2 00003107 Cotter Pin, .125 Dia. x 1.0 2

3 00011925 Hex Cap Screw, 3/8-16, 3.75 2

4 00017584 Carriage Bolt, 1/4-20 x .750 4

5 00022560 Hex Nut Flange Lock, 3/8-16 42

6 01000343 Complete Wheel, 5.00 Dia 2

7 01000372 Carriage Bolt, 3/8-16 x .75 Lg 24

8 01000375 Roller Pin, 1/2 Dia x 7.31 Lg 1

9 01000385 Front Roller 3

10 01000398 Wheel Spacer 2

11 01000512 Hex Cap Screw, 3/8-16 x 1.750 4

12 01000635 Hex Flange Lock Nut, 5/16-18 4

13 01000872 Flat Washer, .411 x 1.25 x .100 4

14 01001169 Roller 2

15 01001864 Screw, TT, 10-24, .5 2

16 01002010 Carriage Screw, 3/8-16 x 1.25 4

17 01002166 Decal, Danger Hands and Feet 1

18 01003245 Spacer, .39 x .625 x 2.75 4

19 01002766 Nut, 1/4-20, Hex Flange Lock 4

20 01003253 Torsion Spring, 0.4 ID x 2.16 LG 1

21 01003254 Chute Deflector Rod 1

22 01008049 Carriage Bolt, 3/8-16, 4.0 4

23 01004304 Hex Index Washer Screw, 3/8-16, .05 6

24 01005364 Fabricted Deck Roller Mount Bracket 3

25 01004751 Roller Rod 1

26 01004971 Lift Handle Spring 4

27 01005260 Front Anti-Scalp Wheel Mount Bracket 2

28 01005256 Left Hand Front Roller Mount Bracket 1

29 01005258 Right Hand Front Roller Mount Bracket 1

30 01006693 Deflector Chute 1

31 01008226 Chute Deflector Bracket 1

32 01008042 Spring Retainer 2

33 01008225 Push Retainer, 3/8 8

34 01008644 Fabricated Deck Finger Guard 1

35 01009243 Self Tapping Screw, 3/8-16 x 0.875 4

36 01009459 Shoulder Bolt 3/8 x 1.50 4

37 01009957 Fab Fold Deck Weldment 1

38 01009967 Fab Fold Wing Weldment, RH 1

39 01009976 Fab Fold Wing Weldment, LH 1

40 01010123 Pull Fold Hinge Lock 4

41 01010131 Deck Stiffener 1

42 01010137 Belt Cover, RH 1

43 01010139 Belt Cover, LH 1

44 02000148 Handle Control Bracket 2

45 02000152 Lift Cable Bracket Weldment 4

46 02000267 Front Lift Bracket Weldment 1

47 02000381 Chute Baffle 1

48 02000389 Lift Cable 4

49 02000625 Lift Wing Shield 4

50 02000637 Spacer, 1.00 x .38 x .63 4

51 02000692 Pivot Spacer 4

52 01002511 Nut, 3/8-16, Jam 4

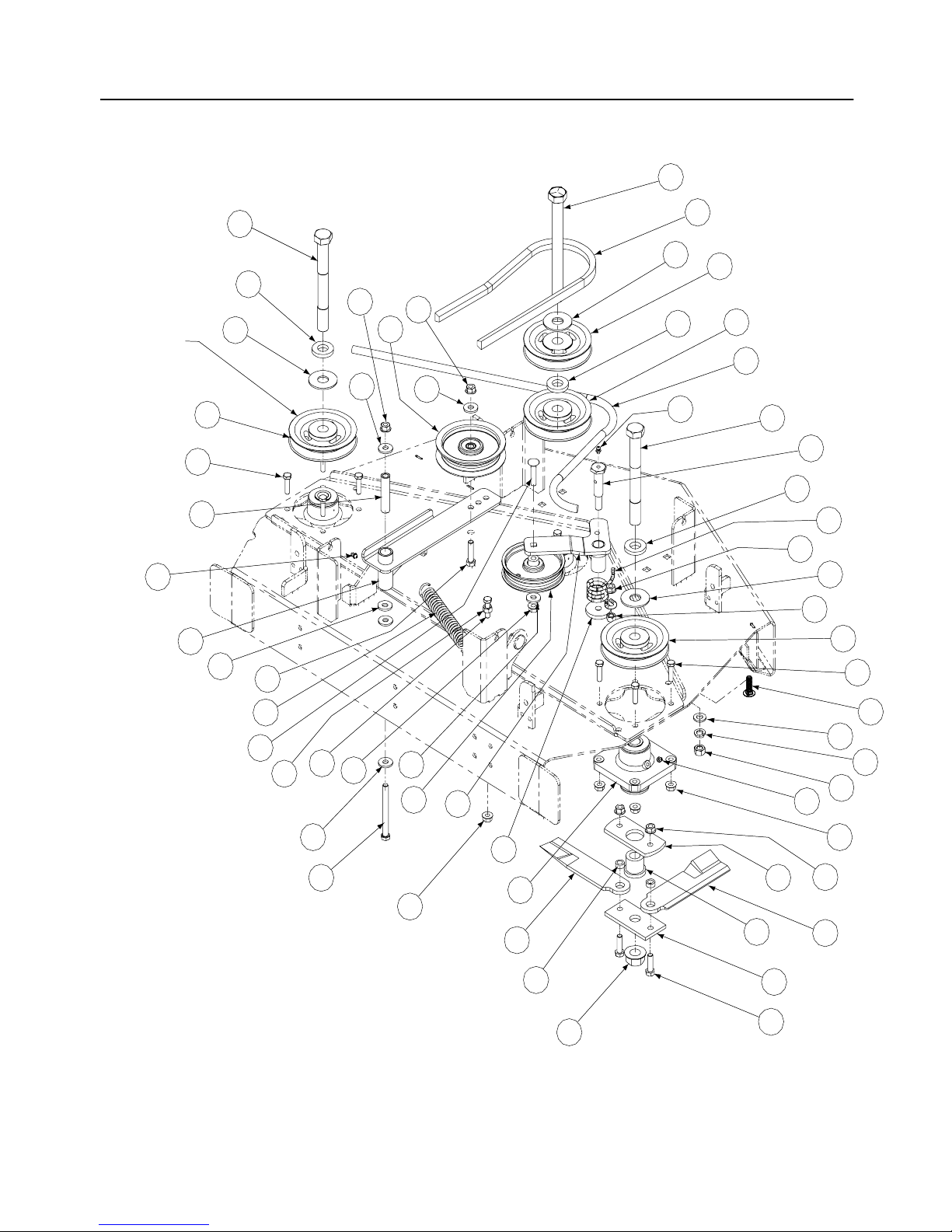

48" Fold Fabricated Deck Spindle Assembly - Figure 3

34 7

16 16

224 7

21 20

Thick Side of Hub

Faces Upward on

All Spindle Pulleys

GD: 02000298-01/19/05

48" Fabricated Deck Spindle Assembly - Parts List for Figure 3

Ref.

No. Part No. Description Qty.

1 00005763 Hex Nut, 7/16-14 1

2 00006131 Hex Nut 3/8-16 2

3 00011438 Hex Cap Screw, 3/8-16 x 1-1/2 1

4 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 6

5 00011925 Hex Cap Screw, 3/8-16, 3.75 1

6 00013116 Hex Cap Screw, 5/16-18 x 1-1/4 12

7 00022560 Hex Nut, 3/8-16, Lock Flange 11

8 00060078 Grease Fitting, 1/4-28 x 3/16 3

9 01000199 Spring Extension, 1.0 OD x 5.125 1

10 01000302 Shoulder Screw, 7/16-14 1

11 01000364 Hex Carriage Screw, 3/8-16, 1.75 1

12 01000380 Hex Flange Nut, 3/4-16 3

13 01000389 Lock Washer, 7/16 1

14 01000392 Flat Washer, .781 ID, 2.00 OD, .105 3

15 01000393 Flat Washer, .469 ID, .875 OD, .105 1

16 01000723 Flat Washer, .406 ID, 1.0 OD, .105 6

17 01002010 Carriage Screw, 3/8-16 x 1.25 1

18 01003245 Spacer, .39 ID x .625 OD x 2.75 1

19 01003269 Flat Washer, 7/16 ID x 1.75 OD x .25 1

20 01005737 Idler Arm Assembly, Deck Spindle 1

01000308 Bearing 2

21 01004081 Flat Pulley with Flanges 1

22 01004101 Idler Pulley, 4.06 OD w/Deep Flange 1

23 01004187 Flat Washer, .760 ID x 1.50 OD x .25 3

24 01000369 Hex Cap Screw, 3/8-16 x 1-1/4 1

25 01005202 V-Pulley, 4.75 OD 1

26 01005213 Hex Cap Screw, 3/4-16, 7.00 2

27 01008542 Hex Cap Screw, 3/4-16, 7.50 1

28 01010127 Blade, Short Fold 6

29 01010132 Blade Center Connector 3

30 02000154 V-Belt, A-Section 1

31 02000277 V-Belt, B-Section 1

32 02000818 Idler Arm Weldment 1

01000308 Bearing 2

33 02000792 Spindle Assembly 3

34 02000796 Blade Upper Mount Plate 3

35 02000798 Blade Spacer 3

36 02000799 Spacer, .385 ID x .625 OD x .25 6

37 732-3067 Idler Torsion Spring 1

38 02000859 V-Pulley, 4.60 OD 3

39 01000635 Hex Nut, 5/16-18, Lock Flange 12

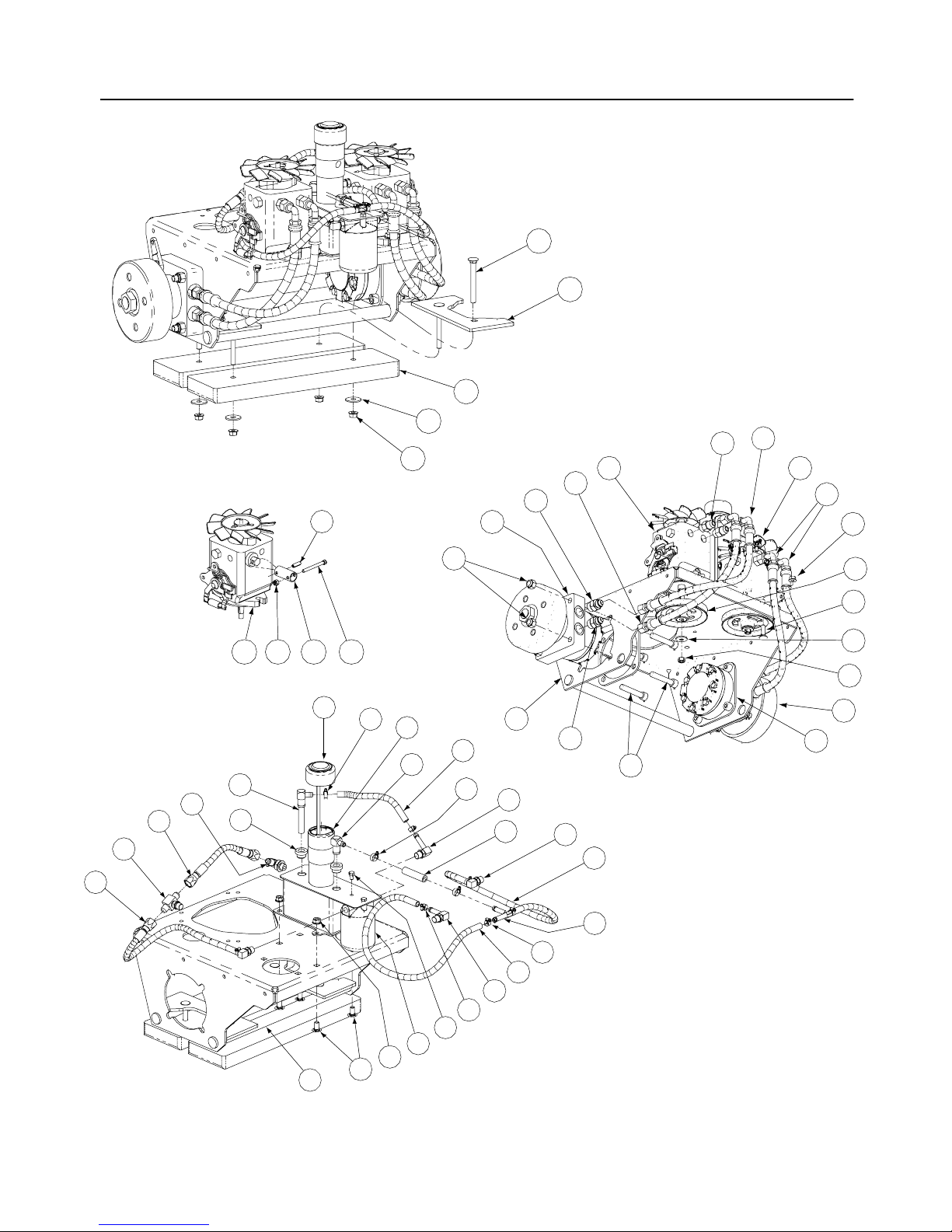

Drive Assembly - Figure 4

To Left

Pump

To Right

Pump

To Right

Pump

To Left

Pump

726

Pilot &Drain Systems

Drive System

Bypass Pump Valve Detail

(Typical Both Pumps)

40 39 41

GD: 02000204-01/20/05

Drive Assembly

- Parts List for Figure 4

Ref.

No. Part No. Description Qty.

1 00012133 Hex Cap Screw, 1/4-20 x 1/2 2

2 00012288 Fitting 1/2 x 3/4 - O Ring 4

3 00012426 Fitting 1/2 x 3/4 - O Ring to Flare 4

4 00012428 Lock Nut, Nylon Insert, 1/2-13 8

5 00022560 Flange Lock Hex Nut, 3/8-16 12

6 02000821 Cap, Hydro Oil Tank 1

7 01000215 Hose Clamp 9

8 01000872 Flat Washer, .411 x 1.25 x .100 4

9 01000942 Bell Washer, .396 x 1.14 x .095 2

10 01002010 Carriage Screw, 3/8-16 x 1.25 4

11 01002602 Elbow Fitting, 3/8 x 3/8 1

12 01002750 Carriage Bolt, 3/8-16 x 3.5 Lg 4

13 01003789 Bar Weight 2

14 01006799 Hydro Pulley Pump 2

15 01006948 Motor Plate 2

16 01007309 Hex Nut, 3/8-24 2

17 01008036 Socket Head Capscrew, 1/2-13; 2-3/4 8

18 02000194 Hose Assembly Inlet Pump 1

19 02000195 Hose Assembly Inlet Connector 1

20 02000197 Drain Hose, 3/8 1

21 02000198 Fitting, 90 Degree O-Ring 4

22 02000199 Tee Fitting, O-Ring 1

23 02000228 Hydro Pump. RH 1

24 02000229 Hydro Pump, LH 1

25 02000263 Hydro Tank Weldment 1

26 02000271 Engine Mount Weldment 1

27 02000276 Filter Head 1/2 1

28 02000294 Elbow Fitting, Tube Steel 1

29 02000295 Elbow Fitting, w/o Tube Steel 1

30 02000296 Grommet Fitting, .54 ID x .78 OD 2

31 02000297 Pressure Hose Assembly 4

32 02000382 Tee Fitting 1

33 02000383 Hose, 3/8 1

34 02000384 Hose, 3/8 2

35 02000391 Hyd. Motor, White Right Hand 1

36 02000392 Hyd. Motor, White Left Hand 1

37 02000773 Deck Plate 2

38 01000372 Carriage Bolt, 3/8-16 x 0.75 4

39 02000693 Bypass Pump Adaptor Assembly 1

40 00012152 LockNut, 1/4-20, Nylon Insert 2

41 00019962 Socket Head Capscrew, 1/4-20 x 2-1/2 2

42 02000863 Roll Pin, .25 x .875 2

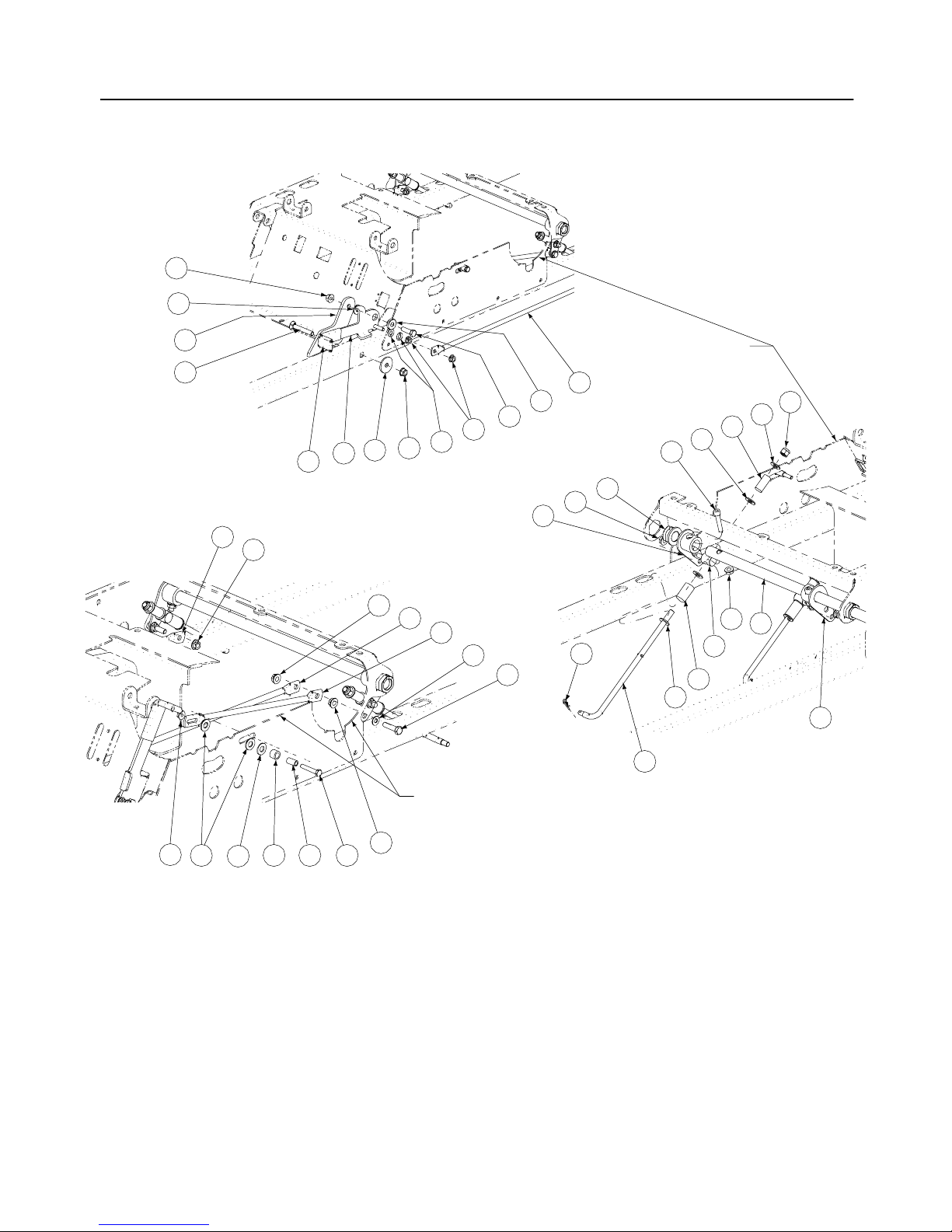

Brake Assembly - Figure 5

11 28

13 1425 30 3

Control Housing Shown

Cut Away for Clarity

in All Views

Control Housing Shown

Cut Away for Clarity

in All Views

GD: 02000208-01/24/05
