INSTRUCTION MANUAL

MODEL 2116-21#-1014 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 6

2.1 Mechanical 6

2.2 Rear Inputs and Outputs 7

2.3 Front Panel Indicators 7

2.4 Operation 8

2.5 Environmental Use Information 9

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2116-21#-1014 Manual Page 2 03/18/21

MODEL 2116-21#-1014 Downconverter

2114 ±50 MHz to 1014 ±50 MHz (inverted) with a 3.128 GHz local oscillator

1.0 General

1.1 Equipment Description - The 2116-21#-1014 Block Downconverter converts 2114 ±50 MHz to 1014 ±50

MHz (inverted) with a 3.128 GHz local oscillator. Front panel LEDs provide indication of DC Power, External

10 MHz, and PLL Alarm. The gain is +0 dB. Connectors are Type N female for the RF and BNC female for RF

out and external reference input and reference output. A three-way switch controls which 10 MHz reference is

being used. In the INT position, the internal reference is used, in the EXT position, the external reference is

used, and in the AUTO position, the internal reference is used unless a 3dBm ± 3dB, 10MHz signal is

connected to the external reference input. The 2116-21#-1014 is powered by a 100-240 ±10% VAC power

supply, and mounted in a 1 3/4” X 19” X 14” rack mount chassis.

MODEL 2116

CROSS TECHNOLOGIES INC.

POWER

DOWNCONVERTER

EXT

10MHZ

ALARM

FRONT PANEL

GND

EXT 10MHZ

RF OUT

INPUT

10MHZ REF

OUTPUT

INT

EXT

AUTO

RF IN

J101

J11

ALARM

REAR PANEL (Shown with connector option SN)

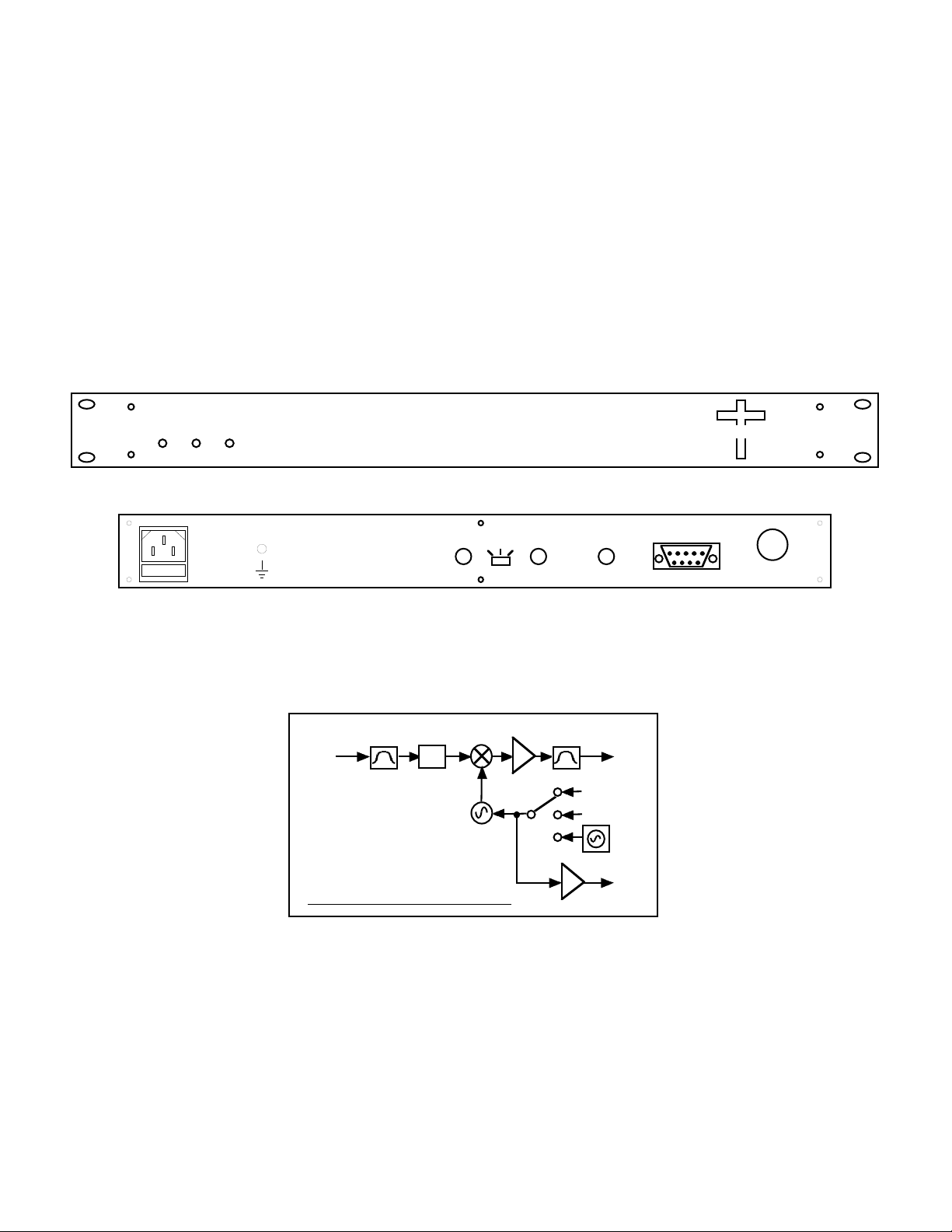

FIGURE 1.1 Model 2116-21#-1014 Front and Rear Panels

FIGURE 1.2 Model 2116-21#-1014 Downconverter Block Diagram

2116-21#-1014 Manual Page 3 03/18/21

1014

±50

MHz

OUT

1..975 to 2.175 GHz

3.128

GHz

EXT

10MHz

INT

10MHz

MHz

MON

AUTO

2116-21#-1014 Block Diagram

ATT

0.90 to 1.30 GHz

2114

±50

MHz IN

1.2 Technical Characteristics

Technical Characteristics continued on page 5...

2116-21#-1014 Manual Page 4 03/18/21

±1.5 dB, 1014 ±50 MHz out; ± 0.5 dB, 40 MHz BW;

Frequency Response

<-55 dBC for two carriers at Fc ± 2 MHz spacing, each at -5 dBm out

Intermodulation

<-50 dBm (0.2-0.95 and 1.07-1.80 GHz Out)

Spurious, Out of Band

Channel Characteristics

LO Characteristics

SIGNAL RELATED <-55 dBc in band, 0 dBm out;

SIGNAL INDEPENDANT < -60 dBm (1014 ± 50 MHz Out)

Spurious, Inband

± 0.01 ppm max. over temp internal reference; ext. reference input

Frequency Accuracy

Inverting

Frequency Sense

3 dBm ± 3 dB

10 MHz In/Out Level

3.128 GHz

LO Frequency

> 60 dB, minimum

Image Rejection

+0 dB ±1 dB

Gain @Fc

19 inch, 1RU Standard Chassis 1.7” high X 14.0” deep

Size

Other

100-240 ±10% VAC, 47-63 Hz, 25 watts maximum

Power

DB9, - NO or NC contact closure on Alarm

Alarm Connector

BNC (femal), 50/75Ω

10 MHz Connectors

N-Type (female), 50 Ω, BNC (female), 50 Ω,

RF, L-Band Connector

-120

-100

-95

-90

-80

1MHz

100kHz

10kHz

1kHz

100 MHz

dBC/Hz

Phase Noise @ Frequency

Controls, Indicators

Red LED, External Contact Closure

PLL Alarm

Yellow LED; indicates ext. 10 MHz reference selected (rear panel DPDT switch)

External 10 MHz

Green LED

Power

TABLE 1.2 2116-21#-1014 Downconverter Specifications*

-20 to 0 dBm

Input Level Range

20 dB (maximum gain)

Noise Figure, max.

-10 dBm

Input 1dB Compression

2114 ± 50 MHz

Frequency

+10 dBm

Output 1 dB Compression

-20 to 0 dBm

Output Level Range

Output Characteristics (L-Band)

Input Characteristics (RF)

1014 ± 50 MHz

Frequency

50Ω/14 dB

Impedance / Return Loss

50Ω/14 dB

Impedance / Return Loss

*+10˚C to +40˚C; Specifications subject to change without notice.

Technical Characteristics continued from page 4...

2116-21#-1014 Manual Page 5 03/18/21

50ΩSMA (RF), 50ΩN-Type (L-BAND)

SN -

50ΩSMA (RF), 50ΩSMA (L-BAND)

SS -

Available Connector Options

50ΩSMA (RF), 75ΩF-Type (L-BAND)

SF -

50ΩSMA (RF), 75ΩBNC (L-BAND)

S7 -

50ΩN-Type (RF), 50ΩN-Type (L-BAND)

NN -

50ΩN-Type (RF), 75ΩF-Type (L-BAND)

NF -

50ΩN-Type (RF), 75ΩBNC (L-BAND)

N -

*+10˚C to +40˚C; Specifications subject to change without notice

2.0 Installation

2.1 Mechanical - The 2116-21#-1014 consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by 14 inch

deep chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies. The 2116-21#-

1014 can be secured to a rack using the 4 holes on the front panel. Figure 2.0 shows how the 2116-21#-1014 is

assembled.

PS IN

PIN 1, +12 VDC

PIN 2, +5 VDC

PIN 3, +5 VDC

PIN 4, GROUND

PIN 5, GROUND

PIN 6, -12 VDC

PIN 7, +24 VDC

PIN 8, +24 VDC

POWER

SUPPLY

J10

J101 - Panel Mount

Type N Connector

BP FILTER/

ISOLATOR

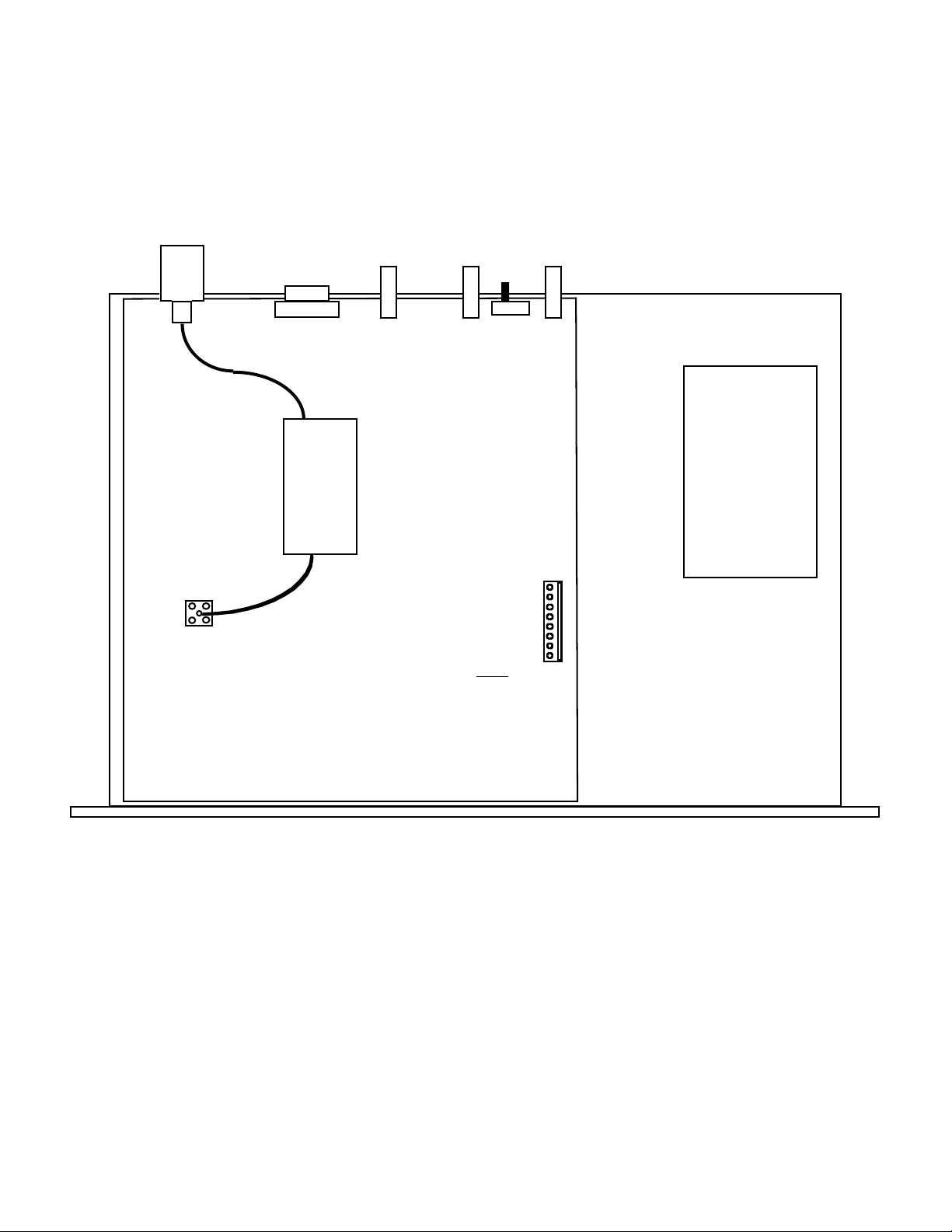

FIGURE 2.0 2116-21#-1014 Mechanical Assembly

2116-21#-1014 Manual Page 6 03/18/21

2.2 Rear Panel Input/Output Signals - Figure 2.1 shows the input and output connectors on the rear panel.

GND

EXT 10MHZ

RF OUT

INPUT

10MHZ REF

OUTPUT

INT

EXT

AUTO

RF IN

J101

J11

ALARM

J1 - RF IN (Option SN)

SMA (female) 50 Ω, -20 to 0 dBm.

See Table 2.2 for other connector

options.

AC INPUT

100-240 ±10% VAC,

47-63 HZ

Uses 2 amp Slow Blo,

5mm fuse

S1 - 10MHZ SWITCH

3-position switch. INT selects internal 10MHz ref.

AUTO selects internal 10MHz ref, unless a 0dBm

±3dB 10MHz signal is inserted on J2. EXT selects

external 10MHz ref from J2.

J2 - EXT 10MHZ INPUT

BNC (female) 75 Ω. Insert external 10MHz

reference here (3 dBm ± 3 dB).

J101 - RF OUT (Option SN)

Type N (female), 50 Ω.

-20 to -0 dBm.

See Table 2.2 for other

connector options.

J11 - ALARM

DB9 (female) connector.

See Table 2.1.

J8 - 10MHZ REF OUTPUT

BNC (female) 75 Ω. Outputs currently

selected 10MHz ref signal (3 dBm ±3 dB).

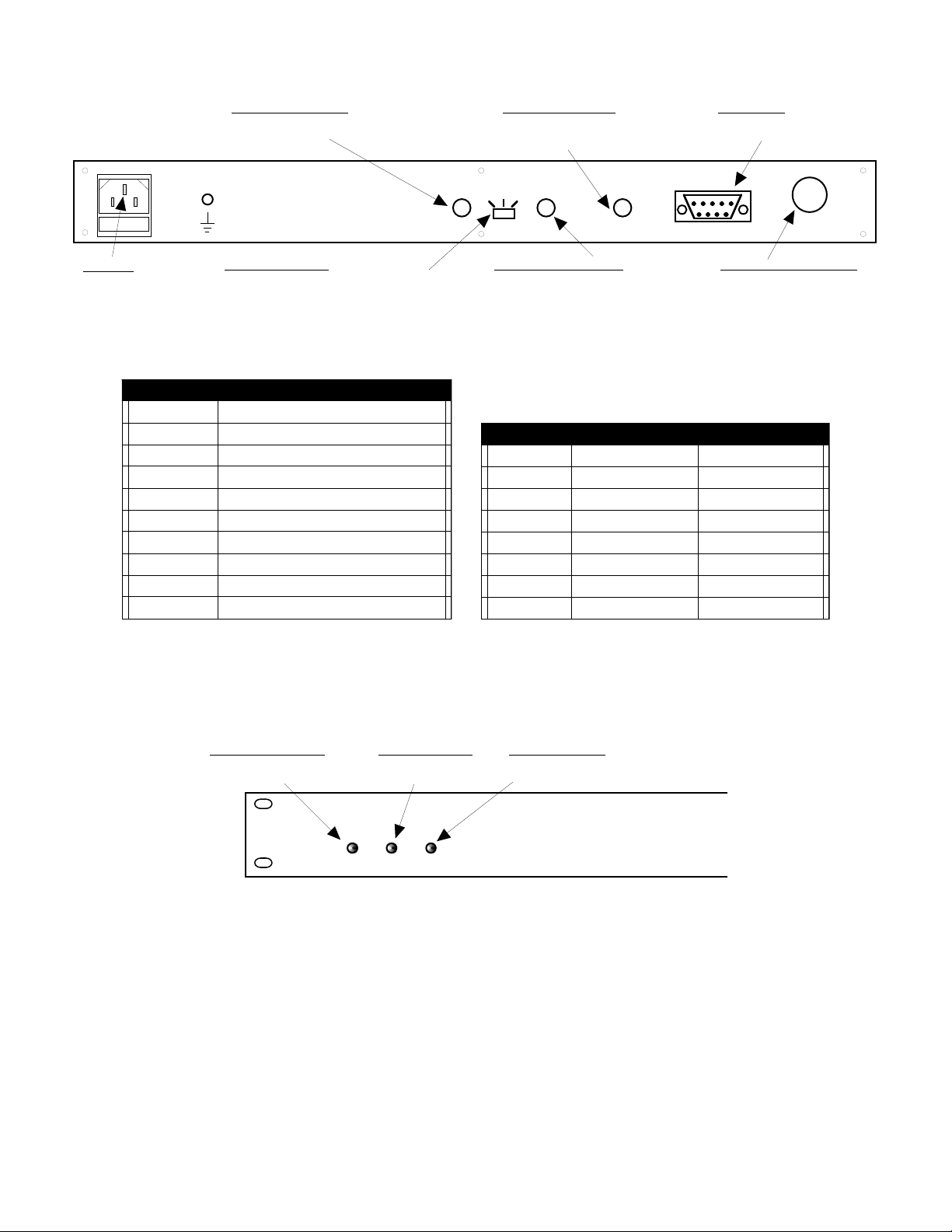

FIGURE 2.1 2116-21#-1014 Rear Panel I/Oʼs (shown with connector option SN)

TABLE 2.1 J11 Pinouts (DB9)

Pin Function

1 Not Used

2 Not Used

3 Not Used

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

TABLE 2.2 Connector Options

Option RF L-Band

NN-Type, 50ΩBNC, 75Ω

NF N-Type, 50ΩF-Type, 75Ω

NN N-Type, 50ΩN-Type, 50Ω

S7 SMA, 50ΩBNC, 75Ω

SF SMA, 50ΩF-Type, 75Ω

SN SMA, 50ΩN-Type, 50Ω

SS SMA, 50ΩSMA, 50Ω

2.3 Front Panel Indicators -The following are the front panel indicators.

DS2 - ALARM LED

Lights RED when

PLL comes out of lock.

DS1 - POWER LED

Lights GREEN when DC voltage is

present from AC power supply.

DS3 - EXT 10MHZ LED

Lights YELLOW when external

10MHz reference is active.

POWER

EXT

10MHZ

ALARM

FIGURE 2.2 2116-21#-1014 Front Panel Controls and Indicators

2116-21#-1014 Manual Page 7 03/18/21

2.4 Installation / Operation

2.4.1 Installing and Operating the 2116-21#-1014 Downconverter (With connector option SN)

1.) Connect a -20 dBm to -0 dBm signal to RF INPUT, J1 (Figure 2.1).

2.) Connect the RF OUT, J101, to the external equipment.

3.) Connect 100- 240 ±10% VAC, 47 - 63 Hz to AC connector on the back panel.

4.) Be sure DS1 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.2).

5.) Select either INT (for internal 10MHz ref), AUTO (for internal 10MHz ref UNLESS a

external 10MHz, 0 dBm signal is connected to J2), or EXT (for external 10MHz,

0 dBm ref that is inserted at J2) on rear panel switch S1 (Figure 2.1).

6.) If EXT is selected or AUTO is selected and there is a 10MHz, 0 dBm signal at J2,

check that DS3 (yellow, EXT 10MHZ) is on (Figure 2.2).

7.) Check that a 10MHz, 0 dBm ±3 dB signal is present at the 10MHZ REF OUTPUT (J8) (Figure 2.1).

8.) AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot

in the drawer below the AC input as shown in Figure 2.3. There is a spare fuse in the near slot.

If a fuse continues to open, the power supply is most likely defective.

AC Fuse - 2 amp slow blow (Type T),

5 mm X 20 mm

FUSE DRAWER

SPARE FUSE

INPUT

100-240± 10%VAC

47-63 Hz

2A MAX

FUSE

TYPE T 2A GDC

250 VOLT

FOR 100 - 240 V~

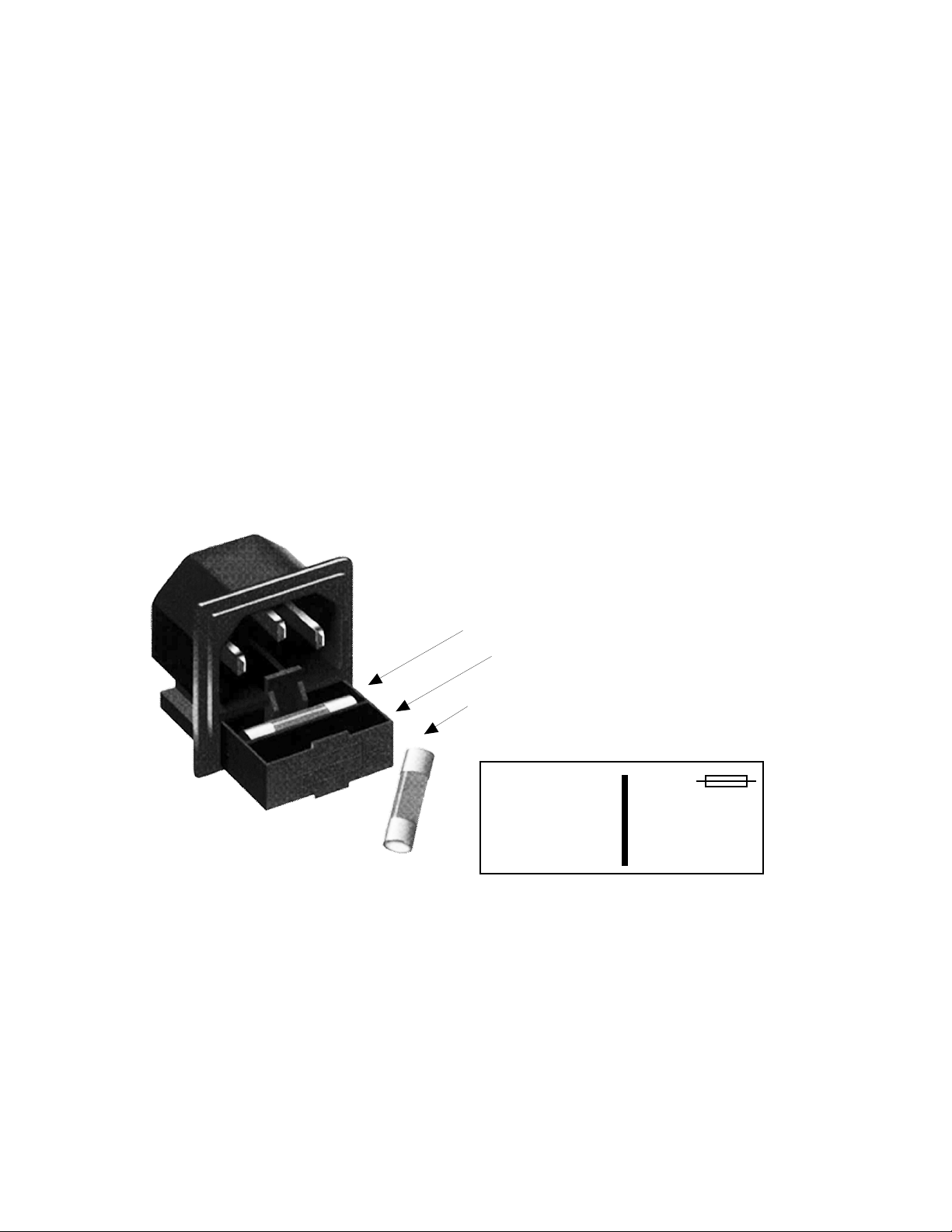

FIGURE 2.3 Fuse Location and Spare Fuse

2116-21#-1014 Manual Page 8 03/18/21

2.5 Environmental Use Information

A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions

located in the user manual furnished by the manufacturer of your equipment rack.

B. Mechanical Loading - Mounting of equipment in a rack should be such that a hazardous condition

does not exist due to uneven weight distribution.

C.Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack may be greater than room ambient temperature.

Therefore, consideration should be given to Tmra.

D. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow

required for safe operation of the equipment is not compromised. Additional space between units

may be required.

E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of circuits could have on over current protection and supply wiring.

Appropriate consideration of equipment name plate rating should be used, when addressing this concern.

F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular

attention should be given to supply connections other than direct connection to the Branch

(use of power strips).

G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.

If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED

prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS

emission problems.

2116-21#-1014 Manual Page 9 03/18/21

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

Printed in USA

2116-21#-1014 Manual Page 10 03/18/21

Other Cross Technologies Media Converter manuals

Cross Technologies

Cross Technologies 4117-14 User manual

Cross Technologies

Cross Technologies 2005-10 User manual

Cross Technologies

Cross Technologies 2016-02-1200 User manual

Cross Technologies

Cross Technologies 2016-57 User manual

Cross Technologies

Cross Technologies 2009-2425-1750 User manual

Cross Technologies

Cross Technologies 2115-275-1845 User manual

Cross Technologies

Cross Technologies 3116-145-1600 User manual

Cross Technologies

Cross Technologies 3117-3338 720 Series User manual

Cross Technologies

Cross Technologies 4116-285-2450 User manual

Cross Technologies

Cross Technologies 3116-7786-2150 User manual

Cross Technologies

Cross Technologies 2016-95 User manual

Cross Technologies

Cross Technologies 4116-31-2831 User manual

Cross Technologies

Cross Technologies 3116-192 User manual

Cross Technologies

Cross Technologies 2016-26 User manual

Cross Technologies

Cross Technologies 2116-116 User manual

Cross Technologies

Cross Technologies 2416 02I Series User manual

Cross Technologies

Cross Technologies 2015-24 User manual

Cross Technologies

Cross Technologies 2116-184 User manual

Cross Technologies

Cross Technologies 2016-05A User manual

Cross Technologies

Cross Technologies 2117-7172 User manual

Cross Technologies

Cross Technologies 2017-03A User manual

Cross Technologies

Cross Technologies 3116-22-23 User manual

Cross Technologies

Cross Technologies 2016-12 User manual

Cross Technologies

Cross Technologies 2015-05 User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
