Cross Technologies 2016-57 User manual

Instruction Manual

Model 2016-57

Downconverter

July 2020, Rev.0

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

REMOTE POWERALARM

DOWNCONVERTER

F = 5950.125

G = +30.0

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 2016-57 Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 6

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear Panel Inputs & Outputs 9

2.3 Front Panel Controls & Indicators10

2.4 Operation 11

2.5 Menu Settings 12

3.0 Environmental Use Information 17

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

2016-57 Manual, Rev 0. Page 2 7/14/20

MODEL 2016-57 Downconverter

1.0 General

1.1 Equipment Description

The 2016-57 Downconverter converts 5.845 to 6.725 GHz to 70 ± 18 MHz in 125 kHz steps (1 kHz steps,

option X1005) with low group delay and flat frequency response. Synthesized local oscillators (LO) provide

frequency selection with ±0.01 ppm stability. Push button switches select the RF frequency, gain, and other

parameters. Front panel LEDs provide indication of DC power (green), PLL alarm (red), and remote operation

(yellow). Gain is adjustable manually over a +30 to +50 dB range by the front panel push-button switches.

Remote M&C allows selection of the 10 MHz reference, frequency and gain. Parameter selection and

frequency and gain settings appear on the LCD display. Connectors are BNC (female) for IF output and the

10MHz reference input and output, and Type N (female) for the RF input (other connector configurations

available). A 10 MHz output connector contains either the internal or external 10 MHz reference signal. The

unit is powered by a 100-240 ±10% VAC power supply, and housed in a 1 3/4” X 19“ X 16” rack mount

chassis.

EXECUTE

MODEL 2016

CROSS TECHNOLOGIES INC.

REMOTE POWERALARM

DOWNCONVERTER

F = 5950.125

G = +30.0

FRONT

GND

J3J10J18

RF IN

10 MHZ REF

OUTPUT

10 MHZ

EXT REF

INPUT

MONITOR

AND

CONTROL

IF OUT

15 234 6789

REAR

FIGURE 1.1 Model 2016-57 Front and Rear Panels

5.845

6.725

GHz

MHz

OUT

CONTROLLER

F=5950.125

G=+30.0

VAR

ATT

EXT

10 MHz

VAR

ATT

INT

10 MHz

Block Diagram

FIGURE 1.2 Model 2016-57 Downconverter Block Diagram

2016-57 Manual, Rev 0. Page 3 7/14/20

1.2 Technical Characteristics

TABLE 1.0 2016-57 Downconverter Specifications*

Input Characteristics (RF)

Impedance/Return Loss 50Ω/ 14 dB min.

Frequency 5.845 to 6.725 GHz

Noise Figure, maimum 15 dB (max. gain)

Level -70 to -30 dBm

Output Characteristics (IF)

Impedance/Return Loss 75Ω/ 18 dB

Frequency 70 ± 18 MHz

Level -20 to 0 dBm

1dB compression +10 dBm

Channel Characteristics

Max. Gain range +50 to +2 dB, +30 to +50 dB, 0.5± 0.5 dB steps

Image Rejection > 50 dB, minimum

Spurious Response < -50 maxium

Intermodulation <-50dBC for two carriers at 4MHz spacing, each at -5dBm out, gain +50

Frequency Response ±1.5 dB, 5.845-6.725 GHz ; ± 0.5 dB, 36 MHz BW

Group Delay, max 0.015 ns/MHz2parabolic; 0.05 ns/MHz linear; 1 ns ripple

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ±0.01 ppm internal reference or external reference input

Frequency Step 125 kHz minimum; (1 kHz steps, option X1005)

10 MHz level (In & Out) 3 dBm ± 3 dB

-110-95-80-75-70

1MHz100kHz10kHz1kHz100 Hz

dBC/Hz

Phase Noise

Fre

Controls, Indicators

Frequency Selection direct readout LCD; pushbutton switches

Gain Selection direct readout LCD; pushbutton switches

Power Green LED

Alarm Red LED

Remote Yellow LED, RS 232C, 9600 baud (RS 422/485, option Q)

Other RF / IF Connectors RF - Type N (female), 50Ω/ IF - BNC (female), 75Ω

10 MHz Connectors BNC (female), 75Ω, works with 50 or 75 ohms

Alarm/Remote Connector DB9 - NO or NC contact closure on Alarm

Size 19 inch, 1RU standard chassis 1.75” high X 16.0” deep

Power 100-240± 10% VAC, 47-63 Hz. 45 watts maximum

2016-57 Manual, Rev 0. Page 4 7/14/20

Available Options

W7 RF / IF - Monitor Ports (Front)

W31 Ext. Temperature 0C to +50C

X1005 1 kHz Frequency step

Remote M&C Interface:

Q RS485/422

W8 Ethernet;with Web Browser (WB)

W18 Ethernet;with Web Browser (WB) & SNMP

W28 Ethernet with TCP/IP, Telnet

Connector Options See TABLE 2.2

*+10˚C to +40˚C; Specifications subject to change without notice.

2016-57 Manual, Rev 0. Page 5 7/14/20

1.3 Monitor and Control Interface

A) Remote serial interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485 - Option-Q)

Female DB-9

PC Com Port Male DB-9

2015/16/17 M&CPort

M&C Cable Diagram - Cross Technologies Frequency Converters

Connector: Rear panel, DB-9 male

J10 Pinouts (RS-232C/422/485)

Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

2016-57 Manual, Rev 0. Page 6 7/14/20

TABLE 2.2

IF/RF

2.2 IF/RF Connectors /Im

pedance

/Impedance

Option IF RF

STD 75ΩBNC 50ΩType N

M50ΩBNC 50ΩType N

S 50Ω50ΩSMA

S7 75ΩBNC 50ΩSMA

B) Status Requests

Table 1.1 lists the status requests for the 2016-57 and briefly describes them.

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

TABLE 1.1 2016-57 Status Reequests

Status Requests

Command Syntax* Description

Command Status {aaS1} Returns {S1bbbbbbbccA} where:

• bbbbbbb = Rx frequency (in kHz)

4 characters - standard (7 characters - Option-X)

• cc = Rx gain

• A = summary alarm; 1=alarmed, 0=normal

10MHz Ref Status {aaS2} Returns {S2E} where:

• E = 1 - external 10 MHz switched in

2016-57 Manual, Rev 0. Page 7 7/14/20

C) Commands

Table 1.2 lists the commands for the 2016-57 and briefly describes them. After a command is sent the 2016-57

sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {aaCND...}, where:

{ = start byte

aa = address (RS-485 only - option -Q)

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485, (OPTION-Q), is selected.

Table 1.2 2016-57 Comman

Commands

Command Syntax* Description

Set Receiver Frequency {aaC2xxxxxxx} where:

• xxxxxxx = 7 characters

• Range: 5845000 to 6725000 kHz

Set Receiver Gain {aaC4xx} where:

• xx = 2 characters

• Range: 30 to 50 (+30 dB to +50 dB, in 1 dB steps)

Enable External 10MHz IN {aaCEx} where x =:

• 0 to disable External 10MHz ref signal

• 1 to enable External 10MHz ref signal

Enable Remote # Just # sign

Disable Remote {aaCR0} {CR and zero}

2016-57 Manual, Rev 0. Page 8 7/14/20

2.0 Installation

2.1 Mechanical

The 2016-57 consists of one RF/Controller PCB housed in a 1 RU (1 3/4 inch high) by 16 inch deep chassis. A

switching, ±12, +24, +5 VDC power supply provides power for the assemblies. The 2016-57 can be secured to

a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2016-57 is assembled.

POWER

SUPPLY

FIGURE 2.1 2016-57 Mechanical Assembly

2016-57 Manual, Rev 0. Page 9 7/14/20

2.2 Rear Panel Input/Output Signals

Figure 2.2 shows the input and output connectors on the rear panel.

GND

J18

RF IN

10 MHZ REF

OUTPUT

AC - POWER IN

AC input for switching

power supply.

100-24 ±10% VAC, 47-60 Hz

J2 - RF IN

-70 to-30 dBm input signal.

Type N (female) see Table

2.2.

J1 - IF OUT

-20 to 0 output signal.

BNC (female)

see Table 2.2.

J10

MONITOR

AND

CONTROL

J10 - MONITOR AND CONTROL

DB9 (female) - see Table 2.1

10 MHZ

EXT REF

INPUT

J3 - 10 MHz EXT REF INPUT

3 ± 3 dBm, 10 MHz external reference

input. 50/75 ΩBNC (female)

IF OUT

J18 - 10 MHz REF OUTPUT

+3 ± 3 dBm, 10 MHz reference

output. 50/75 ΩBNC (female).

5 4 3 2

9 8 7

FIGURE 2.2 2016-57 Rear Panel I/Os

TABLE 2.1 JJ10

2.1 J10 Pinouts (RS-232C*)

Pin Function

1 Not Used

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4 Not Used

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Closed

8 Not Used

9 Alarm Relay: Normally Open

*Remote Serial Interface

Interface: DB-9 Female

Protocol: RS-232C, 9600 baud rate, no parity,

8 data bits, 1 start bit, 1 stop bit

2.3 Front Panel Controls and Indicators

Figure 2.3 shows the front panel controls and indicators.

EXECUTE

REMOTEALARM POWER

LCD DISPLAY

Display shows Downconverter

frequency in MHz and Gain in dB

S1 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS3 - ALARM LED

Red LED indicates

downconverter alarm.

DS6 - POWER LED

Green LED indicates

presence of DC power.

DS1 - REMOTE LED

Yellow LED indicates

remote operation.

S2 - VERT. TOGGLE

Vertical toggle switch that controls values in the

Menu items when in program mode. Does not

function in the normal display mode

S3 - HORIZ. TOGGLE

Horizontal toggle switch that controls

which values are being adjusted. Does

not function in the normal display mode

F=5950.125

G=+30.0

FIGURE 2.3 2016-57 Front Panel Controls and Indicators

2016-57 Manual, Rev 0. Page 10 7/14/20

Table of contents

Other Cross Technologies Media Converter manuals

Cross Technologies

Cross Technologies 3116-145-1600 User manual

Cross Technologies

Cross Technologies 3115-21-109 User manual

Cross Technologies

Cross Technologies 2115-122 User manual

Cross Technologies

Cross Technologies 2116-21-1014 User manual

Cross Technologies

Cross Technologies 2117-7172 User manual

Cross Technologies

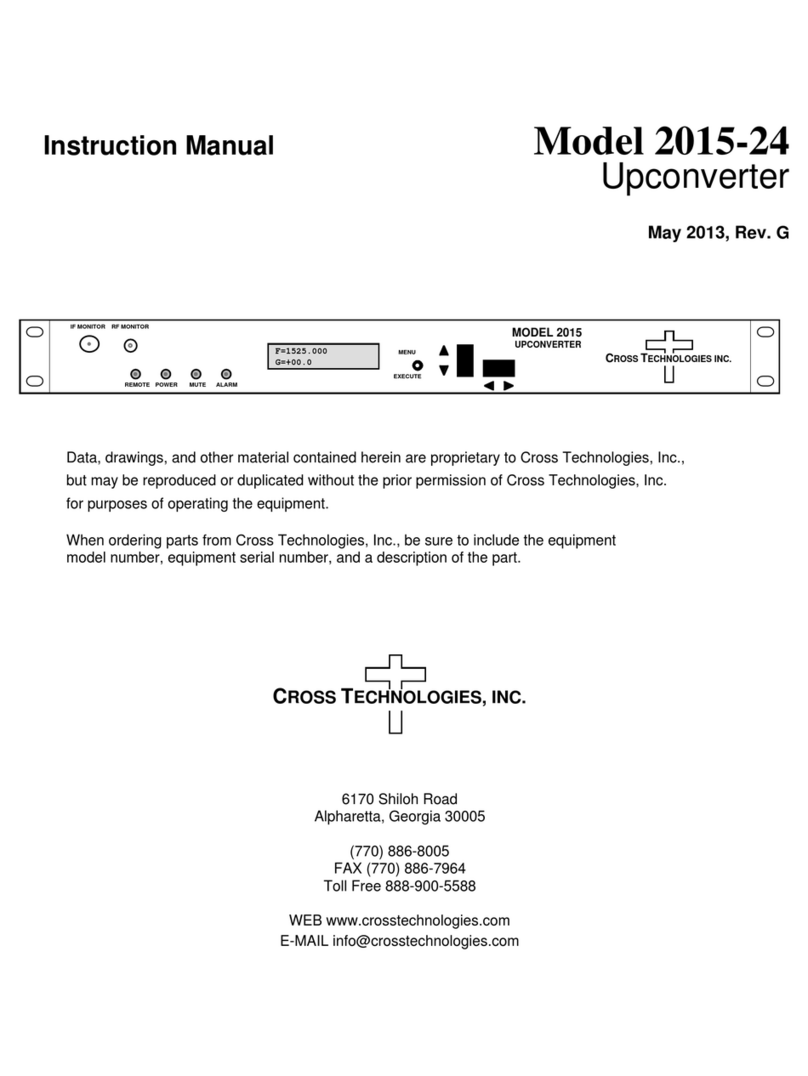

Cross Technologies 2015-24 User manual

Cross Technologies

Cross Technologies 2017-03 User manual

Cross Technologies

Cross Technologies 2017-0923 370 Series User manual

Cross Technologies

Cross Technologies 3116-7786-2150 User manual

Cross Technologies

Cross Technologies 3117-3338 720 Series User manual

Cross Technologies

Cross Technologies 4115-300 User manual

Cross Technologies

Cross Technologies 2015-58T User manual

Cross Technologies

Cross Technologies 2016-8085 User manual

Cross Technologies

Cross Technologies 2016-1522 User manual

Cross Technologies

Cross Technologies 2117-8485 User manual

Cross Technologies

Cross Technologies 4117-14 User manual

Cross Technologies

Cross Technologies 2116-140T120 User manual

Cross Technologies

Cross Technologies 2116-184 User manual

Cross Technologies

Cross Technologies 2016-75-213 User manual

Cross Technologies

Cross Technologies 2116-182193 User manual

Cross Technologies

Cross Technologies 2015-26 User manual

Cross Technologies

Cross Technologies 2416-x02 User manual

Cross Technologies

Cross Technologies 3116-192 User manual

Cross Technologies

Cross Technologies 2017-14 User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
