Instruction Manual Model 3116-192

Block Downconverter

December 2, 2021 Rev. A

EXECUTE

MODEL 3116

CROSS TECHNOLOGIES INC.

IN LO FREQ REF.

3 9790.4 EXT

POWER

REMOTE

ALARM

DOWNCONVERTER

19.2-20.2 GHZ

G=+10.0 Ref AUTO-I

Data, drawings, and other material contained herein are proprietary to Cross Technologies, Inc.,

but may be reproduced or duplicated without the prior permission of Cross Technologies, Inc.

for purposes of operating the equipment.

When ordering parts from Cross Technologies, Inc., be sure to include the equipment

model number, equipment serial number, and a description of the part.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

INSTRUCTION MANUAL

MODEL 3116-192 Block Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

1.3 Monitor & Control Interface 6

2.0 Installation 9

2.1 Mechanical 9

2.2 Rear Inputs and Outputs 10

2.3 Front Panel Indicators 10

2.4 Installation/Operation 11

2.5 Menu Settings 12

3.0 Environmental Use Information 17

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005

FAX (770) 886-7964

Toll Free 888-900-5588

WEB www.crosstechnologies.com

E-MAIL [email protected]

3116-192 Manual Page 2 12/02/21

MODEL 3116-192 Block Downconverter

1.0 General

1.1 Equipment Description

The 3116-192 Block Downconverter converts 19.2 - 20.2 GHz to 0.95 - 1.95 GHz with low phase noise and flat

frequency response. Frequency translation is via a 18.25 GHz local oscillator. The gain is +35 ± 2 dB

maximum and is adjustable in 0.5 ± 0.5 dB steps. Front panel LEDs provide indication of Remote operation,

PLL Alarm and DC Power. Gain and internal/external/Auto reference frequency selection are controlled by

front panel switches or remote selection (via RS 232C, standard; Ethernet Optional) and are viewable on the

LCD Display. Connectors are Super SMA female for the RF and BNC female for the L-Band and external

reference input and reference output. In AUTO, the 10 MHz reference stays in external if the external level is

+3 dBm, ±3 dB. The 3116 is powered by a 100-240 ± 10% VAC power supply, and housed in a 1 3/4” X 19 “

X 12” rack mount chassis.

EXECUTE

MODEL 3116

CROSS TECHNOLOGIES INC.

IN LO FREQ REF.

3 9790.4 EXT

POWER

REMOTE

ALARM

DOWNCONVERTER

19.2-20.2 GHZ

G=+10.0 Ref AUTO-I

FRONT PANEL (Shown with optional Etherent)

RF INPUT

GND

J101

10 MHZ REF

OUTPUT

J11

ALARM

EXT 10 MHZ

INPUT

L-BAND

OUTPUT

J14

REAR PANEL (Shown with optional Etherent)

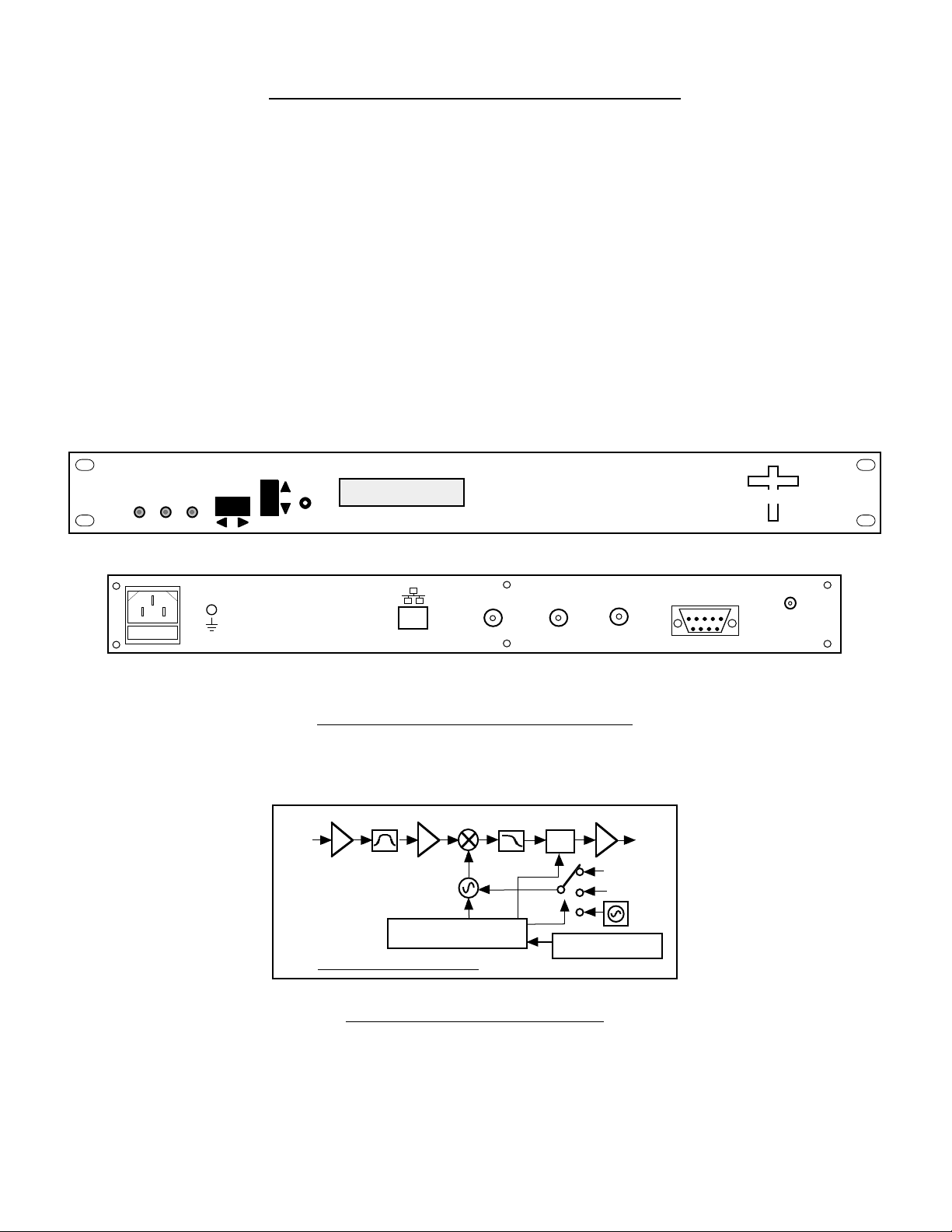

FIGURE 1.1 Front and Rear Panels

0.95 -

1.95

GHz

OUT

19.2

20.2

GHz

1.95 GHz LP

CONTROLLER

G=+10.0 Ref AUTO

19.2-20.2 GHz BP

18.25

GHz

EXT

10MHz

var

atten

INT

10MHz

3116-192 Block Diagram

AUTO

FIGURE 1.2 Block Diagram

3116-192 Manual Page 3 12/02/21

1.2 Technical Characteristics

Available Options continued on page 5...

3116-192 Manual Page 4 12/02/21

±1.5 dB, 0.95 - 1.95 GHz out; ± 0.5 dB, 40 MHz BW

Frequency Response

Channel Characteristics

LO Characteristics

± 0.01 ppm maximum over temp internal reference; external reference input

Frequency Accuracy

Non-inverting

Frequency Sense

<-50 dBC for two carriers spaced 4 MHz, at FC +-2MHz each at -10 dBm out

Intermodulation

<-50 dBm, 0.5-0.94 GHz and 1.96- 3.0 GHz, at max. gain

Spurious, Out of Band

SIGNAL RELATED<-55 dBC in band, 0 dBm out; SIGNAL INDEPENDENT,<-60 dBm

Spurious, Inband

3 dBm, ± 3 dB, with Auto-detect

10 MHz Level

18.25 GHz, fixed LO

LO Frequency

> 60 dB, minimum

Image Rejection

+35 dB ±2 dB, max. gain; +5 to +35 dB adjustment range in 0.5 ± 0.5 dB Steps at Fc

Gain, max adgustment

Other

100-240 ±10% VAC, 47-63 Hz, 30 watts maximum

Power

19 inch, Standard Chassis 1.75” high X 12.0” deep

Size

DB9 - NO or NC Contact Closure on Alarm

Alarm / Remote Connector

BNC (female), 75ΩConnector; Works with 50Ωor 75Ω

10 MHz Connectors

Super SMA (female), 50Ω/ BNC (female), 50Ω

RF/L-Band Connector

-110

-95

-80

-75

-70

100k

10k

100

dBC/Hz

Phase Noise @ F (Hz) >

Yellow LED, Indicates External 10 MHz Reference Selected

Power; Alarm; Remote; Mute

Controls, Indicators

direct readout LCD; pushbutton switches or remote

Freq.,Gain, Ext Ref Sel.

RS232C/RS485/422, 9600 baud (Ethernet Optional)

Remote

TABLE 1.1 3116-192 Block Downconverter Specifications*

-55 to -35 dBm

Input Level Range

12 dB maximum gain

Noise Figure, Maximum

-25 dBm

Input 1dB Compression

19.2 to 20.2 GHz

Frequency

+10 dBm at maximum gain

Output 1 dB Compression

-20 to 0 dBm

Output Level Range

Output Characteristics (designated L-Band)

Input Characteristics (RF)

0.95 to 1.95 GHz

Frequency

50Ω/ 14 dB

Impedance / Return Loss

50Ω/ 14 dB

Impedance / Return Loss

Available Options

Extended Temperature Option

- 0˚C to 50˚C

W31

Connector Options

50ΩSuper SMA (RF), 50ΩSMA (L-Band)

- 26S

50ΩSuper SMA (RF), 50ΩN-Type (L-Band)

- 26N

50ΩSuper SMA (RF), 75ΩBNC (L-Band)

- 267

3116-192 Manual Page 5 12/02/21

Ethernet w/direct TCP/IP Interface

W28

Remote M&C Ethernet Options

W8 + W18 + W28

W828

Ethernet w/SNMP (and MIB) Interface

W18

Ethernet w/web browser Interface

1.3 Monitor and Control Interface

A) Remote Serial Interface

Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.

(RS-232C, RS-422, or RS-485)

Female DB-9

PC Com Port

Male DB-9

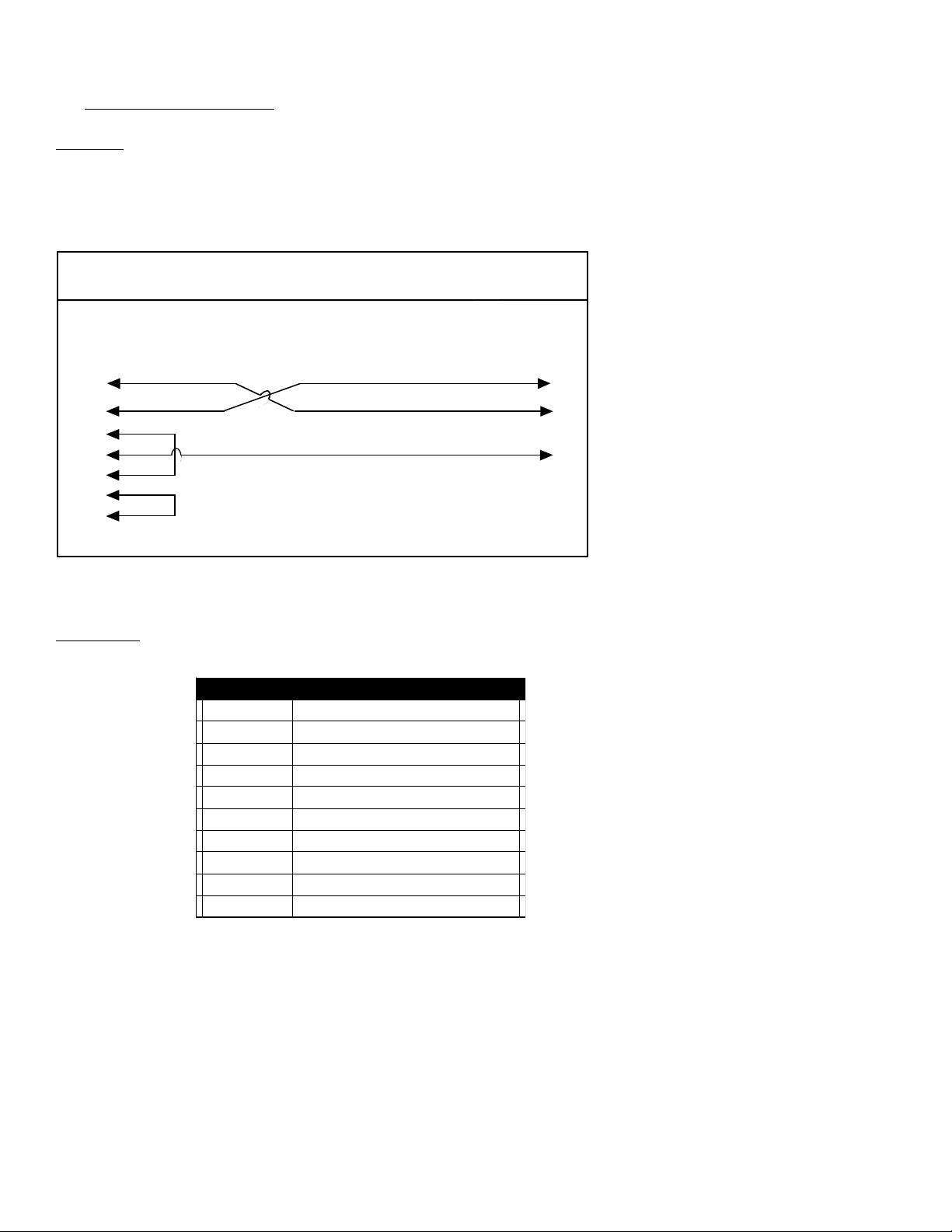

M&C Cable Diagram - Cross Technologies Frequency Converters and

Frequency Sources

Connector: Rear panel, DB-9 male

J11 Pinouts (RS-232C/422/485)

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

3116-192 Manual Page 6 12/02/21

B) Status Requests - Table 1.1 lists the status requests for the 3116-192 and briefly describes them.

* PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485 is selected.

TABLE 1.1 3116-192 Downconverter Status Requests

Command Syntax *Description

Get Gain {aaSG} returns {aaSGxxx} where:

• xxx = Converter gain in 0.5 ±0.5 dB steps.

Get Internal 10 MHz Reference Offset {aaSO} Returns {aaSOxxxxx} where:

• xxxxxx = Internal 10 MHz reference frequency offset.

Get 10 MHz Reference Mode {aaSE} Returns {aaSEx} where:

• x = 0 if the converter's 10 MHz reference mode is set to Internal

• x = 1 if the converter's 10 MHz reference mode is set to External

• x = 2 if the converter's 10 MHz reference mode is set to Auto

Get Mute {aaSM} Returns {aaSMx} where:

• x = 0 if the converter's RF output is NOT muted (RF output is ON)

• x = 1 if the converter's RF output is muted (RF output is OFF)

Get 10 MHz Reference Status {aaSB} Returns {aaSBx} where:

• x = 0 if the currently selected 10 MHz reference is Internal

• x = 1 if the currently selected 10 MHz reference is External

Get Summary Alarm Status {aaSA} Returns {aaSAx}where:

• x = 0 when there is no summary alarm condition

• x = 1 if there is a summary alarm condition

Get IP Address {Si} Returns {Sixxx.xxx.xxx.xxx} where:

Ethernet Option Only

• xxx.xxx.xxx.xxx = IP address

Get Subnet Mask {Ss} Returns {Ssxxx.xxx.xxx.xxx} where:

Ethernet Option Only

• xxx.xxx.xxx.xxx = subnet mask

!Get Product/Model info!! {Sv} Returns {Sv3116-192y..yverZZZZ} where:

• 3116-xx is the product model number

• y..y = list of options, if any

• '"ver" = separates model & options from firmware version

• ZZZZ = firmware version (e.g., 1.00)

3116-192 Manual Page 7 12/02/21

C) Commands

Table 1.2 lists the commands for the 3116 and briefly describes them.

After a command is sent the 3116 sends a return “>” indicating the command has been received and executed.

General Command Format - The general command format is {CND...}, where:

{ = start byte

C = 1 character, either C (command) or S (status)

N = 1 character command or status request

D = 1 character or more of data (depends on command)

} = stop byte

*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,

should be used ONLY when RS-485 is selected.

TABLE 1.2 3116-192 Downconverter Commands

Command Syntax *Description

Set Gain {aaCGxxx} where:

• xxx = Converter gain in 0.5 ±0.5 dB steps.

Range: 050 to 350 where 050 = 5.0 dB and 350 = 35.0 db

Example: {CG155} sets the converter's gain to +15.5dB

Set Internal 10 MHz Reference Offset {aaCOxxxxx} where:

• xxxxxx = Internal 10 MHz reference frequency offset.

Range: -2000 to +2000

Set 10 MHz Reference Mode {aaCEx} where:

• x = 0 to set the reference mode to Internal

• x = 1 to set the reference mode to External

• x = 2 to set the reference mode to Auto

Set Mute {aaCMx} where:

• x = 0 to NOT mute the RF output (RF output is ON)

• x = 1 to mute the RF output (RF output is OFF)

3116-192 Manual Page 8 12/02/21

2.0 Installation

2.1 Mechanical - The 3116-192 consists of one RF PCB housed in a 1 RU (1 3/4 inch high) by 12 inch deep

chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assemblies.

The 3116-192 can be secured to a rack using the 4 holes on the front panel.

Figure 2.0 shows how the 3116-192 is assembled.

PS IN

PIN 1, +12 VDC

PIN 2, +5 VDC

PIN 3, +5 VDC

PIN 4, GROUND

PIN 5, GROUND

PIN 6, -12 VDC

PIN 7, +24 VDC

PIN 8, +24 VDC

POWER

SUPPLY

J10

J101 - Panel Mount

Super SMA Connector

FIGURE 2.0 3116-192 Mechanical Assembly

3116-192 Manual Page 9 12/02/21

2.2 Rear Panel Input/Output Signals

Figure 2.1 shows the input and output connectors on the rear panel.

J101- INPUT

19.2 - 20.2 GHz

-55 to -35 dBm

Super SMA Female

Connector.

See Table 2.2

AC1 - POWER IN

AC input for switching power supply.

100-240 ±10% VAC, 47-63 Hz.

J1 - RF OUTPUT

0.95 - 1.95 GHz,

-20 to 0 dBm

BNC Female Connector

See Table 2.2

J11 - ALARM

DB9 female connector.

See Table 2.1.

J8 - 10 MHz EXT REF OUTPUT

+3 ±3 dBm with Auto-detect

BNC Female Connector.

GND

J2 - 10 MHz EXT REF INPUT

+3 ±3 dBm with Auto-detect

BNC Female Connector..

RF INPUT

J101

10 MHZ REF

OUTPUT

J11

ALARM

EXT 10 MHZ

INPUT

OUTPUT

J14

J14 - Ethernet Connector

RJ45 Ethernet connector.

INT

FIGURE 2.1 3116-192 Rear Panel I/Oʼs

TABLE 2.1 J11 Pinouts*

Pin Function

1 Rx-

2 Rx+ (RS-232C)

3 Tx+ (RS-232C)

4Tx-

5GND

6 Alarm Relay: Common

7 Alarm Relay: Normally Open

8 Not Used

9 Alarm Relay: Normally Closed

50ΩSuperSMA (RF), 50ΩSMA (L-BAND)

26S -

50ΩSuperSMA (RF), 50ΩN-type (L-BAND)

26N -

Contact Cross for other options

Table 2.2 Available Connector Options

50ΩSuperSMA (RF), 75ΩBNC (L-BAND)

267 -

*Remote Serial Interface

Interface: DB-9 Male Protocol: RS-232C (RS-232C/422/485, selectable),

9600 baud rate, no parity, 8 data bits, 1 start bit, 1 stop bit.

2.3 Front Panel Indicators

The following are the front panel indicators.

EXECUTE

19.2 - 20.2 GHZ

G = +10.0 Ref AUTO-I

POWER

ALARM

S3 - MENU/EXECUTE BUTTON

Press this to get into Program mode

and to execute any changes.

DS6 - ALARM LED

Red LED indicates an

alarm condition.

S2 - VERT. TOGGLE

Vertical toggle switch that controls

values in the Menu items when in

program mode. Does not function in

the normal display mode.

S1 - HORIZ. TOGGLE

Horizontal toggle switch that

controls which values are being

adjusted. Does not function in the

normal display mode.

REMOTE

DS2 - POWER LED

Green LED indicates

presence of DC power

from power supply.

DS3 - REMOTE LED

Yellow LED indicates

remote operation.

LCD DISPLAY

Display shows current

mode and output level

in dBm or gain in dB.

FIGURE 2.2 3116-192 Front Panel Controls and Indicators

3116-192 Manual Page 10 12/02/21

Table of contents

Other Cross Technologies Media Converter manuals

Cross Technologies

Cross Technologies 2016-57 User manual

Cross Technologies

Cross Technologies 2016-1522 User manual

Cross Technologies

Cross Technologies 2099-2424 User manual

Cross Technologies

Cross Technologies 2016-8085 User manual

Cross Technologies

Cross Technologies 2016-12 User manual

Cross Technologies

Cross Technologies 2116-116 User manual

Cross Technologies

Cross Technologies 3115-21-109 User manual

Cross Technologies

Cross Technologies 2015-26 User manual

Cross Technologies

Cross Technologies 2017-93 User manual

Cross Technologies

Cross Technologies 2016-95 User manual

Cross Technologies

Cross Technologies 4116-285-2450 User manual

Cross Technologies

Cross Technologies 2116-300-1600 User manual

Cross Technologies

Cross Technologies 2016-26 User manual

Cross Technologies

Cross Technologies 3016-2124 User manual

Cross Technologies

Cross Technologies 2115-275-1845 User manual

Cross Technologies

Cross Technologies 2117-7172 User manual

Cross Technologies

Cross Technologies 2015-123 User manual

Cross Technologies

Cross Technologies 2005 User manual

Cross Technologies

Cross Technologies 2017-1727-140 User manual

Cross Technologies

Cross Technologies 2117 User manual

Cross Technologies

Cross Technologies 2005-10 User manual

Cross Technologies

Cross Technologies 3116-145-1600 User manual

Cross Technologies

Cross Technologies 2015-58T User manual

Cross Technologies

Cross Technologies 2016-25 User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
