INSTRUCTION MANUAL

MODEL 4117-14 Block Up/Downconverter

TABLE OF CONTENTS PAGE

Warranty 2

1.0 General 3

1.1 Equipment Description 3

1.2 Technical Characteristics 4

2.0 Installation 6

2.1 Ethernet Interface Installation 7

2.1.1 Methods of Connection 7

2.1.2 Ethernet Configuration 7

2.1.3 Web Page M&C 9

2.1.4 SNMP Configuration 9

2.2 Up/Downconverter Outline Drawings 12

2.3 Physical Interface 13

2.4 Installation/Operation 14

WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.

All Cross Technologies, Inc. products are warranted against defective materials and

workmanship for a period of one year after shipment to customer. Cross Technologies,

Inc.’s obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s

option, replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall

not be liable for any special, indirect, or consequential damages. This warranty does not

cover parts or equipment which have been subject to misuse, negligence, or accident by the

customer during use. All shipping costs for warranty repairs will be prepaid by the

customer. There are not other warranties, express or implied, except as stated herein.

CROSS TECHNOLOGIES, INC.

6170 Shiloh Road

Alpharetta, Georgia 30005

(770) 886-8005 • FAX (770) 886-7964 • Toll Free 888-900-5588

WEB www.crosstechnologies.com • E-MAIL [email protected]

4117-14 Manual, Rev. J Page 2 03/27/17

MODEL 4117-14 Block Up/Downconverter, Weather Resistant*

1.0 General

1.1 Equipment Description

The 4117-14 Block Up, Downconverter converts a 0.2 - 0.4 GHz block to 1.2 - 1.4 GHz and a 1.2 - 1.4 block

to 0.2 - 0.4 GHz. Front panel LEDs provide indication of DC Power, and PLL Alarms. The maximum gain is

+30 dB for the Up and Downconverter. Connectors are Type N female for the UHF, L-band and L-band

Monitor and SMA female for the external reference input. Gain, and internal 10 MHz frequency are controlled

by the Ethernet M&C. In AUTO, the 10 MHz reference stays in external if the external level is in the +2 to +8

dBm range. The 4117-14 is powered by a 100-240 ± 10% power supply, and is mounted in a 8” W X 6” H X

16” D Weather Resistant* Enclosure.

NOTE: *Weather Resistant enclosures are designed to be water resistant for installation in an outdoor enclosure/antenna hut OR

mounted outdoors on an antenna assembly at their specified temperature ranges. They are designed to be located “out in the

elements” (water, sleet, snow, etc.) but they are not designed to be “submerged under” water. If an extended temperature range is

required, there is an Extended Temperature option (Option W21; -30˚C to +60˚C) available at an additional cost. Contact Cross for

quote.

10M IN

J1 RF OUT

POWER

ALARM

J3 J4

10M OUT

FUSE

J8 AC IN

J7 ETHERNET

MODEL 4117

UP/DOWNCONVERTER

CROSS TECHNOLOGIES INC.

DOWN-

CONV

UP-

CONV

J15 RF OUTJ21 RF IN MONJ11 RF IN

J2 RF OUT MON J5 RF IN

FIGURE 1.0 Model 4117-14 Block Up/Downconverter Front Panel

PLL,ATT, CONTROL

M&C

CONTROLLER

0.2 - 0.4 GHz

UHF OUT

1.2

1.4

GHz

+10

L-band

MON

0.5 GHz LP

4117-14 Block Up / Downconverter Block Diagram

EXT

10 M

PLLS

0.2

0.4

GHz

2.375

GHz

2.075 GHz BP

T1.2-1.4 GHz

L-band

OUT

-20 dBC

L-band

MON

2.075 GHz BP

0.5 GHz LP

L > U Downconverter

U > L Upconverter

1.5 GHz LP

3.375

GHz

2.375 GHz

2.375 GHz3.375 GHz

3.375 GHz

1.5 GHz LP

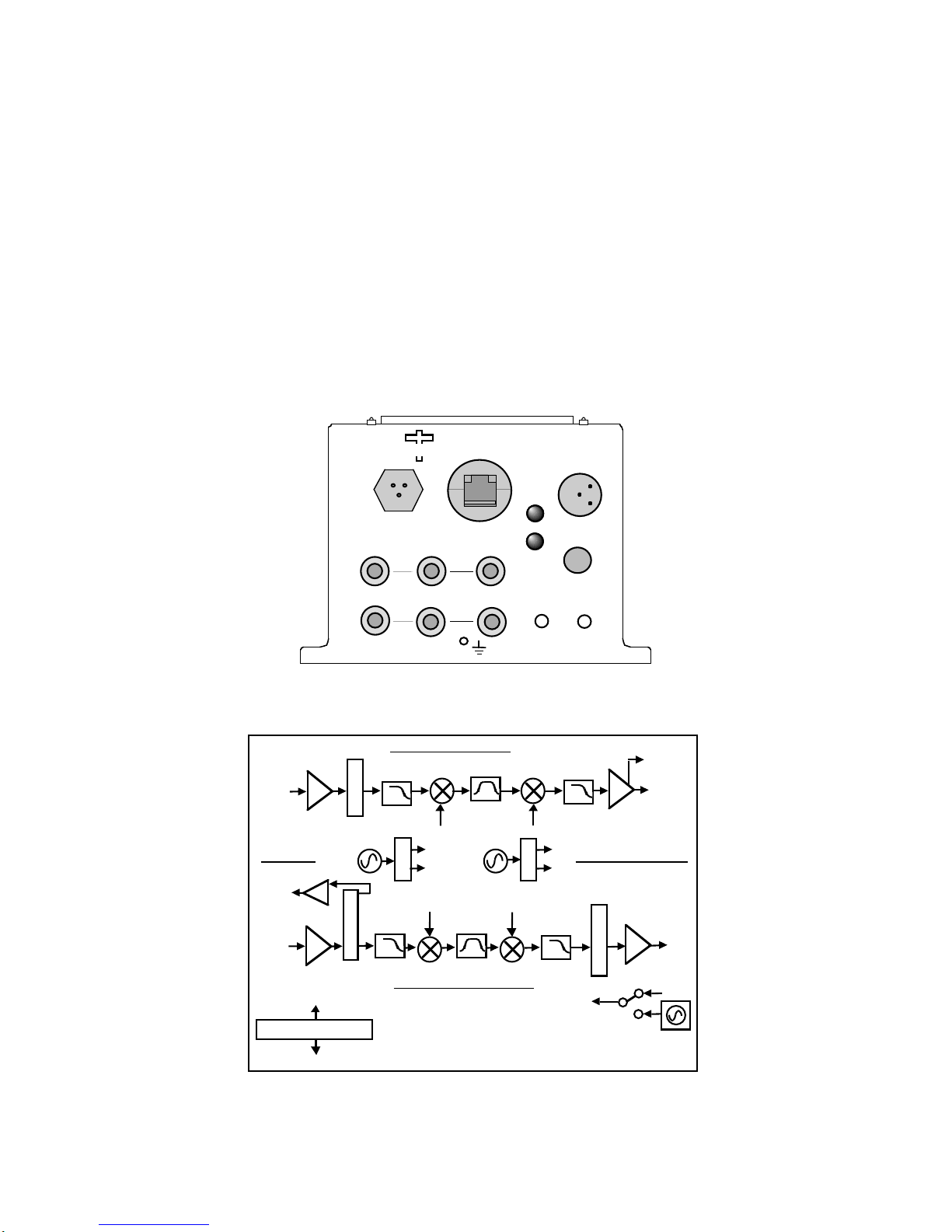

FIGURE 2.0 Model 4117-14 Block Up/Downconverter Block Diagram

4117-14 Manual, Rev. J Page 3 03/27/17

1.2 Technical Characteristics

0.05

maximum

over

tem

internal

reference

;

external

reference

Fre

uenc

Accurac

Characteristics

converter

and

Downconverter

dBm

ohms

MHz

Level

See

Block

Dia

ram

Translation

fixed

Fre

uenc

-110-100-85-80-70 1MHz100kHz10kHz1kHz100 MHz

dBC/Hz

Phase Noise @ Frequency (Hz) >

TABLE 1.0 4117-14 Block Up/Downconverter Specifications**

dBm

Maximum

Dama

-40

-25

dBm

Level

Ran

Non-invertingFrequency Sense

±0.5

Fre

uenc

Res

MHz

±2

Fre

uenc

Res

Band

<-50 dBC

Intermod - 2 carriers

MHz

ace

-10

dBm

< -50 dBm

1.6

GHz

Out

urious

Out

Band

-55

dBm

urious

Inband

ind.

dBC

dBm

urious

Inband

rel.

minimum

Ima

ection

+30

Gain

ran

0.5±0.5

ste

+10

dBm

Out

com

max.

ain

-20±3

dBC

OUT

Monitor

Level

maximum

ain

Noise

ure

Maximum

+30

±3

Gain

max.

Channel

Characteristics

Mute

dBm

out

-15

dBm

Out

Level

Ran

0.2

0.4

GHz

Fre

uenc

Out

Characteristics

(

UHF

)

Characteristics

(

UHF

)

1.2

1.4

GHz

Fre

uenc

y (

GHz

)

50Ω

edance/Return

Loss

50Ω

edance/Return

Loss

UPCONVERTER

dBm

Maximum

Dama

-50

-30

dBm

Level

Ran

Non-invertin

Fre

uenc

Sense

±0.5

Fre

uenc

Res

MHz

±2

Fre

uenc

Res

Band

< -50 dBC

Intermod - 2 carriers

MHz

ace

-10

dBm

< -45 dBm

0.1

0.6

GHz

Out

urious

Out

Band

dBC

dBm

urious

Inband

ind.

urious

Inband

rel.

minimum

Ima

ection

+10±3

dBC

Monitor

Level

+10

dBm

Out

com

max.

ain

maximum

ain

Noise

ure

Maximum

+30

Gain

ran

0.5±0.5

ste

Out

Characteristics

(

UHF

)

50Ω

edance/Return

Loss

+30

±3

Gain

max.

Channel

Characteristics

N/A

Mute

dBm

out

-20

dBm

Out

Level

Ran

1.2

1.4

GHz

Fre

uenc

Characteristics

(

UHF

)

0.2

0.4

GHz

Fre

uenc

y (

GHz

)

50Ω

edance/Return

Loss

DOWNCONVERTER

.2 - .4 GHz out

≥-40 dBc @ 0 dBm out

Downconverter

2nd

Harm

1.2 Technical Characteristics (continued on page 5)

4117-14 Manual, Rev. J Page 4 03/27/17

1.2 Technical Characteristics (continued from page 4)

TABLE 1.0 2017-0416 Up/Downconverter Specifications* continued...

Controls

Indicators

Green LEDPower

Gain & internal 10 MHz fre

uenc

via Ethernet M&C of Status/Control ConnectorGain

Band

10M Fre

uenc

Red LED

External Contact ClosurePLL Alarm

Other

8” Wide x 6” High x 16” Deep Weather Resistant Enclosure

Size

100-24 ±10% VAC

47-63 Hz

25 watts maximumPower

SMA

(

female

50Ω10 MHz Connector

*10˚C to 40˚C; Specifications subject to change without notice.Cross Technologies, Inc. 2017

Status/Control Connector, MS3112E14-18S;

Mating Cable Connector MS3116F14-18P.

Ethernet Conector, RJF21B; Mating Cable Connector, RJF6G;

Cable interface, Standard RJ45.

AC Input Connector, Clipper Series, CL1M1102,

Mating Cable Connector, CL1F1101.

(Unless otherwise specified, the mating connector is provided preassembled onto a standard

NEMA 5-15 U.S. power cord.)

Weather Resistant*

Connectors

e-N

(

female

50Ω

L-Band/UHF/

Monitor Port Connectors

*Weather Resistant enclosures are designed to be water

resistant for installation in an outdoor enclosure/antenna hut

OR mounted outdoors on an antenna assembly at their specified

temperature ranges. They are designed to be located “out in the

elements” (water, sleet, snow, etc.) but they are not designed to

be “submerged under” water.

If an extended temperature range is required, there is an

Extended Temperature option (Option W21; -30˚C to +60˚C)

available at an additional cost. Contact Cross for quote.

4117-14 Manual, Rev. J Page 5 03/27/17

2.0 Installation

The 4117-14 Block Up/Downconverter consists of a 8”W X 6”H X 16”D Weather Resistant* enclosure.

A switching, ± 12, +24, +5 VDC power supply provides power for the internal assemblies. The 4117-14 can be

secured to a mounting plate using the 4 holes on the bottom of the front and rear panels. See Figure 2.5 for

mounting dimensions.

Figure 3.0: Model 4117-14 Up/Downconverter Front Panel

2.0.1 Connection to AC Input Power

The 4117-14 utilizes a pre-assembled AC power input cable as described below.

4117-

4 Power Input Connector, FCI Clipper Series, CL1M1102 & Crimp Pins

Matin

Mating Connector, Clipper Series, CL1F1101 and Crimp Pins

and CCL101021

and CL101021 Backshell

Pin Input Connector Pin Description

1 100-240 ±10% VAC, 47-63 Hz, 20 watts max.

2 Neutral

3 Ground

4117-14 Manual, Rev. J Page 6 03/27/17

2.1 ETHERNET Interface Installation and Operation

The 4117-14 frequency converter is equipped with a 10/100 Base-T compatible Ethernet interface for control

and monitoring of its operating parameters. An HTML script interface allows the user to monitor and control

the converter using a standard web browser. SNMP (Simple Network Management Protocol) is also supported.

Contact Cross Technologies for the SNMP MIB file.

2.1.1 Methods of Connection

Directly Connected to a PC:

For control from a local PC, attach the 4117-14’s Ethernet port to the Ethernet network connector on the

PC using a crossover RJ-45 cable.

LAN Connection

For LAN connections, attach the 4117-14 Ethernet port to the LAN using a normal RJ-45 cable.

Use any PC on the LAN to connect to the 4117-14.

2.1.2 Ethernet Configuration

Each 4117-14 must be configured with an appropriate IP address, Netmask, and Gateway assigned by your

network manager. The 4117-14 is set at the factory with a static address that is written on a tag attached to the

unit. The device server in the 4117-14 has a built in HTTP based configuration manager that is used to

configure network settings. To access the configuration manager open a web browser and enter the IP address

of the 4117-14 in the browser's address field. The window shown in Figure 4-A will appear. As delivered,

there is no password set. Choose your user name and password here or leave those fields blank and click OK

to proceed to the configuration manager web page.

NOTE: The default, Factory Set IP Address is: 192.168.123.2

Figure 4-A: Password Screen

4117-14 Manual, Rev. J Page 7 03/27/17

Figure 4-B: Configuration Manager Screen

In the left frame of the configuration manager click on Network to display the Network Settings screen.

Enter the IP address, Subnet mask, and Gateway address with delimiter dots (example: 192.168.192.47).

Click apply settings in the left frame to apply the new settings in the network device.

4117-14 Manual, Rev. J Page 8 03/27/17

2.1.3 Web page M & C

Enter the following address in a web browser to access the M & C Web page:

http://<ip address of 41xx>/serial/0/setup.htm where <ip address> is the IP address

of the unit. Figure 4-C shows the web page from a model 4117-14 frequency converter.

Figure 4-C: Model 4117-14 Web page

2.1.4 SNMP Configuration

Setting of SNMP parameters such as Community Write and Community Read strings requires a Telnet®

connection to port 9999. The following instructions explain how to establish such a Telnet®connection using

Windows XP's Hyper Terminal utility .

Start the Hyper Terminal application and select “New Connection” from the “File” drop down menu. The next

screen is a “Connect To” dialog box. Select TCP/IP (Winsock) from the “Connect” using drop down menu.

Enter the IP address of the 4117-14 in the “Host Address:” field and 9999 in the “Port Number” field.

Figure 4-D shows an example of the Hyper Terminal settings required to access the SNMP configuration menu.

4117-14 Manual, Rev. J Page 9 03/27/17

Figure 4-D: Telnet®Settings in Hyper Terminal

Once the Telnet®connection is established you will be prompted to “Press Enter for Setup Mode.” Press enter

and a menu of device server configuration options will appear (see Figure 4-E). Select menu item 3, “SNMP

configuration.” You will be prompted to enter SNMP community read and write strings. After setting your

desired community strings you will be prompted to “Enter IP addresses for SNMP traps:” You must enter at

least one and up to four IP addresses of SNMP managers that will access the unit. This is required even though

SNMP traps are not implemented. The unit will not process SNMP SET and GET requests from an SNMP

manager unless the IP address associated with that manager is entered in the device server.

4117-14 Manual, Rev. J Page 10 03/27/17
