Craftsman 917.382770 User manual

917.382770 (1999 & Before) Page 1 of 5

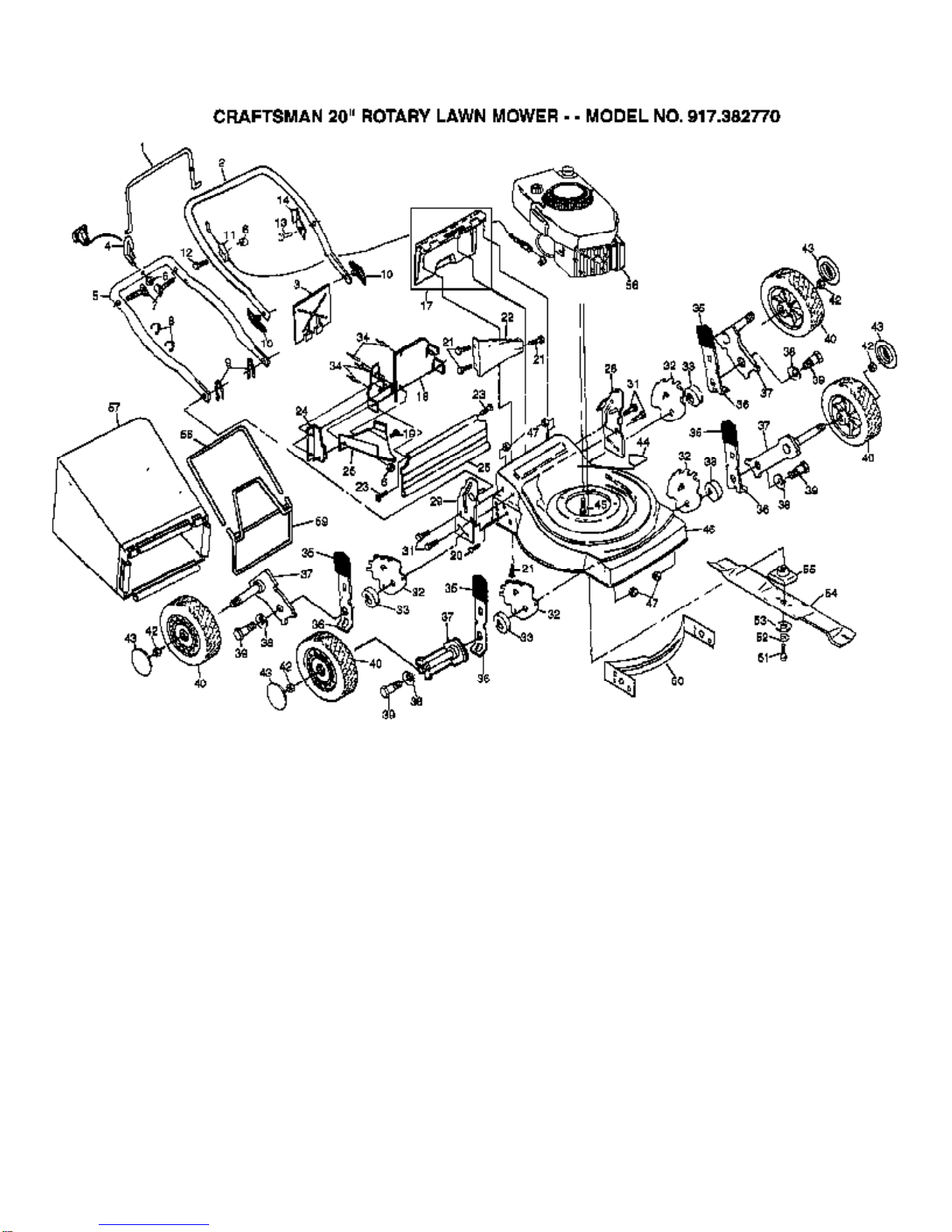

20" CRAFTSMAN ROTARY MOWER

917.382770 (1999 & Before) Page 2 of 5

20" CRAFTSMAN ROTARY MOWER

Ref # Part Number Qty Description

186902 CONTROL BAR PM

2133088X479 SUB= 918133088X479

3133169X479 MULCHER PLATE

4103672X ROPER GUIDE PM

584676X479 SUB= 151516X479

6STD541425 LOCKNUT

7131959 BOLT.HANDLE.LM

885827 CABLE CLIP PM

951793 HAIRPIN COTTER

10 136376 KNOB HANDLE

11 130861 "CABLE,ENG ZONE CO"

12 74350424 BOLT 1/4-20-1 1/2

13 750097 TAPPING SCREW

14 850733X004 "BRKT,UPSTOP"

17 48257 "KIT, REAR DOOR PM"

18 700357X479 PLATE.BACK

19 STD622506 SELF TAPPING SCREW

20 86344 SCREW PM

21 54583 SCREW

22 700063X479 REAR BAFFLE

23 88652 HINGE SCREW

24 700363X479 BAFFLE.SIDE

25 133335X479 SUB= 155985

26 140657 SKIRT.PUSH.20RD

28 140629X479 SUB= 150958

29 140628X479 SUB= 150958

31 55187 SCREW

32 700325X007 BRACKET.ADJ.9POS.

33 84920 SUB= 146630

34 128415 BLIND RIVET

35 87877 KNOB PM

36 700331X004 SPRING SELECTOR

37 145935X004 ARM.AXLE.ASM.BZP.

38 62335 "WASHER, BELLEVIL."

39 84921 SUB= 142748

40 146248 WHEEL.8X1.75.LP.

42 83923 HEX FLANGE LOCKNT

43 77400 HUB CAP

44 85463 DECAL-DANGER PM

45 850998 SCREW

46 48348 SUB= 48395

47 751592 LOCKNUT PM

50 700938X479 SUB= 144915

51 851084 SCREW

52 850263 LOCKWASHER

53 851074 "WASHER,HARDEN"

54 752233 SUB= 204114-884

55 850977 BLADE ADAPTOR

56 144748 FRAME.TUBE.LT.BAG

57 141245 SUB= 154862

58 146291 ENGINE CRAFTSMAN MODEL NUMBER 143.954002

59 144747 FRAME.THROAT.ASM

146309 OWNERS MANUAL

917.382770 (1999 & Before) Page 3 of 5

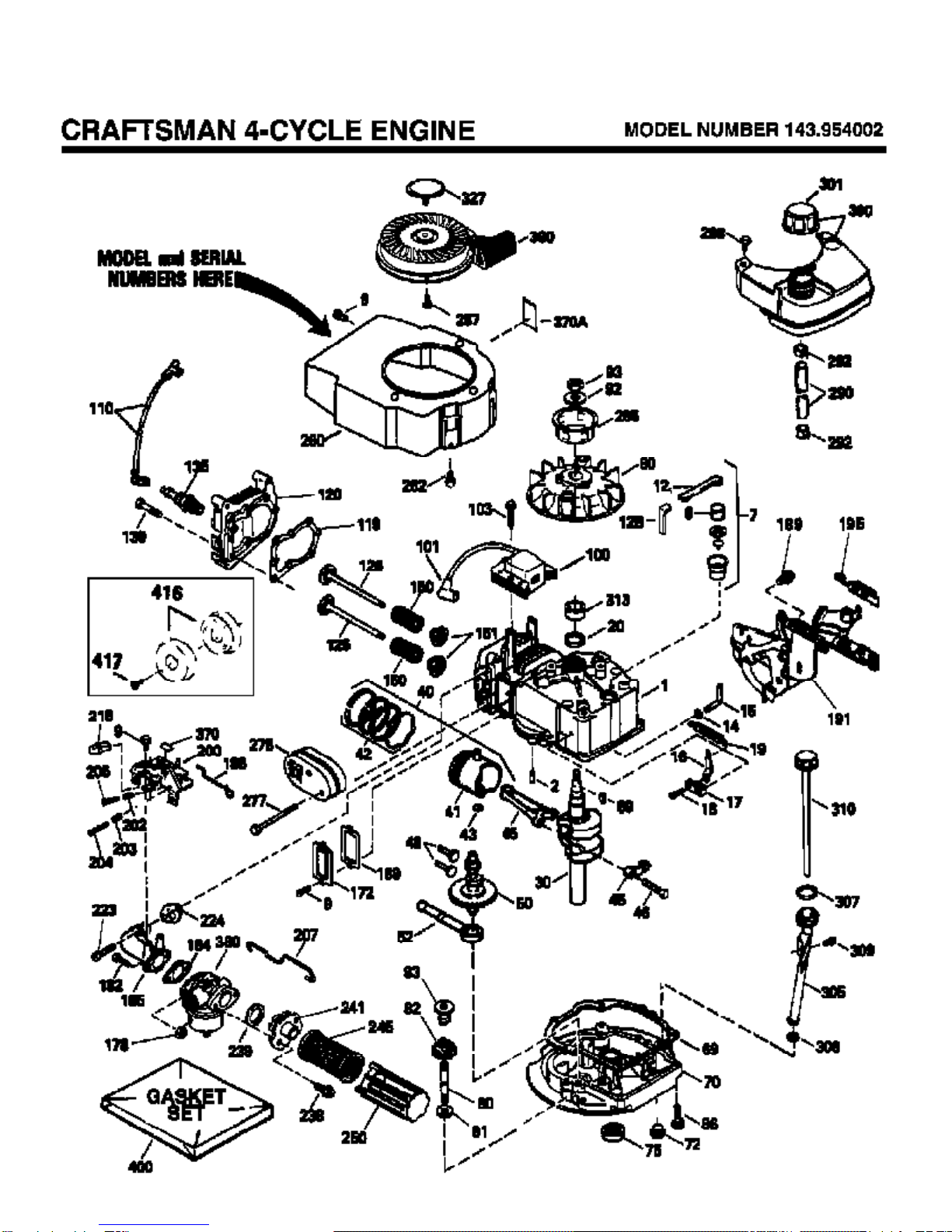

CRAFTSMAN 4-CYCLE ENGINE

917.382770 (1999 & Before) Page 4 of 5

CRAFTSMAN 4-CYCLE ENGINE

Ref # Part Number Qty Description

136478A CYLINDER

226727 DOWEL PIN

633734 BREATHER ELEMENT

736557 BREATHER BODY ASSY

930200 SCREW

12 36558 BREATHER TUBE

12B 34695 BREATHER TUBE ELBOW

14 28277 WASHER

15 30589 GOVENOR ROD

16 31383A GOVENOR LEVERR

17 31335 GOVENOR LEVER CLAMP

18 650548 SCREW

19 36281 EXT SPRING

20 32600 OIL SEAL

30 35996 CRANKSHAFT

40 36073 PISTON PIN AND RING SET

36074 PISTON PIN AND RING SET

36075 PISTON PIN AND RING SET

41 36070 PISTON PIN AND RING SET

36071 PISTON AND PIN ASSY

36072 PISTON AND PIN ASSY

42 36076 RING SET

36077 RING SET

36078 PISTON PIN RETAINING RING

43 20381 PISTON PIN RETAINING RING

45 30963B CONNECTING ROD ASSY

46 32610A CONNECTING ROD BOLT

48 27241 VALVE LIFTER

50 35992 CAMSHAFT

52 29914 OIL PUMP ASSY

69 35261 MOUNTING FLANGE GASKET

70 34311D MOUNTING FLANGE

72 36083 OIL DRAIN PLUG

73 28833 DRAIN PLUG GASKET

75 27897 OIL SEAL

80 30574A GOVENOR SHAFT

81 30590A WASHER

82 30591 GOVENOR GEAR ASSY

83 30588A GOVWENOR SPOOL

86 650488 SCREW

89 611004 FLYWHEEL KEY

90 611112 FLYWHEEL

92 650815 BELLEVILLE WASHER

93 650816 FLYWHEEL NUT

100 34443A SOLID STATE IGNITION

101 610118 SPARK PLUG COVER

103 650814 SCREW

110 34961 GROUND WIRE

119 36477 CYLINDER HEAD GASKET

120 36476 CYLINDER HEAD

125 36471 EXHAUST VALVE

36472 EXHAUST VALVE

126 29314B INTAKE VALVE

29315C INTAKE VALVE

130 6021A SCREW

135 35395 RESISTOR SPARK PLUG

150 35991 VALVE SPRING

151 31673 VALVE SPRING CAP

917.382770 (1999 & Before) Page 5 of 5

CRAFTSMAN 4-CYCLE ENGINE

Ref # Part Number Qty Description

169 27234A VALVE COVER GASKET

172 32755 VALVE COVER

178 29752 NUT AND LOCK WASHER

182 6201 SCREW

184 26756 CARB TO INTAKE PIPE GASKET

185 31384A INTAKE PIPE

186 34337 GOVENOR LINK

189 650839 SCREW

191 36559 S.E. BRAKE BRKT

195 610973 TERMINAL

200 35727 CONTROL BRKT

202 36482 COMP SPRING

203 31342 COMPCOMP SPRING

204 650549 SCREW

205 650777 SCREW

207 34336 THROTTLE LINK

215 32410 CONTROL KNOB

223 650451 SCREW

224 34690A INTAKE PIPE GASKET

238 650932 SCREW

239 34338 AIR CLEANER GASKET

241 35797 AIR CLEANER COLLAR

245 35066 AIR CLEANER FILTER

250 35065 AIR CLEANER COVER

260 36420A BLOWER HOUSING

262 650831 SCREW

275 36473 MUFFLER

277 650988 SCREW

285 35000A STARTER CUP

287 650926 SCREW

290 30705 FUEL LINE

292 26460 FUEL LINE CLAMP

298 28763 SCREW

300 34369B FUEL TANK

301 35355 FUEL CAP

305 35647 OIL FILL TUBE

306 34265 O-RING

307 35499 O-RING

309 650562 SCREW

310 35648 DIPSTICK

313 34080 SPACER

327 35392 STARTER PLUG

370 35167 INSTR DECAL

370A 36261 INST DECAL

380 632646 CARB

390 590694 REWIND STARTER

400 36481 GASKET SET

416 36085 SPARK ARRESTER KIT

417 650760 SCREW
