USER MANUAL
21 inch Gasoline Lawnmower
Self-propelled: HG53SMH-XP200
Gasoline Engine:ZONGSHEN-XP200, 196cc, OHV, Single Cylinder, 4 Strokes
CAUTION: Before any use read carefully the user manual which has been purposely drawn
up to provide you with all the necessary information for proper use, in
compliance with basic safety requirements.
Caution: Read carefully the manual before use.
Caution: Keep other people well away from the danger area.
Caution: Risk of hand and feet injuries.
Caution: Emission of toxic gas, do not use
the mower in a close area or not well ventilated.
Caution: hot surfaces.
Caution: Before carrying out any operation stop the engine and
disconnect the spark plug cap.
Caution: Never fill up the fuel tank while the engine is running.
IMPORTANT: Read with care the security requirements included in the engine manual
before the first use of the engine.
2
1-DESCRIPION
SUMMARY:
1/ DESCRIPTION
2/ ASSEMBLY OF GRASS CATCHER/DEFLECTOR
3/ HANDLE ASSEMBLY
4/
ADJUSTMENT OF CUTTING HEIGHT
5/
SAFETY PRECAUTIONS
6/
OPERATION
7/
GEAR BOX
8/
SAFETY RULES
9/
MAINTENANCE
10/
EXPLODING VIEW
11/
WARRANTY
1 Engine control bar 2 Self-propelled 3 Superior handle 4 Inferior handle
5 Engine 6 Deck 7 Tool box 8Throttle control
Side-discharge Grass-guiding Board
Side-Closing Board
SCHNELLAUFBAU
12/
3
2-4 IN 1 FUNCTION
Mulching:
Close the Side-Closing Board and insert the Mulcher Guard (Fig C)
Rear discharge with grass collection:
Take out the Mulcher Guard (Fig C) and place the grass catcher at its place. fig B
Rear discharge without grass collection:
Take out the Mulcher Guard (Fig C) and close the Side-Closing Board.
Mulcher Guard
4
Side discharge:
Take out the Mulcher Guard (Fig C) and Side-discharge Grass-guiding Board (Fig D)
Fig Pictures
B
C
D
3-ASSEMBLY OF THE HANDLE
Open out the handle and screw the handles parts with the two screws and plastic nuts. Put the
recoil starter on the right of the handle and fix the cable with the plastic collar.
Introduce the rope of the recoil starter handle on its support guide rope.
5
3.1
2.2
2.3
2.4
4 X
5
1
2
3
4
Rad zusammenbauen
Installation der unteren Armlehne
Fixierung der oberen
Armlehne und der
unteren Armlehne
Fixierung der Verkabelung
Klingenmontage
2.1
3.2
Die Schrauben
der Klinge
müssen mit über
40 Newton fest
angezogen
werden.
Installation der Handlaufverkleidung
Einfädeln des Seils
4-SCHNELLAUFBAU
6
5A
B
C
1
2
6
7

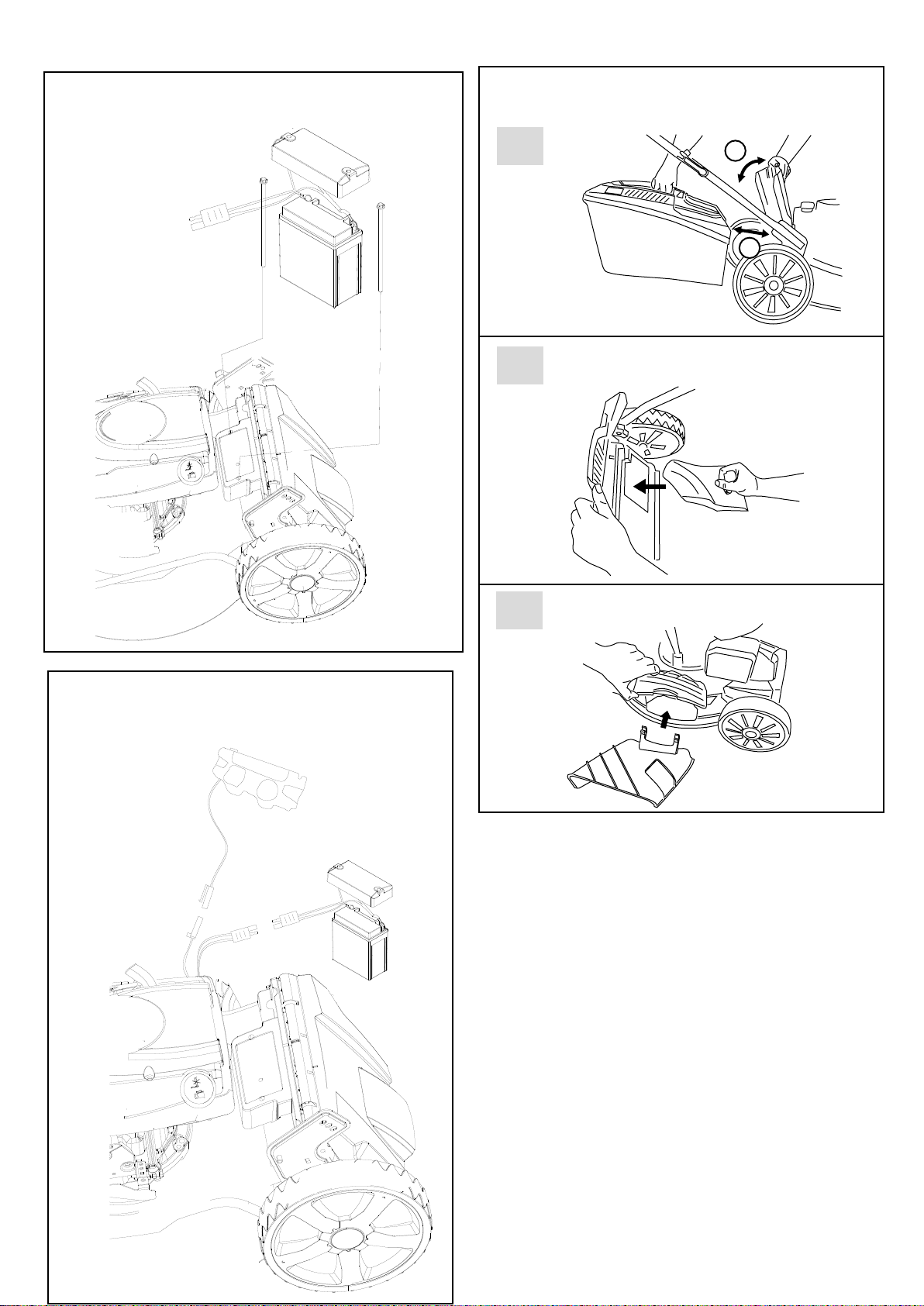

Batterieinstallation
5Montagezubehör
Grassfangkorb
Mulcheinsatz
Seitenauswurf
Kabelverbindung für Batterie und Netzschalter
7
5-CUTTING HEIGHT AJUSTMENTS
6-SAFETY PRECAUTIONS
a) Always use the lawnmower with the grass catcher or/ and the deflector in position.
b) Stop the engine before emptying the grass catcher or before you change the cutting
height.
c) While the engine is running, never introduce your hands or feet under the lawnmower or
under the grass ejection area. fig E
d) Before mowing, remove all foreign objects from the lawn, which maybe thrown by the
machine. fig F
e) Keep children and other people and domestic animals at a safe distance when the
lawnmower is in use.
f) Never lift the mower while starting the engine. fig G
Lowest Level
Highest Level
8
7-OPERATION
Before using the machine you must read the Engine instruction book.
Engine delivered without oil: add 0.6liter of oil before
starting the engine.
ENGINE STARTING:
Once the machine has been set up properly, start the engine as follow:
a) Put the lever on the START position or 。
b) Take the flame out (N○3) and maintain it against the superior handle, pull on the recoil starter
handle until you can feel resistance and then pull harshly.
c) Put the lever on RUN position or 。
If the machine is equipped with electric start, press the "START" or "POWER" button or turn
the key switch to the "start" position to use the electric start. Typically, electric start engines can
also be pull started.
Blade is in action as soon as engine started. While the machine is working maintain the
security handle (3) in working position. The engine will stop as soon as you release the engine
control bar.
9
8-GEAR BOX
9-SECURITY MEASURESURES
DEMARRAGE
FOR THE SELF PROPELLED MOWER HG53SMH-XP200
To engage the self-propelled system, pull on the inferior lever of the handle and maintain it
engaged together with the brake lever. fig H
Control frequently the self-propelled system. Polish the gear in the wheels and put grease on them.
Do the same control on the ball bearing if any.
General conditions of use.
1. This machine is to be used exclusively for cutting natural grass. Never use the mower for
other purposes. Any other utilization can involve danger for your safety and can involve
damage to the mower.
2. Persons under 16 years of age and persons who are not familiar with the user instructions
must not use the mower.
10
