VIEW Certified Configuration Guide

Cisco

2100/4400/5500 Series WLC (Wireless LAN Controller),

WiSM (Wireless Services Module) and 3750G Integrated WLC

with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

Patent Information

The accompanying product is protected by one

or more US and foreign patents and/or pending

patent applications held by Polycom, Inc.

POLYCOM®, the Polycom "Triangles" logo and

the names and marks associated with Polycom's

products are trademarks and/or service marks

of Polycom, Inc. and are registered and/or

common law marks in the United States and

various other countries. All other trademarks

are property of their respective owners. No

portion hereof may be reproduced or

transmitted in any form or by any means, for

any purpose other than the recipient's personal

use, without the express written permission of

Polycom.

pan-American copyright Conventions.

No part of this manual, or the software

described herein, may be reproduced or

transmitted in any form or by any means, or

translated into another language or format, in

whole or in part, without the express written

permission of Polycom, Inc.

Do not remove (or allow any third party to

remove) any product identification, copyright or

other notices.

Every effort has been made to ensure that the

information in this document is accurate.

Polycom, Inc. is not responsible for printing or

clerical errors. Information in this document is

subject to change without notice and does not

represent a commitment on the part of Polycom,

Inc.

Notice

Polycom, Inc. has prepared this document for

use by Polycom personnel and customers. The

drawings and specifications contained herein

are the property of Polycom and shall be neither

reproduced in whole or in part without the prior

written approval of Polycom, nor be implied to

grant any license to make, use, or sell equipment

manufactured in accordance herewith.

Polycom reserves the right to make changes in

specifications and other information contained

in this document without prior notice, and the

reader should in all cases consult Polycom to

determine whether any such changes have been

made.

NO REPRESENTATION OR OTHER

AFFIRMATION OF FACT CONTAINED IN

THIS DOCUMENT INCLUDING BUT NOT

LIMITED TO STATEMENTS REGARDING

CAPACITY, RESPONSE-TIME

PERFORMANCE, SUITABILITY FOR USE, OR

PERFORMANCE OF PRODUCTS DESCRIBED

HEREIN SHALL BE DEEMED TO BE A

WARRANTY BY POLYCOM FOR ANY

PURPOSE, OR GIVE RISE TO ANY LIABILITY

OF POLYCOM WHATSOEVER.

Contact Information

Please contact your Polycom Authorized

Reseller for assistance.

Polycom, Inc.

4750 Willow Road,

Pleasanton, CA 94588

http://www.polycom.com

Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 3

Contents

Overview....................................................................................................4

Certified Product Summary ..............................................................4

Known Limitations .............................................................................5

Polycom References ............................................................................5

Product Support ..................................................................................6

Section 1: Configuration for SVP Operation...........................................7

Network Topology..............................................................................7

Configuring a New Controller Starting from Factory

Defaults.................................................................................................7

Connecting to the Controller Via a Browser ...................................8

Installing Software ..............................................................................9

Controller Setup ..................................................................................9

Connecting APs.................................................................................10

AP Configuration..............................................................................11

Setting up the SSID ...........................................................................17

Section 2: Configuration for Wi-Fi Standard QoS or CCXv4

Operation.................................................................................................23

Network Topology............................................................................23

Configuring a New Controller Starting from Factory

Defaults...............................................................................................24

Connecting to the Controller Via a Browser .................................24

Installing Software ............................................................................25

Controller Setup ................................................................................26

Connecting APs.................................................................................27

AP Configuration..............................................................................28

Setting up the SSID ...........................................................................37

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

Overview

Polycom’s Voice Interoperability for Enterprise Wireless (VIEW)

Certification Program is designed to ensure interoperability and high

performance between SpectraLink Wireless Telephones and WLAN

infrastructure products.

The products listed below have been thoroughly tested in Polycom’s

lab and have passed VIEW Certification. This guide describes the

configuration of Cisco 2100/4400/5500 Series WLC (Wireless LAN

Controller), WiSM (Wireless Services Module) and 3750G Integrated

WLC with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs with

SpectraLink 8020/8030 Wireless Telephones.

Certified Product Summary

Manufacturer:

Cisco Systems: www.cisco.com

Certified products:

Controllers:

2100, 4400, 5500 Series WLC

(Wireless LAN Controller)

3750G Integrated WLC

WiSM (Wireless Services

Module)

APs:

1100

1130

1140

1200

1230

1240

1250

AP Radio(s):

2.4 GHz (802.11b/g/n), 5 GHz (802.11a/n)

Security:

WPA-PSK, WPA2-PSK, WPA2-Enterprise (EAP-FAST

and PEAPv0/MSCHAPv2) with CCKM (Cisco Client Key

Management)

QoS:

SVP, Wi-Fi Standard QoS, CCXv4

AP and WLC software version

tested:

5.2.193.0†

6.0.199.4††

Handset models tested:

SpectraLink 8020/8030 Wireless Telephone*

Radio mode:

802.11b & b/g mixed

802.11a

Meets VIEW minimum call

capacity per AP:

8 calls (SVP)

6 (Wi-Fi Standard QoS)**

6 (CCX)**

12 calls (SVP)

8 (Wi-Fi Standard QoS)**

8 (CCX)**

Network topology:

Switched Ethernet (recommended)

† Push-to-talk (PTT) audio quality may be impaired on Cisco 1140 and 1250 802.11n APs with

version 5.2.193.0 certified software. All customers requiring PTT using these models should pilot

test this feature at their deployment site.

†† Screen captures included in this document are for Cisco software version 6.0.199.4. Refer to

Version D of this guide for screen captures for software version 5.2.193.0.

Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 5

*SpectraLink handset models 8020/8030 and their OEM derivates are verified compatible with

the WLAN hardware and software identified in the table. Throughout the remainder of this

document they will be referred to collectively as “SpectraLink Wireless Telephones” or

“handsets”.

** ONLY Release 3.0 capable handsets support WPA2-Enterprise, Wi-Fi Standard QoS, and

CCXv4. Release 3.0 is not be available for Polycom handsets connecting to traditional PBXs.

Known Limitations

Push-to-talk (PTT) audio quality may be impaired on Cisco 1140

and 1250 802.11n APs with version 5.2.193.0 certified software.

All customers requiring PTT with these models should pilot test

this feature at their deployment site.

Heavy multicast, broadcast or push-to-talk (PTT) traffic may

impair voice quality.

Polycom References

Please refer to the Polycom Deploying Enterprise-Grade Wi-Fi Telephony

white paper. This document covers the security, coverage, capacity

and QoS considerations necessary for ensuring excellent voice quality

with enterprise Wi-Fi networks.

For more detailed information on wireless LAN layout, network

infrastructure, QoS, security and subnets, please see the Best Practices

Guide for Deploying SpectraLink 8020/8030 Wireless Telephones. This

document identifies issues and solutions based on Polycom’s

extensive experience in enterprise-class Wi-Fi telephony. It provides

recommendations for ensuring that a network environment is

adequately optimized for use with SpectraLink 8020/8030 Wireless

Telephones.

These two white papers are available at:

http://www.polycom.com/products/voice/wireless_solutions/wifi

_communications/handsets/spectralink_8020_wireless.html

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

Product Support

This document does not cover the steps involved in converting

autonomous APs to Lightweight mode such that they can be

controlled by the Cisco WLCs.

Please contact Cisco's Customer Support at www.cisco.com for

instructions on this procedure. Once the APs are converted, this

document can be used to provision APs.

This document does not cover the steps involved to configure a

RADIUS server required for using WPA2-Enterprise or Cisco FSR

security types.

1. Installation and configuration guides for Cisco Wireless LAN

Controllers can be found on Cisco’s website.

2. To convert the Cisco 1200 Series Autonomous AP to Lightweight

mode, go to:

http://www.cisco.com/en/US/docs/wireless/access_point/con

version/lwapp/upgrade/guide/lwapnote.html

3. For more information on the APs in Lightweight mode, see Cisco

Aironet Access Point Support for Lightweight Access Point

Protocol [Cisco Aironet 1130 AG Series] and Cisco Aironet Access

Point Support for Lightweight Access Point Protocol [Cisco

Aironet 1240 AG Series].

4. Screen captures included in this document are for Cisco software

version 6.0.199.4. Refer to Version D of this guide for screen

captures for software version 5.2.193.0.

5. For other assistance, contact either Cisco’s or Polycom’s customer

service at:

www.cisco.com or www.polycom.com

Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 7

Section 1: Configuration for SVP Operation

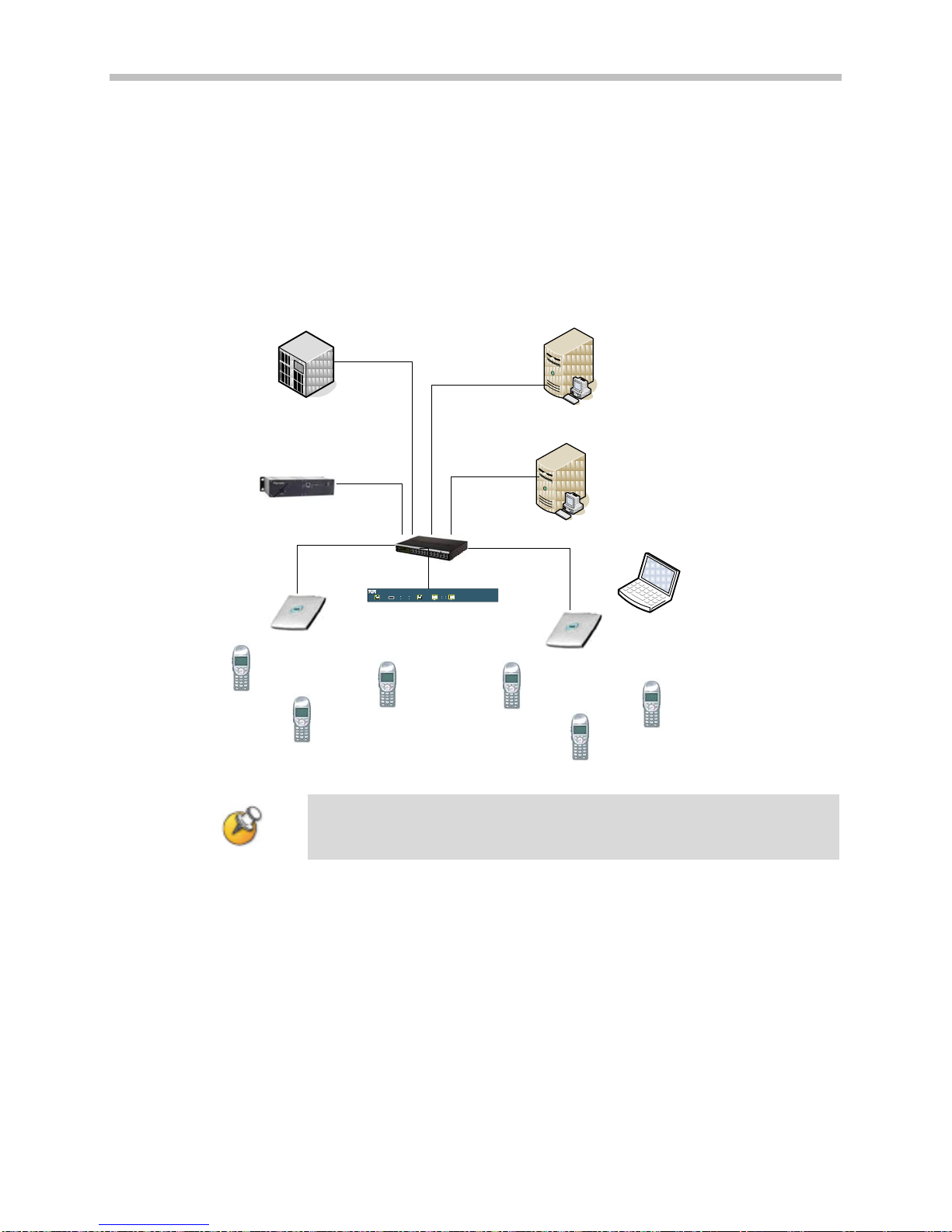

Network Topology

SIP PBX

TFTP Server, DHCP Server

RADIUS Authentication Server

(for WPA2-Enterprise Security)

Wireless Data Client

SpectraLink 8000 series

Wireless Telephones

Cisco4400 Series

WIRELESSLAN CONTROLLER

MODEL4402 50 AP

CONSOLE

STATUS

ALARM

PS1

PS2

LINK ACT

SERVICE

LINK ACT

UTILITY 1 2

LINK

ACT

Cisco WLC

Cisco AP

SVP Server

This configuration is not applicable to all customer environments.

Configuring a New Controller Starting from Factory Defaults

1. Initial provisioning of the controller is done via the command line

interface (CLI). Connect a null modem serial cable between the

console port of the controller and the serial port of a PC.

2. Open a terminal program, such as Hyper Terminal, and configure the

port settings to 9600 baud, no parity, 8 data bits and 1 stop bit.

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

3. Power-on the controller. Status of the controller’s boot process will

appear as the controller is powering up. Once the controller is

running, it will prompt you to run the Startup Wizard.

4. The Startup Wizard provides for an easy means to perform initial

controller setup and provisioning. Refer to the Installation and Startup

Guide for the Cisco 4400 Series WLC, or other appropriate controller,

found at Cisco’s website. This document contains a detailed

explanation of using the Startup Wizard for the 4400:

http://www.cisco.com/en/US/docs/wireless/controller/4400/quic

k/guide/ctrlv32.html#wp34023

5. Once the controller has been configured via the Startup Wizard, the

remaining configuration can be configured through the switch-web

interface using a Web browser (Cisco recommends using MS IE 6.0+).

6. If necessary, the controller can be reset to factory defaults. To reset

the WLC to factory default, you must reboot, then type Recover-

config at the CLI. This only works before the first time a user logs in

via the console.

Connecting to the Controller Via a Browser

1. Connect to the WLC by pointing your internet browser to the URL:

https<IP_Addr> (where <IP_Addr> is the IP address of the

management interface of the WLC).

2. Click the Login prompt. The default User Name and Password is

admin.

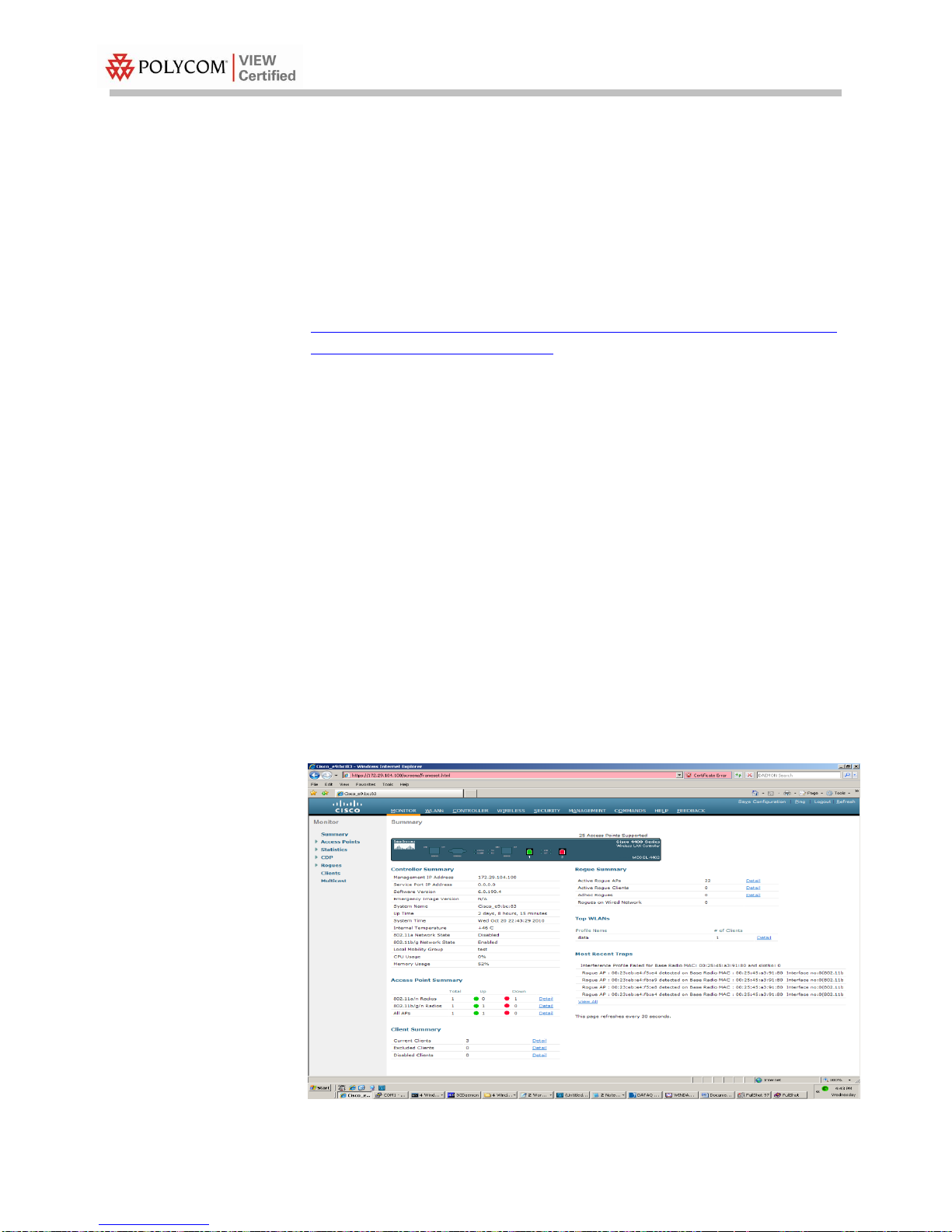

3. Once logged in properly, a page similar to the one below displays.

Section 1: SVP Cisco Wireless LAN Controllers with 1100, 1130, 1140, 1200, 1230, 1240, 1250 APs

PN: 1725-36192-001_H 9

Installing Software

1. Make sure that the correct version of software, listed in the Product

Summary, is installed on the controller. From the main menu, click

Monitor.

2. In the navigation pane, click Summary. The heading labeled Software

Version shows the current software version.

3. Download the appropriate software for your model of controller from

the Cisco website.

4. Set up a Trivial File Transfer Protocol (TFTP) server running on a PC

to download the file to the controller.

5. Connect to the controller via a Web browser.

6. From the main menu, click Commands.

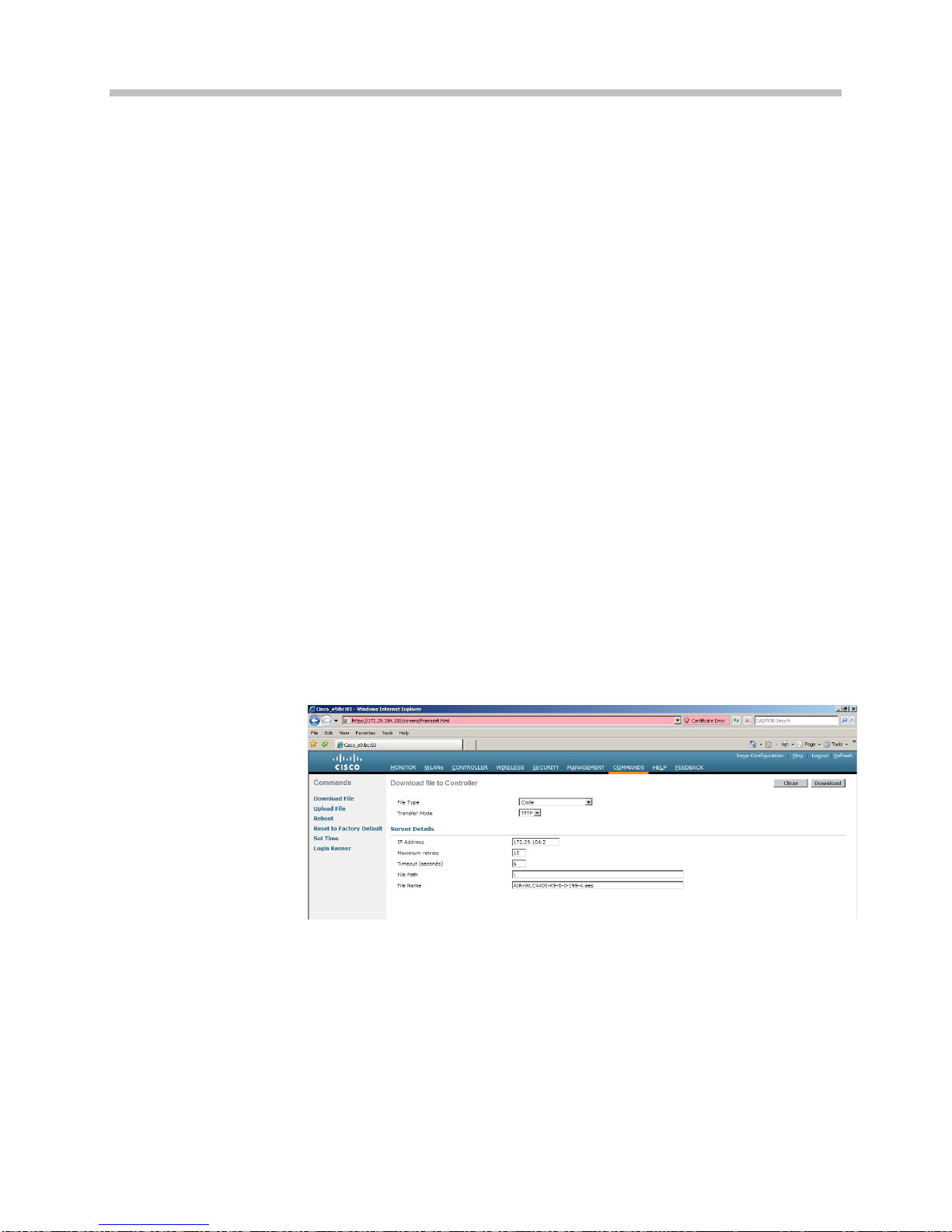

7. In the navigation pane, click Download File.

8. For File Type, select Code.

9. For TFTP Server, type in the IP Address of the TFTP server.

10. Add the File Path (this is the path in the TFTP server’s root directory

and not the system path where the TFTP server is located) and File

Name of the firmware file to download.

(Note the example simply uses the /designator for the root TFTP

directory.) Point the TFTP server to the code.

11. Allow a few minutes for the download to complete.

12. Reboot the Controller

Controller Setup

The initial setup of the controller is shown below.

VIEW Certified Configuration Guide

PN: 1725-36192-001_H

The setup instructions outlined in this document are for the

configuration shown in the diagram only. Your configuration may

differ, and the appropriate adjustments must be made.

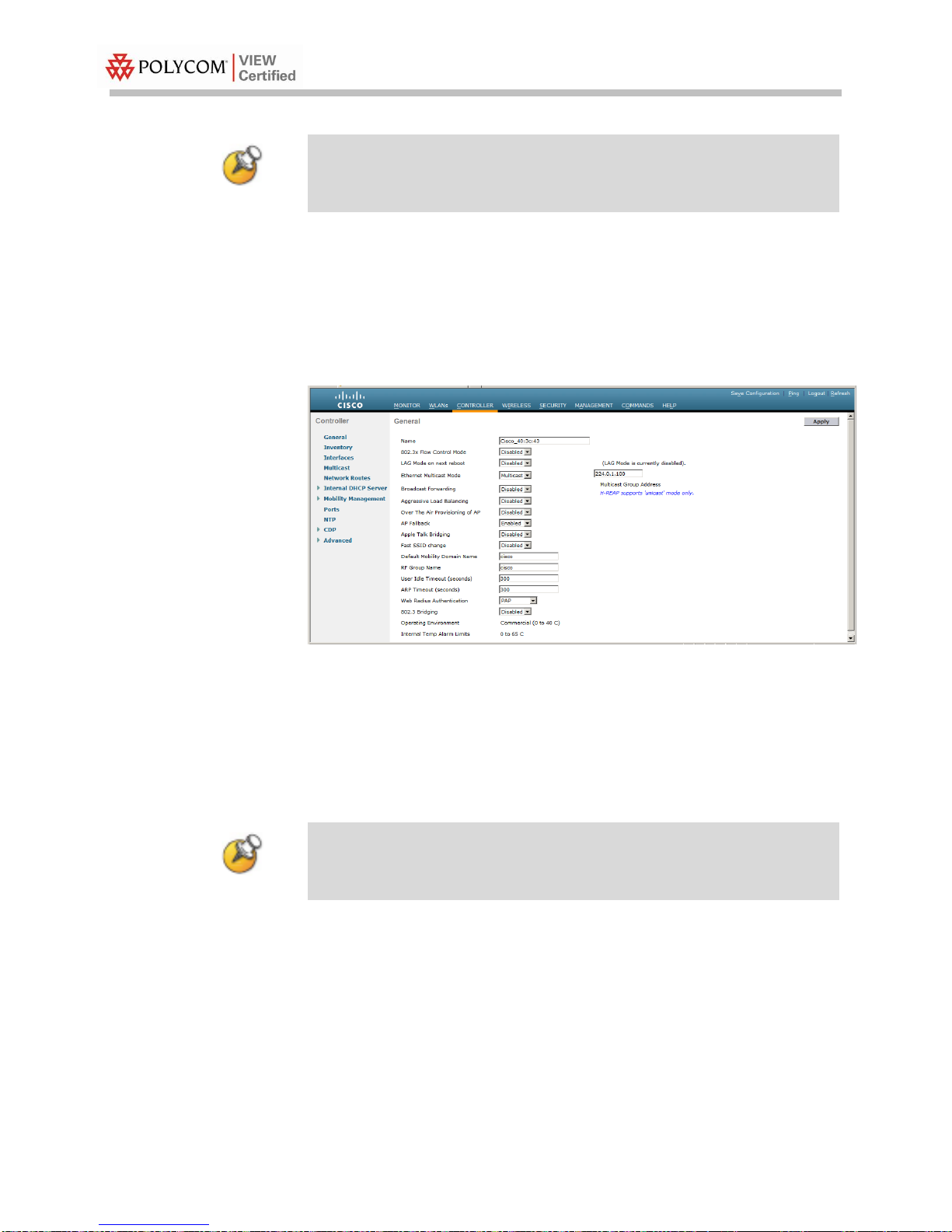

1. From the main menu, click Controller.

2. Set the Ethernet Multicast Mode to Multicast and enter a multicast IP

address that is currently not being used on your network for the

Multicast Group Address.

3. Click the Apply button.

4. Click Save Configuration.

Connecting APs

As the APs are connected to the network, they should automatically

find the controller via the CAPWAP discovery algorithms. The

Dynamic Host Configuration Protocol (DHCP) server will assign each

AP an IP address.

You can configure a DHCP server to run on a remote PC for a small

deployment. However, for large-scale deployments, an enterprise-

grade DHCP server must be used.

The ap-manager and management interfaces’ configuration should

include the DHCP server you have configured. Alternately, you can

configure the DHCP server internally on the controller to hand out

leases to the connected clients. (Note: The WLC’s DHCP server does

not lease addresses to the AP.) The instructions for doing so are

included at the end of this document.

1. From the main menu, click Controller.

This manual suits for next models

Table of contents

Other Cisco Network Hardware manuals

Cisco

Cisco ONS 15327 Operator's manual

Cisco

Cisco SCE 2000 4/8xFE Operator's manual

Cisco

Cisco WEC600N User manual

Cisco

Cisco ONS 15454 SDH Manual

Cisco

Cisco MC3810 Series User manual

Cisco

Cisco 2650XM User manual

Cisco

Cisco 5400 Series Instruction Manual

Cisco

Cisco MXE 3000 Manual

Cisco

Cisco NAC3350-PROF-K9 - NAC Profiler Server User manual

Cisco

Cisco C7200-I - Input/Output Controller - Control... User manual

Cisco

Cisco Linksys Business Series Network Storage System... User manual

Cisco

Cisco Firepower 1010 User manual

Cisco

Cisco Aironet 340 Series User manual

Cisco

Cisco Wide Area Application Engine 612 Manual

Cisco

Cisco ONS 15454 SDH E1-75 User manual

Cisco

Cisco NCS 2002 Instruction Manual

Cisco

Cisco 3600 Series Operating and safety instructions

Cisco

Cisco NM-1A-T3 - 1port Ds3 Atm Network Module User manual

Cisco

Cisco Firepower 4100 Series User manual

Cisco

Cisco o UCS X440p Installation and maintenance instructions

Cisco

Cisco 220 Series Smart Plus User manual

Cisco

Cisco MERAKI MX75 User manual

Cisco

Cisco NSS4100 - Gigabit Storage System Instruction Manual

Cisco

Cisco Aironet 1000 Series Manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
