D-Link ShareCenter DNS-343 User manual

ShareCenter™ 4-BAY

NETWORK STORAGE

Quick Installation Guide+

Руководство по быстрой установке+

Guía de Instalación Rápida+

Guia de Instalação Rápida+

快速安裝指南+

Petunjuk Pemasangan Cepat+

DNS-343











4D-Link DNS-343 Quick Install Guide

System Requirements / Package Contents



• 1GHz Processor / 512MB RAM

• 200MB available space

• CD-ROM drive

• Internet Explorer 6.0 or Mozilla Firefox 1.0 and above

• Windows® 7, Vista® or XP (Service Pack 2)

For best results, the following system requirements are

recommended:



If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a different voltage than the one

included with the DNS-343 will cause damage and void the warranty

for this product.

• D-Link DNS-343 ShareCenterTM 4-Bay Network Storage

• CD-ROM with Manual and Software

• Quick Installation Guide

• Power Adapter (19V 4.74A)

• Power Cable Clip

• CAT5 Ethernet Cable

The DNS-343 requires installation of a hard drive before it

can be used. The hard disk must be a 3.5” SATA Hard Drive of any

capacity.

5 D-Link DNS-343 Quick Install Guide

Hardware Overview





Use this button to switch the device on or off. To switch on the device

press the button once. To switch off the device hold the button down

for 5 seconds.



This screen displays System Information, HD Status, and Server

Status.



Use this button to display the System Information (system state), HD

Status (hard drive state) and Server Status (server status state) on

the OLED. Press the button once to alternate between the different

Status screens.



 



6D-Link DNS-343 Quick Install Guide

Hardware Overview



















7 D-Link DNS-343 Quick Install Guide

Conguration

The DNS-343 ShareCenter™ 4-Bay Network Storage features an

OLED that enables the administrator to easily view information about

the DNS-343. The OLED screen displays information about the

network connection status and the number of hard drives installed

and the bay ID’s they are installed in. The OLED has three different

screens:

 - This screen shows the following information:

• The hostname of the DNS-343

• The rmware version

• The IP address of the DNS-343

• The operating temperature

 - This screen shows the following information:

• The percentage of space used on the hard drives

 - This screen shows the following information:

• Whether a printer is connected to the unit

• The status of the UPNP server

• The status of the iTunes server

• The status of the FTP Server

Press the  button once to alternate between the different Status

screens



8D-Link DNS-343 Quick Install Guide

Hardware Installation



1. Access the drive bays by sliding

the faceplate up until it unlatches

from the device.

2. Once the faceplate is unlatched,

pull it off of the device, exposing

the drive bays.

3. Insert a 3.5” SATA hard drive

into an available drive bay. Make

sure to align the drive connector

to the endpoint in the DNS-343.

Gently push the drive in until it

connects.

9 D-Link DNS-343 Quick Install Guide

Hardware Installation

4. Attach the faceplate to the front

of the device.

5. Connect an Ethernet cable into

the available Ethernet port.

This cable should connect the

DNS-343 to your local network

or directly to a computer for

conguration.

6. Finally, connect the supplied

power adapter to the power

receptacle on the back of the

device.

10D-Link DNS-343 Quick Install Guide

Easy Search Utility



When rst powered on, during the initial boot sequence, the

DNS-343 will wait to be assigned an IP address via DHCP. If it does

not receive a DHCP assigned IP address, by default it will boot up

with a self-assigned IP address of 192.168.0.32.

The Easy Search Utility provided on the DNS-343 CD-ROM makes

it simple to nd any DNS-343 devices on your network, and it is

recommended to use the Easy Search Utility when accessing and

conguring the DNS-343 for the rst time. Each DNS-343 will have

a unique name of dlink-xxxxxx where ‘xxxxxx’ is the last six digits of

its MAC address.

Other manuals for ShareCenter DNS-343

This manual suits for next models

Table of contents

Languages:

Other D-Link Network Hardware manuals

D-Link

D-Link GO-PLK-200 User manual

D-Link

D-Link DAP-3711 User manual

D-Link

D-Link ShareCenter DNS-340L User manual

D-Link

D-Link D DES-6509 DES-6509 User manual

D-Link

D-Link ShareCenter Pulse DNS-320 User manual

D-Link

D-Link DMC-1002 User manual

D-Link

D-Link MYDLINK DNR-322L User manual

D-Link

D-Link DNS-1200-5 User manual

D-Link

D-Link DNR-2020-04P User manual

D-Link

D-Link mydlink DNR-312L User manual

D-Link

D-Link AirPlus XtremeG Ethernet-to-Wireless Bridge... User manual

D-Link

D-Link ShareCenter Shadow DNS-325 User manual

D-Link

D-Link ShareCenter Pro DNS-1550-04 User manual

D-Link

D-Link ShareCenter DNS-340L User manual

D-Link

D-Link DES-1252 - Web Smart Switch User manual

D-Link

D-Link DNS-120 - NAS Server - USB User manual

D-Link

D-Link DNS-323 - Network Storage Enclosure NAS... User manual

D-Link

D-Link DSN-6000 Series User manual

D-Link

D-Link DI-102 - Load Balancing Device User manual

D-Link

D-Link DNS-313 User manual

D-Link

D-Link DSM-750 - MediaLounge High-Definition Draft N Media... User manual

D-Link

D-Link ShareCenter Pulse DNS-320 User manual

D-Link

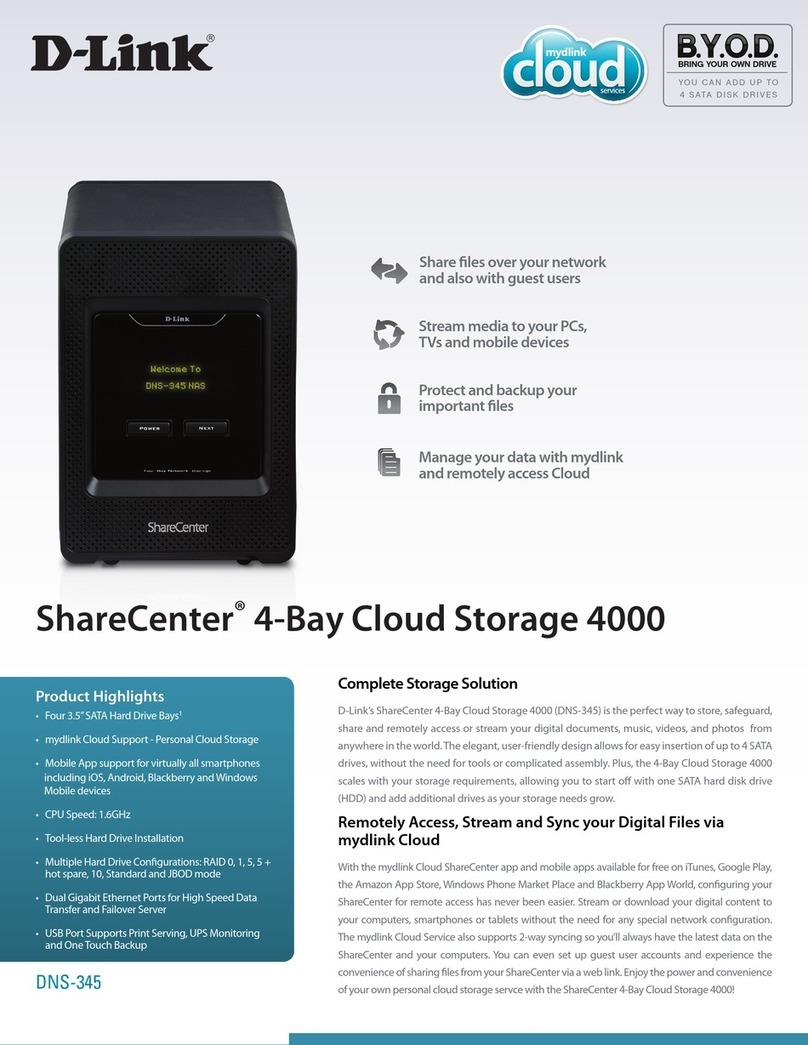

D-Link ShareCenter Quattro DNS-345 User manual
