RSP4+ Bootflash Memory Upgrade to 16MB

Installation and Configuration Guide

Product Numbers: MEM-16F-RSP4+=

Customer Order Number: DOC-7812288=

Introduction

An 8 MB bootflash image is supplied with the RSP4+, RSP4, RSP2, RSP1 and RSP7000 on the Cisco

7500 series routers. This image is insufficient to store newer, larger Cisco IOS Releases, such as

12.1(4.4)T2 and 12.1(5)T, and future releases on the RSP4+. Use the instructions in this document to

upgrade to a 16-MB bootflash. Alternatively, you can use Cisco IOS Release 12.0(13)S rsp-boot-mz

image or other image, which is less than 7.7 MB in size. Contact the Technical Assistance Center (see

Technical Assistance Center, page 19) for more information on this latter alternative.

Note: The RSP8 has 16 MB of Flash memory and does not encounter this problem.

Objectives

The purpose of this document is to explain how to perform the following procedures:

•Remove the 8-MB SIMM and install a 16-MB SIMM

•Upgrade the bootflash memory image

Contents

This document includes the following sections:

•Related Documentation, page 2

•Installation Requirements, page 3

•Overview, page 9

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide 78-12288-02

Related Documentation

Your router and the Cisco IOS software running on it contain extensive features and functionality, which

are documented in the following resources:

•Cisco IOS software:

For configuration information and support, refer to the modular configuration and modular command

reference publications in the Cisco IOS software configuration documentation set that corresponds to

the software release installed on your Cisco hardware.

Note You can access Cisco IOS software configuration and hardware installation and

maintenance documentation on the World Wide Web at http://www.cisco.com,

http://www-china.cisco.com, or http://www-europe.cisco.com.

•Cisco 7500 series routers:

For hardware installation and maintenance information on the Cisco 7500 series routers, refer to the

Cisco 7500 Installation and Configuration Guide that shipped with your router.

•For international agency compliance, safety, and statutory information for WAN interfaces:

–

Site Preparation and Safety Guide

–

Regulatory Compliance and Safety Information for the Cisco 7500 Series Routers

•To view Cisco documentation or obtain general information about the documentation, refer to the

following sources:

–

World Wide Web, page 18

–

Documentation CD-ROM, page 18

–

Ordering Documentation, page 18

–

Documentation Feedback, page 19

–

Cisco.com, page 19

–

Technical Assistance Center, page 19

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide

78-12288-02

Installation Requirements

Before upgrading the bootflash SIMM, pay attention to the following sections:

•Software and Bootflash Prerequisites, page 3

•Tools and Parts Required, page 4

•Safety Guidelines, page 4

Software and Bootflash Prerequisites

The minimum software and bootflash requirements are listed in Table 1. The Cisco IOS releases listed

in Table 1 apply to all Cisco 7500 series routers except for the Cisco 7576, which requires Cisco IOS

Release 11.1(22) CC or a later release of 11.1 CC.

Table 1 RSP4+ Minimum Software and Bootﬂash Memory Requirements

Cisco IOS Release Version Minimum Cisco IOS Supported Release1

1. Applies to all platforms that support the RSP4+ except Cisco 7576, which requires Cisco IOS Release 11.1(22)CC or a later release of 11.1 CC.

Minimum Boot-

ﬂash Memory

Cisco IOS Release 11.1(8)CA Cisco IOS Release 11.1(8)CA or later release of Cisco IOS Release

11.1 CA 8 MB

Cisco IOS Release 11.1(17)CC Cisco IOS Release 11.1(17)CC or later release of Cisco IOS Release

11.1 CC 8 MB

Cisco IOS Release 11.2(6)P Cisco IOS Release 11.2(6)P or later release of Cisco IOS Release 11.2 P 8 MB

Cisco IOS Release 11.3(1)T Cisco IOS Release 11.3(1)T or later release of Cisco IOS Release 11.3 T 8 MB

Cisco IOS Release 11.3(1) Cisco IOS Release 11.3(1) or later release of Cisco IOS Release 11.3 8 MB

Cisco IOS Release 12.0(1)T Cisco IOS Release 12.0(1)T or later release of Cisco IOS Release 12.0T 8 MB

Cisco IOS Release 12.0(1) Cisco IOS Release 12.0(1) or later release of Cisco IOS Release 12.0 8 MB

Cisco IOS Release 12.0(2)XE3 Cisco IOS Release 12.0(2)XE3 or later release of Cisco IOS Release

12.0 XE3 8 MB

Cisco IOS Release 12.0(4)XE1 Cisco IOS Release 12.0(4)XE1 or later release of Cisco IOS Release

12.0 XE1 8 MB

Cisco IOS Release 12.0(5)S Cisco IOS Release 12.0(5)S or later release of Cisco IOS Release 12.0 S 8 MB

Cisco IOS Release 12.1(1)E Cisco IOS Release 12.1(1)E or later release of Cisco IOS Release 12.1 E 8 MB

Cisco IOS Release 12.1(1) Cisco IOS Release 12.1(1) or later release of Cisco IOS Release 12.1 8 MB

Cisco IOS Release 12.1(5)T Cisco IOS Release 12.1(5)T or later release of Cisco IOS Release 12.1 T 16 MB

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide 78-12288-02

Installation Requirements

Tools and Parts Required

You need the following tools and parts to install or upgrade the bootflash SIMM:

•Number 1 Phillips and a 3/16-inch flat-blade screwdriver

•ESD-prevention equipment or disposable grounding wrist strap included with all Cisco products

•Antistatic mat, foam pad, or bag for the removed SIMM

If you need additional equipment, contact a service representative for ordering information.

Safety Guidelines

Following are safety guidelines that you should follow when working with any equipment that connects

to electrical power or telephone wiring.

Safety Warnings

Safety warnings appear throughout this publication in procedures that, if performed incorrectly, may

harm you. A warning symbol precedes each warning statement.

Warning

This warning symbol means danger. You are in a situation that could cause bodily

injury. Before you work on any equipment, be aware of the hazards involved with

electrical circuitry and be familiar with standard practices for preventing accidents.

To see the translations of the warnings that appear in this publication, refer to the

Regulatory Compliance and Safety Information

document that accompanied this

device.

Waarschuwing

Ditwaarschuwingssymboolbetekentgevaar.Uverkeertineensituatiedielichamelijk

letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich

bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de

hoogte te zijn van standaard maatregelen om ongelukken te voorkomen. Voor

vertalingen van de waarschuwingen die in deze publicatie verschijnen, kunt u het

document

Regulatory Compliance and Safety Information

(Informatie over naleving

van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is ingesloten.

Varoitus

Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa

ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää

sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien

ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten käännökset löydät

laitteen mukana olevasta

Regulatory Compliance and Safety Information

-kirjasesta

(määräysten noudattaminen ja tietoa turvallisuudesta).

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide

78-12288-02

Installation Requirements

Attention

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation

pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un

équipement, soyez conscient des dangers posés par les circuits électriques et

familiarisez-vousaveclesprocédurescourammentutiliséespouréviterlesaccidents.

Pour prendre connaissance des traductions d'avertissements figurant dans cette

publication, consultez le document

Regulatory Compliance and Safety Information

(Conformité aux règlements et consignes de sécurité) qui accompagne cet appareil.

Warnung

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer

Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät

beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren

und der Standardpraktiken zur Vermeidung von Unfällen bewußt. Übersetzungen der

in dieser Veröffentlichung enthaltenen Warnhinweise finden Sie im Dokument

Regulatory Compliance and Safety Information

(Informationen zu behördlichen

Vorschriften und Sicherheit), das zusammen mit diesem Gerät geliefert wurde.

Avvertenza

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare

infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre

conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche

standard per la prevenzione di incidenti. La traduzione delle avvertenze riportate in

questa pubblicazione si trova nel documento

Regulatory Compliance and Safety

Information

(Conformità alle norme e informazioni sulla sicurezza) che accompagna

questo dispositivo.

Advarsel

Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til

personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de

faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig

praksis når det gjelder å unngå ulykker. Hvis du vil se oversettelser av de advarslene

som finnes i denne publikasjonen, kan du se i dokumentet

Regulatory Compliance and

Safety Information

(Overholdelse av forskrifter og sikkerhetsinformasjon) som ble

levert med denne enheten.

Aviso

Estesímbolodeavisoindicaperigo.Encontra-se numasituaçãoquelhepoderácausar

danos físicos. Antes de começar a trabalhar com qualquer equipamento,

familiarize-se com os perigos relacionados comcircuitos eléctricos, e com quaisquer

práticas comuns que possam prevenir possíveis acidentes. Para ver as traduções dos

avisos que constam desta publicação, consulte o documento

Regulatory Compliance

and Safety Information

(Informação de Segurança e Disposições Reguladoras) que

acompanha este dispositivo.

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide 78-12288-02

Installation Requirements

Installation Warning

¡Advertencia!

Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes

de manipular cualquier equipo, considerar los riesgos que entraña la corriente

eléctrica y familiarizarse con los procedimientos estándar de prevención de

accidentes. Para ver una traducción de las advertencias que aparecen en esta

publicación, consultar el documento titulado

Regulatory Compliance and Safety

Information

(Información sobre seguridad y conformidad con las disposiciones

reglamentarias) que se acompaña con este dispositivo.

Varning!

Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till

personskada. Innan du utför arbete på någon utrustning måste du vara medveten om

farorna med elkretsar och känna till vanligt förfarande för att förebygga skador. Se

förklaringar av de varningar som förkommer i denna publikation i dokumentet

Regulatory Compliance and Safety Information

(Efterrättelse av föreskrifter och

säkerhetsinformation), vilket medföljer denna anordning.

Warning

Only trained and qualified personnel should be allowed to install, replace, or service

this equipment.

Waarschuwing

Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door

bevoegd geschoold personeel.

Varoitus

Tämän laitteen saa asentaa, vaihtaa tai huoltaa ainoastaan koulutettu ja laitteen

tunteva henkilökunta.

Attention

Il est vivement recommandé de confier l'installation, le remplacement et la

maintenance de ces équipements à des personnels qualifiés et expérimentés.

Warnung

Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem,

qualifiziertem Personal gestattet werden.

Avvertenza

Questo apparato può essere installato, sostituito o mantenuto unicamente da un

personale competente.

Advarsel

Bare opplært og kvalifisert personell skal foreta installasjoner, utskiftninger eller

service på dette utstyret.

Aviso

Apenas pessoal treinado e qualificado deve ser autorizado a instalar, substituir ou

fazer a revisão deste equipamento.

¡Advertencia!

Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo.

Varning!

Endast utbildad och kvalificerad personal bör få tillåtelse att installera, byta ut eller

reparera denna utrustning.

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide

78-12288-02

Installation Requirements

Electrical Equipment Guidelines

Follow these basic guidelines when working with any electrical equipment:

•Before beginning any procedures requiring access to the router interior, locate the emergency

power-off switch for the room in which you are working.

•Disconnect all power and external cables before moving a router.

•Do not work alone when potentially hazardous conditions exist.

•Never assume that power has been disconnected from a circuit; always check.

•Do not perform any action that creates a potential hazard or makes the equipment unsafe.

•Carefully examine your work area for possible hazards such as moist floors, ungrounded power

extension cables, and missing safety grounds.

Preventing Electrostatic Discharge Damage

Electrostatic discharge (ESD) damage, which can occur when electronic cards or components are

improperly handled, results in complete or intermittent failures.

Use the following guidelines for preventing ESD damage:

•Always use an ESD wrist or ankle strap and ensure that it makes good skin contact.

•Connect the equipment end of the strap to an unfinished chassis surface.

•When installing a component, use any available ejector levers or captive installation screws to

properly seat the bus connectors in the backplane.

•When removing a component, use any available ejector levers or captive installation screws to

release the bus connectors from the backplane or midplane.

•Handle carriers by available handles or edges only; avoid touching the printed circuit boards or

connectors.

•Place a removed board component-side-up on an antistatic surface or in a static shielding container;

otherwise, immediately place it in a static shielding container.

•Avoid contact between the printed circuit boards and clothing. The wrist strap only protects

components from ESD voltages on the body; ESD voltages on clothing can still cause damage.

•Never attempt to remove the printed circuit board from the metal carrier.

Caution For safety, periodically check the resistance value of the antistatic strap. The measurement

should be between 1 and 10 megohms (Mohm).

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide 78-12288-02

Installation Requirements

Wrist Strap Warning

Warning

During this procedure, wear grounding wrist straps to avoid ESD damage to the card.

Do not directly touch the backplane with your hand or any metal tool, or you could

shock yourself.

Waarschuwing

Draag tijdens deze procedure aardingspolsbanden om te vermijden dat de kaart

beschadigd wordt door elektrostatische ontlading. Raak het achterbord niet

rechtstreeks aan met uw hand of met een metalen werktuig, omdat u anders een

elektrische schok zou kunnen oplopen.

Varoitus

Käytä tämän toimenpiteen aikana maadoitettuja rannesuojia estääksesi kortin

vaurioitumisen sähköstaattisen purkauksen vuoksi. Älä kosketa taustalevyä suoraan

kädelläsi tai metallisella työkalulla sähköiskuvaaran takia.

Attention

Lors de cette procédure, toujours porter des bracelets antistatiques pour éviter que

desdéchargesélectriques n’endommagentlacarte.Pour éviter l’électrocution,nepas

toucher le fond de panier directement avec la main ni avec un outil métallique.

Warnung

Zur Vermeidung einer Beschädigung der Karte durch elektrostatische Entladung

während dieses Verfahrens ein Erdungsband am Handgelenk tragen. Bei Berührung

der Rückwand mit der Hand oder einem metallenen Werkzeug besteht

Elektroschockgefahr.

Avvertenza

Durante questa procedura, indossare bracciali antistatici per evitare danni alla

scheda causati da un’eventuale scarica elettrostatica. Non toccare direttamente il

pannello delle connessioni, né con le mani né con un qualsiasi utensile metallico,

perché esiste il pericolo di folgorazione.

Advarsel

Bruk jordingsarmbånd under prosedyren for å unngå ESD-skader på kortet. Unngå

direkte berøring av bakplanet med hånden eller metallverktøy, slik at di ikke får

elektrisk støt.

Aviso

Durante este procedimento e para evitar danos ESD causados à placa, use fitas de

ligação à terra para os pulsos. Para evitar o risco de choque eléctrico, não toque

directamente na parte posterior com a mão ou com qualquer ferramenta metálica.

¡Advertencia!

Usartiras conectadas a tierra en las muñecas durante este procedimiento para evitar

daños en la tarjeta causados por descargas electrostáticas. No tocar el plano

posterior con las manos ni con ninguna herramienta metálica, ya que podría producir

un choque eléctrico.

Varning!

Använd jordade armbandsremmar under denna procedur för att förhindra

elektrostatisk skada på kortet. Rör inte vid baksidan med handen eller metallverktyg

då detta kan orsaka elektrisk stöt.

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide

78-12288-02

Overview

Bootflash is a single inline memory module (SIMM) with a bootloader image that allows the router to

access the Cisco IOS image when powering up or initializing the system. Bootloader images can be

downloaded over the network, or from a local server. Refer to Table 1 for a list of IOS images that require

a 16MB bootflash.

In this document, you will perform the following steps to upgrade the bootflash to 16MB:

•Confirm the bootflash size

•Remove the RSP4+

•Remove the 8-MB SIMM

•Install the 16-MB SIMM

•Reinstall the RSP4+

•Load and configure the new bootflash

Confirming the Bootflash Memory Size

To check the bootflash memory size on your RSP4+, use the show version command. The following

example indicates that the bootflash memory size is insufficient for Cisco IOS Release 12.1(4.4)T2 and

12.1(5)T, and later releases.

Router# show version

Cisco Internetwork Operating System Software

IOS (tm) 7500 Software (C7200-J-M), Released Version 12.0(2)

20480K bytes of Flash PCMCIA card at slot 0 (Sector size 128K).

8192K bytes of Flash internal SIMM (Sector size 256K)

Removing the RSP4+

The first step in upgrading the bootflash is to remove the RSP4+ from the Cisco 7500 series router.

Step 1 Attach an ESD-preventive wrist strap between you and any unpainted chassis surface.

Step 2 Turn off the system power.

Step 3 Disconnect the cables from the RSP4+.

Step 4 Use a screwdriver to loosen the captive installation screws at both ends of the board. (See Figure 1.)

Caution Use the ejector levers to remove or install the RSP4+. Failure to do so can cause erroneous

system error messages indicating a board failure.

Step 5 Place your thumbs on the ejector levers and simultaneously pull both of the ejectors outward (in the

opposite direction from that show in c in Figure 1) to release the RSP4+ from the backplane connector.

RSP4+ Bootflash Memory Upgrade to 16MB Installation and Configuration Guide 78-12288-02

Removing the RSP4+

Step 6 Use the RSP4+ handle to carefully pull it straight out of the slot, keeping your other hand under the

carrier to guide it. (See Figure 2.) Keep the RSP4+ parallel to the backplane. Avoid touching the board

or any connector pins.

Step 7 Place the removed RSP4+ on an antistatic mat or foam pad for installation later in this procedure.

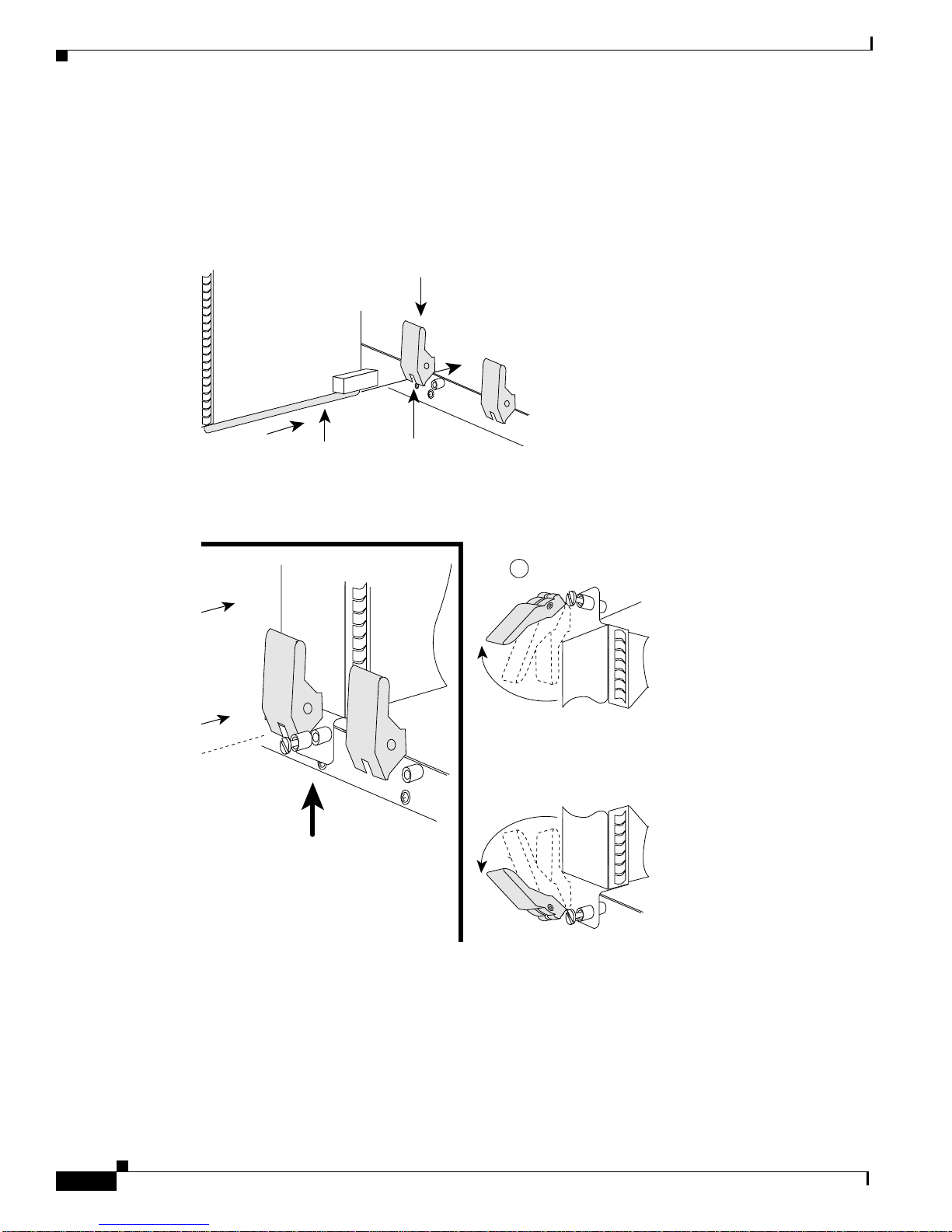

Figure 1 Ejector Levers and Captive Installation Screws on the RSP4+—Vertical Orientation Shown

H1482a

Processor module

slot

STOP!

on contact

Bottom ejector lever

Processor

module

carrier guide

This manual suits for next models

Table of contents

Other Cisco Network Hardware manuals

Cisco

Cisco 5500 Series User manual

Cisco

Cisco Rack-Mount and Cable Mgmt. 7505/7010 User manual

Cisco

Cisco OSM-12CT3/T1 - Optical Services Module... Quick guide

Cisco

Cisco Cisco ASA Series User manual

Cisco

Cisco BR1400 Series Quick reference guide

Cisco

Cisco NCS 1004 User manual

Cisco

Cisco 5400 Series Instruction Manual

Cisco

Cisco Nexus 3000 series User manual

Cisco

Cisco Nexus 93180LC-EX User manual

Cisco

Cisco o UCS X440p Installation and maintenance instructions

Cisco

Cisco Firepower 1010 User manual

Cisco

Cisco CATALYST RPS 2300 Quick start guide

Cisco

Cisco FPR1150-ASA-K9 Manual

Cisco

Cisco AIR-WLC2106-K9 - Wireless LAN Controller... User manual

Cisco

Cisco Edge 300 Series Quick start guide

Cisco

Cisco NAC3350-PROF-K9 - NAC Profiler Server User manual

Cisco

Cisco OL-6109-01 User manual

Cisco

Cisco SCE 1000 and Operator's manual

Cisco

Cisco C8510MSR-SKIT-DC - Catalyst 8510 Multiservice Switch... User manual

Cisco

Cisco S170 Web User manual

Cisco

Cisco IAD2430 Series Installation guide

Cisco

Cisco 2650XM User manual

Cisco

Cisco IPS-4260-K9 - IPS Sensor 4260 User manual

Cisco

Cisco VIP-4R/4T Operating and maintenance instructions

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
