Baroness LM180 Manual

Technical Information Leaflet

TIL: 022

LM180 Triple Mower

Blade/Cut Adjustment

BARONESS LM180 TRIPLE MOWER –BLADE/CUT ADJUSTMENT

Before commencing any blade adjustments it is important that the cutting units are

thoroughly cleaned and dry.

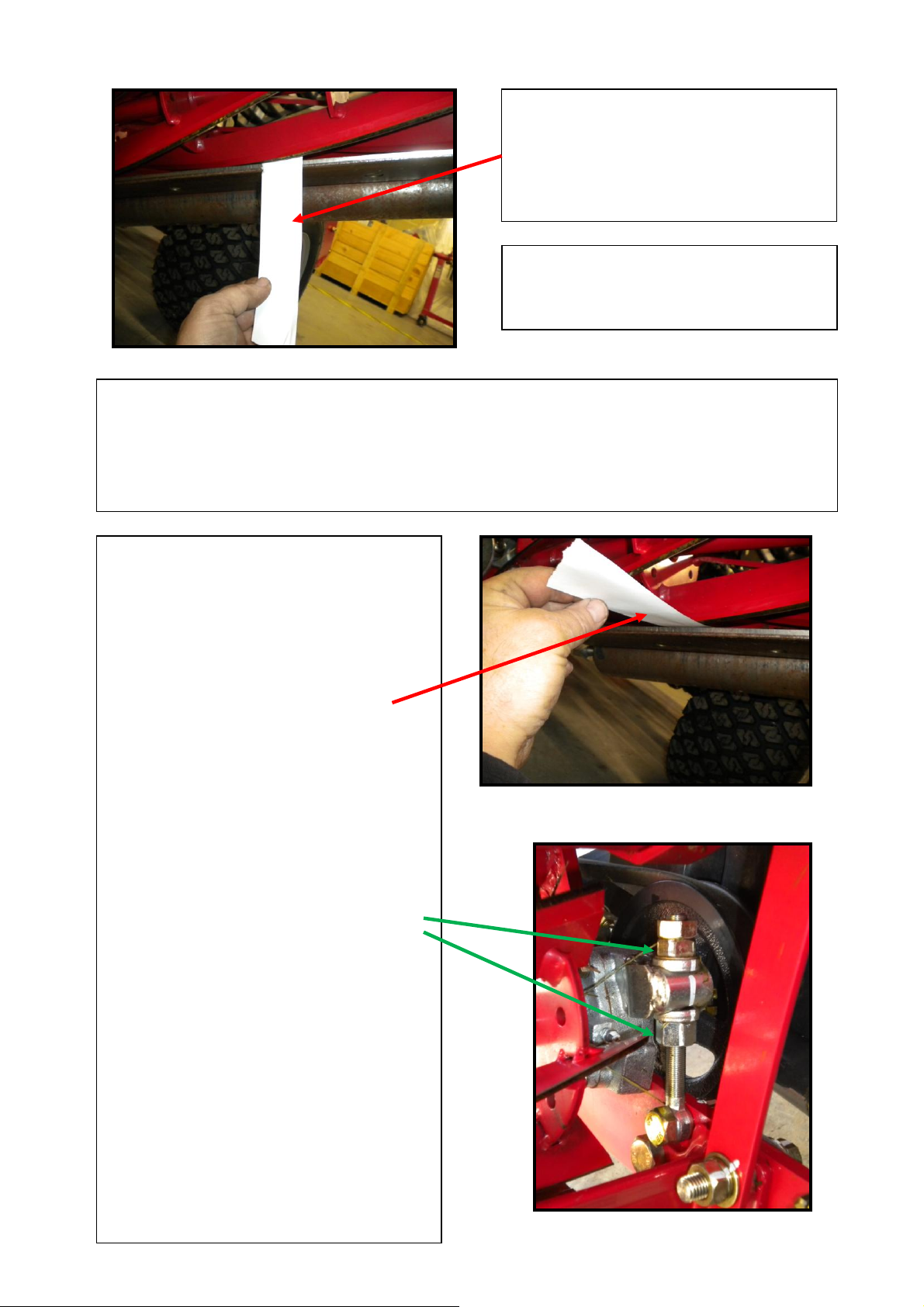

To check that the blades are cutting

correctly, use a strip of paper as shown.

With the strip of paper held square to the

bottom blade, rotate the cutting cylinder

and see if the blades cut the paper. Never

rotate the cutting cylinders using your

hands as the blades are very sharp and

can cause serious injury. Use a short

length of wooden pole to rotate the

cylinder.

If the paper is not cut then you will

need to lower the cutting cylinder

down onto the bottom blade.

To do this, first of all loosen the top

locking nut on the cylinder adjustment

mechanism. Repeat this for both sides

of the cutting unit.

Once the top locking nut is loosened you need to

lower the cylinder down slightly onto the bottom

blade.

To do this firstly lower the bottom adjusting nut

by turning it clockwise a couple of flats.

Then repeat his exercise with the top nut, turning

it clockwise a couple of flats.

This will have the effect of lowering the cutting

cylinder.

Repeat this procedure for both ends of the cutting

unit.

Check the cut again by using a strip of paper

as previously explained. Check both ends of

the blades and not just in the middle. Once

again please remember to never put your

hand into the cutting cylinder.

If the paper is still not cut correctly, repeat

the blade lowering procedure as described

above.

If one end of the cutting cylinder cuts the paper but the other end does not, then only adjust the end

that is not cutting, but be aware that this could have an effect on the other end so always check both

ends with paper after making any adjustment.

Keep adjusting both ends until the paper is cut right across the length of the bottom blade.

Once the blades are cutting paper right across

the length of the bottom blade then you need

to check that you do not have excessive blade

contact.

To do this you need to use another strip of

paper but this time hold it flat along the

surface of the bottom blade.

When you rotate the cylinder the paper

should not be cut but should just leave an

indentation line. If it does this it is set ok. If it

cuts the paper then the contact is too great

and the blades will need adjusting to provide

slightly less contact. This is done by turning

the blade adjuster nuts anti-clockwise by a

very small amount in order to increase the

gap slightly.

Only adjust the side which is too tight. If both

sides are too tight then adjust them both but

remember to only use very small adjustments

and keep checking both sides.

The blades are correctly adjusted when both

sides cut paper when it is held square to the

bottom blade but only leaves an indentation

in the paper when it is held flat along the

bottom blade.
