Badger Meter B131-038 User manual

Turbine Flow Meter

QuikSert® Standard

TRB-UM-00372-EN-03 (April 2016) User Manual

CONTENTS

Scope of This Manual � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Unpacking and Inspection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Terminology and Symbols� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Introduction� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3

Operating Principle � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

Installation� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4

Operational Startup � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

Calibration� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6

Troubleshooting Guide� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

Part Number Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8

Strainer Recommendations � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8

Repair Kit Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9

Specications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10

Turbine Flow Meter, QuikSert® Standard

Page ii April 2016TRB-UM-00372-EN-03

Scope of This Manual

Page 3April 2016 TRB-UM-00372-EN-03

SCOPE OF THIS MANUAL

This manual is intended to help you get the QuikSert turbine flow meter up and running

quickly�

MPORTANTI

Read this manual carefully before attempting any installation or operation. Keep the manual

accessible for future reference.

UNPACKING AND INSPECTION

Upon opening the shipping container, visually inspect the product and applicable

accessories for any physical damage such as scratches, loose or broken parts, or any other

sign of damage that may have occurred during shipment�

OTE:NIf damage is found, request an inspection by the carrier’s agent within 48 hours of

delivery and file a claim with the carrier� A claim for equipment damage in transit

is the sole responsibility of the purchaser�

SAFETY

Terminology and Symbols

Indicates a hazardous situation, which, if not avoided, is estimated to

be capable of causing death or serious personal injury�

Indicates a hazardous situation, which, if not avoided, could result in

severe personal injury or death�

Indicates a hazardous situation, which, if not avoided, is estimated to

be capable of causing minor or moderate personal injury or damage

to property�

MPORTANTI

Not following instructions properly may impair safety of equipment and/or personnel.

INTRODUCTION

The QuikSert Standard turbine flow meter was developed for liquid applications where

accuracy and dependability are of concern to the operator� The stainless steel body

incorporates a helical turbine with tungsten carbide shaft and bearings� It provides an

efficient, long service life and a cost-effective solution for your measurement requirements�

Simple in design and construction, QuikSert uses modified upstream and downstream flow

straighteners for a high degree of flow accuracy� Its between-the-flange design eliminates

the need for mating flanges, requiring less space in the flow line, lowering costs and

providing easy, one-person installation�

The meter produces a sine wave signal proportional to its volumetric flow rate� With

optional Blancett electronics, QuikSert provides local flow rate and volume totalization and

will interface with most instruments, PLCs and computers�

Operating Principle

Page 4 April 2016TRB-UM-00372-EN-03

OPERATING PRINCIPLE

Fluid entering the meter passes through the inlet flow straightener which reduces its

turbulent flow pattern and improves the fluid’s velocity profile� Fluid then passes through

the turbine, causing it to rotate at a speed proportional to the fluid velocity� As each

turbine blade passes through the magnetic field, the blade generates an AC voltage pulse

in the pickup coil at the base of the magnetic pickup (see Figure 1)� These pulses produce

an output frequency proportional to the volumetric flow through the meter� The output

frequency represents flow rate and/or totalization of fluid passing through the turbine flow

meter�

Figure 1: Electric signal generated by rotor movement

INSTALLATION

1� Check the ow meter internally for foreign material and make sure the turbine rotor

spins freely prior to installation�

2� Check uid lines and clear any debris�

3� Install the ow meter with the ow arrow, etched on the exterior of the meter body,

pointing in the direction of uid ow�

4� Install the meter horizontally with the pickup facing upward, where possible� The liquid

being measured should be free of any large particles that may obstruct rotation of the

rotor�

5� Install a mesh strainer upstream before operation of the ow meterm if particles are

present� See the table below for strainer recommendations�

6� Install a bypass line (Figure 2) for meter inspection and repair without interrupting ow�

Install all control valves downstream of the ow meter, if a bypass line cannot be used

(Figure 3)�

PRESSURE IN EXCESS OF ALLOWABLE RATING MAY CAUSE THE HOUSING TO BURST

AND CAUSE SERIOUS PERSONAL INJURY.

DAMAGE CAN BE CAUSED BY STRIKING AN EMPTY METER WITH A HIGH VELOCITY

FLOW STREAM.

Installation

Page 5April 2016 TRB-UM-00372-EN-03

Figure 2: Meter installation using a bypass line

Figure 3: Meter installation without using a bypass line

7� Install all restrictions in the ow line that may cause the liquid to ash, downstream of

the meter� If necessary, install air eliminators so the meter is not incorrectly measuring

entrained air or gas�

8� Install a minimum length of ten pipe diameters of straight pipe on upstream side of the

meter and ve diameters on the downstream side of the ow meter or meter accuracy

may be aected� Piping should be the same size as the meter bore or threaded port size�

Do not install the flow meter or connection cable close to electric motors, transformers,

sparking devices, high voltage lines, or place connecting cable in conduit with wires

furnishing power for such devices� These devices can induce false signals in the flow meter

coil or cable, causing the meter to read inaccurately�

Consult the "Troubleshooting Guide" on page 7 � If the internal components of the

turbine flow meter are damaged beyond repair, order a turbine meter repair kits�

Information pertaining to the turbine meter repair kits is referenced in "Repair Kit

Information" on page 9�

Operational Startup

Page 6 April 2016TRB-UM-00372-EN-03

OPERATIONAL STARTUP

Follow these steps when installing and starting the meter�

MAKE SURE THAT FLUID FLOW HAS BEEN SHUT OFF AND PRESSURE IN THE LINE

RELEASED BEFORE ATTEMPTING TO INSTALL THE METER IN AN EXISTING SYSTEM.

1� Close the isolation valves and open the bypass valve after installing the meter�

2� Flow liquid through the bypass valve for sucient time to eliminate any air or gas in the

ow line�

HIGH VELOCITY AIR OR GAS MAY DAMAGE THE INTERNAL COMPONENTS OF THE

METER.

3� Open the upstream isolating valve slowly to eliminate hydraulic shock while charging

the meter with the liquid�

4� Open the valve to full open�

5� Open the downstream isolating valve to permit meter to operate�

6� Close the bypass valve to a full closed position�

7� Adjust the downstream valve to provide the required ow rate through the meter�

OTE:NThe downstream valve may be used as a control valve�

CALIBRATION

The meter and all attached electronics are calibrated on water at the factory and tagged

with a K-factor (pulses per US Gallon)� For maximum accuracy, calibrate the meter with the

actual fluid being measured� The QuikSert meter can be recalibrated by any conventional

meter-proving processes used to calibrate standard meters�

Troubleshooting Guide

Page 7April 2016 TRB-UM-00372-EN-03

TROUBLESHOOTING GUIDE

Trouble Possible Cause Remedy

Meter indicates higher than actual

flow rate

• Cavitation

• Debris on

rotor support

• Build up of foreign

material on

meter bore

• Gas in liquid

• Increase back pressure

• Clean meter

• Install gas eliminator

ahead of meter

Meter indicates lower than actual

flow rate

• Debris on rotor

• Worn bearing

• Viscosity higher than

calibrated

• Clean meter and add filter

• Recalibrate monitor

Erratic system indication, meter

alone works well (remote monitor

application only)

Ground loop in shielding

Ground shield one place only,

look for internal electronic

instrument ground� Reroute

cables away from electrical

noise

Indicator shows flow when shut off

Mechanical vibration

causes rotor to oscillate

without turning

Isolate meter

No flow indication

Full or partial open position

Fluid shock, full flow into

dry meter or impact caused

bearing separation or

broken rotor shaft

Rebuild meter with repair kit

and recalibrate monitor� Move

to location where meter is full

on startup or add downstream

flow control valve

Erratic indication at low flow, good

indication at high flow

Rotor has foreign material

wrapped around it Clean meter and add filter

No flow indication Faulty pickup Replace pickup

System works perfect, except

indicates lower flow over entire range Bypass flow, leak Repair or replace bypass valves,

or faulty solenoid valves

Meter indicating high flow, upstream

piping at meter smaller than meter

bore

Fluid jet impingement on

rotor Change piping

Opposite effects of above Viscosity lower than

calibrated

Change temperature, change

fluid or recalibrate meter

Part Number Information

Page 8 April 2016TRB-UM-00372-EN-03

PART NUMBER INFORMATION

Part

Number Meter Bore Size × Line Size Flow Ranges

gpm bpd m³/D

B131-038 3/8 in� × 1 in� (9�5 mm × 25�4 mm) 0�6…3 20…100 3�3…16

B131-050 1/2 in� × 1 in� (12�7 mm × 25�4 mm) 0�75…7�5 25…250 4�1…41

B131-075 3/4 in� × 1 in� (19 mm × 25�4 mm) 2…15 68…515 10�9…81�75

B131-088 7/8 in� × 1 in� (22�2 mm × 25�4 mm) 3…30 100…1000 16…160

B131-100 1 in� × 1 in� (25�4 mm × 25�4 mm) 5…50 170…1700 27�25…272�5

B132-050 1/2 in� × 2 in� (12�7 mm × 50�8 mm) 0�75…7�5 25…250 4�1…41

B132-075 3/4 in� × 2 in� (19 mm × 50�8 mm) 2…15 68…515 10�9…81�75

B132-088 7/8 in� × 2 in� (22�2 mm × 50�8 mm) 3…30 100…1000 16…160

B132-100 1 in� × 2 in� (25�4 mm × 50�8 mm) 5…50 170…1700 27�25…272�5

B132-150 1-1/2 in� × 2 in� (38�1 mm × 50�8 mm) 15…180 515…6000 82…981

B132-200 2 in� × 2 in� (50�8 mm × 50�8 mm) 40…400 1300…13,000 218…2180

B132-250 2 in� × 3 in� (50�8 mm × 76�2 mm) 40…400 1300…13,000 218…2180

B133-300 3 in� × 3 in� (76�2 mm × 76�2 mm) 60…600 2100…21,000 327…3270

B134-400 4 in� × 4 in� (101�6 mm × 101�6 mm) 100…1200 3400…41,000 545…6540

B136-600 6 in� × 6 in� (152�4 mm × 152�4 mm) 200…2500 6800…86,000 1090…13,626

B138-800 8 in� × 8 in� (203�2 mm × 203�2 mm) 350…3500 12,000…120,000 1363…19,076

B139-900 10 in� × 10 in� (254 mm × 254 mm) 500…5000 17,000…171,000 2725…27,252

Strainer Recommendations

Part Number Strainer Mesh Clearance Filter Size

B131-038 60 × 60 0�0092 260 Micron

B131-050 60 × 60 0�0092 260 Micron

B131-075 60 × 60 0�0092 260 Micron

B131-088 60 × 60 0�0092 260 Micron

B131-100 60 × 60 0�0092 260 Micron

B132-050 60 × 60 0�0092 260 Micron

B132-075 60 × 60 0�0092 260 Micron

B132-088 60 × 60 0�0092 260 Micron

B132-100 40 × 40 0�0150 400 Micron

B132-150 20 × 20 0�0340 0�86 mm

B132-200 20 × 20 0�0650 0�86 mm

B132-250 10 × 10 0�0900 1�6 mm

B133-300 10 × 10 0�0900 1�6 mm

B134-400 10 × 10 0�0650 1�6 mm

B136-600 4 × 4 0�1875 4�8 mm

B138-800 4 × 4 0�0900 4�8 mm

B139-900 4 × 4 0�0900 4�8 mm

Repair Kit Information

Page 9April 2016 TRB-UM-00372-EN-03

REPAIR KIT INFORMATION

Meter Part

Number

Repair Kit Part

Number

Max. Pressure

Drop

Dimensions

diameter × length

B131-038 B253-102 3�75 psi 2 in� × 4 in� (50�4 mm × 101�6 mm)

B131-050 B253-105 6�5 psi 2 in� × 4 in� (50�4 mm × 101�6 mm)

B131-075 B253-108 18 psi 2 in� × 4 in� (50�4 mm × 101�6 mm)

B131-088 B253-109 20 psi 2 in� × 4 in� (50�4 mm × 101�6 mm)

B131-100 B253-112 20 psi 2 in� × 4 in� (50�4 mm × 101�6 mm)

B132-050 B253-205 12 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-075 B253-208 18 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-088 B253-209 20 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-100 B253-212 20 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-150 B253-216 16 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-200 B253-220 9 psi 3�62 in� × 2�5 in� (91�9 mm × 63�5 mm)

B132-250 B253-220 10 psi 3�62 in × 4�25 in� (91�9 mm × 108 mm)

B133-300 B253-330 10 psi 5 in� × 4�25 in� (127 mm × 108 mm)

B134-400 B253-440 10 psi 6�18 in� × 5 in� (157 mm × 127 mm)

B136-600 B253-660 10 psi 8�5 in� × 5�75 in� (215�9 mm × 146�1 mm)

B138-800 B253-880 10 psi 10�62 in� × 6�25 in� (269�7 mm × 158�8 mm)

B139-900 B253-990 10 psi 12�75 in� × 6�75 in� (323�8 mm × 171�4 mm)

Specications

Page 10 April 2016TRB-UM-00372-EN-03

SPECIFICATIONS

Materials of

Construction

Body and Internal

Wetted Parts 316 stainless steel

Rotor CD4MCU stainless steel

Bearings Tungsten carbide

Rotor Shaft Tungsten carbide

Operating

Limitations

Temperature

–150…350° F (–101…177° C)

The meter should not be subjected to temperatures above

350° F (177° C), or below –150° F (–101° C) or the freezing point

of the metered liquid�

Pressure

Flange Rating

(ANSI) 150# 300# 600# 900# 1200#

Working Pressure psi 285 740 1480 2220 3705

Working Pressure

MPa 1�97 5�1 10�2 15�31 25�55

*Test Pressure (psi) 427�5 1110 2220 3330 5557�5

*Test Pressure (MPa) 2�95 7�65 15�31 22�96 38�32

* Test pressure based on 1�5 safety factor�

Accuracy 1�0% of reading

Repeatability ± 0�1%

Calibration Water (NIST Traceable Calibration)

Corrosion

Constructed of stainless steel and tungsten carbide� The

operator must ensure that the operating fluid is compatible

with these materials� Incompatible fluids can cause

deterioration of internal components and cause a reduction in

meter accuracy�

Pulsation and

Vibration

Severe pulsation and mechanical vibration will affect accuracy

and shorten the life of the meter�

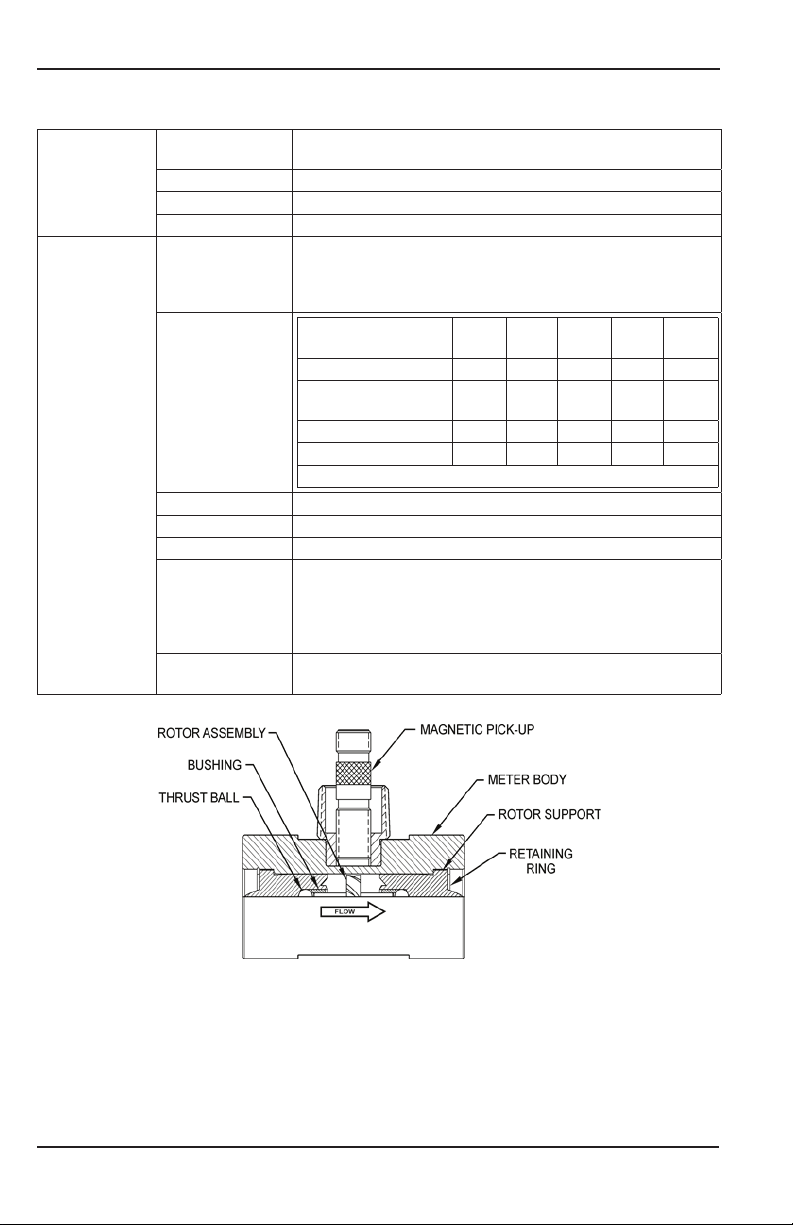

Figure 4: Typical cross-section of models B131-038…B131-100

This manual suits for next models

Table of contents

Other Badger Meter Measuring Instrument manuals

Badger Meter

Badger Meter iSonic 4000 User manual

Badger Meter

Badger Meter BadgerTouch HREBT User manual

Badger Meter

Badger Meter E Series User manual

Badger Meter

Badger Meter ModMAG M-Series M7600 User manual

Badger Meter

Badger Meter ORION Cellular LTE-M User manual

Badger Meter

Badger Meter Vortex VN2000 User manual

Badger Meter

Badger Meter ModMAG M2000 Operating instructions

Badger Meter

Badger Meter Orion 64989-002 User manual

Badger Meter

Badger Meter epm-3 User manual

Badger Meter

Badger Meter FC-5000 User manual

Badger Meter

Badger Meter Dynasonics Polymer RS-900w User manual

Badger Meter

Badger Meter F001 User manual

Badger Meter

Badger Meter Blancett B3100 Series User manual

Badger Meter

Badger Meter Hedland EZ-View H915 User manual

Badger Meter

Badger Meter ModMAG M2000 User manual

Badger Meter

Badger Meter EPM User manual

Badger Meter

Badger Meter Hedland T303 User manual

Badger Meter

Badger Meter Preso Gemini Cone User manual

Badger Meter

Badger Meter Recordall RTR Orion 3-Wire Installation and user guide

Badger Meter

Badger Meter 380CS User manual

Badger Meter

Badger Meter ORION SE Installation and user guide

Badger Meter

Badger Meter RF-OMS User manual

Badger Meter

Badger Meter ER-9 User manual

Badger Meter

Badger Meter Oval Gear EPM2-STD User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
