Anritsu HA-100 Series User manual

INSTRUCTION MANUAL

HANDHELD THERMOMETER

HA‑100／HA‑200／HA‑300 Series

2ed edition March, 2004

ANRITSU METER CO., LTD.

2-4-5 Shimomeguro, Meguro-ku,

Tokyo 153-0064, Japan

Tel +81-3-3491-9181

Fax +81-3-3493-6792

TO ENSURE SAFE AND RELIABLE OPERATION

Concerning the battery cells

Please observe the following matters to ensure safe

and reliable operation of products.

●This product should not be used for any purpose

except temperature measurement.

●Stop using as soon as any problems are

discovered.

●Do not take the unit apart or remodeling.

●Use the specified battery cells or specified

AC-Adaptor.

※This products is not rechargeable model.

Please observe the following matters to guard the

battery leakage, exothermic reaction and ignition.

●Do not throw away the battery cells in the fire,

and avoid short between electrodes.

●Do not charge or heat.

●Use the specified battery cells.

●Set the battery cells correctly 「＋」and 「−」.

●Remove the battery cells when the battery life is

finished, or long time no using.

●Do not mix old and new, or variety battery cells.

●The battery life will be affected by the

environmental temperature.

Caution

Warning

Caution

Preface

Thank you for purchasing this product from

ANRITSU METER CO., LTD.

We prepared this manual so that you can use this

product with ease and confidence.

Please read this manual carefully and understand

each functions of this product for your safety and

correct using.

Caution

■This contents and the specification of this

product are subject to change without notice.

■Reproduction in part or whole of any material

from this booklet is prohibited by low.

■We surely make this manual, however if there

are any error or not clear, please contact the

place of purchase or us.

■We are not responsible for the consequences of

using this product.

After-sales Service

ANRITSU METER CO., LTD. ships products

after severe company’s inspection. Should you

find any failure resulting from poor material and

workmanship or accident during transportation,

please contact the place of purchase or us.

We recommend that you may use the original

packaging for this product when you send it to us

for repairing or periodical checkup. If you no

longer have the original carton, be sure to use

plenty of wrapping to guard against damage

during shipping.

CONTENTS

General

････････････････････････････････ e4

2. Unpacking

2.1.Unpacking･･･････････････････････････ e4

2.2.Repacking･････････････････････････････ e4

Name of Components

3.1.Name of Components･･････････････････ e5

3.2.Display of all segments ････････････････ e6

Preparation for Operation

4.1.Battery Installation ･･･････････････････ e7

4.2.AC-power Supply ･････････････････････ e8

4.3.How to use Hand Strap･･･････････････ e8

4.4.Sensor Setting････････････････････････ e9

4.5.Soft case･････････････････････････････ e9

Operation

･･･････････････････････ e10

5.1.Power ON / OFF･･････････････････････ e11

5.2.Hold･････････････････････････････････ e11

5.3.Automatic Power OFF ･･･････････････ e12

5.4.Resolution change ･･･････････････････ e12

5.5.P / V Hold ････････････････････････････ e13

5.6.Backlight･････････････････････････････ e13

5.7.Calibration set････････････････････････ e14

5.8.Alarm････････････････････････････････ e16

Default Configuration

･････････････････ e20

Indicator of Battery remain

･･････････ e21

Analog Output

････････････････････････ e22

8.1.Connection of recording････････････････ e22

Error Messages

9.1.Indication of Sensor Burnout･･･････････ e23

9.2.Indication of Over range･･･････････････ e23

9.3.Indication of Error････････････････････ e23

9.4.Indication of Exhausted Battery････････ e24

10.

Maintenance

10.1.Storage･･････････････････････････････ e24

10.2.Case cleaning････････････････････････ e24

11.

In case of Trouble

･････････････････････ e25

12.

Specification

･･････････････････････････ e26

1. General

This is a handheld thermometer by the latest

microcomputer technology.

A microprocessor is used for constant compensation

of zero-point and full scale, thus ensuring extremely

stable, high precision measurement.

2. Unpacking

2.1. Unpacking

Open the carton and the check that the following

are provided. If any of them is missing or out of

order, please contact the place of purchase or us.

1. Main unit

2. Soft case

3. Analog Output cable (HA-**1, HA-**2 only)

4. Alarm Output cable (HA-3** only)

5. AA-size alkaline battery cells

6. Instruction manual

7. Warranty

2.2 Repacking

Use the original carton of the instrument for its

transportation by mail or car. If the original case is

not available, carefully wrap the instrument in

shock-absorbing material (polystyrene form and the

like). Wrapping material should be dry and free of

dust generation otherwise the instrument may be

damaged.

3. Name of Components

3.1. Name of Components

(MODEL: HA-3

５

)

①Alarm Output / Analog Output connector

②Sensor Input connector

③LCD Display

④Key switch panel

⑤AC adaptor jack

⑥Battery housing

⑦Hand strap

3.2. Display of all segments

Segments HA‑1** HA‑2** HA‑3**

①

Alarm ●

②

Hold ●●●

③

Alarm Buzzer ●

④

Auto-power-off ●●●

⑤

Battery ●●●

⑥

P/V Hold ●●

⑦

↑↓ alarm ●

⑧

Main display ●●●

⑨

Peak ●●

⑩

Calibration ●

⑪

℃●●●

⑫

Valley ●●

⑬

Hi ●

⑭

Sub-display 1 ●●

⑮

Lo ●

⑯

Sub-display 2 ●●

②

④

⑤

⑥

⑩

⑧

⑪

⑬

⑭

⑮

⑯

③

⑦

⑨

⑫

①

4. Preparation for Operation

4.1. Battery Installation

Be sure to keep the power OFF during the battery

cells change.

●The Reset switch is a small push button in the

upper section of the battery housing. Use a thin

stick to lightly press it.

●When the Rest button is pressed, operation

begins in the same way as power is turned ON,

and the instrument will be ready for

measurement. When measurement is not intends

after battery change, turn power OFF.

(1) Open the b

attery

housing cover.

(2) Set battery cells

correctly.

(3) After setting battery

cells, press the Reset

switch.

(4) Close the battery

housing cover

completely.

Reset

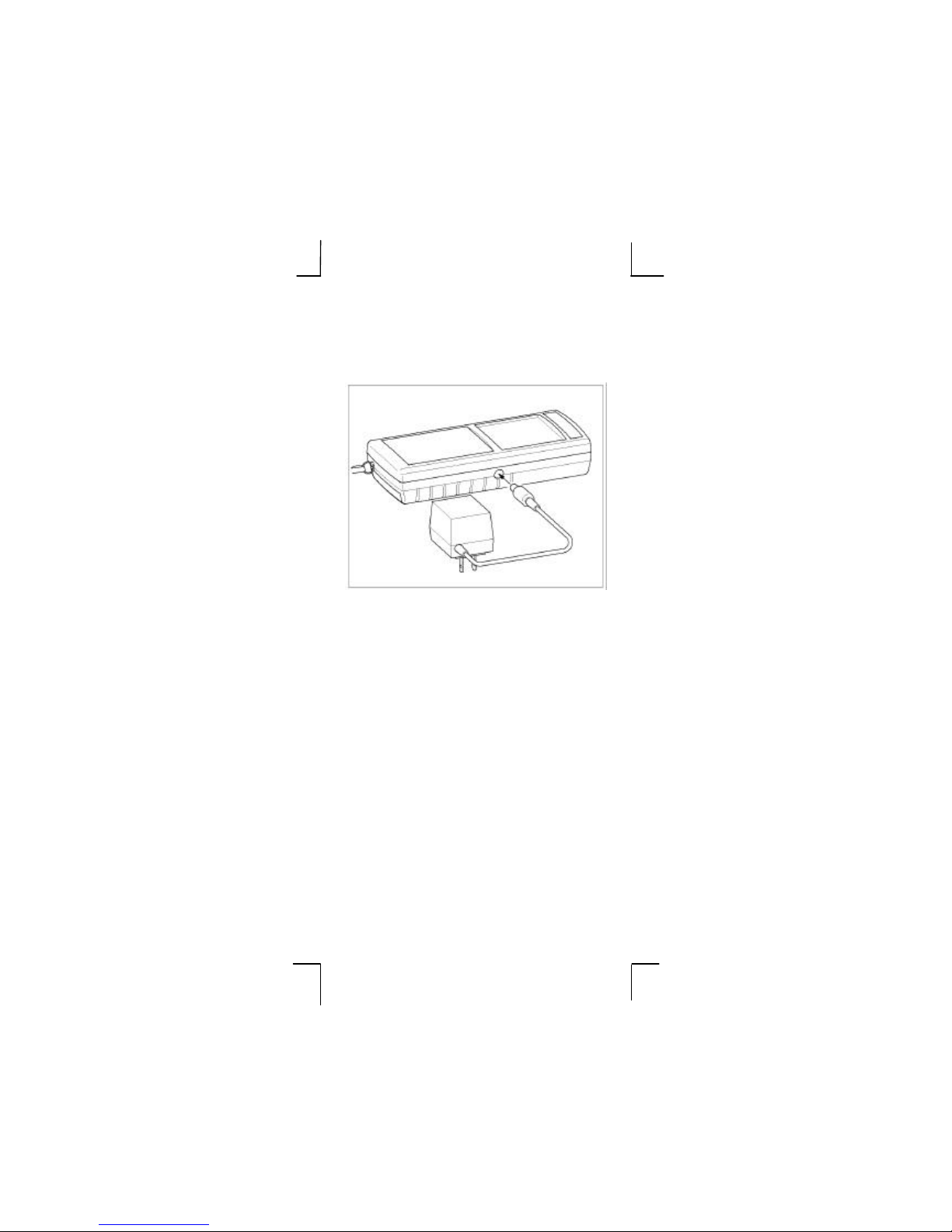

4.2. AC-power Supply

(1) After turning power OFF, connect the

AC-adaptor connection plug to the main unit as

shown.

(2) Connect the power plug of the AC-adaptor to

commercial power (100V AC).

※When the AC-adaptor is connected during

operating the battery, the internal battery circuit

will be cut OFF as same as Reset.

※Be sure to use the specified AC-adaptor. The

AC-adaptor for the HA series is available as an

option.

4.3. How to Use Hand Strap

Hang the hand strap around the hand to prevent in

advertent drop of the instrument.
