Allen-Bradley CompactLogix 1769-L23E-QB1B User manual

Installation Instructions

CompactLogix Packaged Controllers

Catalog Numbers 1769-L23E-QB1B, 1769-L23E-QBFC1B, 1769-L23-QBFC1B

Use this document as a guide to install the CompactLogix™ packaged controllers.

Topic Page

Important User Information 2

Verify Compatibility 6

Before You Begin 6

Installation Checklist 8

Packaged Controller Dimensions 9

Install the Battery 11

Connect Expansion Modules (optional) 12

Panel Mount the System 14

DIN-rail Mount the System 14

Grounding Considerations 15

Wiring Power to the System 15

Wire the I/O Removable Terminal Blocks 17

Connect Using the RS-232 Connection 28

Connect Using the Ethernet Connection 28

Download and Install EDS Files 29

Download Packaged Controller Firmware 29

Use the AutoFlash Feature of RSLogix 5000 Software to Load Firmware 29

Use the ControlFLASH Utility to Load Firmware 33

Select the Packaged Controller’s Operating Mode 35

Power Supply Status Indicator 36

Controller Status Indicators 36

Additional Resources 42

Allen-Bradley Parts

2CompactLogix Controller

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

Important User Information

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for

the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell

Automation®sales office or online at http://www.rockwellautomation.com/literature/) describes some important differences

between solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide

variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each

intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or

application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and

requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for

actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software

described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is

prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous

environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death,

property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard and recognize the

consequences.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, drive or motor, to alert people that

dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, drive or motor, to alert people that

surfaces may reach dangerous temperatures.

IMPORTANT Identifies information that is critical for successful application and understanding of the product.

CompactLogix Controller 3

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

Environment and Enclosure

Prevent Electrostatic Discharge

WARNING: This equipment is intended for use in a Pollution Degree 2 industrial environment, in

overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to

2000 meters (6562 ft) without derating.

This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR

Publication 11. Without appropriate precautions, there may be potential difficulties ensuring

electromagnetic compatibility in other environments due to conducted as well as radiated

disturbance.

This equipment is supplied as open-type equipment. It must be mounted within an enclosure that

is suitably designed for those specific environmental conditions that will be present and

appropriately designed to prevent personal injury resulting from accessibility to live parts. The

enclosure must have suitable flame-retardant properties to prevent or minimize the spread of

flame, complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic. The

interior of the enclosure must be accessible only by the use of a tool. Subsequent sections of this

publication may contain additional information regarding specific enclosure type ratings that are

required to comply with certain product safety certifications.

In addition to this publication, see the following:

•Industrial Automation Wiring and Grounding Guidelines, Allen-Bradley®publication 1770-4.1,

for additional installation requirements

•NEMA Standards publication 250 and IEC publication 60529, as applicable, for explanations of

the degrees of protection provided by different types of enclosure

WARNING: This equipment is sensitive to electrostatic discharge, which can cause internal

damage and affect normal operation. Follow these guidelines when you handle this equipment:

•Touch a grounded object to discharge potential static.

•Wear an approved grounding wrist-strap.

•Do not touch connectors or pins on component boards.

•Do not touch circuit components inside the equipment.

•Use a static-safe workstation, if available.

•Store the equipment in appropriate static-safe packaging when not in use.

Allen-Bradley Parts

4CompactLogix Controller

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

North American Hazardous Location Approval

The following information applies when operating this

equipment in hazardous locations.

Informations sur l’utilisation de cet équipement en

environnements dangereux.

Products marked "CL I, DIV 2, GP A, B, C, D" are

suitable for use in Class I Division 2 Groups A, B, C, D,

Hazardous Locations and nonhazardous locations

only. Each product is supplied with markings on the

rating nameplate indicating the hazardous location

temperature code. When combining products

within a system, the most adverse temperature

code (lowest "T" number) may be used to help

determine the overall temperature code of the

system. Combinations of equipment in your system

are subject to investigation by the local Authority

Having Jurisdiction at the time of installation.

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne

conviennent qu'à une utilisation en environnements de

Classe I Division 2 Groupes A, B, C, D dangereux et non

dangereux. Chaque produit est livré avec des

marquages sur sa plaque d'identification qui indiquent

le code de température pour les environnements

dangereux. Lorsque plusieurs produits sont combinés

dans un système, le code de température le plus

défavorable (code de température le plus faible) peut

être utilisé pour déterminer le code de température

global du système. Les combinaisons d'équipements

dans le système sont sujettes à inspection par les

autorités locales qualifiées au moment de l'installation.

WARNING:

Explosion Hazard -

• Do not disconnect equipment unless

power has been removed or the area is

known to be nonhazardous.

• Do not disconnect connections to this

equipment unless power has been

removed or the area is known to be

nonhazardous. Secure any external

connections that mate tothis equipment

by using screws, sliding latches,

threaded connectors, or other means

provided with this product.

• Substitution of components may impair

suitability for Class I, Division 2.

• If this product contains batteries, they

must only be changed in an area known

to be nonhazardous.

AVERTISSEMENT:

Risque d’Explosion –

• Couper le courant ou s'assurer que

l'environnement est classé non dangereux

avant de débrancher l'équipement.

• Couper le courant ou s'assurer que

l'environnement est classé non dangereux

avant de débrancher les connecteurs. Fixer

tous les connecteurs externes reliés à cet

équipement à l'aide de vis, loquets

coulissants, connecteurs filetés ou autres

moyens fournis avec ce produit.

• La substitution de composants peut rendre

cet équipement inadapté à une utilisation en

environnement de Classe I, Division 2.

• S'assurer que l'environnement est classé non

dangereux avant de changer les piles.

CompactLogix Controller 5

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

European Hazardous Location Approval

European Zone 2 Certification (The following applies when the product bears the Ex or EEx Marking.)

This equipment is intended for use in potentially explosive atmospheres as defined by European Union Directive 94/9/EC and has

been found to comply with the Essential Health and Safety Requirements relating to the design and construction of Category 3

equipment intended for use in potentially explosive atmospheres, given in Annex II to this Directive.

Compliance with the Essential Health and Safety Requirements has been assured by compliance with EN 60079-15 and EN

60079-0.

WARNING:

•This equipment must be installed in an enclosure providing at least IP54 protection when

applied in Zone 2 environments.

•This equipment shall be used within its specified ratings defined by Allen-Bradley.

•Provisions shall be made to prevent the rated voltage from being exceeded by transient

disturbances of more than 40% when applied in Zone 2 environments.

•Secure any external connections that mate to this equipment by using screws, sliding latches,

threaded connectors, or other means provided with this product.

•Do not disconnect equipment unless power has been removed or the area is known to be

nonhazardous.

ATTENTION: This equipment is not resistant to sunlight or other sources of UV radiation.

Allen-Bradley Parts

6CompactLogix Controller

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

Verify Compatibility

This table shows the compatible pairs of RSLogix 5000 software versions and controller

firmware revisions.

Before You Begin

This section contains information you should understand before installing the CompactLogix

packaged controller.

Restrictions

The maximum amount of expansion modules that can be used with the packaged controllers is

two. Within that limit, the number of expansion I/O modules that can be attached to the

packaged controller depends on the bus current draw of the modules being attached.

Each packaged controller has a specified amount of available bus current as shown in this table.

To determine the number of expansion I/O modules you can add, total the bus current draw

(maximum) of your planned expansion I/O modules and the end cap. If your result is less than

IMPORTANT

The series B controllers are compatible only with the controller firmware and the RSLogix 5000

software versions as indicated in the table below.

Attempting to use controllers with incompatible software and firmware revisions can result in

the following:

•An inability to connect to the series B controller in RSLogix 5000 software

•Unsuccessful firmware upgrades in ControlFLASH™or AutoFlash utilities

Controller RSLogix 5000 Software Version or Later Controller Firmware Revision or Later

1769-L23E-QB1B,

1769-L23E-QBFC1B,

1769-L23-QBFC1B

16.00.00 16.023

17.01.02 17.012

19.01.00 19.015

20.01.00 20.013

Packaged Controller Bus Current and Expansion Module Limits

Cat. No. Total Available 5V DC Bus Current

1769-L23E-QB1B 1 A (1000 mA)

1769-L23E-QBFC1B 450 mA

1769-L23-QBFC1B 800 mA

CompactLogix Controller 7

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

the packaged controller’s maximum available bus current, you are within the expansion I/O limit

of your packaged controller.

Example of Expansion I/O Calculation

In this example, these expansion I/O modules and bus current draws are planned for use with the

1769-L23E-QBFC1B packaged controller.

The total bus current draw of the Compact I/O modules (310 mA) is less than the total available

bus current of the packaged controller (450 mA). These planned expansion I/O modules are

within the limits of the 1769-L23E-QBFC1B packaged controller.

Parts (included with the controller)

These components are included with your CompactLogix packaged controller.

Parts (optional, not included with the controller)

In addition to the parts included with the packaged controller, you may choose to use these

components specific to your application.

Planned Expansion I/O Module Bus Current Draw, max(1)

(1) The maximum bus current draw specification for each Compact I/O™ module is available in the Compact I/O Selection Guide, publication

1769-SG002. This publication also provides further explanation of and a table for the calculation of Compact I/O power supply requirements.

1769-OV16 Sink Output Module 200 mA

1769-IF4 Analog Input Module 105 mA

1769-ECR End Cap 5 mA

Total Bus Current Draw 310 mA

Cat. No. Part

1747-KY Key

1769-BA Battery

1769-ECR End cap

If using Then use this component

RS-232 port to connect to the packaged controller. 1756-CP3 or 1747-CP3 serial cable.

EtherNet/IP port to connect to the packaged controller. Standard Ethernet cable with an RJ45 connector, or, for industrial

grade requirements, 1585J Ethernet connectivity media.

Panel mount method to install the packaged controller. 4…8 M4 or #8 panhead screws (depending on the number of

expansion modules used).

Allen-Bradley Parts

8CompactLogix Controller

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

Replacement Parts

These CompactLogix packaged controller replacement parts are available for order.

Required Tools

The only tool required for the installation of the CompactLogix packaged controller is a

medium-sized Phillips-head screwdriver.

Installation Checklist

This table lists tasks that must be completed to fully install and begin using your packaged

controller.

Catalog No. Description Compatible Packaged Controllers

1769-BA CompactLogix controller battery 1769-L23E-QB1B, 1769-L23E-QBFC1B, and

1769-L23-QBFC1B

1769-ECR Compact right end cap 1769-L23E-QB1B, 1769-L23E-QBFC1B, and

1769-L23-QBFC1B

1769-RDQB CompactLogix packaged controller door 1769-L23E-QB1B

1769-RDQBFC CompactLogix packaged controller door 1769-L23E-QBFC1B and 1769-L23-QBFC1B

Installation Tasks

Install the Battery

Connect Expansion Modules (optional)

Panel Mount the System or DIN-rail Mount the System

Grounding Considerations

Wiring Power to the System

Wire the I/O Removable Terminal Blocks

Connect Using the RS-232 Connection

Connect Using the Ethernet Connection

Download and Install EDS Files

Download Packaged Controller Firmware

Use the AutoFlash Feature of RSLogix 5000 Software to Load Firmware

or Use the ControlFLASH Utility to Load Firmware

CompactLogix Controller 9

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

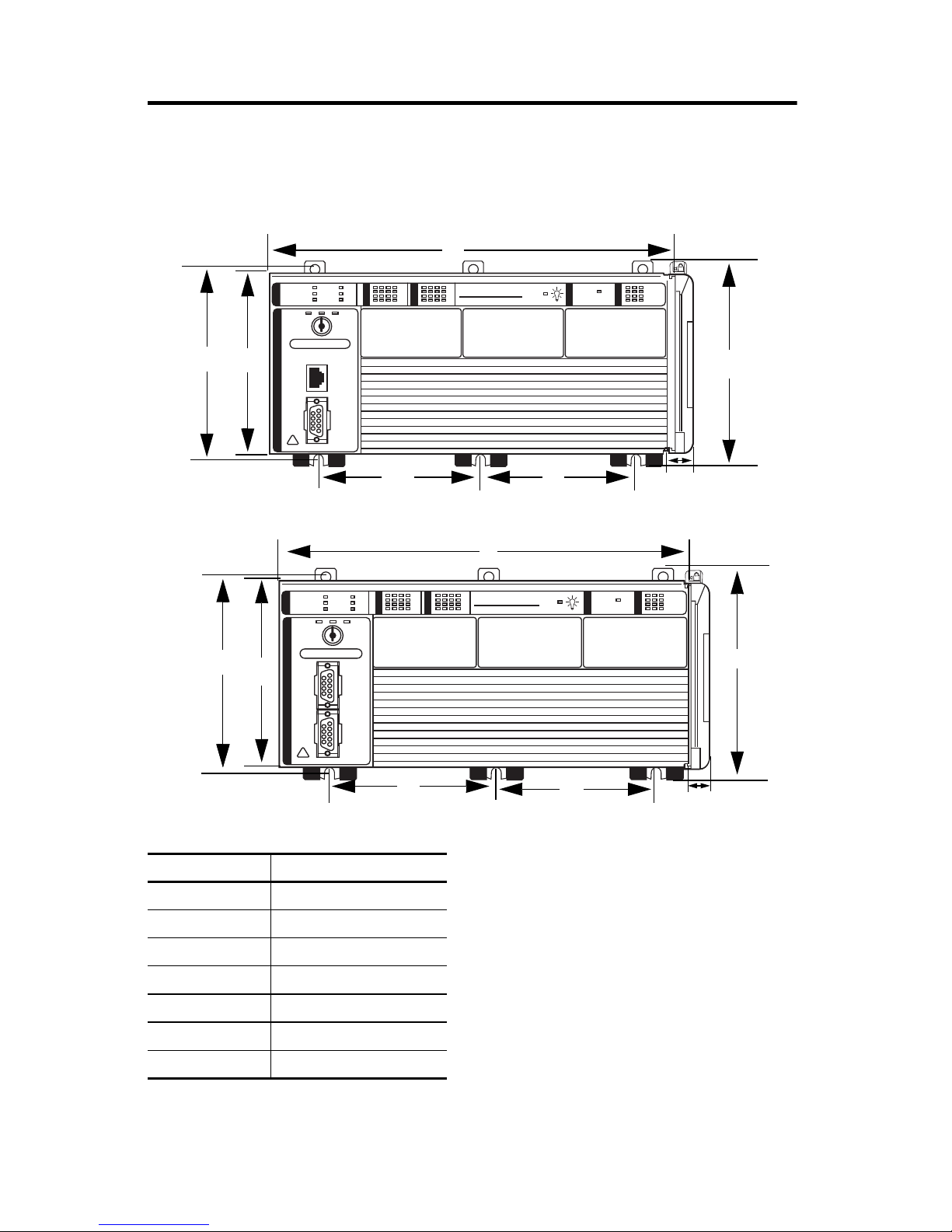

Packaged Controller Dimensions

1769-L23E-QB1B Packaged Controller

The 1769-L23E-QB1B controller has these approximate dimensions.

Measurement Dimension, approximate

a 185.2 mm (7.29 in.)

b 123.86 mm (4.88 in.)

c 118 mm (4.65 in.)

d 132 mm (5.20 in.)

e 132.9 mm (5.23 in.)

f 18 mm (0.71 in.)

CompactLogix L23E

bcd

Allen-Bradley Parts

10 CompactLogix Controller

Rockwell Automation Publication 1769-IN082C-EN-P - February 2013

1769-L23E-QBFC1B and 1769-L23-QBFC1B Packaged Controllers

The 1769-L23E-QBFC1B and 1769-L23-QBFC1B packaged controllers have these

approximate dimensions.

Measurement(1)

(1) Applies to both the 1769-L23E-QBFC1B and 1769-L23-QBFC1B

packaged controllers.

Dimension, approximate

a 249.25 mm (9.81 in.)

b 123.86 mm (4.88 in.)

c 118 mm (4.65 in.)

d 132 mm (5.20 in.)

e 98.475 mm (3.88 in.)

f 98.475 mm (3.88 in.)

g 18 mm (0.71 in.)

CompactLogix L23E

CompactLogix L23

BATT

I/O

DCH 0

FORCE

RUN

This manual suits for next models

Table of contents

Other Allen-Bradley Controllers manuals

Allen-Bradley

Allen-Bradley 2080-LC20-20QBB User manual

Allen-Bradley

Allen-Bradley 1769-L30ERM User manual

Allen-Bradley

Allen-Bradley ProcessLogix 1757-PLX52 User manual

Allen-Bradley

Allen-Bradley MicroLogix 1200 User manual

Allen-Bradley

Allen-Bradley Micro800 User manual

Allen-Bradley

Allen-Bradley MicroLogix 1200 User manual

Allen-Bradley

Allen-Bradley DriveLogix 5730 User manual

Allen-Bradley

Allen-Bradley CompactLogix 5480 User manual

Allen-Bradley

Allen-Bradley ArmorStart 290E User manual

Allen-Bradley

Allen-Bradley GuardPLC 1753 User manual

Allen-Bradley

Allen-Bradley 1769-L32E CompactLogix 5332E User manual

Allen-Bradley

Allen-Bradley Micro830 User manual

Allen-Bradley

Allen-Bradley PowerFlex 70 User manual

Allen-Bradley

Allen-Bradley CompactLogix 5370 L1 User manual

Allen-Bradley

Allen-Bradley 20A User manual

Allen-Bradley

Allen-Bradley 160 SSC User manual

Allen-Bradley

Allen-Bradley PLC-5 series User manual

Allen-Bradley

Allen-Bradley PLC-5 series User manual

Allen-Bradley

Allen-Bradley GuardPLC 160 User manual

Allen-Bradley

Allen-Bradley 1305 Series User manual

Allen-Bradley

Allen-Bradley PowerFlex DC User manual

Allen-Bradley

Allen-Bradley MicroLogix 1400 User manual

Allen-Bradley

Allen-Bradley Micro830 User manual

Allen-Bradley

Allen-Bradley PLC-2/30 User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual
