Agilent Technologies 4352B User manual

Agilent 4352B Revision 01.02 Firmware

Installation Kit (04352-65402 )

Installation Manual

Agilent Part No. 04352-90402

Printed in JAPAN July 2000

Notice

The information contained in this document is subject to change without notice

This document contains proprietary information which is protected by copyright. All rights are

reserved. No part of this document may be photocopied, reproduced, or translated to another

language without the prior written consent of the Agilent T

echnologies.

Agilent T

echnologies Japan, Ltd.

Component T

est PGU-Kobe

1-3-2, Murotani, Nishi-ku, Kobe-shi,

Hyogo

,651-2241 Japan



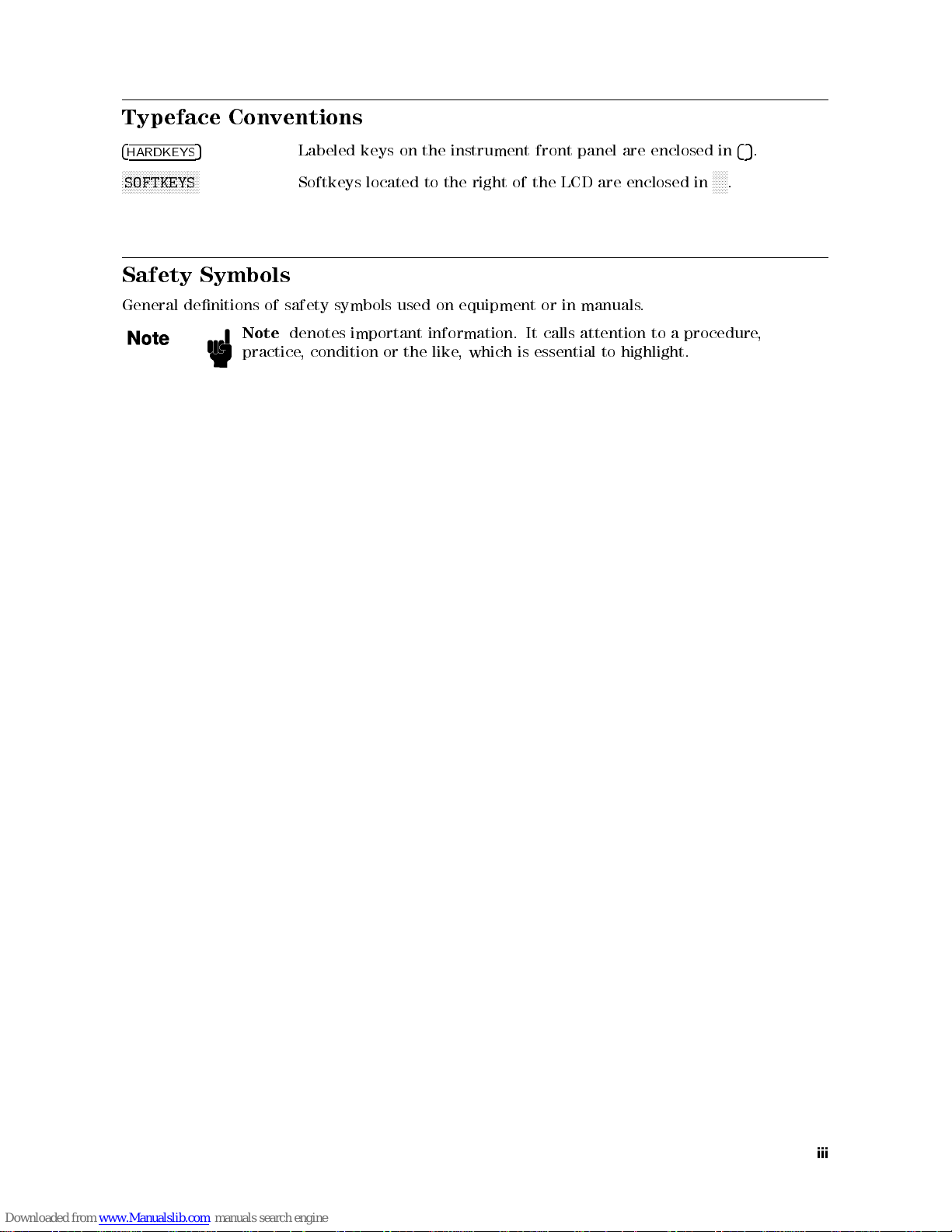

Typeface Conventions

HARDKEYS

Labeled keys on the instrument front panel are enclosed in

NNNNNNNNNNNNNNNNNNNNNNNNNN

SOFTKEYS

Softkeys located to the right of the LCD are enclosed in

NNNNN

Safety Symbols

General denitions of safety symbols used on equipment or in manuals

Note

denotes important information. It calls attention to aprocedure

practice

,condition or the like

,whichis essential to highlight.

iii

General Information

Introduction

This chapter describes the Kit and lists the contents of the Kit.

The Firmware Installation Kit

The purpose of this kit is to install the rmware to 4352B .The kit is used for rmware

upgrades

,and for rmware installation after repairing the A1 CPU board.

Contents of the Firmware Installation Kit

See Table 1-1 for the kit contents

.If anything is missing, contact the nearest Agilent

echnologies oce

able 1-1. Contents of the Kit

art Number Description Qty

04352-18402 Flexible Disk (Rev 01.02)1

5080-3949 Label \Firmware Rev 01.02"1

04352-90402 Installation Manual (This manual) 1

General Information 1-1

Installation

Introduction

This chapter describes the rmware installation procedure

Firmware Installation Procedure

erform the following steps to install the rmware into the 4352B .

1. While pressing

Preset

key

,turn on the 4352B.The bootloader screen as shown in Figure 2-1

will be displayed.

Figure 2-1. Bootloader Menu Screen

2. Insert the furnished exible disk into the disk drive.

3. Press

NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

PREVIEW DISK

. The update disk revision will be displayed.

Installation 2-1

Conrm the displayed \Update Disk Revision" is 01.02 and press

NNNNNNNNNNNNNNNNNNNN

Return

Press

NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

SYSTEM UPDATE

NNNNNNNNNNNNNNNNNNNNNNNNNN

CONTINUE

to install the 4352B rmware from the exible disk to the

4352B ash memory

.It

will take about a few minutes

After \Update Complete" is displayed, press

NNNNNNNNNNNNNNNNNNNN

REBOOT

to reboot the 4352B .

Press

System

NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

FIRMWARE REVISION

to conrm the current rmware revision. If \POWER

ON TEST F

AILED" isn't displayed on the LCD and the new rmware revison is correctly

displayed, the rmware installation is successfully completed.

8. Put the rmware revision label on the 4352B's rear panel as shown in Figure 2-2.

Figure 2-2. Location of the Firmware Revision Label

Note

The Firmware Installation Kit can be used to install the rmware into more

than one unit of the 4352B.In

this case

,order additional rmware revision

labels (Agilent P/N: 5080-3949).

2-2 Installation
