Acute TravelLogic User manual

Acute Technology Inc.

TravelLogic 2 in 1 Analyzer

(Protocol + Logic) Manual

Publish: 2018/06

Acute Technology Inc.

Table of Contents

..........................................................................4Chapter 1 Installation and Setting

Hardware Installation......................................................................................4

Software installation.........................................................................................5

Specification Table............................................................................................7

..................................................................10Chapter 2 Function list and operation

Protocol Analyzer...........................................................................................10

File.......................................................................................................................10

Capture ................................................................................................................11

Protocol Settings...................................................................................11

Operating mode and memory setting ...................................................13

Mode 1 Protocol Analyzer..........................................................13

Mode 2 Protocol Logger.............................................................15

Mode 3 Protocol Monitor...........................................................17

Show Waveforms..................................................................................19

Search ...................................................................................................19

To the end .............................................................................................20

Window ................................................................................................20

Saved as text file...................................................................................20

Detail window ......................................................................................21

Statistics window..................................................................................22

Hide Data window................................................................................23

Stack Oscilloscope................................................................................23

Cursor..................................................................................................................24

LogicAnalyzer................................................................................................25

File.......................................................................................................................26

Capture ................................................................................................................33

Quick Setting........................................................................................33

Trigger Parameter Setting.....................................................................34

Single Level Trigger .....................................................................34

Acute Technology Inc.

Multi Level Trigger.......................................................................34

Width Trigger................................................................................36

Timeout Trigger ............................................................................37

External Trigger ............................................................................37

Device Memory Usage.........................................................................38

Threshold..............................................................................................39

Stack Oscilloscope................................................................................42

Advanced Capture Setting...................................................................................47

Cursor..................................................................................................................51

Waveform Area ...................................................................................................54

Report Area .........................................................................................................55

Bus decode Settings.............................................................................................56

Customized Report Settings ................................................................................56

................................................................................57Chapter 3 Technical support

Acute Technology Inc.

Chapter 1 Installation and Setting

Hardware Installation

Connect the USB 3.0 cable to the USB slot on the computer. After confirming that the

connection is complete, you can turn on the software and connect the signal cable to the

object to be tested for observation.

Appearance and functions of the Master:

Indicator LED

Reference clock out

Reference clock in

Trigger out

Trigger in

USB 3.0 Type B slot: connected with computer.

Pin assignment:

Acute Technology Inc.

Software installation

Please visit the official website of Acute Technology Inc., go to the Download page, and then

select and download the TravelLogic 3000 series. After completion of installation, the “start

icon” of TravelLogic 3000 series will appear on the desktop and the program set. You can

select either one to start TravelLogic ( ). After starting the software, the main menu

screen will show up. You can choose to enter logic Analyzer or protocol Analyzer.

Or after entering the function window, you can select the icon below to add Logic Analyzer

or Protocol Analyzer window.

Or click the Add Logic Analyzer orAdd Protocol Analyzer window within the file functions.

For the first-time use, the following screen will show up. Please set up the working directory

that you will surely use. It is recommended that you choose the hard disk with larger

remaining space for the storage of the working directory.

Acute Technology Inc.

Specification Table

Model

TL3017E

TL3134E

TL3134B

TL3234B+

Power

Power Source

USB bus-power (+5V)

Static Power

Consumption

0.75W

Max Power

Consumption

<2.5W

Hardware Interface

USB3.0

Timing Analyzer (Asynchronous,

Max. Sample Rate)

1GHz

2GHz

State Clock Rate (Synchronous,

External Clock)

200MHz

Storage

Conventional Timing, Transitional Timing

Channels (Data / Clock / Analog

/ Ground)

16 / 1 / 1 /

32 / 2 / 2 / 4

Total Memory

16Mb

1Gb

8Gb

Timing

vs.

Channels

vs.

Memory

Timing Analyzer

Available channels / Memory per channel

2GHz

8 / 2Mb

8 / 125Mb

4 / 2Gb

1GHz

16 / 1Mb

16 / 62Mb

8 / 1Gb

500MHz

16 / 1Mb

32 / 31Mb

16 / 500Mb

250MHz

8 / 2Mb

8 / 125Mb

32 / 250Mb

200MHz

8 / 2Mb,

16 / 1Mb

8 / 125Mb,

16 / 62Mb, 32 / 31Mb

4 / 2Gb,

8 / 1Gb,

16 / 500Mb,

32 / 250Mb

Trigger

Resolution

1ns

500ps

Channels

States

Events

Pre / Post

Yes

Pass Counter

Yes (0~1048575 times)

Types

Range, Word, Channel, Width, Time-out, Single / Multi

Level

Bus I

I²C

I²C, SPI, UART, USB PD3.0

Bus II

---

BiSS-C, CAN2.0, DALI,

HID over I²C, I²S, I³C,

LIN2.2, LPC, MDIO,

Modbus, PMBus, Profibus,

SMBus, SVI2, *SVID,

USB1.1

Bus III

---

eMMC4.5,

eSPI,

MIPI SPMI

Acute Technology Inc.

NAND

Flash,

SD3.0,

Serial Flash

(SPI

NAND)

Threshold

Group

2 (ch0~7,

ch8~15 &

clk0)

4 (ch0~7, ch8~15 & clk0, ch16~23,

ch24~31 & clk1)

Range

+5V ~ -5V

Resolution

50mV

Accuracy

±100mV + 5%*Vth

Input

Voltage

Maximum

±30V DC, 12Vpp AC

Sensitivity

0.25Vpp @50MHz, 0.5Vpp @150MHz, 0.8Vpp

@250MHz

Impedance

200KΩ//<5pF

Temperature

Operating /

Storage

5℃~45℃(41℉~113℉) / -10℃~65℃(14℉~149℉)

Channel to channel skew

< 1ns

I/O port

Trig-In

TTL 3.3V level (Rising / Falling)

Trigger pulse

approval

> 8 ns

Trig-Out

TTL 3.3V, Pulse Width

Ref. Clock Input

10MHz, Vpp=3.3 to 5V

Ref. Clock Output

10MHz, TTL 3.3V

Connector type

MCX jack / female

Protocol

Analyzer/

Protocol

Logger /

Protocol

Monitor

I²C

I²C, SPI, UART, USB PD3.0

---

BiSS-C, CAN2.0, DALI,

HID over I²C, I²S, I³C,

LIN2.2, MDIO, Modbus,

PMBus, Profibus, PWM,

SMBus, *SVID, USB1.1,

USB PD3.0

III

eSPI

Software

Features

Zoom In / Out

Yes

Language

English / Simplified Chinese / Traditional Chinese

Waveform Height

Adjustable

Zoom / Report

Window

Yes

Quick

Cursor-positioning

Yes

Import Label(s)

Yes

Quick Bus

Yes

Acute Technology Inc.

Decode Setup

Trigger / Auxiliary

cursors

1/25

Data Logger

Saved to Hard Disk

Bus Decode

Please refer to the Acute_DeTrig_en.PDF

Line Decoding

Biphase Mark, Differential-Manchester, Manchester

(Thomas, IEEE802.3), Miller, Modified Miller, NRZI, …

Line Encoding

AMI (Standard, B8ZS, HDB3), Biphase Mark, CMI,

Differential-Manchester, Manchester (Thomas,

IEEE802.4), MLT-3, Miller, Modified Miller, NRZI,

Pseudoternary, …

Dimension (mm³)

123 x 76 x 21 (mm³)

Lead Cable (Data / CLK /

Analog / GND)

A 40-pin lead cable (32 / 2 / 2 / 4)

Grippers (Data / CLK / Analog /

GND)

*If you have any issues with SVID protocol features, please contact your Intel Field

Representative.

Acute Technology Inc.

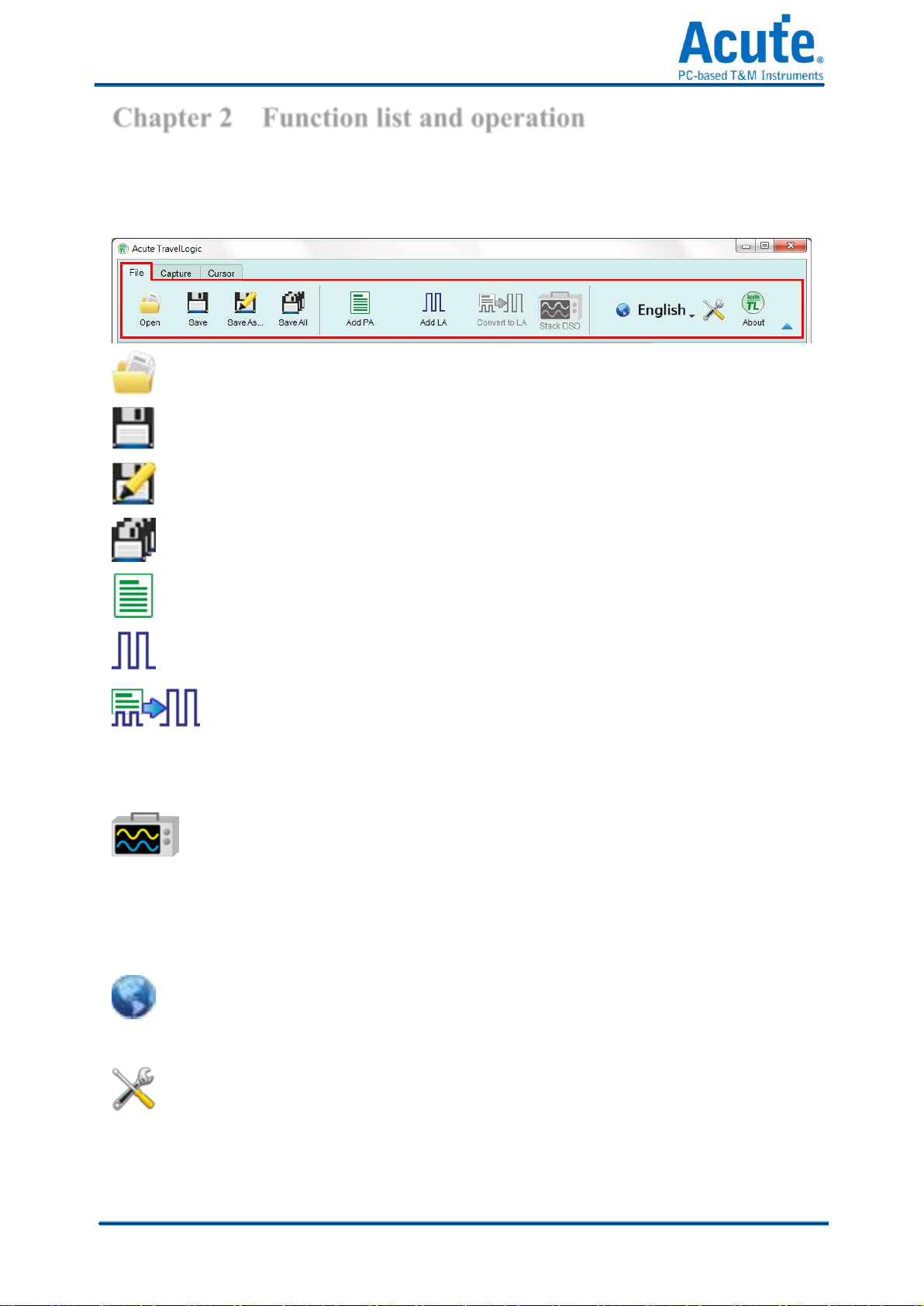

Chapter 2 Function list and operation

Protocol Analyzer

File

Open file: Load the file

Save file: Save the current window to file

Save as: Save with a new file name with specified storage range

Save all: Save all Protocol Analyzer/Logic Analyzer windows to files

Add Protocol Analyzer: Add a Protocol Analyzer window

Add Logic Analyzer: Add a Logic Analyzer window

Convert to LogicAnalyzer: When the “show waveform”capture mode is

enabled, you can click this function to transfer the waveform and setting parameters into the

Logic Analyzer window and continue to use the Logic Analyzer window to capture Protocol.

Stack Oscilloscope: You may stack a DSO to become a MSO under the Protocol

Analyzer mode. But, you must choose the “show waveform”capture mode to capture the

protocol data with the waveforms. Then, click the DSO icon to enter the Logic Analyzer

window.

Language: Display language. You can select English, Traditional Chinese, or

Simplified Chinese

System environment settings: Here you can set the working directory, the label

height, whether to load the last setting, the waveform display mode and its color.
