ACTi ACM-4201 User manual
Megapixel IP Cube Camera
ACM-4201
Ver. 081020
Quick Installation Guide
0-1
0Getting Started
1.1 PACKAGE CONTENTS
ACM-4201 Power Adaptor (Option)
Product CD Camera Stand
Warranty Card Accessory
1
0-2
1.2 PHYSICAL DESCRIPTION
1
2
1. Action LED Indicator
The LED will light up after IP camera has successfully completed
the boot process
2. Built-in Microphone
Sensitivity: -36dB ± 3dB(0dB=1V/Pa at 1KHz)
S/N Ratio: More than 58dB
Directivity: Omni-directional
0-3
3. Audio Output
The IP device supports audio output with earphone jack
4. Ethernet Port
The IP device connects to the Ethernet via a standard RJ45
connector. Supporting NWAY, this IP device can auto detect the
speed of local network segment (10Base-T/100Base-TX
Ethernet).
5. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button. Reconnect the
power cable while continuing to hold the reset button.
Step 3: Keep holding the reset button depressed around 6 seconds,
then release the reset button. The unit will start up with factory
default settings.
6. Power Input
If your power input is DC12V. Please use power supply of input
DC 12v only.
0-4

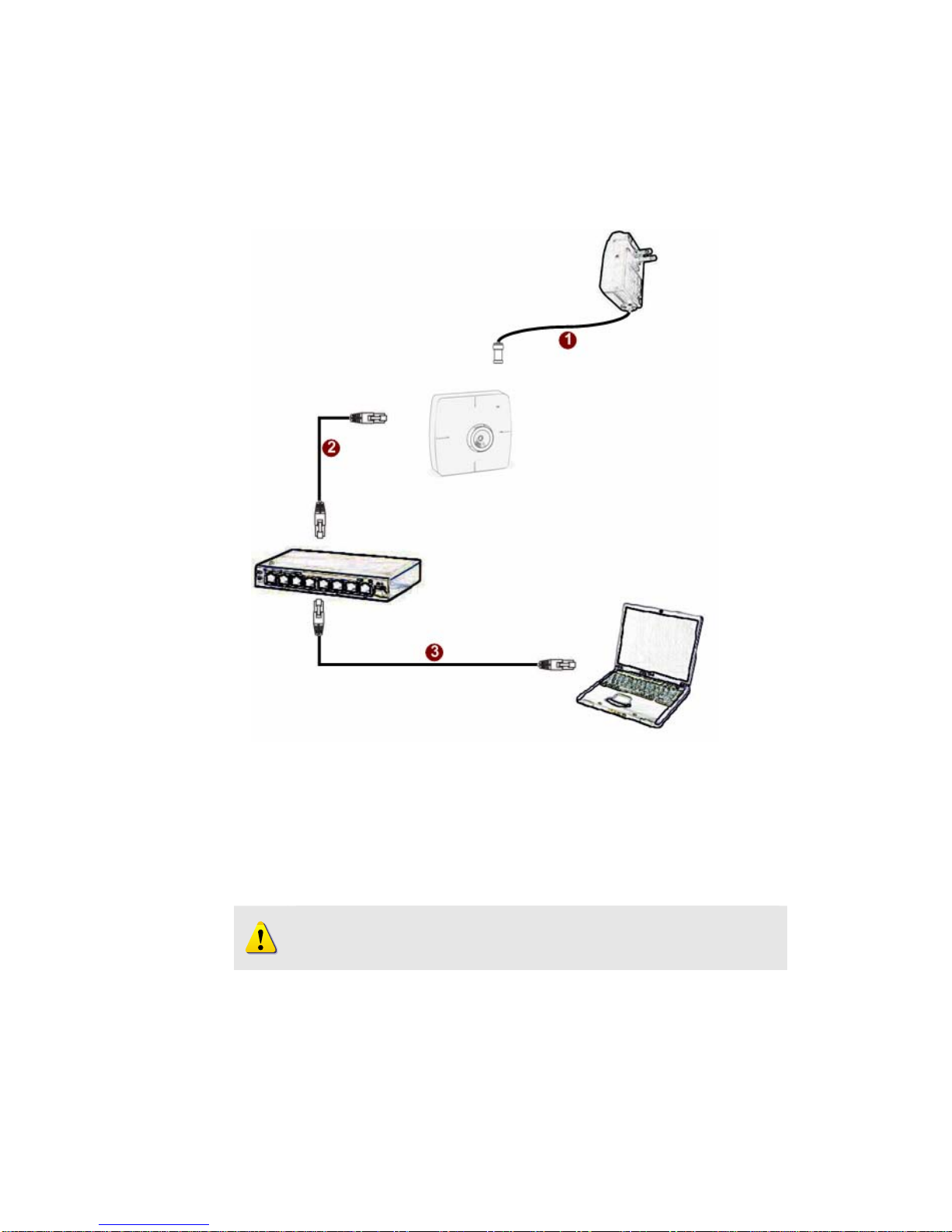

1.3 BASIC CONNECTIONS
Follow the procedures below to connect the IP device to the respective
apparatuses.
1. Connect the power adaptor to IP device
2. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your
IP device has PoE built-in, you can regard it as a PD and connect it
directly to a PSE device like PoE switch.
3. Connect a PC to the Ethernet hub (RJ45 connectors)
1
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
1-5
1Quick Tour
This section guides you with a quick tour on this IP device.
2.1 Configure this IP Device

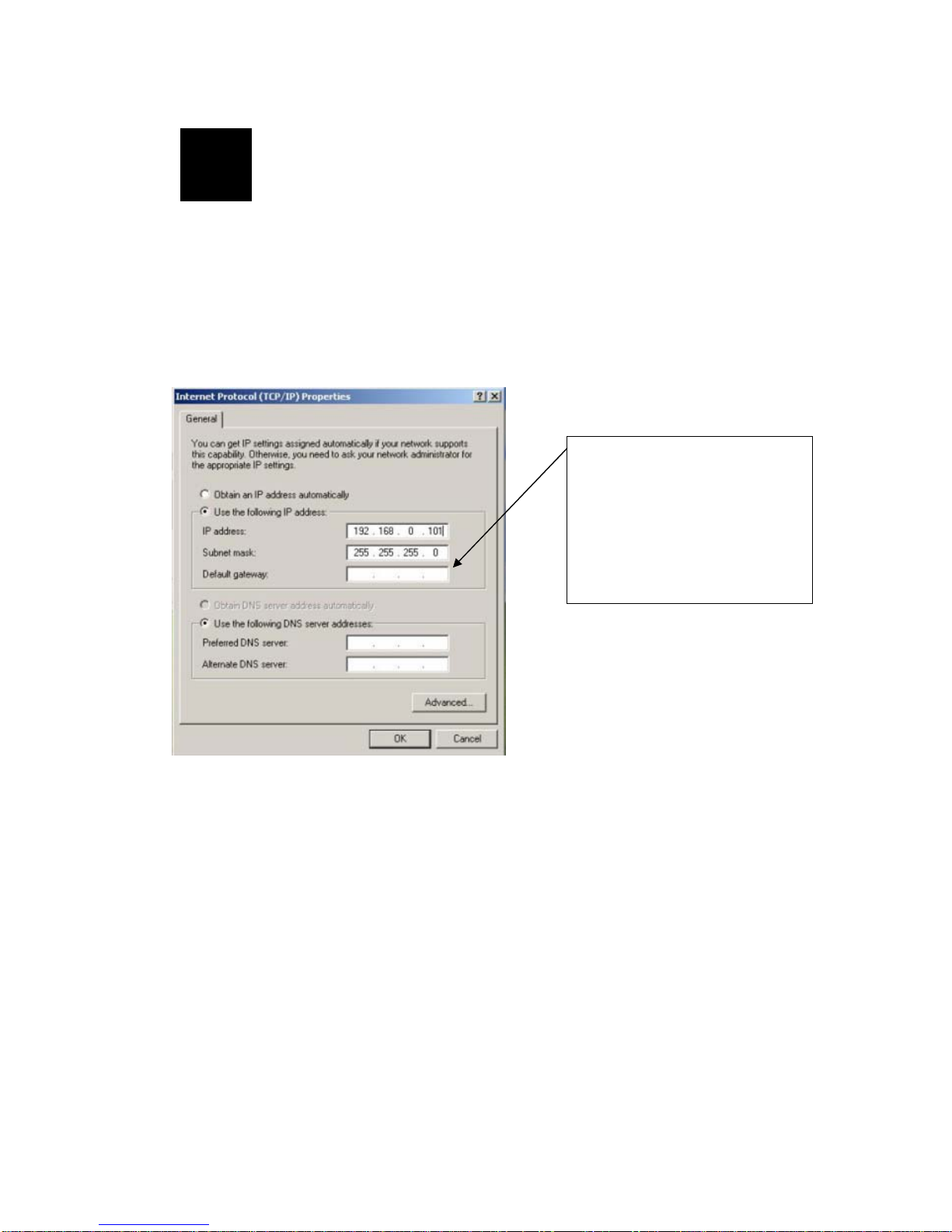

2.1.1 Make sure network environment
Default IP of this IP device is 192.168.0.100. Please make sure this IP device and
your PC are on the same network segment before running the installation.
2
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
1-6

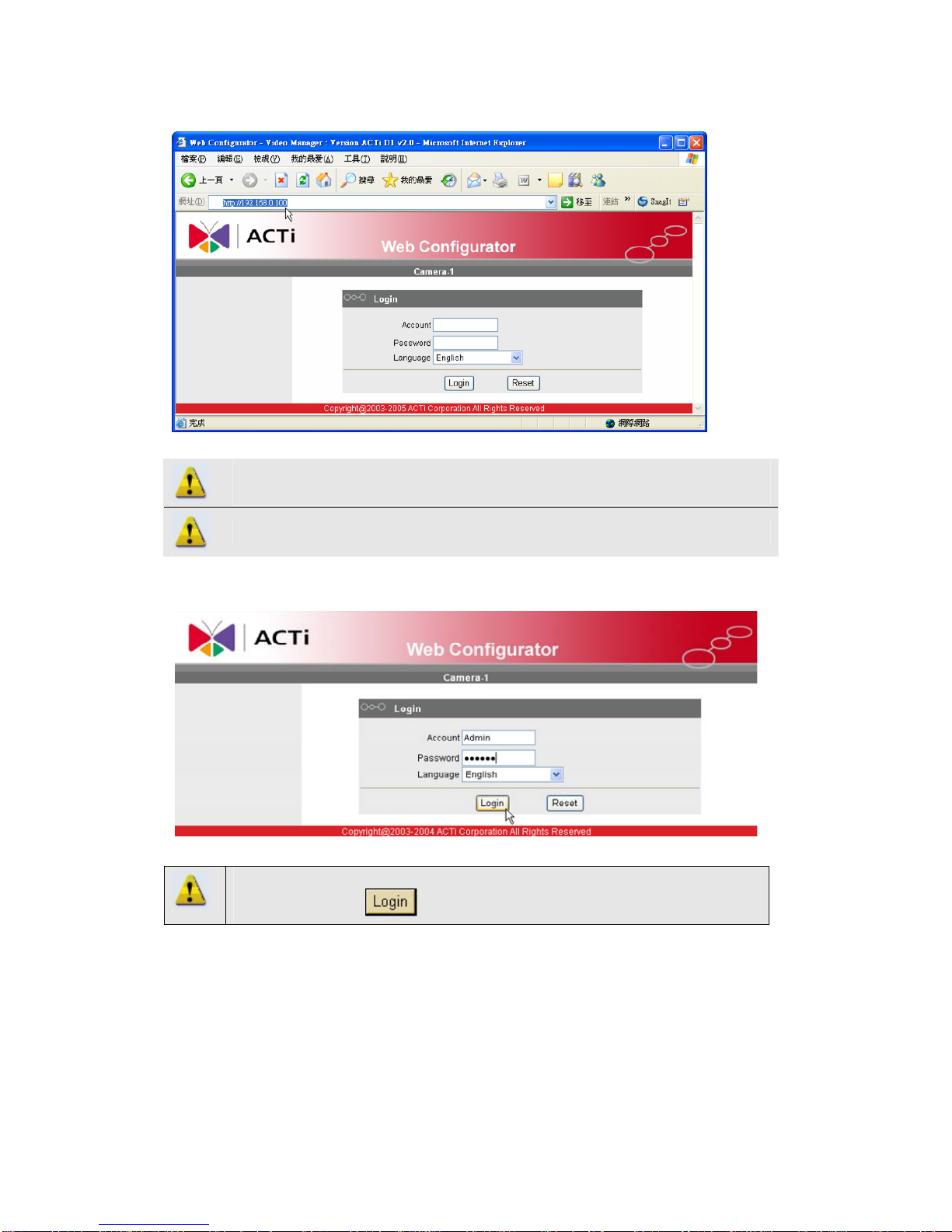

2.1.2 Open Internal Explorer with IP address
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: This IP device default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.
1-7

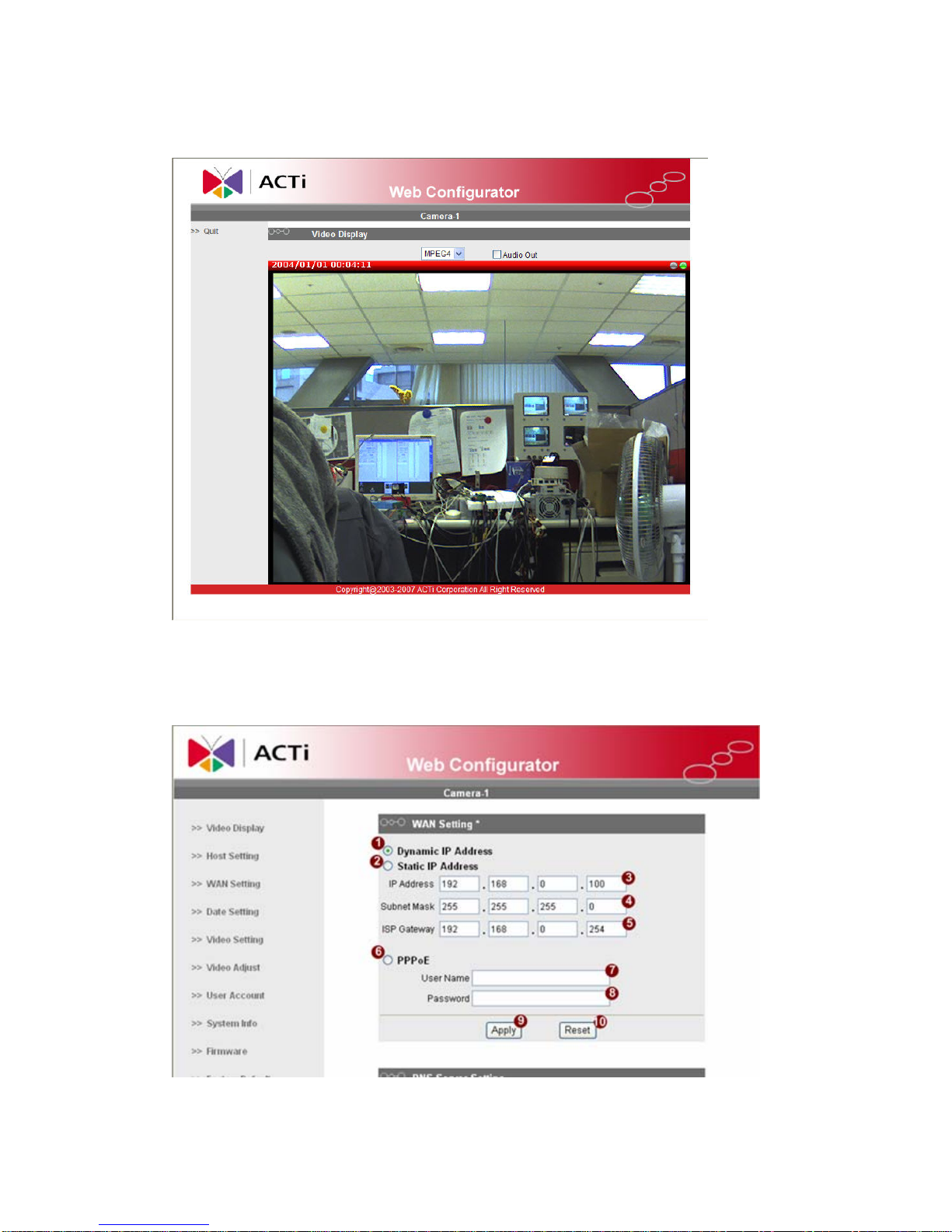

2.1.4 Preview the video
2.1.5 Set the new IP address
1-8
*IP Address : The default IP address is 192.168.0.100.
*Subnet Mask : The default subnet mask is 255.255.255.0
*Click button
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since this IP device follows
MII standard. Otherwise, you might not see the live image.
IMPORTANT: After the IP address is changed, please record this IP
address. There’s no way to connect to the IP device if user forgets the
new IP address.
2.1.6 Click Save Reboot to restore all settings and please wait about 30 seconds
for system reboot.
