ZKTeco SpeedFace-V3L User manual
Quick Start Guide
SpeedFace-V3L
Version: 1.0
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
TX+
RX+
TX-
RX-
1
Overview
Flash
Microphone
2.4-inch Touchscreen
Camera
Doorbell Button
Fingerprint Sensor
Near-infrared Flash
Speaker
Terminal Block
12VIN
12VIN
12VIN
GND
GND
GND
NC
COM
NO
SEN
GND
BUT
AUX
GND
BELL+
BELL-
ALARM+
ALARM-
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT
Installation Environment
Please refer to the following recommendations for installation.
Device Installation
AVOID DIRECT
SUNLIGHT
AND EXPOSURE
AVOID GLASS
REFRACTION
KEEP EFFECTIVE
DISTANCE
0.3-2.5m
KEEP DISTANCE
10ft
6.5ft
window
Fix the backplate on the wall using wall mounting screws.
Attach the device to the backplate.
Fasten the device to the backplate with a security screw.
①
②
③
④
Attach the mounting template sticker to the wall, and drill holes according to the
mounting paper.
1
1.5m
2
43
①
②
2
Standalone Installation
Power Connection
Recommended AC Adapter
1) 12V ± 10%, at least 1500mA.
2) To share the power with other devices, use an AC Adapter with higher current
ratings.
12V
TCP/IP
Alarm Smoke
Detector
Lock
Exit Button
Door Sensor
Reader
ZKBio Access
3
Ethernet Connection
Click on [COMM.] > [Ethernet] > [IP Address] , input the IP address and click on [OK].
IP address: 192.168.1.130
Subnet mask: 255.255.255.0
Default IP address: 192.168.1.201
Subnet mask: 255.255.255.0
Connect the device and computer software over an Ethernet cable. As shown in the
example below:
ZKBio Access
Note: In LAN, the IP addresses of the server (PC) and the device must be in the
same network segment when connecting to the ZKBio Access software.
Wiegand Reader Connection
Note: 485A and 485B can be connected to the Barrier gate or the 485 Reader,
separately, but cannot be connected to the gate and reader at the same time.
4
WD0
WD1
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT
Wiegand
Reader
+12V
GND
WD1
WD0
Access
Controller

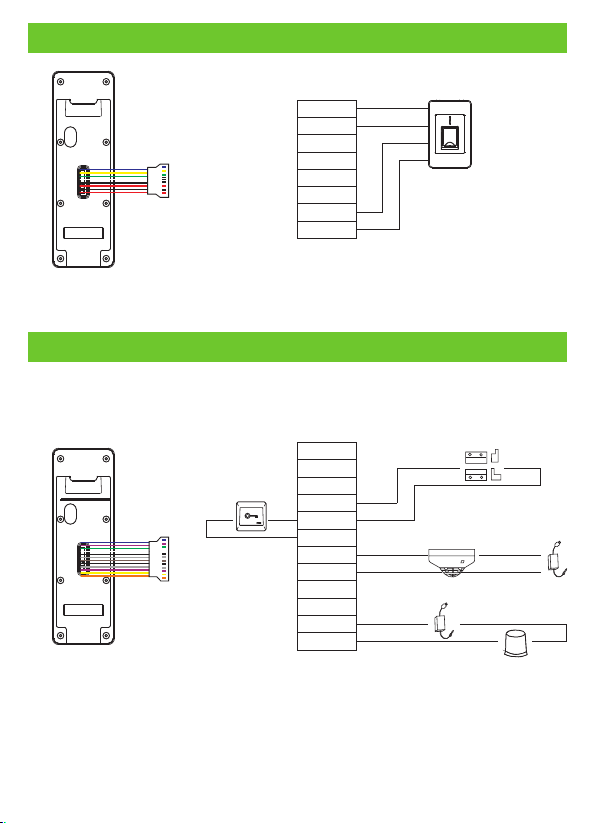

RS485 Connection
Door Sensor, Exit Button, Alarm & Auxiliary Connection
5
485 Reader
+12V
GND
485+
485-
485A
485B
WD0-OUT
WD1-OUT
INWD0
INWD1
GND
12V-OUT
NC
COM
NO
SEN
GND
BUT
AUX
GND
BELL+
BELL-
ALARM+
ALARM-
+
-
-
+
Alarm
Alarm Power
NO
COM
+
-
Smoke
Detector
ExitButton
Door
Sensor
NC
COM
NO
SEN
GND
BUT
AUX
GND
BELL+
BELL-
ALARM+
ALARM-
Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock. The NO
LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM'
terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC'
and 'COM' terminals. Take NC Lock as an example below:
1)Device not sharing power with the lock2)Device sharing power with the lock
Normally Closed Lock
Normally Closed Lock
GND
DC12V
FR107
Maximum 30V 3A
input.
+12V
DC12V
GND
DC12V
FR107
+12V
6
NC
COM
NO
SEN
GND
BUT
AUX
GND
BELL+
BELL-
ALARM+
ALARM-
User Registration
Method 1: Registering on the device
When there s no super administrator set in the device, click on enter the menu. i to
Add a new user and set User Role to Super Admin, then thethe system requests for
administrator’s verification before entering the menu. It is recommended to register a
super administrator initially for security purposes.
Click on > [ ] > [ ] to register a new user. The options include User Mgt. New User
entering the user ID and Name, setting User Role and Access Control Role, registering
Fingerprint, Face, Card Number and Password.
L
L
L
7
Method 2: Register on ZKBio Access software
Please set the IP address and cloud service server address in the Comm. Menu option
on the device.
Click [Access] > [Access Device] > [Device] > [Search Device] to search the device
on the software. When an appropriate server address and port is set on the device,
the searched devices are displayed automatically.
1.
Click [Add] in operation column, a new window will pop-up. Select Icon type, Area,
and Add to Level from each dropdowns and click [OK] to add the device.
2.
Click [Personnel] > [Person] > [New] and fill in all the required fields to register a
new users in the software.
3.
Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices]
to synchronize all the data to the device including the new users.
4.
For more details, please refer to the ZKBio Access User Manual.
8
Search Device
Search No device found? Download Search Tool s to Local Disk
Device Type Serial Number
Total Progress Sea rched de vices co unt :1
IP Address
IP Address MAC Address Subnet Mask Gateway Address Serial Number Device Type Set Ser ver Operat ions
192.168.213.79 255.255.255.0 192.168. 213 .1 Add
The c urrent s ysten commu nic ation port i s 660 9, please make sure the device is set correct ly.
Close
Refresh New Delete Export Search Device Device Co ntrol Set up View and G et Device Info Communication
Step 1
Step 2
Step 3
Add
Device Name
Icon Type
Area
Add to Level
Clear Data in the Device when Adding
[Clear Data in the Device when Adding] will delete data in the device(except event
record), please use with caution!
OK Cancel
192.168.213.79
Door
Area Name
Step 4
Method 3: Register on the phone
Once the ZKBio Access software is installed, the users could enroll their face via a
browser application on their own mobile phone.
Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code
UGL bar. The software will automatically generate a QR code. Scan the QR code or
login onto ‘’http://Server address: Port/app/v1/adreg’’ by the mobile phone to
register users.
The users will be displayed in [Personnel] > [Temporary Personnel], click on [Review]
option and assign a department and click [OK] to successfully add the user.
1.
2.
9
Personnel
Person
Department
Temporary Personnel
Custom Attributes
Parameters
Personnel ID Setting
The Maximum Length:
Support Letters:
Personnel ID Auto-increment:
Card Setting
The Maximum Length:
Card Format Display:
Temporary Personnel Setting
Enable Temporary Personnel Auto-audit:
Self-service Registration
QR Code URL:
Yes No
Yes No
Bits(Binary)
Decimal Hexadecimal
Yes No
http://Server address:Port
Download QR code image
9
32
OK
Card Management
Personnel Registration
Personnel Registration
Personnel ID
First Name
Last Name
Last Name
Mike
4835
OK
Personnel
Person
Department
Temporary Personnel
Custom Attributes
Parameters
Card Management
Personnel ID Name
The current query conditions None
Refresh Review Delete
Personnel ID First Name Last Name Mobile Phone Status Create Time Operations
Delete4835 Mike
1-1 50 rows per page Jump To 1 /0 Page Total of 0 records
Welcome, admin
