Xylem EXO Series User manual

ADVANCED WATER QUALITY MONITORING PLATFORM

EXO

User Manual

Item# 603789REF

Revision A

e information contained in this manual is subject to

change without notice.

Eort has been made to make the information in

this manual complete, accurate, and current. e

manufacturer shall not be held responsible for errors or

omissions in this manual. Consult EXOwater.com for the

most up-to-date version of this manual.

pg |3

Table of Contents

1. Introduction

1.1 EXO1 Sonde Overview

1.2 EXO2 Sonde Overview

1.3 EXO Handheld Overview

1.4 EXO Sensors Overview and Specications

1.5 Conductivity/Temperature

1.6 Depth and Level

1.7 Dissolved Oxygen

1.8 fDOM

1.9 pH and ORP

1.10 Total Algae (Chlorophyll and Blue-green Algae)

1.11 Turbidity

2. Operation

2.1 Install Batteries

2.2 Install/Remove Sensors

2.3 Install/Remove Sensor Guard or Calibration Cup

2.4 Sonde States and LED Descriptions

2.5 Awake Sonde, Activate Bluetooth

Attach Sonde to Handheld

2.6 Field Cable

2.7 Bluetooth Wireless Communication

2.8 Install KOR Soware

Connect Sonde

2.9 USB

2.10 Bluetooth Link to PC

2.11 Data Collection Platform

2.12 Flow Cell

3. Handheld

3.1 Install Batteries

3.2 Power On/O Handheld

Attach Handheld to Sonde

3.3 Field Cable

3.4 Bluetooth Wireless Communication

Spot Sampling

3.5 View Live Data

3.6 Record Spot Sampling Data

3.7 Upload Data

3.8 GPS

4. KOR Software

4.1 Introduction to Navigation

4.2 Run Menu

4.3 Calibrate Menu

4.4 Deploy Menu

4.5 Sites Menu

4.6 Data Menu

4.7 Options Menu

4.8 Connections Menu

4.9 Help Menu

4.10 Data Files & File Locations

4.11 SDI-12

pg |4

5. Calibration

5.1 Introduction to Basic Procedure

5.2 Calibrating Conductivity/Temperature

5.3 Calibrating Dissolved Oxygen

5.4 Calibrating Depth

5.5 Calibrating pH

5.6 Calibrating ORP

5.7 Calibrating Turbidity

5.8 Calibrating Total Algae (Chlorophyll and Blue-green Algae)

5.9 Calibrating fDOM

5.10 Calibration Standards

5.11 Calibration Record Sheet

6. Maintenance

6.1 Sonde Storage, Short-term and Long-term

6.1 Sonde Maintenance

6.2 Install/Replace Sonde Batteries

6.3 Replace Sonde Bails

6.4 Update Sonde Firmware

6.5 Handheld Maintenance and Storage

6.6 Install/Replace Handheld Batteries

6.7 Update Handheld Firmware & KOR Soware on Handheld

6.8 Depth Sensor Storage and Maintenance

6.9 Standard Optical Sensors Maintenance and Storage

6.10 Conductivity/Temperature Sensor Maintenance and Storage

6.11 Dissolved Oxygen Sensor Storage, Maintenance and Rehydration

6.12 Sensor Cap Replacement

6.13 pH and ORP Sensor Storage, Maintenance and Rehydration

6.14 Sensor Module Replacement

6.15 Wiper Maintenance and Storage

6.16 Field Cable Maintenance and Storage

6.17 Antifouling Equipment Maintenance

Sacricial Anode

6.18 Connectors Maintenance and Storage

6.19 Flow Cell Maintenance

7. Health & Safety, Warranty, Service

7.1 Chemicals

Conductivity Solutions

pH Solutions

Zobell Solution

Turbidity Standard

Ultraviolet Light (fDOM Sensor)

7.2 Radio Frequency

7.3 Declarations of Conformity

7.4 Instrument Warranty

7.5 Instrument Cleaning & Packing Instructions

7.6 Recycling

pg |5

2.9

EXO1 Sonde

Overview

e EXO1 sonde is a multiparameter instrument that collects water quality data. e sonde collects the

data with up to four user-replaceable sensors and an integral pressure transducer. Each sensor measures its

parameter via a variety of electrochemical, optical, or physical detection methods. Each port accepts any EXO

sensor and automatically recognizes its type. Depending on user-dened settings, the EXO1 will collect data

and store it onboard the sonde, transfer the data to a data collection platform (DCP), or relay it directly to

a user’s PC or EXO Handheld.

Users communicate with the sonde via a eld cable to an

EXO Handheld, Bluetooth® wireless connection to a PC or

EXO Handheld, or a USB connection (via communications

adapter) to a PC.

Speciﬁcations

Operating

Environment

Depth Rating

Medium

250 meters, 820 feet

Water

Material

Xenoy®, Lexan® , bronze,

titanium, copper-nickel

alloy, 316 stainless steel

Internal Logging

Memory Capacity 512 MB

Software Kor Interface Software

Communications

Sonde

Adapters

Bluetooth, Field Cable,

USB, RS-485;

USB, SDI-12/RS-232

Power

External

Internal

9-16 VDC

2 D- size batteries

Temperature

Operating

Storage

-5 to 50°C

-20 to +80°C

Battery Life 90 days typically

(see pg 78)

Dimensions

Diameter

Length

Weight

4.70 cm,1.85 in

64.77 cm, 25.50 in

1.65 kg, 3.63 lb

1.1

Universal Sensor Ports

pg |6

EXO1 Sonde

599501

Removable Bail

599473

6-Pin Cable Connector

Upper Battery

Compartment Seal

O-rings 599680

Lower Battery

Compartment Seal

Battery Compartment

Battery Cover

Red LED Indicator

–Sonde Status

Blue LED Indicator

–

Bluetooth

On/Off Magnetic Switch for

Power and Bluetooth

Bulkhead

Sensor

Port Plug

599475

Sensor Guard

599333, 599563

Calibration Cup

599289

Guard Weight

599471, 599365

Pressure Transducer

Opening

pg |7

2.9

1.2

Universal Sensor Ports

Wiper/Sensor Port

Pressure Transducer

Openings

EXO2 Sonde

Overview

e EXO2 sonde is a multiparameter instrument that collects water quality data. e sonde collects the

data with up to six user-replaceable sensors and an integral pressure transducer. Each sensor measures its

parameter via a variety of electrochemical, optical, or physical detection methods. Each port accepts any EXO

sensor and automatically recognizes the type of sensor. Depending on user-dened settings, the EXO2 will

collect data and store it onboard the sonde, transfer the data to a data collection platform (DCP), or relay it

to a user’s PC or EXO Handheld via cable, USB connection, or Bluetooth connection.

In addition to six standard sensor ports, the EXO2 also has a bulkhead port for a central wiper (or an

additional sensor) and an auxiliary port on top of the sonde. is auxiliary port will allow the user to connect

the EXO2 to other EXO sondes.

Users communicate with the sonde via a eld cable to an

EXO Handheld, Bluetooth® wireless connection to a PC or

EXO Handheld, or a USB connection (via communications

adapter) to a PC.

Speciﬁcations

Operating

Environment

Depth Rating

Medium

250 meters, 820 feet

Water

Material

Xenoy, Lexan, bronze,

titanium, copper-nickel

alloy, 316 stainless steel

Internal Logging

Memory Capacity 512 MB

Software Kor Interface Software

Communications

Sonde

Adapters

Bluetooth, Field Cable,

USB, RS-485;

USB, SDI-12/RS-232

Power

External

Internal

9-16 VDC

4 D- size batteries

Temperature

Operating

Storage

-5 to +50°C

-20 to +80°C

Battery Life 90 days typically

(see pg 80)

Dimensions

Diameter

Length

Weight

7.62 cm, 3.00 in

71.1 cm, 28.00 in

2.65 kg, 5.83 lb

pg |8

Auxiliary Port

Battery Compartment Opening

Battery Compartment

EXO2 Sonde

599502

Removable Bail

599474

Guard Weight

599472, 599366

6-Pin Cable Connector

Battery Cap/Pressure Relief Valve

O-rings 599681

Red LED Indicator

–Sonde Status

Blue LED Indicator

–

Bluetooth

Bulkhead

Sensor

Port Plug

599475

Sensor Guard

599334, 599564

Central Wiper

599549

Calibration Cup

599316

On/Off Magnetic Switch for

Power and Bluetooth

pg |9

2.9

EXO Handheld

Overview

e EXO Handheld (HH) is a rugged, microcomputer-based instrument that allows the user to display sonde

readings, congure sondes, store and retrieve data, and transfer data from sondes to a computer. Equipped with

GPS, barometer, and custom operating system, the Handheld communicates via Bluetooth wireless technology,

eld cable, or USB connector. e unit utilizes an adjustable backlit screen for easy day or night viewing. Pre-

installed KOR soware facilitates all user interaction and provides powerful control over data collection.

Speciﬁcations

Barometer Yes

GPS Yes

Microphone Yes

Audio Speaker Yes

Operating

System

Windows CE 5.0

Material

Polymer,

rated to IP-67 in factory

tests

Memory 2 GB

Software Kor Interface Software

Communications Bluetooth, Field Cable,

USB

Power

Internal 4 C-size alkaline batteries

Temperature

Operating

Storage

-5 to +50°C

-20 to +80°C

Dimensions

Width

Length

Weight w. batt.

11.9 cm, 4.7 in

22.9 cm, 9.0 in

0.91 kg, 2.1 lb

1.3

Microphone is for future

functionality; not active yet

Speaker

Magnet

GPS Antenna (internal)

USB Port

Tripod Mount

(1)

Barometer

Vent

Handstrap

Mount

Battery Cover

Handstrap

Mount

Back View

Top View

pg |10

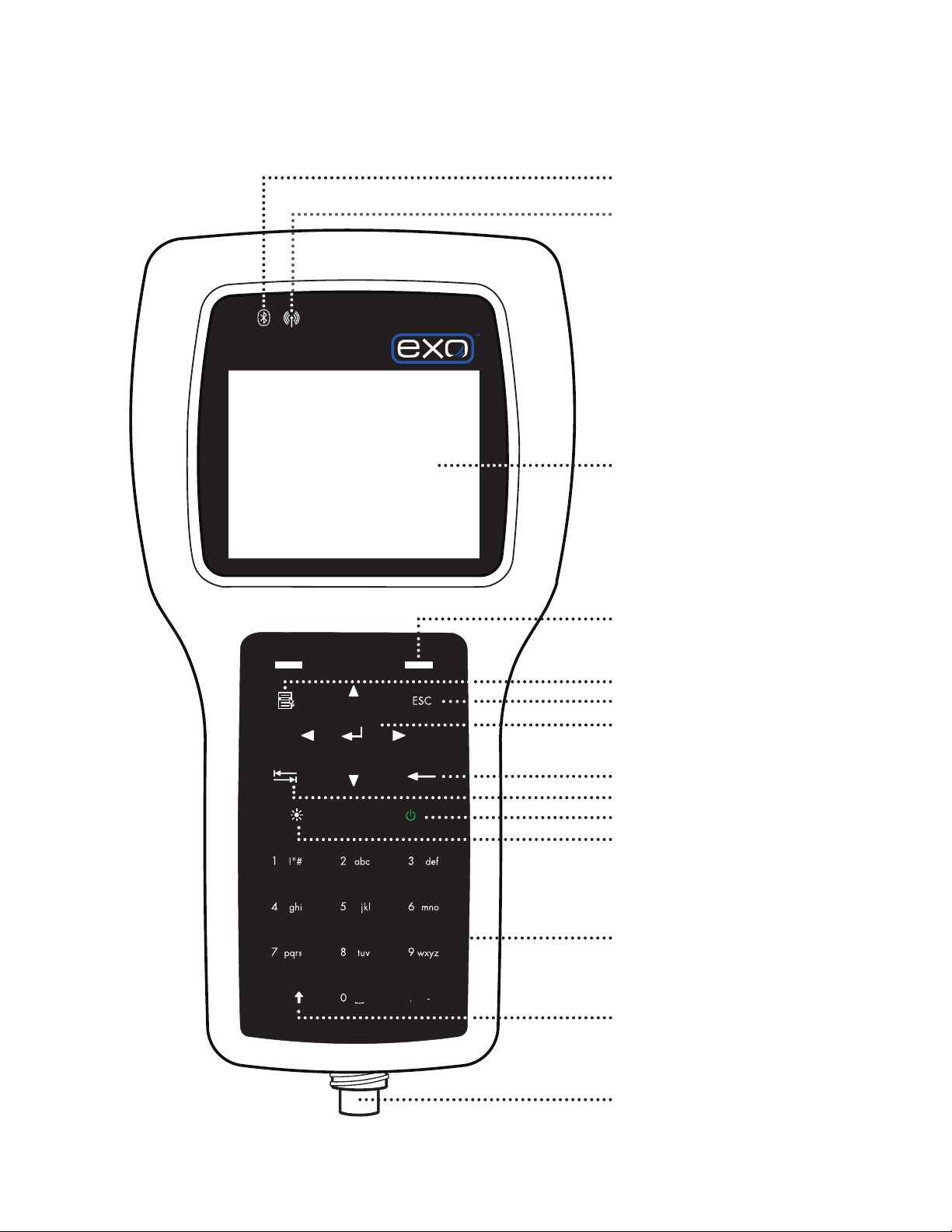

Bluetooth Indicator

Wi-Fi Indicator is for future

functionality; not active yet

Alphanumeric

Keypad

Shift

Cable Connector

Soft Keys (2)

Escape

Navigation Arrows (4)

& Return

Backspace

Tab

Power

Brightness

Daylight-viewable

LCD

EXO Handheld

599150
