xsto SCL170A User manual
www.xsto.net
OPERATION MANUAL
POWERED STAIR
CLIMBER
HANDLER
SCL170A
1
User manual
1 Symbols and Safety Instructions.....................................................................3
2 Description..........................................................................................................5
2.1 The structure...........................................................................................5
2.2 Technical Data ........................................................................................5
2.3 Application...............................................................................................5
2.4 Technical parameters.............................................................................6
2.5 Dimension................................................................................................9
2.6 Standard Accessories..........................................................................12
2.7 Optional Accessories ...........................................................................12
3 Installation Instruction.....................................................................................13
4 Functions Description .....................................................................................14
4.1 Control Panel and Wire Handle Controller Operation Instructions.
.......................................................................................................................15
4.2 Point Touch Switch on adjustable handle.........................................17
4.3 Loading Board ......................................................................................18
4.4 Battery Charging ..................................................................................19
4.5 SCL170 Starting ...................................................................................19
4.6 Climbing Upstairs .................................................................................21
4.7 Going Downstairs.................................................................................22
4.9 Loading board automatic tracking goods stacking..........................24
2
5 Routine Inspection and Issue Handling .......................................................26
5.1 Routine Inspection and Issue Handling ............................................26
6 Operation ..........................................................................................................27
6.1 Loading Goods .....................................................................................27
6.2 Operation On Flat Ground ..................................................................28
7 Storage & Transportation ...............................................................................30
8 Maintenance.....................................................................................................30
8.1 Notice for routine maintenance ..........................................................30
8.2 Replacement for Vulnerable Parts & Battery ...................................32
9 Recycling ..........................................................................................................36
10 Malfunction and Troubleshooting................................................................38
11 Warranty and Responsibility ........................................................................39
11.1 Warranty ..............................................................................................39
11.2 Responsibility......................................................................................40
3
1 Symbols and Safety Instructions
WARNING ------ May cause serious injuries or even death!
CAUTION ------ May cause slight injury!
NOTE ------ May cause machine damage!
➢Read the user manual and pay attention to the warning and
safety instructions before operation.
➢Check the electric functions, battery capacity and SCL170A
wheels before operation.
➢Keep the SCL170A above 0℃for at least one hour before
operation.
➢Read the technical parameters carefully. Do not overload.
➢Only the trained person with physical and mental health is
allowed to operate SCL170A.
➢Anti-slip shoes are required. It must be operated bytwo hands.
Practice using the climber without load and at the low speed.
➢Only for carriage of cargo, not for person. Safety strap must
be used to secure the cargo.
➢Do not put the hand under the loading board or touch any
rotating part.
➢Do not use the SCL170A in rainy day, moist and slippery
4
condition, as well as on the snow or ice, which may react
against the brake, causing side-slip or other potential risks.
➢Do not use if the SCL170A tires are deflated or damaged.
➢Do not use on the road with obstacles or on the slippery one.
➢Do not use SCL170A on an escalator or a rotating conveyor
belt.
➢If the drive unit is stuck, turn off SCL170A immediately.
➢Turn off the power when transporting and obey the relative
laws.
➢Keep the battery plug-in contacts dry. Protect the charger and
the charging cable from oils, diluents and sharps
➢Store it in dry condition. High-pressure cleaner is forbidden to
clean the machine.
➢Please repair only by XSTO CO.,LTD. authorized agency
➢Outer factor such as sunshine may lead to surface heat. Far
away from inflammable.
➢The SCL170A may interfere induced electromagnetic field of
electronic equipment (such as security system of department
store).
➢Only the accessories provided by XSTO CO.,LTD. can be
used.
5
2 Description
2.1 The structure

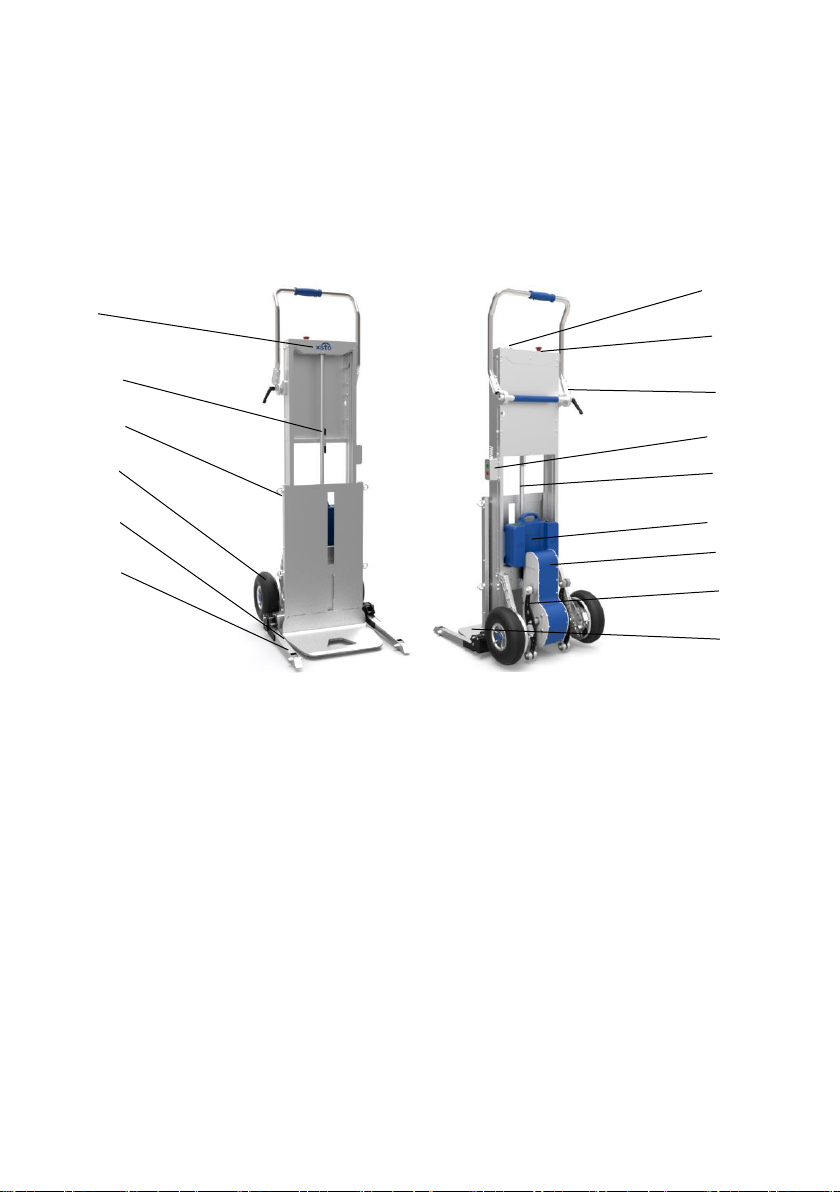

1: Top Cover 2:Sensor 3: Loading Board Support 4: Solid Tire 5:
Rotating Support Leg 6: Directional Wheel 7: Control Panel 8:
8:Emergency stop switch 9:Control Handle 10:Wire Handle Controller 11:
Ball Screw Shaft 12: Portable Lithium Battery13: Motor Shell 14: Climbing
S Arm 15: Aluminum Alloy Loading Board
2.2 Technical Data
This manual is suitable for SCL170A series ONLY.
2.3 Application
15
10
3
5
7
2
8
11
12
13
1
4
9
14
6
6
The SCL series is a multi-functional material handling equipment
that integrates climbing, lifting and handling. It can be applied in
the fields of logistics, express delivery, furniture and home
appliances moving, as well as factories, offices, residential
buildings, outdoor steps and other places where stair-climbing or
lifting is required. It can realize one-stop handling of goods from
storage to application.
2.4 Technical parameters
Model
SCL170A
Size
Height: 1390 mm
Width: 585 mm
Length: 650 mm
Weight
Main Device: 54.8 kg
Battery pack: 3.2 kg
Rated Climbing Load Weight
170 kg（loading board center）
Rated Lifting Load Weight
170 kg（loading board center）
Lifting Stroke
1000 mm
7
Maximum Rise of
Loading Board
1025 mm
Load-free Ascending Speed
20s/m
Load-free Descending Speed
20s/m
Rated Load Ascending Speed
34 s/m
Rated Load Descending Speed
19 s/m
Rated Load Climbing Speed
slow speed: 24 steps/min
fast speed: 34 steps/min
Battery
48V/10Ah (lithium battery pack)
DC Motor
48V 400W(climbing);
48V 120W(lifting)
Lifting Times
（Fully charged）
320-370 times
Climbing Capacity
（Fully charged）
52-117 floors or 936-1873 steps
Noise Level
<70dB
Temperature for
Storing/Operating
-5℃+35℃ /0℃+40℃
8
Storing/operating temperature
of battery
-5℃+35℃ /0℃+40℃
Serial Number
See the Nameplate
Protection Level
IP54

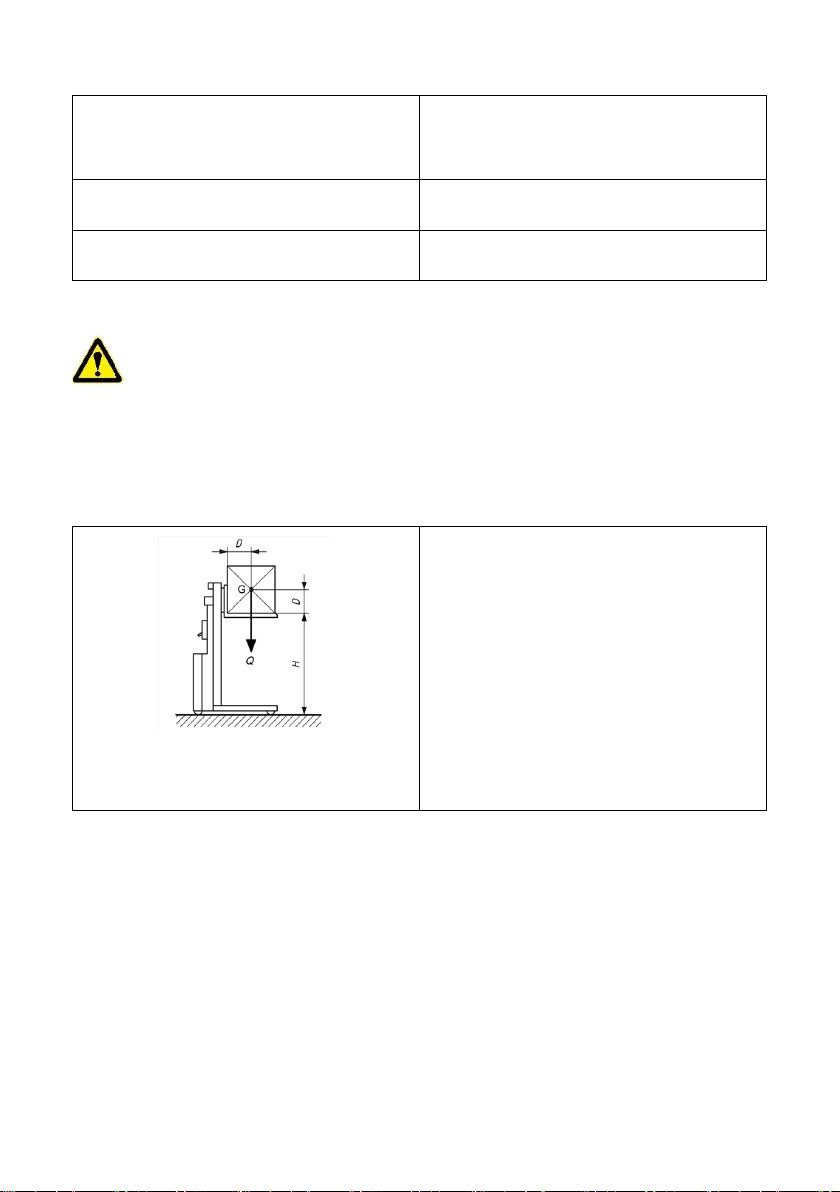

NOTICE ------ Rated working condition description:
If the weight of the cargo exceeds the range of rated working condition,
the load should be reduced, otherwise the equipment will be damaged
or tipped.
H (rated rising height): 1000mm
G (gravity of cargo)
D (distance of gravity’s center of
standard load): 180mm:
Q (rated capacity): climbing170KG
Lifting 170KG
