Xerox Workcentre 5700

Series

Logging in with Employee ID

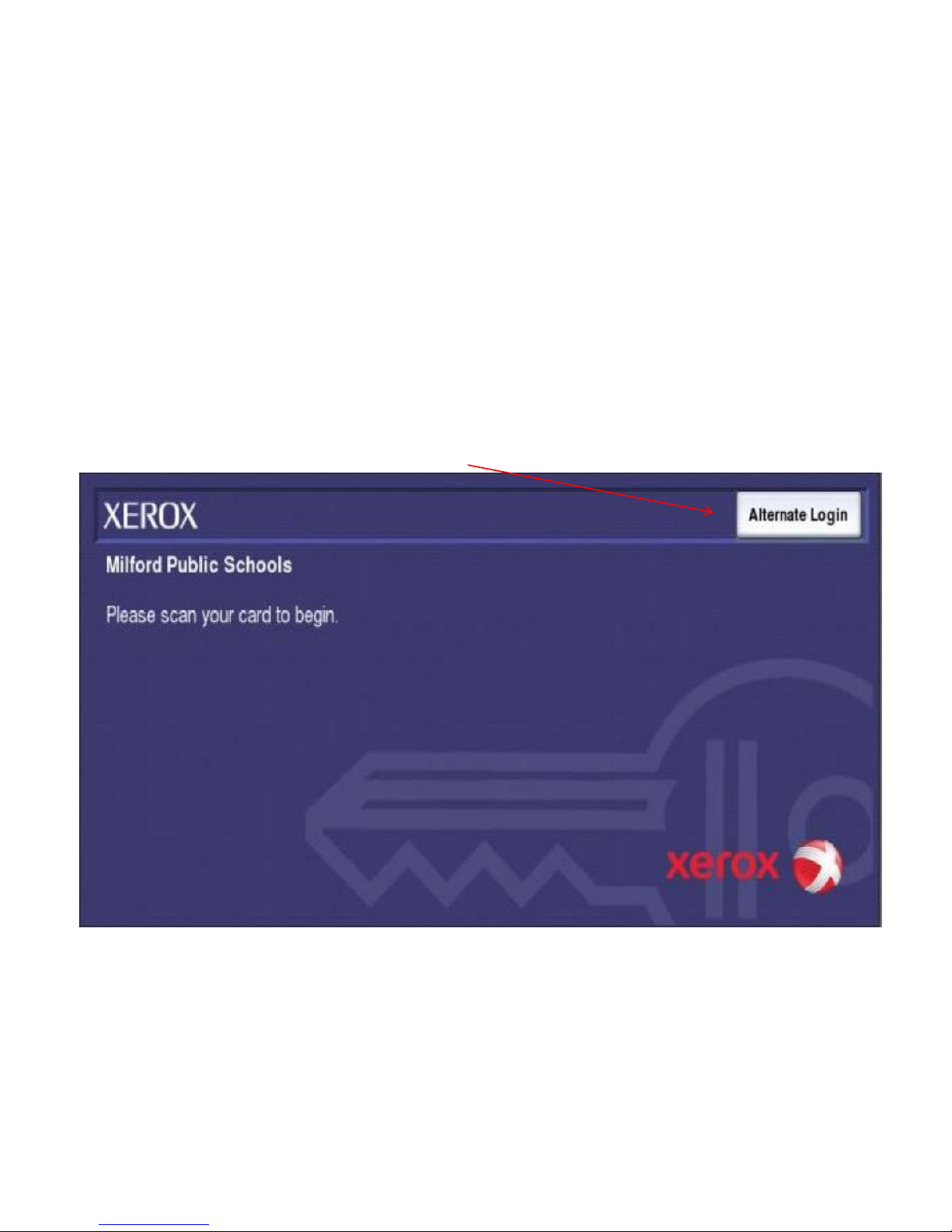

1. From the home screen, select Alternate Login.

Logging in with Employee ID

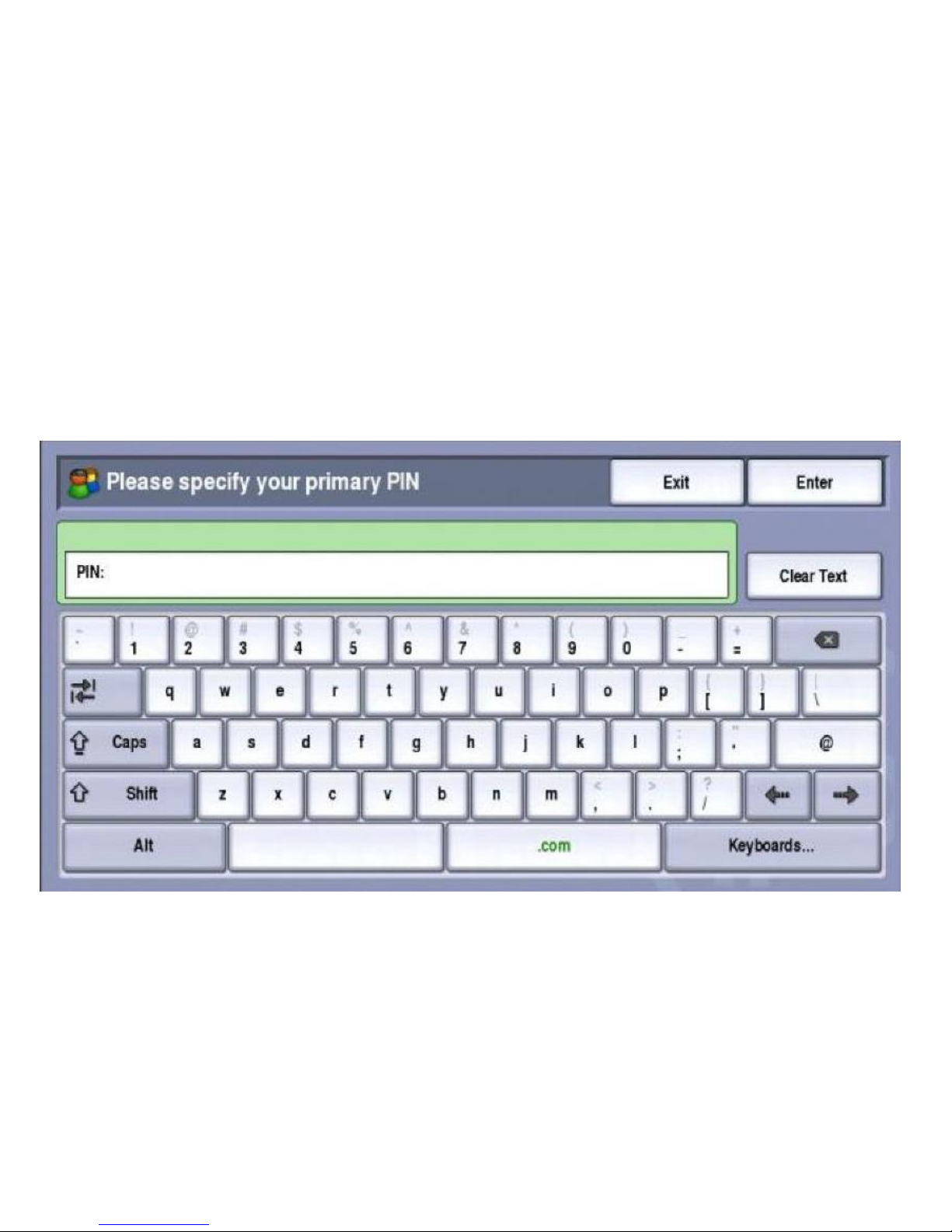

2. Use the keyboard on the touch to enter in your 5 digit employee ID.

3. Select Enter or Next.

Logging in with Employee ID

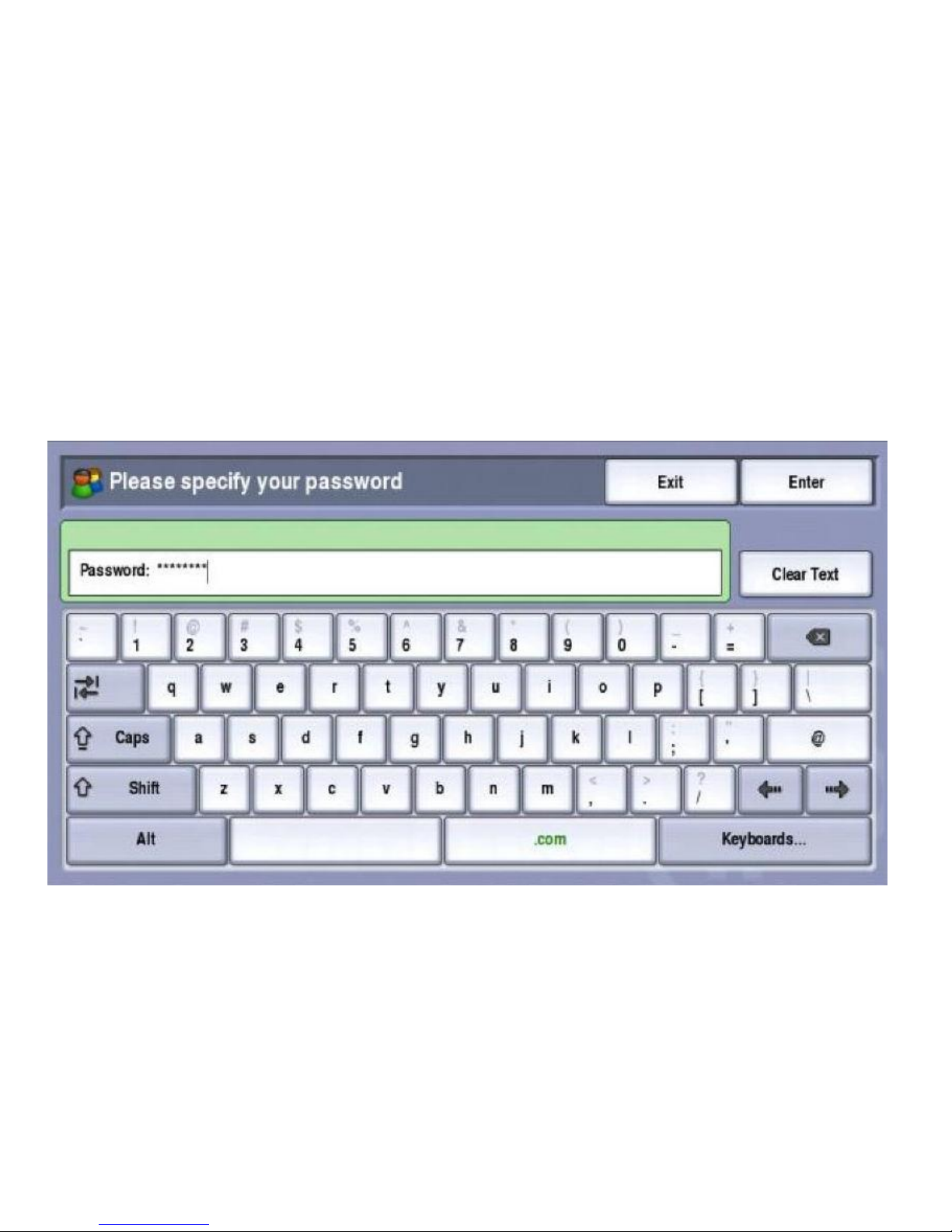

4. To start enter the password 1234 and select Enter.

Note: Directions will be provide on how to change your password.

Machine Overview

The Document

Feeder and

Glass

Control Panel

Tray 1

Tray 2

Tray 3 Tray 4

2,000 sheet

stacker

output tray

Top output

tray.

Loading Trays 1 and 2

Open and place the paper in the tray.

Make sure the green guide are is the

correct position.

Note: Paper must not be loaded above the max line. The

paper settings for the tray are going to display on the touch

screen. Confirm or change the Type of paper, the Size, and

the Color of Paper in the tray.

Loading Paper Trays 3 and 4

Trays 3 and 4 are dedicated for

Letter 8.5 x 11 size paper. Make

sure the Green Guide is right up

again the paper .

Note: Paper must not be loaded above the

max line. The paper settings for the tray

are going to display on the touch screen.

Confirm or change the Type of paper, the

Size, and the Color of Paper in the tray.

Using the Bypass Tray

1. Make sure the tray is in the down position.

2. Place the media onto the tray. Paper must not be loaded

above the maximum full line.

3. Make sure that guides just touch the paper. The paper

settings for the tray are displayed on the touch screen.

4. Confirm or change the settings, as required.

Loading Original Documents

Document Glass: Lift up the

document feeder. Place the

document Face Down onto the

glass in the Upper Right Hand

Corner.

Document Feeder: Load one or more

documents Face Up in the document

feeder input tray. Adjust the guides to

just touch the document.

Control Panel

Stop

Services Home: Will

always bring you back to

the screen shown below.

Machine Status:

Basic information

about the device. Job Status: Select this button to active job,

completed jobs, and retrieve Secure Print jobs.

Start: Press start

to began a copy

job, send a fax, or

an email.

Clear All: Will clear all sets but to the defaults

include the recipients list, fax numbers, and

number of copies.

Energy Saver:

Press this

button when

the machine is

in low power

mode.

Copy

Scanning Printing
