Xerox WorkCentre C226 User manual
Xerox WorkCentre C226 Quick Start Guide Page 3
Xerox WorkCentre C226
Quick Start Guide
Bypass Tray
x
Duplex Bypass/Inverter
Unit and Exit Tray
Left Side Cover Release
Operation Panel
Centre Tray
Power Switch
Left Tray
Left Side Cover
DADF
Front Cover
Paper Tray Duplex Module/2 Tray Unit
Quick_Start_Guide.fm Page 3 Wednesday, May 4, 2005 11:28 PM
Page 4 Xerox WorkCentre C226 Quick Start Guide
Welcome to Your Machine
Thank you for choosing the Xerox WorkCentre C226.
To support the delivery of your new machine please refer to the following:
¾Quick Start Guide
¾User Guide
¾System Administration Guide
¾The Xerox web site http://www.xerox.com
The following pages contain an overview of the main features to help you get started.
If you require more detailed information about any of the features available on your
machine, please refer to the WorkCentre C226 User Guide.
Xerox Corporation
GKLS European Operations
Bessemer Road
Welwyn Garden City
Hertfordshire
Al7 1HE
ENGLAND
© 2005 by Xerox Corporation. All Rights reserved.
Copyright protection claimed includes all forms and matters of copyrighted material and
information now allowed by statutory or judicial law or hereinafter granted, including without
limitations, material generated from the software programmes which are displayed on the
screen, such as icons, screen displays, looks etc.
Xerox®, the digital X® and all Xerox products mentioned in this publication are trademarks of
Xerox Corporation. Product names and trademarks of other companies are hereby
acknowledged.
Quick_Start_Guide.fm Page 4 Wednesday, May 4, 2005 11:28 PM
Xerox WorkCentre C226 Quick Start Guide Page 5
Unpacking
Installation Requirements
Improper installation may damage this product. Please note the following during
initial installation and whenever the machine is moved.
1. The machine should be installed near an accessible power outlet for easy
connection.
2. Be sure to connect the power cord only to a power outlet that meets the
specified voltage and current requirements. Also make certain the outlet is
properly grounded.
For the power supply requirements, see the name plate on the main unit.

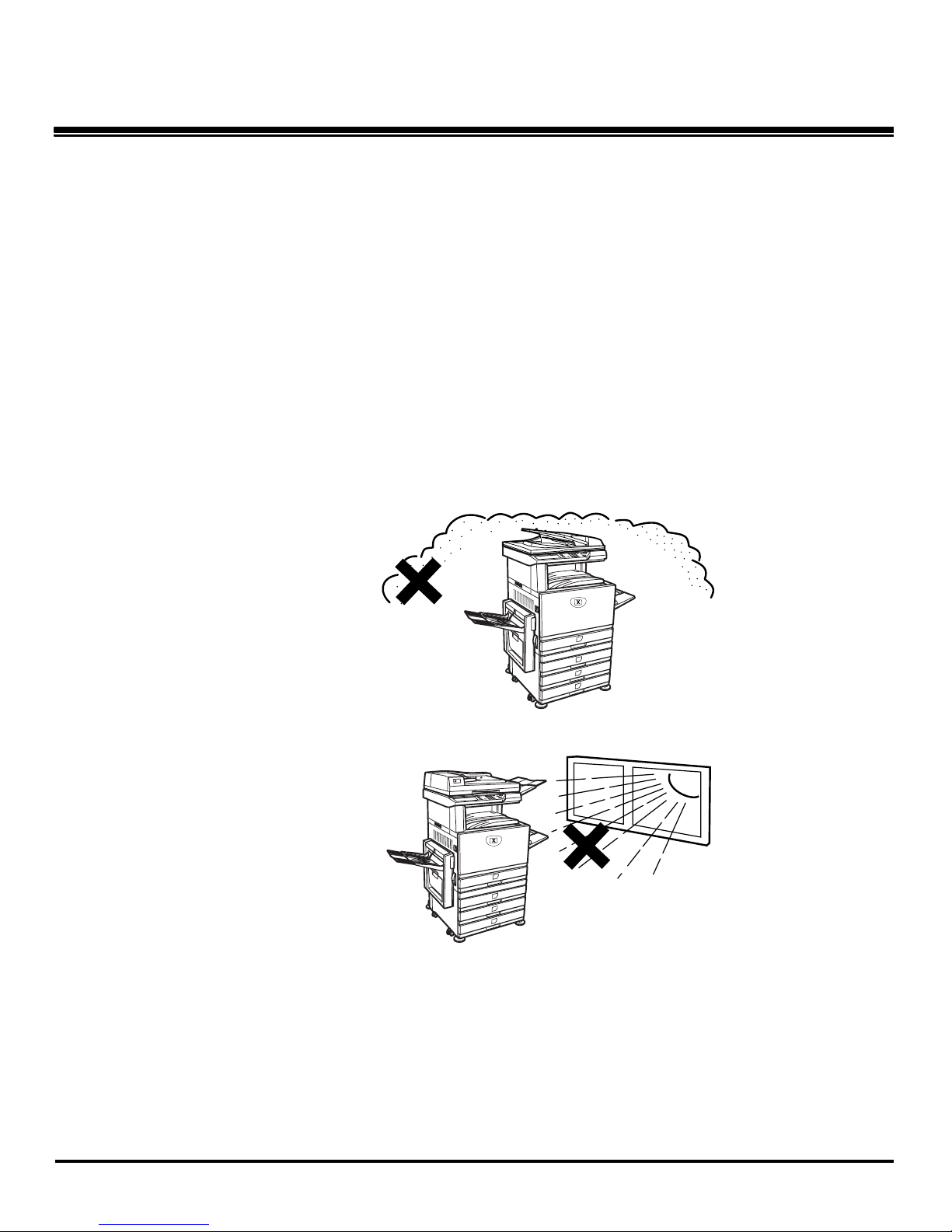

3. Do not install your machine in areas that are:
¾damp, humid, or very dusty
¾exposed to direct sunlight
Quick_Start_Guide.fm Page 5 Wednesday, May 4, 2005 11:28 PM
Page 6 Xerox WorkCentre C226 Quick Start Guide
¾poorly ventilated
¾subject to extreme
temperature or humidity
changes, e.g., near an air
conditioner or heater.
4. Be sure to allow the
required space around the
machine for servicing and
proper ventilation.
A small amount of ozone is
produced within the copier during
operation. The emission level is
insufficient to cause any health
hazard.
NOTE: The present recommended long term exposure limit for ozone is 0.1 ppm
(0.2 mg/m3) calculated as an 8 hr. time-weighted average concentration.
However, since the small amount that is emitted may have an objectionable odour,
it is advisable to place the machine in a ventilated area.
80cm
(31-1/2")
60cm
(23-5/8")
60cm
(23-5/8")
30cm
(11-13/16")
Quick_Start_Guide.fm Page 6 Wednesday, May 4, 2005 11:28 PM
Xerox WorkCentre C226 Quick Start Guide Page 7
Operation Panel Overview
/
2
3 4
6
5
7
8 9 10 11
1
Item Description
1. Touch panel Displays the machine status, messages and touch keys.
2. Mode select keys and
indicators
Use to change modes and the corresponding display on the touch
panel.
[Copy] key Press to select the copy mode.
[Scan/Fax] key Press to switch the display between network scanner mode and fax
mode.
[Print] key Press to enter the printer mode.
3. [Job Status] key Press to display the current job status.
4. [Machine
Administration] key
Use to adjust the contrast of the touch panel or to set key operator
programmes.
5. Numeric keys Use to enter number values for various settings.
6. []key Used when you select the copy, network scan, and fax functions.
/
/
/
/
/
Quick_Start_Guide.fm Page 7 Wednesday, May 4, 2005 11:28 PM
Page 8 Xerox WorkCentre C226 Quick Start Guide
7. [#/P] key Used as a programme key when using the copy function, and to dial
when using the fax function.
8. [C] Clear key Used in copy mode, network scanner mode, and fax mode.
9. [Black Copy
Start] key
Used to make black and white copies, to scan a black and white original
in scan mode, and to scan an original to be faxed in fax mode.
10. [CA]Clear All key Used in copy mode, scan mode, and fax mode.
11. [Colour Copy
Start] key
Used to make full-colour or single-colour copies and to scan a colour
original when the network scanner function is used.
Item Description
Quick_Start_Guide.fm Page 8 Wednesday, May 4, 2005 11:28 PM
Xerox WorkCentre C226 Quick Start Guide Page 9
Main Screen of Copy Mode
Item Description
1. Message display Basic status messages are displayed here.
2. [Interrupt] key display
area
When interrupt copy is available, the [Interrupt] key is displayed here.
When an interrupt copy job is being run, a [Cancel] key is displayed
here to be used for cancelling the interrupt copy job.
3. Copy quantity display Displays the selected number of copies before the [Start] key is pressed
or the number of remaining copies after the [Start] key is pressed.
4. Reduce/Enlarge
display
Use to select the copy ratio.
5. Image Quality tab Touch to adjust the image quality.
6. Paper Supply display Use to select the paper size. The display shows the location of the
paper trays, the size of the paper in the trays and the approximate
amount of paper loaded in each tray (indicated by ).
7. Original tab Touch this tab to manually enter the original size.
8. 2 Sided Copy display Use to select the duplex copy mode setting.
9. Adjustments tab Touch to display the Adjustments screen.
10. Copy Output display Use to select Collated, Stapled, and Uncollated.
1 2 3
10
4 5 86 7 9
Quick_Start_Guide.fm Page 9 Wednesday, May 4, 2005 11:28 PM
Page 10 Xerox WorkCentre C226 Quick Start Guide
Installing Cartridges
Open the front cover.
Lift the cartridge lock lever toward you.
Remove a new toner cartridge from the package and shake it
horizontally five or six times.
1Arrangement of colour
toner cartridges
Yellow
Magenta
Cyan
Black
2
3
)Shake the toner cartridge well to ensure that the toner
flows well and will not stick to the inside of the cartridge.
Quick_Start_Guide.fm Page 10 Wednesday, May 4, 2005 11:28 PM
Xerox WorkCentre C226 Quick Start Guide Page 11
Remove the protective material from the new toner cartridge.
Insert the new toner cartridge.
Align the insert holes as shown and then push the
cartridge in.
Push the cartridge in until it locks securely in place.
Do not push the white area shown in the illustration.
The lock lever may come down.
4
5
6
Quick_Start_Guide.fm Page 11 Wednesday, May 4, 2005 11:28 PM
Page 12 Xerox WorkCentre C226 Quick Start Guide
Return the cartridge lock lever.
Repeat steps 2 - 7 for the other three cartridges.
Close the front cover.
CAUTION: Do not throw the toner cartridge into a fire. Toner may fly and cause burns.
CAUTION: Store toner cartridges out of the reach of small children.
7
8
9
Quick_Start_Guide.fm Page 12 Wednesday, May 4, 2005 11:28 PM
