Xantech 490-95 KITRP User manual

- 1 -

490-95 KITRP

Plasma Friendly Micro Link IR Receiver

DESCRIPTION

The 490-95 KITRP comes with everything needed for a complete IR repeater system. The 490-95 IR

receiver is designed to reject interference from Plasma Displays from entering the IR signal line.

These small IR Receivers are intended to be mounted in panels, doors, cabinets, etc. for control of

A/V equipment behind closed doors or any IR Repeater System that is in close proximity of a Plasma

Display.

INCLUDED ITEMS

ITEM A: (1) 490-95 Plasma Friendly IR Receiver ITEM B: (1) 784-44 Connecting Block

ITEM C: (4) 283M Mouse Emitters ITEM D: (1) 781RG Power Supply

- 2 -

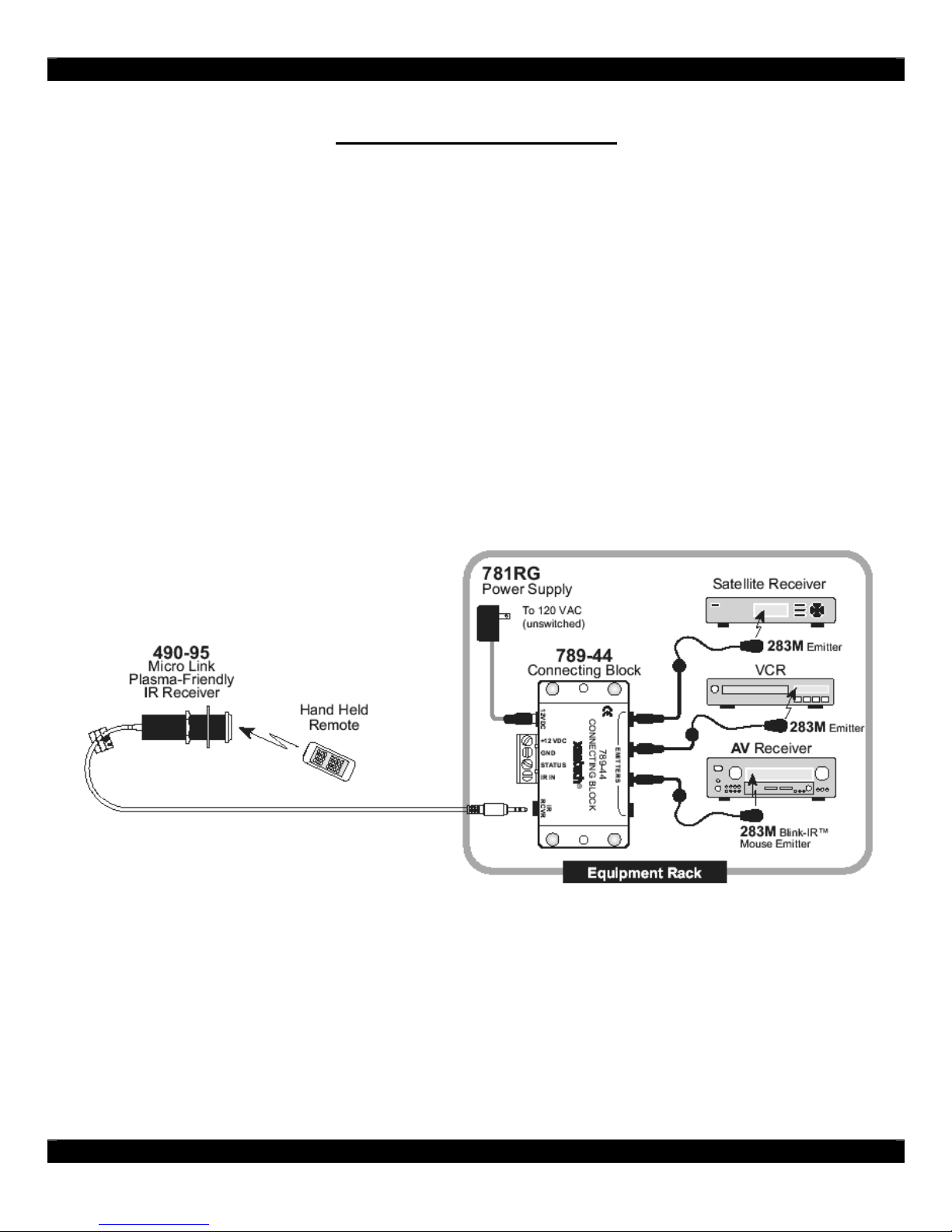

INSTALLATION INSTRUCTIONS

STEP 1:

Plug in the 2.1mm Coaxial power plug of the 781RG Power Supply (ITEM D) into the jack labeled

12VDC on the 789-44 Connecting Block (ITEM B).

Plug the AC end of the 781RG Power Supply (ITEM D) into an ‘un-switched’ 120V AC Line outlet.

STEP 2:

Plug the 3.5mm stereo mini plug from the 490-95 (ITEM A) into the IR RCVR input on the 789-44

Connecting Block (ITEM B).

STEP 3:

Plug in the 283M Emitters 3.5mm mono mini plug (ITEM C) into the jacks labeled EMITTERS on the

789-44 (ITEM B) and affix the opposite end of the IR Sensor Window of the controlled equipment.

XANTECH CORPORATION

13100 Telfair Avenue

Sylmar, CA 91342

Phone 818-362-0353 Fax 818-362-9506

www.xantech.com

Part No. 08901688 Rev A 01-17-06

© 2005 Xantech Corporation
