Xantech 490-85 KITRP User manual

- 1 -

490-85 KITRP

LCD/CFL Friendly Micro-Link IR Receiver

DESCRIPTION

The 490-85 KITRP comes with everything needed for a complete IR repeater system. The 490-85 IR

receiver is designed to reject interference from CFL and LCD Displays from entering the IR signal

line. These small IR Receivers are intended to be mounted in panels, doors, cabinets, etc. for control

of A/V equipment behind closed doors or any IR Repeater System that is in close proximity of a CFL

and LCD Displays. INCLUDED ITEMS

ITEM A: (1) 490-85 LCD/CFL Friendly IR Receiver ITEM B: (1) 784-44 Connecting Block

ITEM C: (4) 283M Mouse Emitters ITEM D: (1) 781RG Power Supply

- 2 -

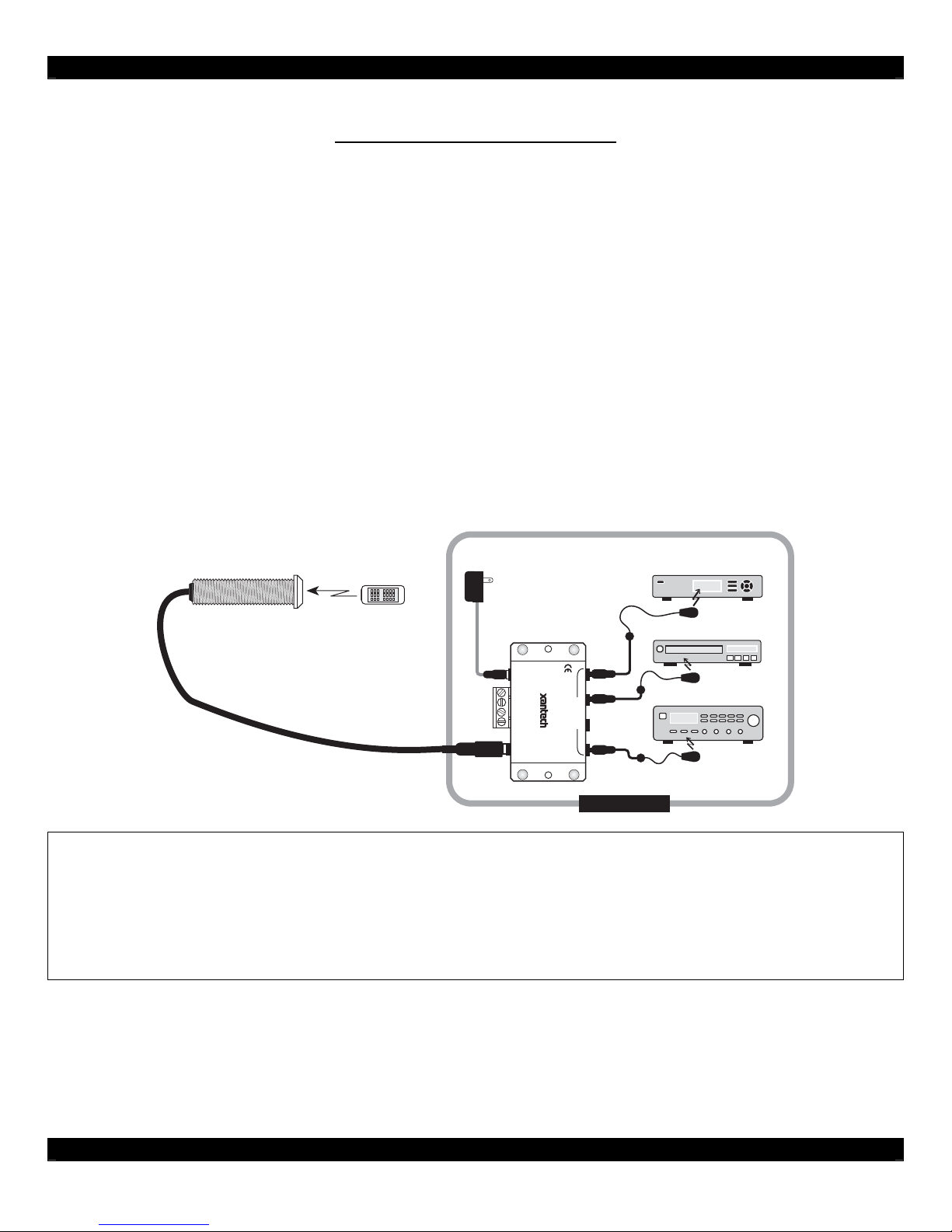

INSTALLATION INSTRUCTIONS

STEP 1:

Plug in the 2.1mm Coaxial power plug of the 781RG Power Supply (ITEM D) into the jack labeled

12VDC on the 789-44 Connecting Block (ITEM B).

Plug the AC end of the 781RG Power Supply (ITEM D) into an ‘un-switched’ 120V AC Line outlet.

STEP 2:

Plug the 3.5mm stereo mini plug from the 490-85 (ITEM A) into the IR RCVR input on the 789-44

Connecting Block (ITEM B).

STEP 3:

Plug in the 283M Emitters 3.5mm mono mini plug (ITEM C) into the jacks labeled EMITTERS on the

789-44 (ITEM B) and affix the opposite end of the IR Sensor Window of the controlled equipment.

490-85

Micro Link

LCD/CFL Friendly

IR Receivers

To 120 V AC

(Unswitc ed)

781RG

Power Supply

789-44

Connecting Block

283M

Blink-IR

283M

Blink-IR

MAIN ROOM

Hand Held

Remote

Satellite Receiver

AV Receiver

VCR

283M

Blink-IR

Mouse Emitter

12VDC

+12

VDC

GND

STATUS

IR IN

EMITTERS

RCVR

789-44

CONNECTING BLOCK

Adjusting the IR Carrier Frequency

Refer to the 490-85 instruction manual for more details. The 490-85 is factory set to an IR carrier

repeat frequency of 38kHz. This will be correct for the majority of installations.

Clock-wise (CW) will increase the carrier frequency.

Counter-Clock-wise (CCW) will decrease the carrier frequency.

XANTECH CORPORATION

13100 Telfair Avenue

Sylmar, CA 91342

Phone 818-362-0353 Fax 818-362-9506

www.xantech.com Part No. 08905114 Rev A 04-26-07
