Xantech 291-95 KITRP User manual

- 1 -

291-95 KITRP

Plasma Friendly Shelf-Top IR Receiver

DESCRIPTION

The 291-95 KITRP comes with everything needed for a complete IR repeater system. The 291 series

are small, shelf-top IR receivers with a multitude of applications. Use them as an inexpensive method

of repeating IR commands when wall-mounting an IR receiver is not practical.

The 291-95 IR receiver is specifically designed and engineered to filter out interference from plasma

displays.

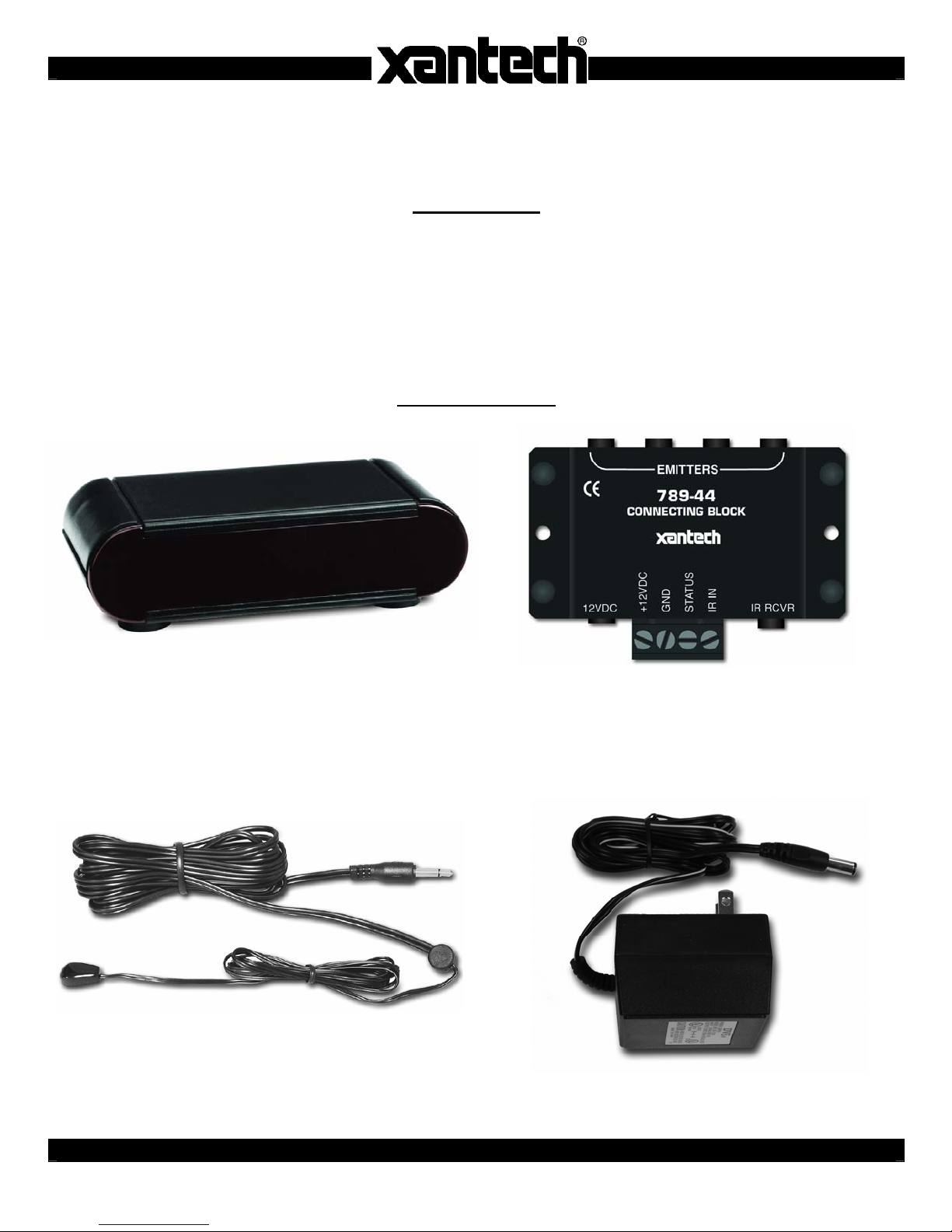

INCLUDED ITEMS

ITEM A: (1) 291-95 Plasma Friendly IR Receiver ITEM B: (1) 784-44 Connecting Block

ITEM C: (4) 283M Mouse Emitters ITEM D: (1) 781RG Power Supply

- 2 -

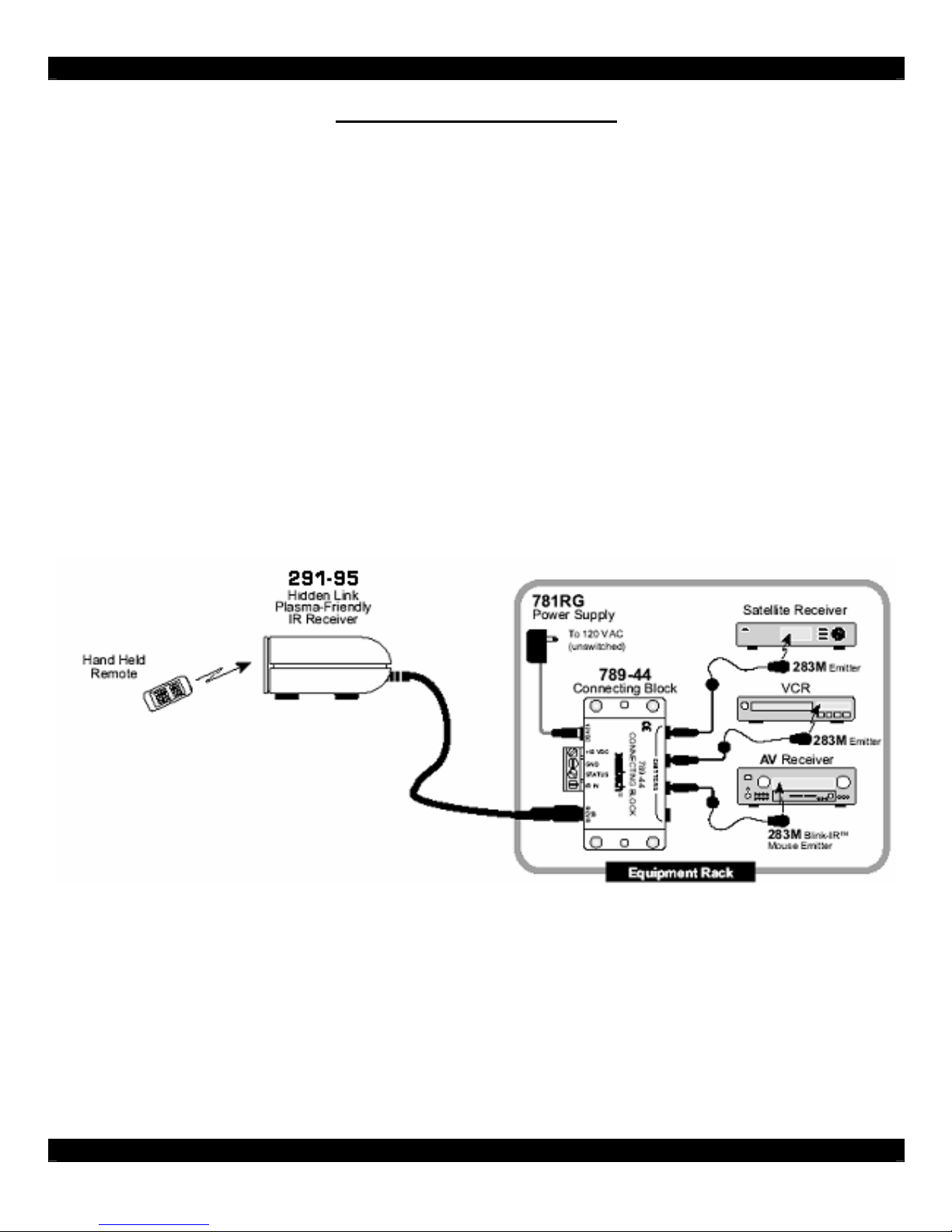

INSTALLATION INSTRUCTIONS

STEP 1:

Plug in the 2.1mm Coaxial power plug of the 781RG Power Supply (ITEM D) into the jack labeled

12VDC on the 789-44 Connecting Block (ITEM B).

Plug the AC end of the 781RG Power Supply (ITEM D) into an ‘un-switched’ 120V AC Line outlet.

STEP 2:

Plug the 3.5mm stereo mini plug from the 291-95 (ITEM A) into the IR RCVR input on the 789-44

Connecting Block (ITEM B).

STEP 3:

Plug in the 283M Emitters 3.5mm mono mini plug (ITEM C) into the jacks labeled EMITTERS on the

789-44 (ITEM B) and affix the opposite end of the IR Sensor Window of the controlled equipment.

Note: Please see the 291-95 Instruction Manual for proper placement.

XANTECH CORPORATION

13100 Telfair Avenue

Sylmar, CA 91342

Phone 818-362-0353 Fax 818-362-9506

www.xantech.com

Part No. 08901687 Rev A 01-30-06

© 2005 Xantech Corporation
