Whispbar K559W User manual
K559W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок

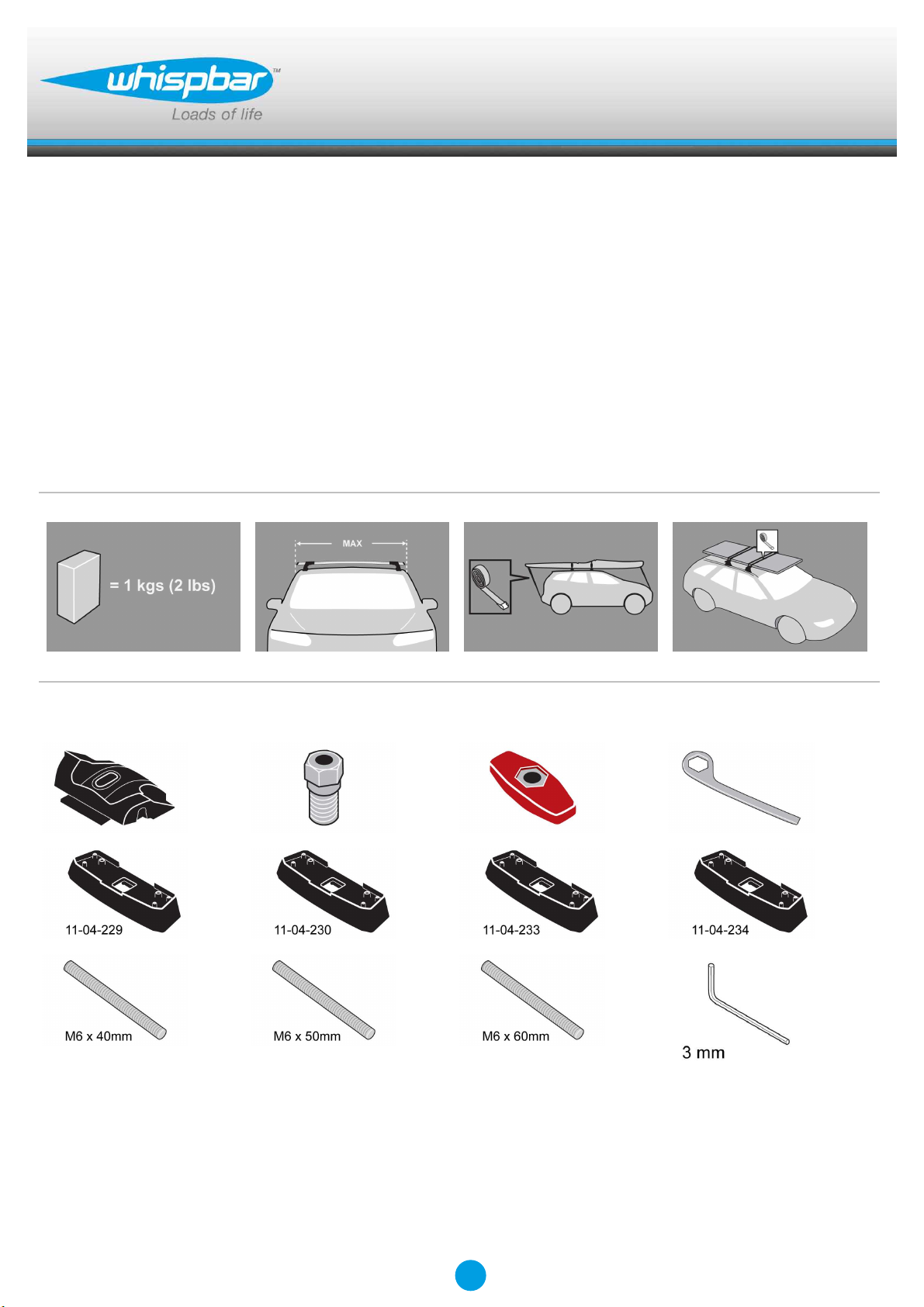

x 4 x 4 x 4 x 1
x 1 x 1 x 1 x 1
x 2 x 2 x 2 x 1
Revision No: 3C 1
Fitting Kit K559W
MAX kgs (lbs)
W/P WHD
Citroen
Berlingo LWB, 5dr Van 08-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Berlingo LWB, 5dr Van 08-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Berlingo LWB, 5dr Van 08-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Berlingo LWB, 5dr Van 08-+ CN 75 kgs (165 lbs) 100 kgs (220 lbs)
Peugeot
Partner LWB, 5dr Van 08-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Partner LWB, 5dr Van 08-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Partner LWB, 5dr Van 08-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)
Partner LWB, 5dr Van 08-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Partner LWB, 5dr Van 08-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Partner LWB, 5dr Van 08-+ CN 75 kgs (165 lbs) 100 kgs (220 lbs)
2
Fitting Kit EN
K559W

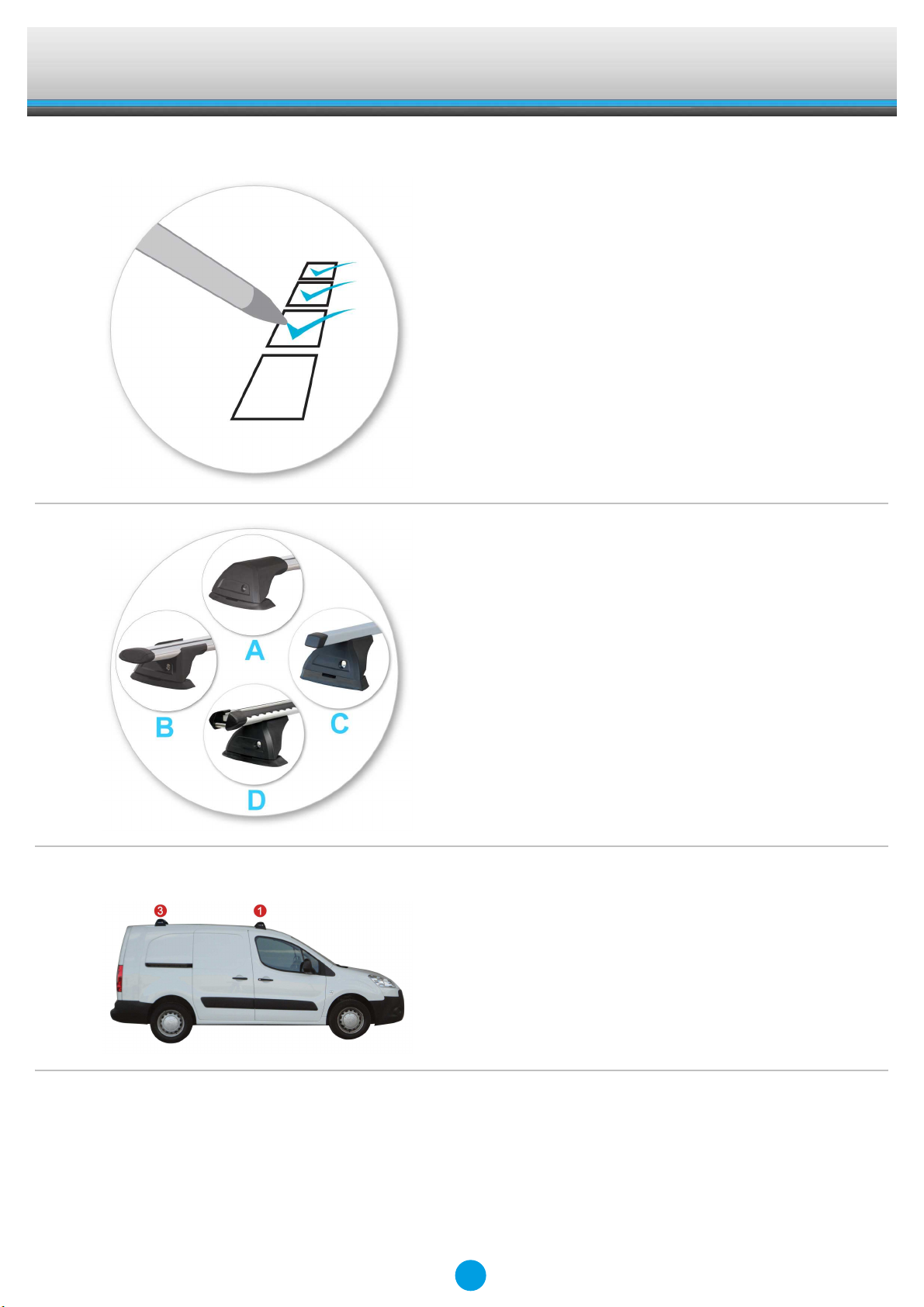

First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
Configuration A:
3
Fitting Kit EN
K559W

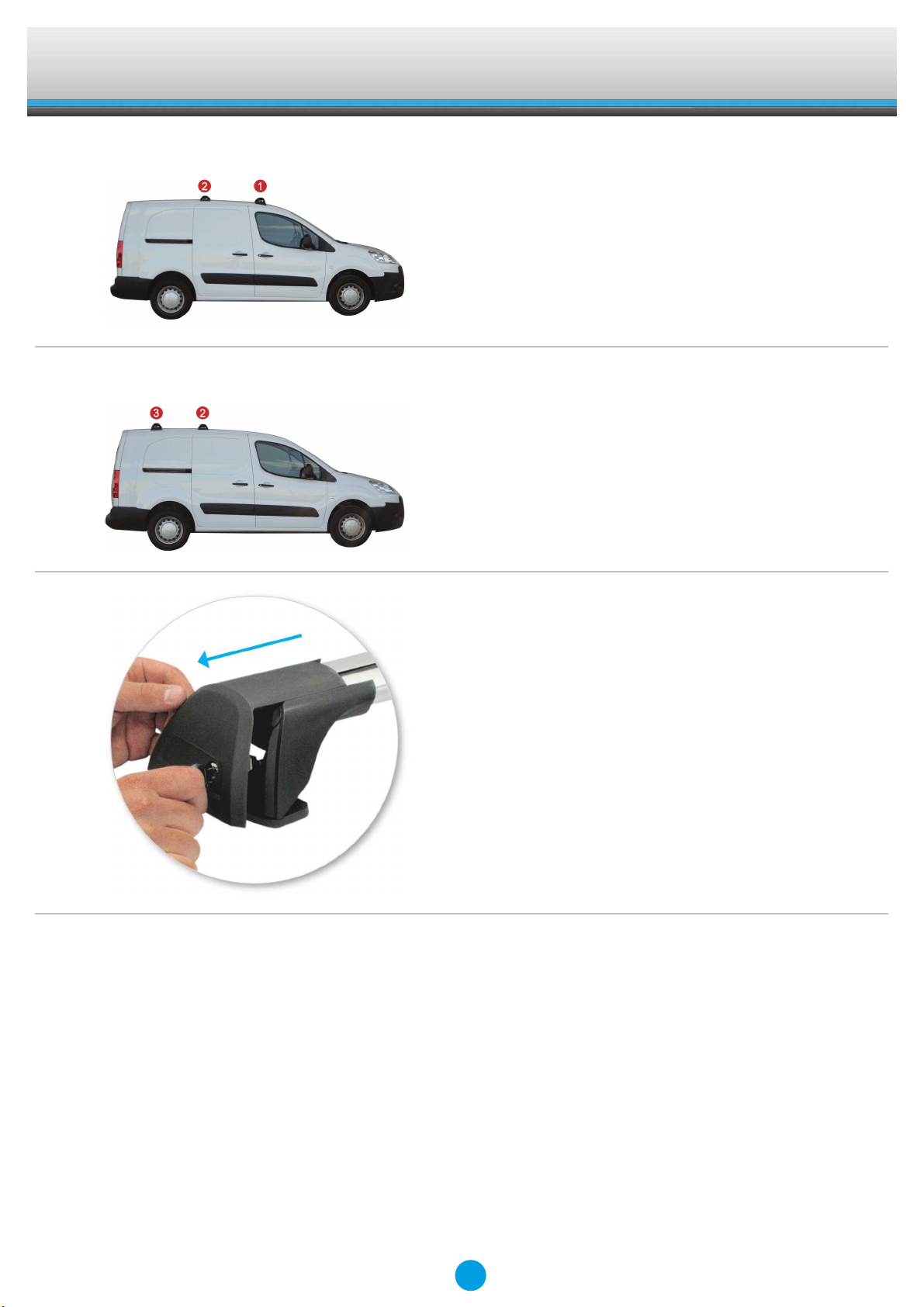

Configuration B:
Configuration C:
●Use keys to remove covers.
4
Fitting Kit EN
K559W

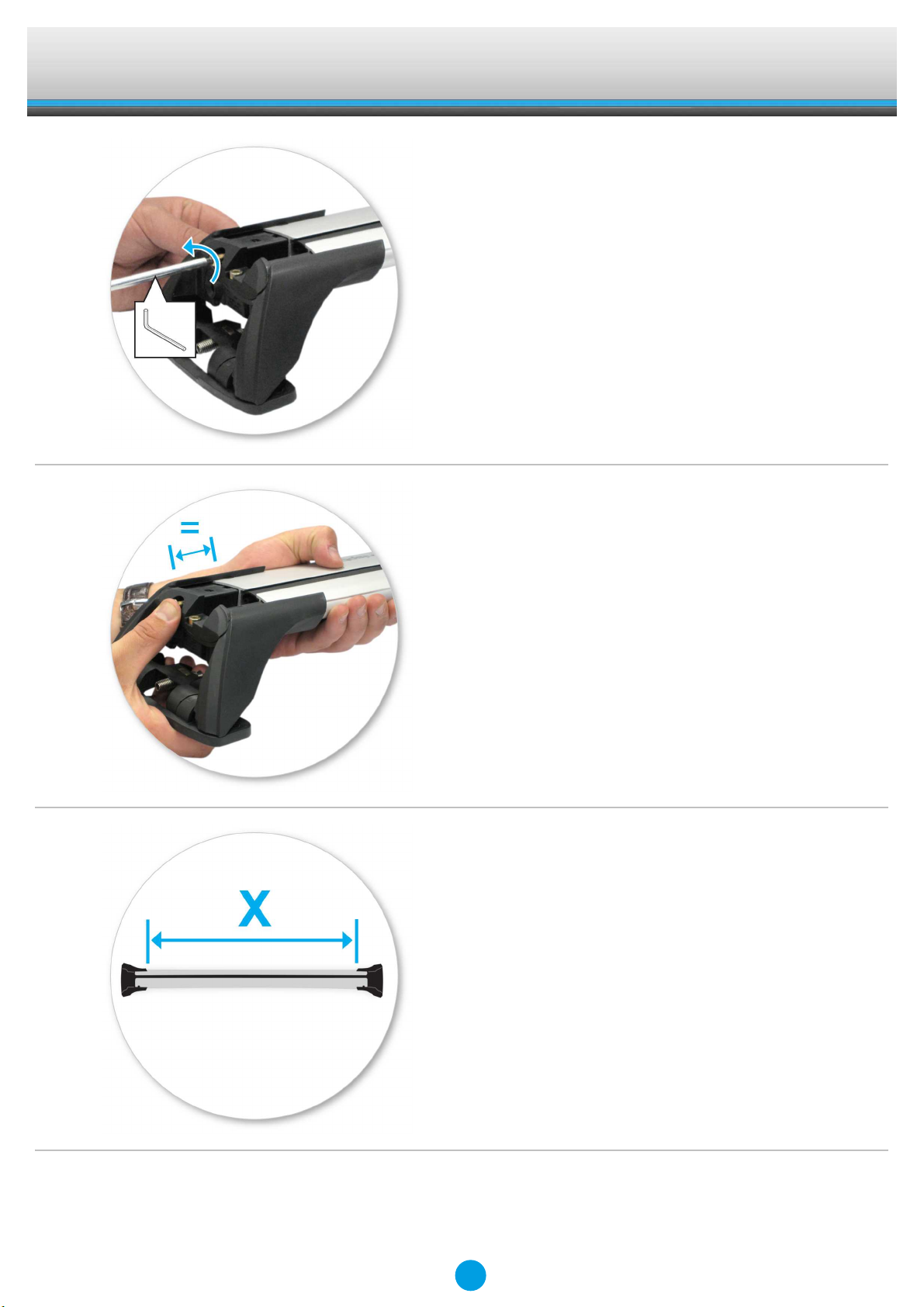

●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K559W

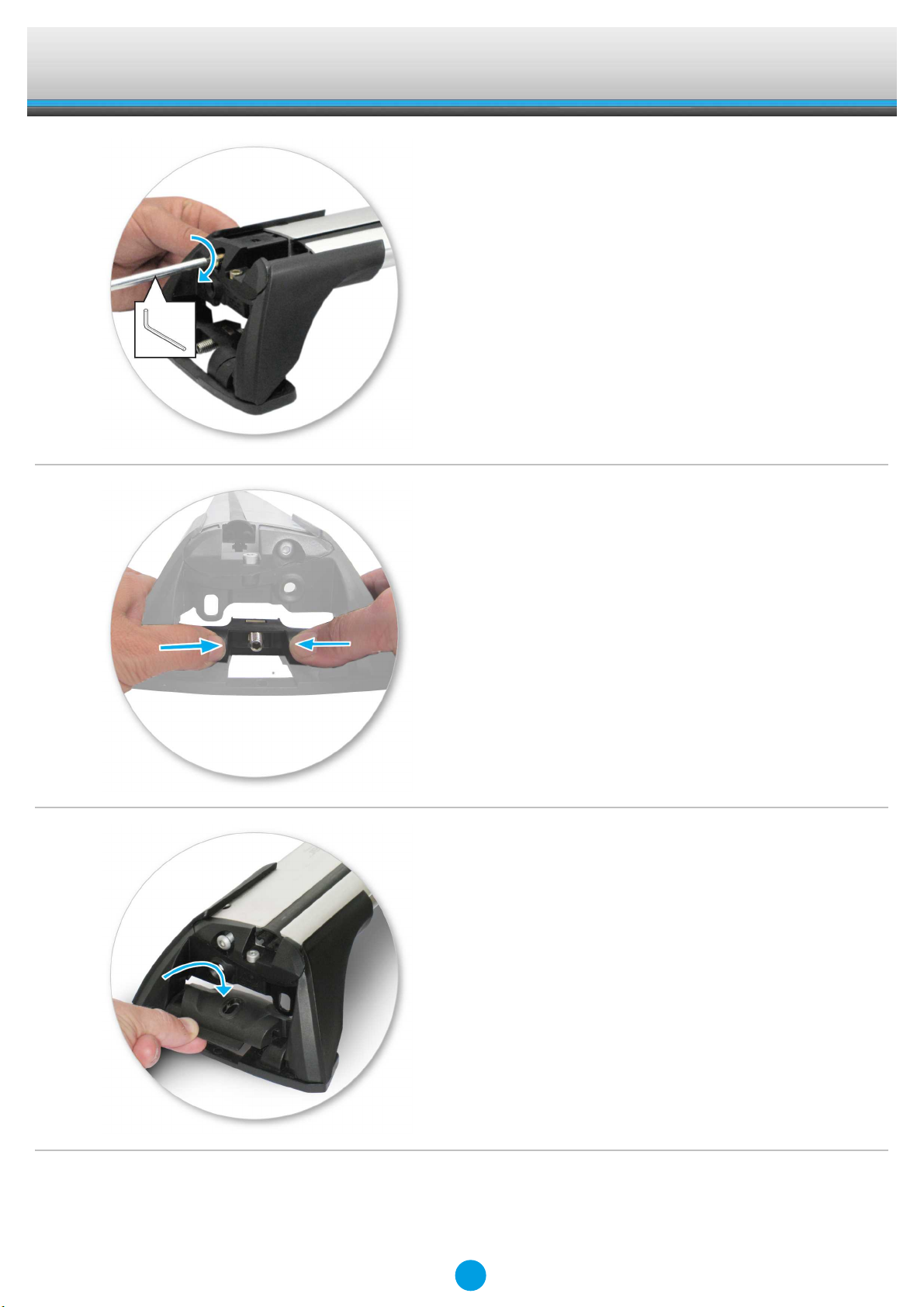

●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
6
Fitting Kit EN
K559W

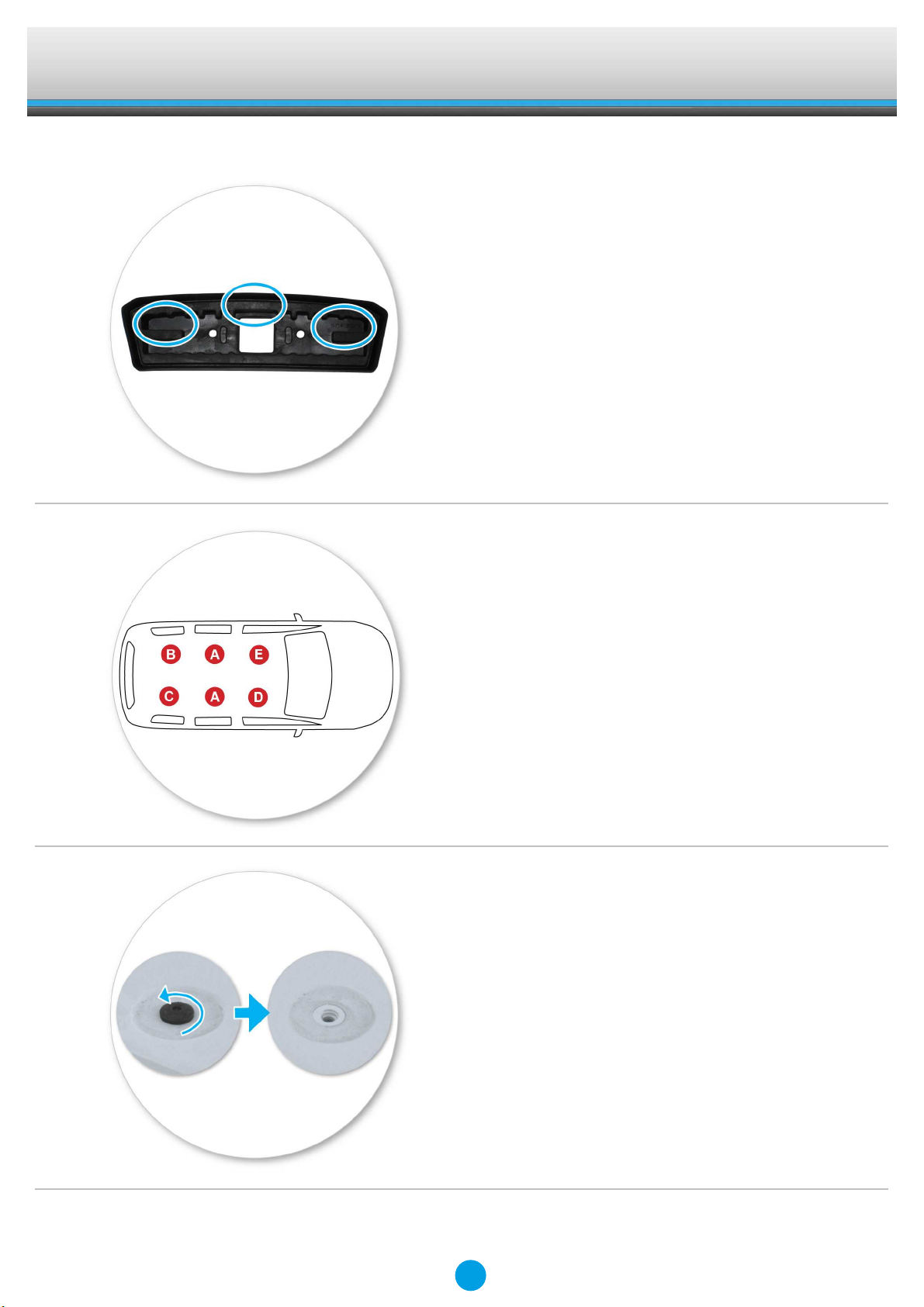

Fitment
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
Supplied with crossbars:
A = 11-04-216
Supplied in fitting kit box:
B = 11-04-229
C = 11-04-230
D = 11-04-233
E = 11-04-234
●Open or remove fixed-point covers.
●Repeat for all four positions.
7
Fitting Kit EN
K559W
●Select four grubscrews and assemble them
into the adaptor using 3 mm (1/8") Hex
Key.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●If you want your crossbars in positions 1
and 3 as shown, proceed to: Configuration
A.
●If you want your crossbars in positions 1
and 2 as shown proceed to: Configuration
B.
8
Fitting Kit EN
K559W
●If you want your crossbars in positions 2
and 3 as shown, proceed to: Configuration
C.

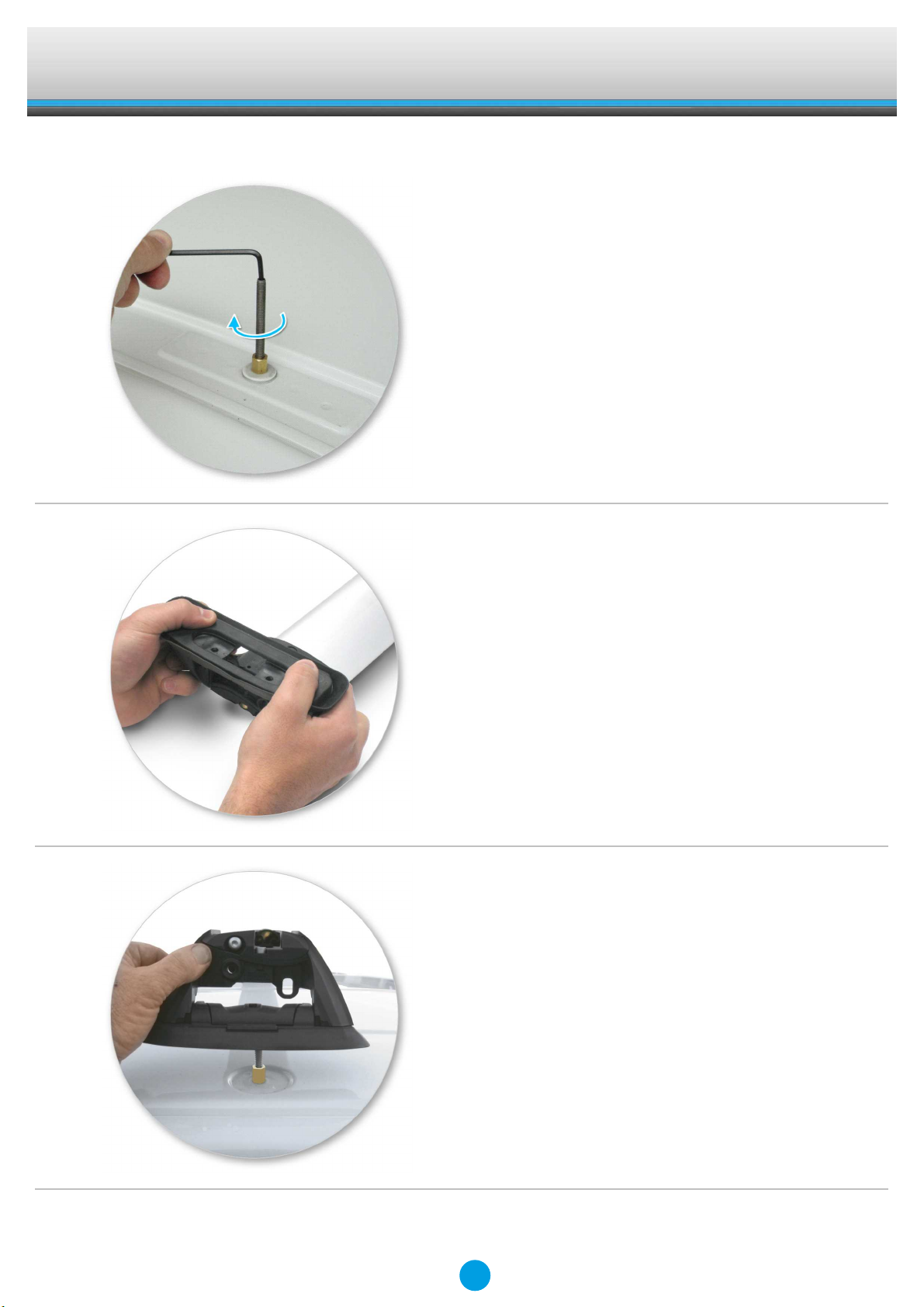

Configuration A:
●Use the following grubscrew lengths for
Configuration A:
Front = M6 x 50mm (2")
Rear = M6 x 60mm (2 3/8")
●Screw grubscrew into adaptor using hex
key. Tighten firmly.
●Repeat for all four positions.
●Place crossbar foot over grubscrews.
●Proceed to: All Configurations
9
Fitting Kit EN
K559W

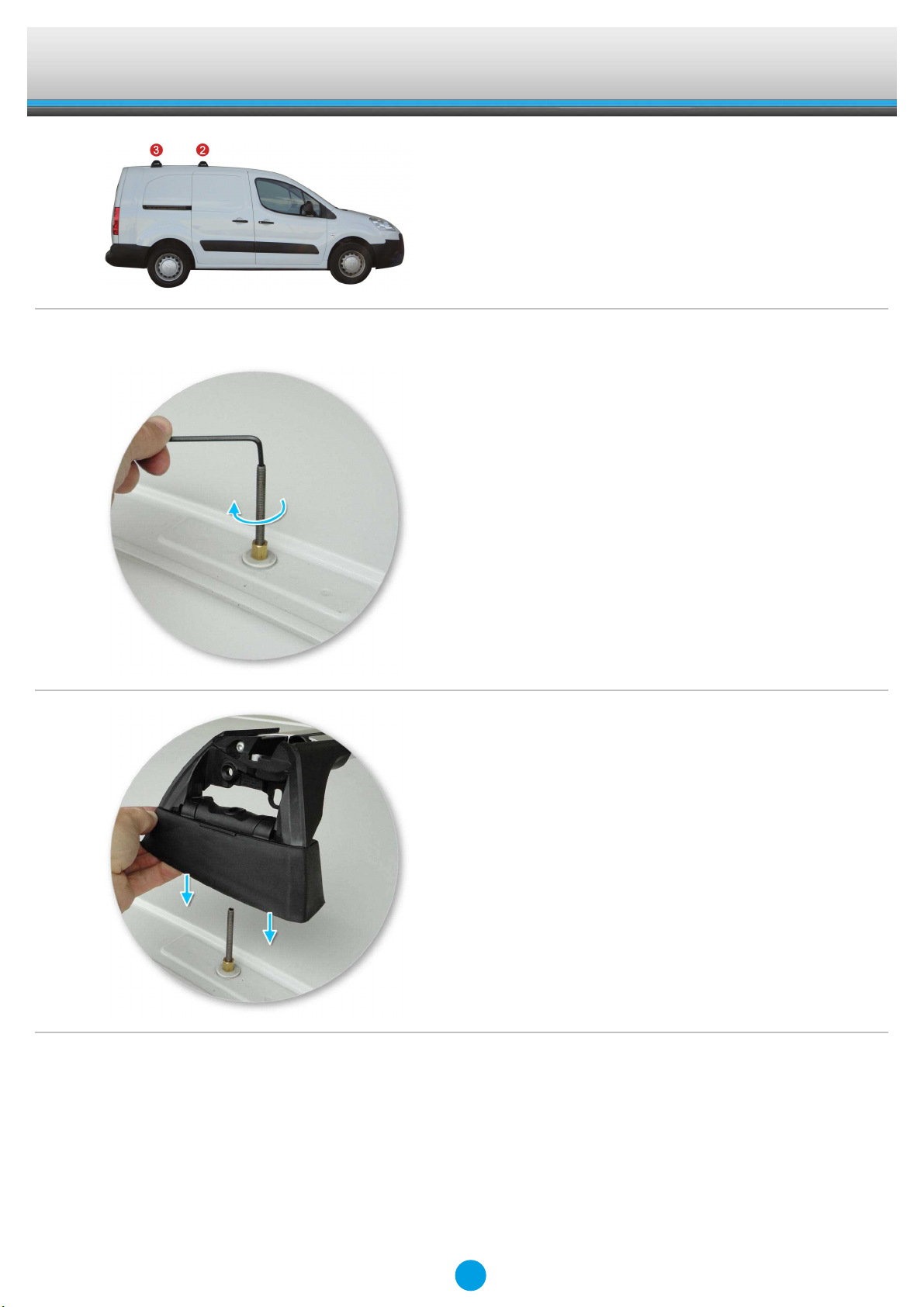

Configuration B:
●Use the following grubscrew lengths for
Configuration B:
Front = M6 x 50mm (2")
Centre = M6 x 40mm (1 5/8")
●Screw grubscrew into adaptor using hex
key. Tighten firmly.
●Repeat for all four positions.
●CENTRE MOUNTING POINTS ONLY:
●Make sure the pad fits into the holes
underneath the foot.
●It is important to put the pads in the correct
position on the vehicle.
●Place crossbar foot over grubscrews.
10
