Whirlpool YWED9050XW User manual

W10443045B

W10443046B-SP

Table of Contents

DRYER SAFETY ................................................................2

INSTALLATION REQUIREMENTS....................................4

Tools and Parts.................................................................... 4

Location Requirements ...................................................... 5

Electric Dryer Power Hookup-Canada Only ..................... 7

Gas Dryer Power Hookup................................................... 8

VENTING.................................................................................... 10

Venting Requirements....................................................... 10

Plan Vent System............................................................... 11

Install Vent System............................................................ 12

INSTALL LEVELING LEGS........................................................ 12

MAKE GAS CONNECTION....................................................... 13

CONNECT INLET HOSES......................................................... 13

CONNECT VENT ....................................................................... 15

LEVEL DRYER........................................................................... 15

COMPLETE INSTALLATION CHECKLIST ............................... 16

DOOR REVERSAL..................................................................... 16

STACKING WASHER AND DRYER .......................................... 16

TROUBLESHOOTING............................................................... 16

INSTALLATION NOTES

Date of purchase:_________________________________

Date of installation: _______________________________

Installer: ________________________________________

Model number: ___________________________________

Serial number: ___________________________________

Date d’achat :_____________________________________

Date d’installation : ________________________________

Installateur : ______________________________________

Numéro de modèle :________________________________

Numéro de série :__________________________________

NOTES CONCERNANT L’INSTALLATION

Table des matières

SÉCURITÉ DE LA SÉCHEUSE ....................................... 17

EXIGENCES D’INSTALLATION ...................................... 19

Outillage et pièces ............................................................ 19

Exigences d’emplacement ............................................... 20

Raccordement à l’alimentation électrique de

la sécheuse électrique – Canada seulement.................. 22

Raccordement d’une sécheuse à gaz............................. 23

L’ÉVACUATION.......................................................................... 25

Exigences concernant l’évacuation ................................ 25

Planication du système d’évacuation ........................... 26

Installation du circuit d’évacuation ................................. 28

INSTALLATION DES PIEDS DE NIVELLEMENT ..................... 28

RACCORDEMENT AU GAZ...................................................... 29

RACCORDEMENT DU TUYAU D’ARIVÉE D’EAU................... 29

RACCORDEMENT DU CONDUIT D’ÉVACUATION ................ 31

RÉGLAGE DE L’APLOMB DE LA SÉCHEUSE......................... 31

ACHEVER L’INSTALLATION – LISTE DE VÉRIFICATION....... 32

INVERSION DE LA PORTE....................................................... 32

LAVEUSE ET SÉCHEUSE SUPERPOSÉES ............................. 32

DÉPANNAGE ............................................................................. 32

Gas Dryer Installation Instructions

Canadian Electric Dryer Installation Instructions

Instructions pour l’installation de la sécheuse à gaz

(É.-U. et Canada) et électrique (Canada uniquement)

Para obtener acceso al manual de uso y cuidado en español, o para obtener información adicional acerca de su

producto, visite:

www.whirlpool.com

Tenga listo su número de modelo completo. Puede encontrar el número de modelo y de serie dentro de la cavidad

superior de la puerta.

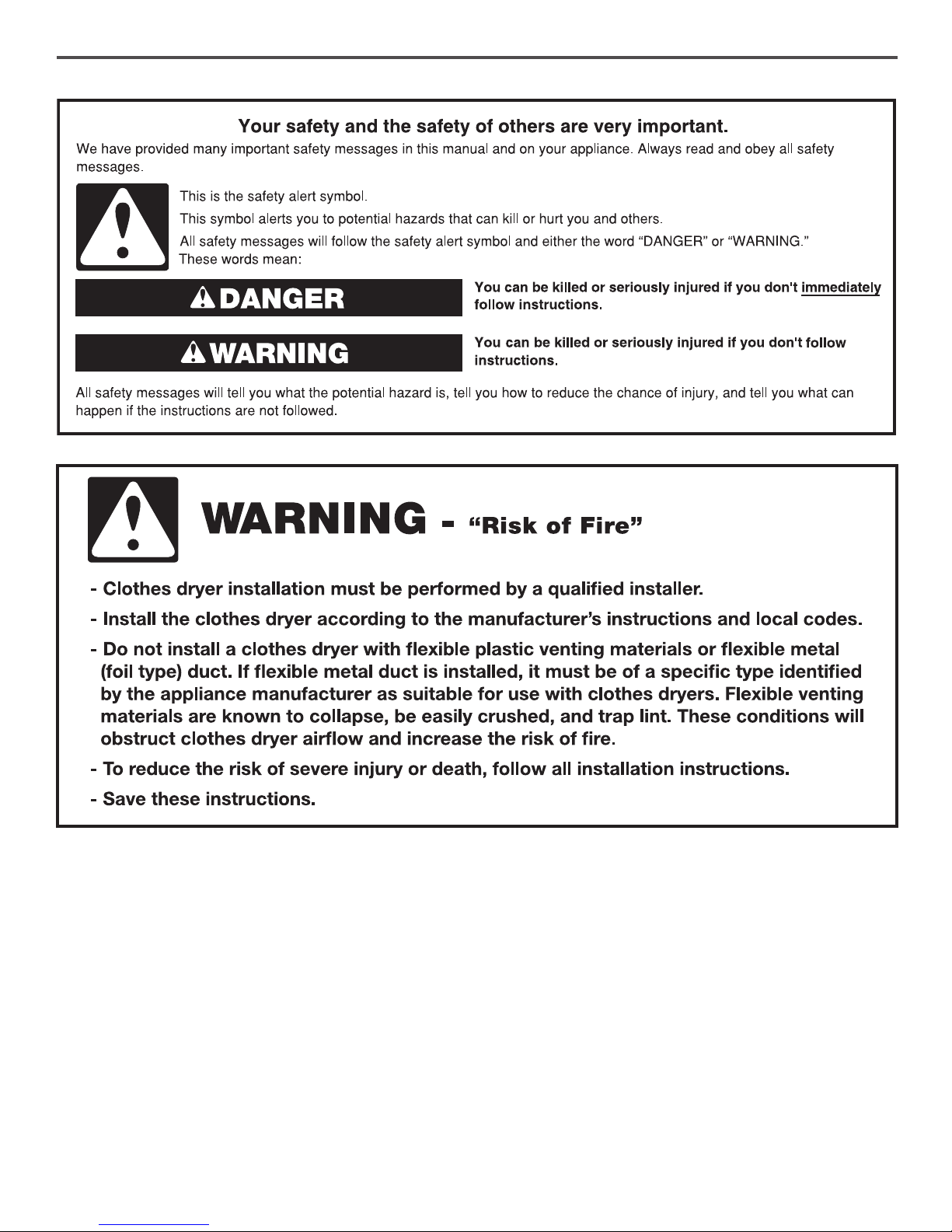

DRYER SAFETY

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

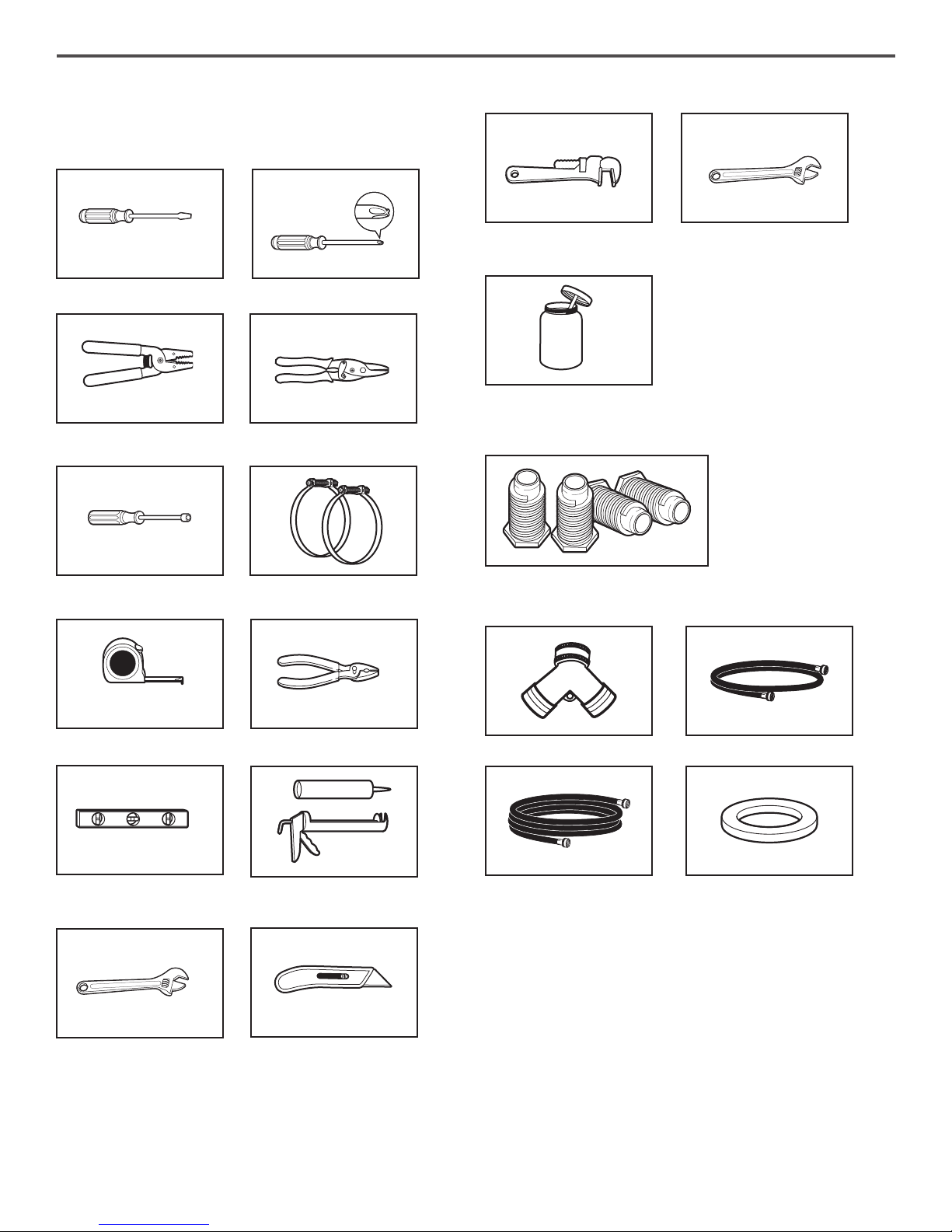

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools needed for all installations:

Level

Tape measure Pliers

Parts package is located in dryer drum. Check that all parts

are included.

NOTE: If installing dryer on pedestal, do not use leveling legs.

Optional Equipment: (Not supplied with dryer)

Refer to your Use and Care Guide for information about

accessories available for your dryer.

Parts needed: (Not supplied with dryer)

Check local codes. Check existing electrical supply and venting.

See “Electrical Requirements” and “Venting Requirements”

before purchasing parts.

Check code requirements. Some codes limit, or do not permit,

installing dryer in garages, closets, mobile homes, or sleeping

quarters. Contact your local building inspector.

Parts supplied (all models):

Flat-blade screwdriver #2 Phillips screwdriver

Adjustable wrench that

opens to 1" (25 mm) or

hex-head socket wrench

Wire stripper (direct wire

installations) Tin snips (new vent

installations)

Caulking gun and compound

(for installing new exhaust vent)

Vent clamps

1/4" nut driver

(recommended)

Tools needed for gas installations:

8" or 10" pipe wrench 8" or 10" adjustable wrench

(for gas connections)

Pipe-joint compound

resistant to LP gas

Utility knife

“Y” connector Short inlet hose

Long inlet hose Rubber washer

Parts supplied (steam models):

INSTALLATION REQUIREMENTS

Leveling legs (4)

LOCATION REQUIREMENTS

You will need:

■A location allowing for proper exhaust installation.

See “Venting Requirements.”

■If using power supply cord, a grounded electrical outlet

located within 2 ft. (610 mm) of either side of dryer.

See “Electrical Requirements.”

■Floor must support dryer weight of 200 lbs. (90.7 kg).

Also consider weight of companion appliance.

■Cold water faucets located within 4 ft. (1.2 m) of the water ll

valves, and water pressure of 20–100 psi (137.9–689.6 kPa).

You may use the water supply for your washer using the “Y”

connector and short hose (if needed) which are provided.

■20–100 psi (138–690 kPa) for best performance.

■Level oor with maximum slope of 1" (25 mm) under entire

dryer. If slope is greater than 1" (25 mm), install Extended

Dryer Feet Kit, Part Number 279810. If not level, clothes

may not tumble properly and automatic sensor cycles may

not operate correctly.

■For garage installation, place dryer at least 18" (460 mm)

above oor. If using a pedestal, you will need 18" (460 mm)

to bottom of dryer.

For each arrangement, consider allowing more space for ease

of installation and servicing; spacing for companion appliances

and clearances for walls, doors, and oor moldings. Space

must be large enough to allow door to fully open. Add spacing

on all sides of dryer to reduce noise transfer. If a closet door

or louvered door is installed, top and bottom air openings

in door are required.

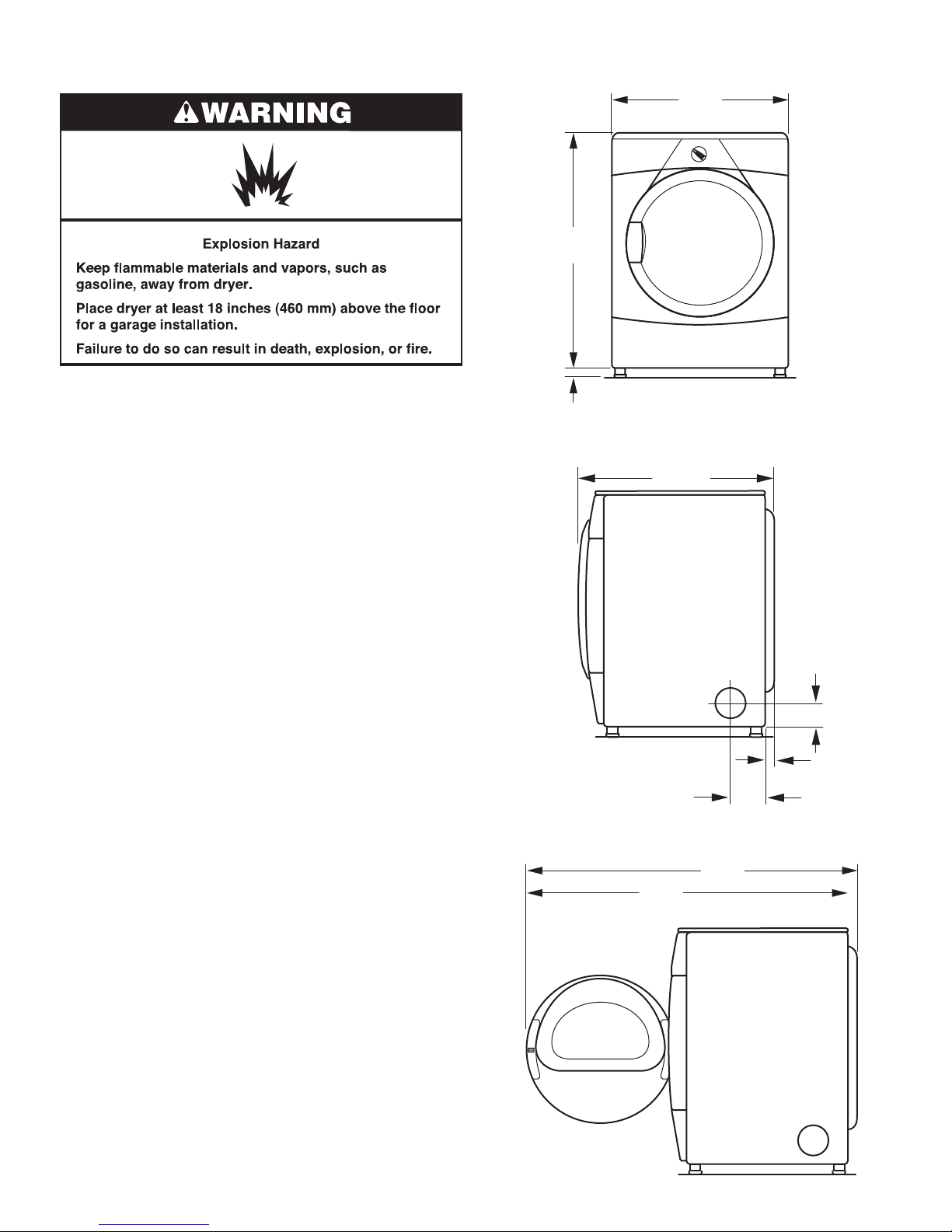

Side view:

DRYER DIMENSIONS

Front view:

27"

(686 mm)

(25 mm)

353/8"

(899 mm)

31/2"

(89 mm)

29"

(736 mm)

Left or

right side

exhaust

67/8"

(174 mm)

15/8"

(41 mm)

471/8"

(1197 mm)

481/8"

(1238 mm)

Door open view:

Back view:

NOTE: Most installations require a minimum of 5" (127 mm)

clearance behind dryer for exhaust vent with elbow. See “Venting

Requirements.”

IMPORTANT: Do not operate, install, or store dryer where

it will be exposed to water, weather, or at temperatures below

45° F (7° C). Lower temperatures may cause dryer not to

shut off at end of automatic sensor cycles, resulting in longer

drying times.

Cabinet installation (dryer only):

Closet installation (dryer only):

Spacing for recessed area or closet installation

All dimensions show recommended spacing allowed, with tested

spacing of 0" (0 mm) clearance on sides and rear.

■Additional spacing should be considered for ease of

installation and servicing.

■Additional clearances might be required for wall, door, and

oor moldings.

■Additional spacing should be considered on all sides of the

dryer to reduce noise transfer.

■For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilitation openings are

acceptable.

■Companion appliance spacing should also be considered.

■No other fuel-burning appliance may be installed in the same

closet as the dryer.

61/4"

(159 mm)

281/8"

(715 mm)

31/2"

(89 mm)

14"

(358 mm)

Electric

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(25 mm)

(102 mm)

(76 mm)

34" recommended

(864 mm)

18" min.

(457 mm)

(76 mm)

(25 mm)

(102 mm)

(178 mm)

18"

(460 mm)

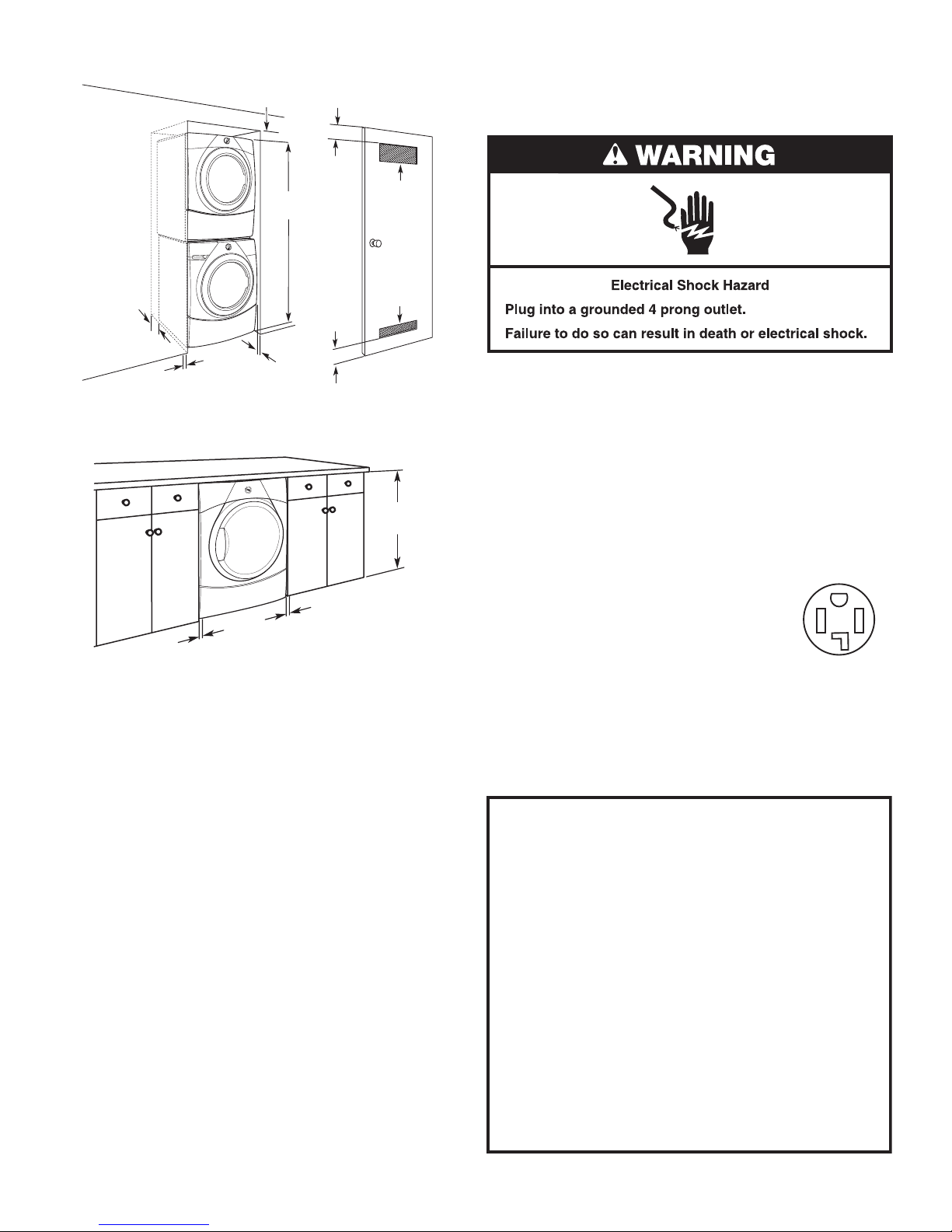

Custom under counter installation (dryer only):

Closet Installation (stacked washer and dryer):

NOTE: Some models not recommended for undercounter

installation.

Mobile home – Additional installation requirements:

This dryer is suitable for mobile home installations.

The installation must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile home

construction and Safety, Title 24, HUD Part 280) or Standard

CAN/CSA-Z240 MH.

Mobile home installations require:

All dryers:

■Metal exhaust system hardware, available for purchase

from your dealer. For further information, see “Assistance

or Service” section in your Use and Care Guide.

■Special provisions must be made in mobile homes to

introduce outside air into dryer. Openings (such as a

nearby window) should be at least twice as large as

dryer exhaust opening.

For gas dryers mobile home installations:

■Mobile Home Installation Hold-down Kit Part Number

346764 is available to order. For further information, see

“Assistance or Service” section in your Use and Care Guide.

(25 mm)

51/2"

(140 mm) 24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

(152 mm)

71"

(1803 mm)

(25 mm)

39" min.

(990 mm)

ELECTRIC DRYER

POWER HOOKUP – CANADA ONLY

ELECTRICAL REQUIREMENTS

It is your responsibility:

■To contact a qualied electrical installer.

■To be sure that the electrical connection is adequate and in

conformance with Canadian Electrical Code, C22.1 – latest

edition and all local codes. A copy of above codes standard

may be obtained from: Canadian Standards Association,

178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

■To supply the required 4-wire, single phase, 120/240 volt,

60 Hz, AC only electrical supply on a separate 30-amp

circuit, fused on both sides of the line. A time-delay fuse or

circuit breaker is recommended. Connect to an individual

branch circuit.

■This dryer is equipped with a CSA

International Certied Power Cord

intended to be plugged into a standard

14-30R wall receptacle. The cord is 5 ft.

(1.52 m) long. Be sure wall receptacle is

within reach of dryer’s nal location.

If using a replacement power supply cord, it is recommended that

you use Power Supply Cord Replacement Part Number 9831317.

For further information, please reference service numbers located

in “Assistance or Service” section of your Use and Care Guide.

4-wire receptacle

(14-30R)

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug provided with

the dryer: if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

GAS DRYER POWER HOOKUP

ELECTRICAL REQUIREMENTS

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

re, or electrical shock.

WARNING

■120 Volt, 60 Hz, AC only, 15- or 20- amp fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is also recommended that a separate

circuit serving only this dryer be provided.

GAS TYPE

Natural Gas:

This dryer is equipped for use with Natural gas. It is

design-certied by CSA International for LP (propane or

butane) gases with appropriate conversion.

■Your dryer must have the correct burner for the type of gas

in your home. Burner information is located on the rating

plate in the door well of your dryer. If this information does

not agree with the type of gas available, contact your dealer

or call the phone numbers referenced in the “Assistance or

Service” section of your Use and Care Guide.

LP Gas Conversion:

IMPORTANT: Conversion must be made by a qualied

technician.

No attempt shall be made to convert the dryer from the gas

specied on the model/serial rating plate for use with a different

gas without consulting your gas company.

WARNING

Explosion Hazard

Use a new CSA International approved gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to LP, have a qualied person make sure

gas pressure does not exceed 13" (330 mm) water

column.

Examples of a qualied person include:

licensed heating personnel,

authorized gas company personnel, and

authorized service personnel.

Failure to do so can result in death, explosion, or re.

GAS SUPPLY REQUIREMENTS

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug provided with

the dryer: if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

†®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.

■1/2" IPS pipe is recommended.

■3/8" approved aluminum or copper tubing is acceptable for

lengths under 20 ft. (6.1 m) if local codes and gas supplier

permit.

■If you are using natural gas, do not use copper tubing.

■Lengths over 20 ft. (6.1 m) should use larger tubing and

a different size adapter tting.

■If your dryer has been converted to use LP gas, 3/8" LP

compatible copper tubing can be used. If the total length of

the supply line is more than 20 ft. (6.1 m), use larger pipe.

NOTE: Pipe-joint compounds that resist the action of LP gas

must be used. Do not use TEFLON®† tape.

■Must include shut-off valve

In the U.S.A.:

An individual manual shut-off valve must be installed within

six (6) ft. (1.8 m) of the dryer in accordance with the National

Fuel Gas Code, ANSI Z223.1. The location should be easy to

reach for opening and closing.

In Canada:

An individual manual shut-off valve must be installed in

accordance with the B149.1, Natural Gas and Propane

Installation Code. It is recommended that an individual

manual shut-off valve be installed within six (6) ft. (1.8 m) of

the dryer. The location should be easy to reach for opening

and closing.

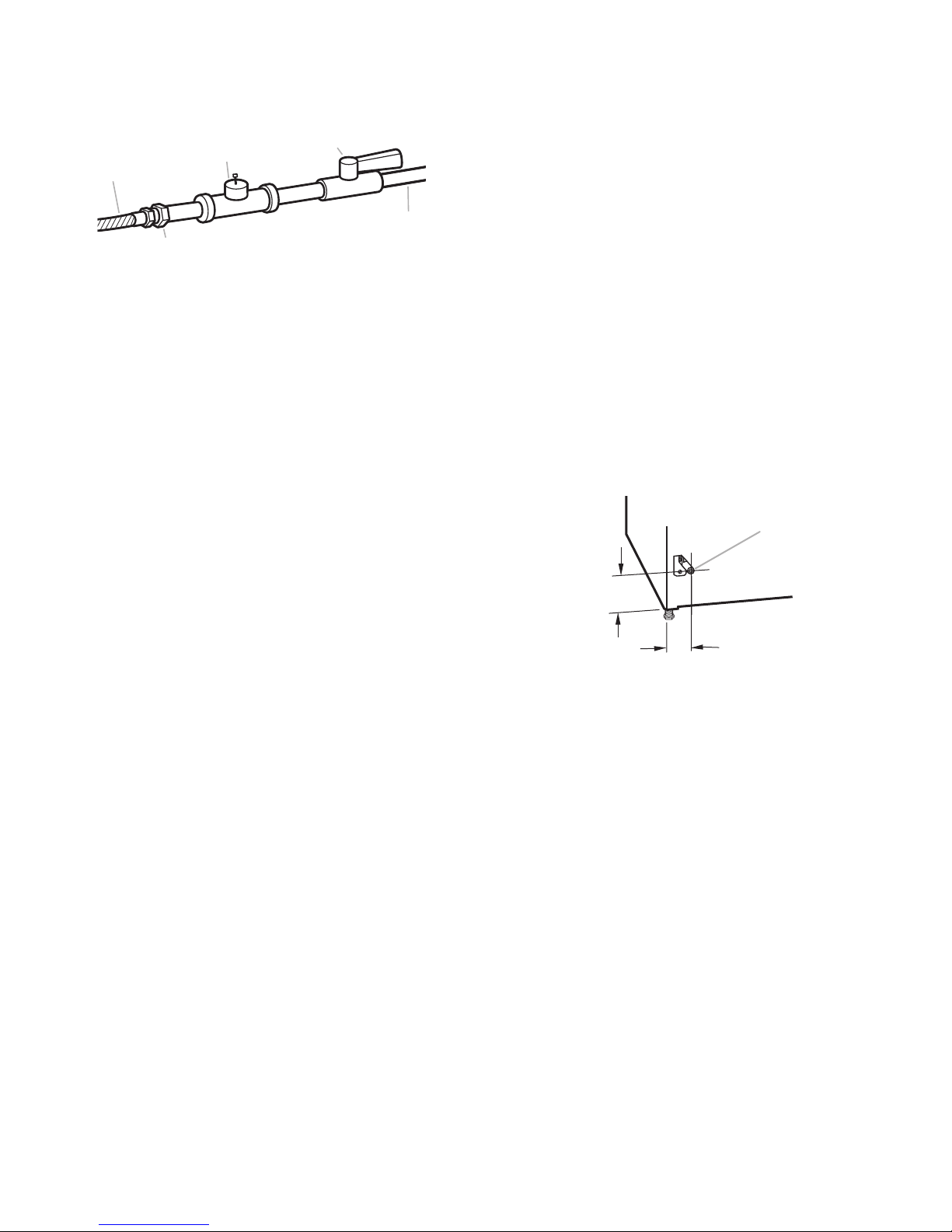

A. 3/8" exible gas connector

B. 3/8" pipe to are adapter tting

C. 1/8" NPT minimum plugged tapping

D. 1/2" NPT gas supply line

E. Gas shutoff valve

GAS SUPPLY LINE

■Must include 1/8" NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas

connection to the dryer.

GAS SUPPLY CONNECTION REQUIREMENTS

■Use an elbow and a 3/8" are x 3/8" NPT adapter tting

between the exible gas connector and the dryer gas pipe,

as needed to avoid kinking.

■Use only pipe-joint compound. Do not use TEFLON®† tape.

■This dryer must be connected to the gas supply line with a

listed exible gas connector that complies with the standard

for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

BURNER INPUT REQUIREMENTS

Elevations above 10,000 ft. (3,048 m):

■When installed above 10,000 ft. (3,048 m) a 4% reduction

of the burner Btu rating shown on the model/serial number

plate is required for each 1,000 ft. (305 m) increase in

elevation.

Gas supply pressure testing

■The dryer must be disconnected from the gas supply piping

system during pressure testing at pressures greater than

1/2 psi.

DRYER GAS PIPE

■The gas pipe that comes out through the rear of your dryer

has a 3/8" male pipe thread.

A. 3/8" NPT dryer pipe

*5 3/4"

(159 mm)

1 1/2"

(38 mm)

*NOTE: If the dryer is mounted on a pedestal, the gas pipe

height must be an additional 10" (254 mm) or 15.5" (394 mm)

from the oor, depending on the pedestal model. For a garage

installation, the gas pipe height must be an additional 18"

(460 mm) from the oor.

A. 3/8" NPT dryer pipe

*61/4"

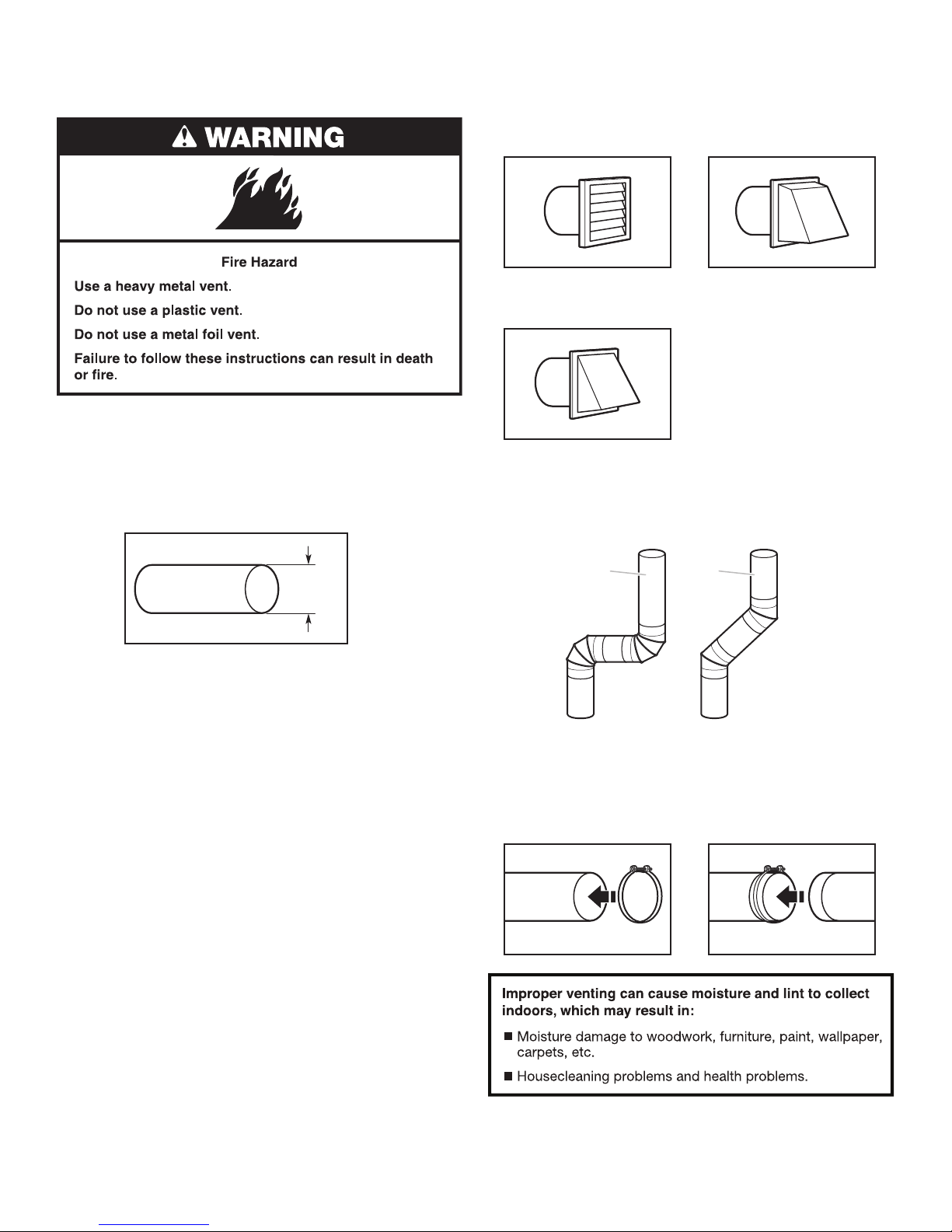

VENTING REQUIREMENTS

WARNING: To reduce the risk of re, this dryer MUST BE

EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or exible metal vent shall be used for

exhausting.

VENTING

■Only a 4" (102 mm) heavy metal exhaust vent and clamps

may be used.

■Do not use plastic or metal foil vent.

Rigid metal vent:

■Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

■Must be fully extended and supported in nal dryer location.

■Remove excess to avoid sagging and kinking that may

result in reduced airow and poor performance.

■Do not install in enclosed walls, ceilings, or oors.

■The total length should not exceed 73/4ft. (2.4 m).

NOTE: If using an existing vent system, clean lint from

entire length of the system and make sure exhaust hood

is not plugged with lint. Replace plastic or metal foil vents

with rigid metal or exible metal vents. Review “Vent System

Charts” and, if necessary, modify existing vent system to

achieve best drying performance.

(102 mm)

4" (102 mm) heavy metal exhaust vent

Louvered Hood

Good

Angled Hood

Box Hood

Better

Exhaust hoods:

Elbows:

Recommended Styles:

■45° elbows provide better airow than 90° elbows.

Clamps:

■Use clamps to seal all joints.

■Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct

and catch lint. Do not use duct tape.

■Must be at least 12" (305 mm) from ground or any object that

may obstruct exhaust (such as owers, rocks, bushes, or

snow).

Acceptable Style:

Vent products can be purchased from your dealer. For more

information, see “Assistance or Service” section in your Use and

Care Guide.

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WED6400SB1 User manual

Whirlpool

Whirlpool LE681OXP User manual

Whirlpool

Whirlpool W10305728B User manual

Whirlpool

Whirlpool W10115228C User manual

Whirlpool

Whirlpool Gold 7MGGW9868KL0 User manual

Whirlpool

Whirlpool W10097053B User manual

Whirlpool

Whirlpool WHDSCX80112 User manual

Whirlpool

Whirlpool LE5760XS User manual

Whirlpool

Whirlpool LE7700XW User manual

Whirlpool

Whirlpool YWED94HEAC User manual

Whirlpool

Whirlpool WED8300SW - w/ Accents Duet Sport Electric... User manual

Whirlpool

Whirlpool WASHER User manual

Whirlpool

Whirlpool 4GWED5500 User manual

Whirlpool

Whirlpool WED560LHW User manual

Whirlpool

Whirlpool W10061470 Parts list manual

Whirlpool

Whirlpool LER5624BN0 User manual

Whirlpool

Whirlpool GEW9868KL User manual

Whirlpool

Whirlpool LG6091XS User manual

Whirlpool

Whirlpool AWZ-7813 User manual

Whirlpool

Whirlpool Cabrio 5800 Series User manual

Whirlpool

Whirlpool LE3000XK User manual

Whirlpool

Whirlpool 3393137 User manual

Whirlpool

Whirlpool WGD8620HW User manual

Whirlpool

Whirlpool REC3622B Installation instructions

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
