Whirlpool LER5624BN0 User manual

TOP AND CONSOLE PARTS

For Models: LER5624BW0, LER5624BN0

(White) (Almond)

3−94 Litho in U.S.A. (tpm) Part No. 4377130

ELECTRIC DRYER

TOP AND CONSOLE PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

For Models: LER5624BW0, LER5624BN0

(White) (Almond)

24377130

1 3397545 Panel, Rear

Console

2 693994 Screw, Hex Head

3 3390646 Screw,

8−18 x 5/16

4 Cap, End (L.H.)

3358531 White

3358532 Almond

5 689180 Clip, Retainer

6 3353145 Screw, Console

7 693995 Screw, Hex Head

8 Cap, End (R.H.)

3358516 White

3358517 Almond

9 688805 Clip

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

15 3388706 Resistor

16 Top

3396022 White

3396023 Almond

18 3390647 Screw, 8−18 x 1/2

19 3397269 Connector, Timer

21 3392250 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3396646 Harness, Wiring

39 660936 Switch,

Push−To−Start

48 3396145 Timer Knob

Assembly

53 3396293 Bracket, Control

54 Panel, Control

3397190 White

3397191 Almond

72 690853 Wire, Ground

81 3396160 Knob, Push

To Start

LITERATURE PARTS

LIT3396303 Guide, Used & Care

LIT3397597 Instructions,

Installation

LIT3399125 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818 Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond(Uncut)

CABINET PARTS

For Models: LER5624BW0, LER5624BN0

(White) (Almond)

4377130

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: LER5624BW0, LER5624BN0

(White) (Almond)

4 4377130

1 690236 Wire, Ground

(Motor)

2 3393008 Screw, 10−16 x 1/2

3 3393657 Restrainer, Belt

4 343641 Screw, 10−16 x 1/2

5 690893 Cover, Terminal

Block

6 694091 Screw

7 346368 Panel, Rear

10 347207 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

13 693994 Screw, Rear Panel

Mounting

16 3392100 Foot, Dryer (4)

18 Cabinet

3394109 White

3394110 Almond

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel Assembly

693197 White

693198 Almond

23 685203 Clip, Felt Pad

24 3389441 Catch, Door

28 348023 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695656 Door, Rear

36 Door Front

348205 White

689314 Almond

37 Handle, Door

686711 White

689308 Almond

38 349462 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch, Motor

62 3391886 Motor Assembly

60 Hz.

(Pulley Not

Included With

Motor)

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390734 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, 10−16 x 1/2

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

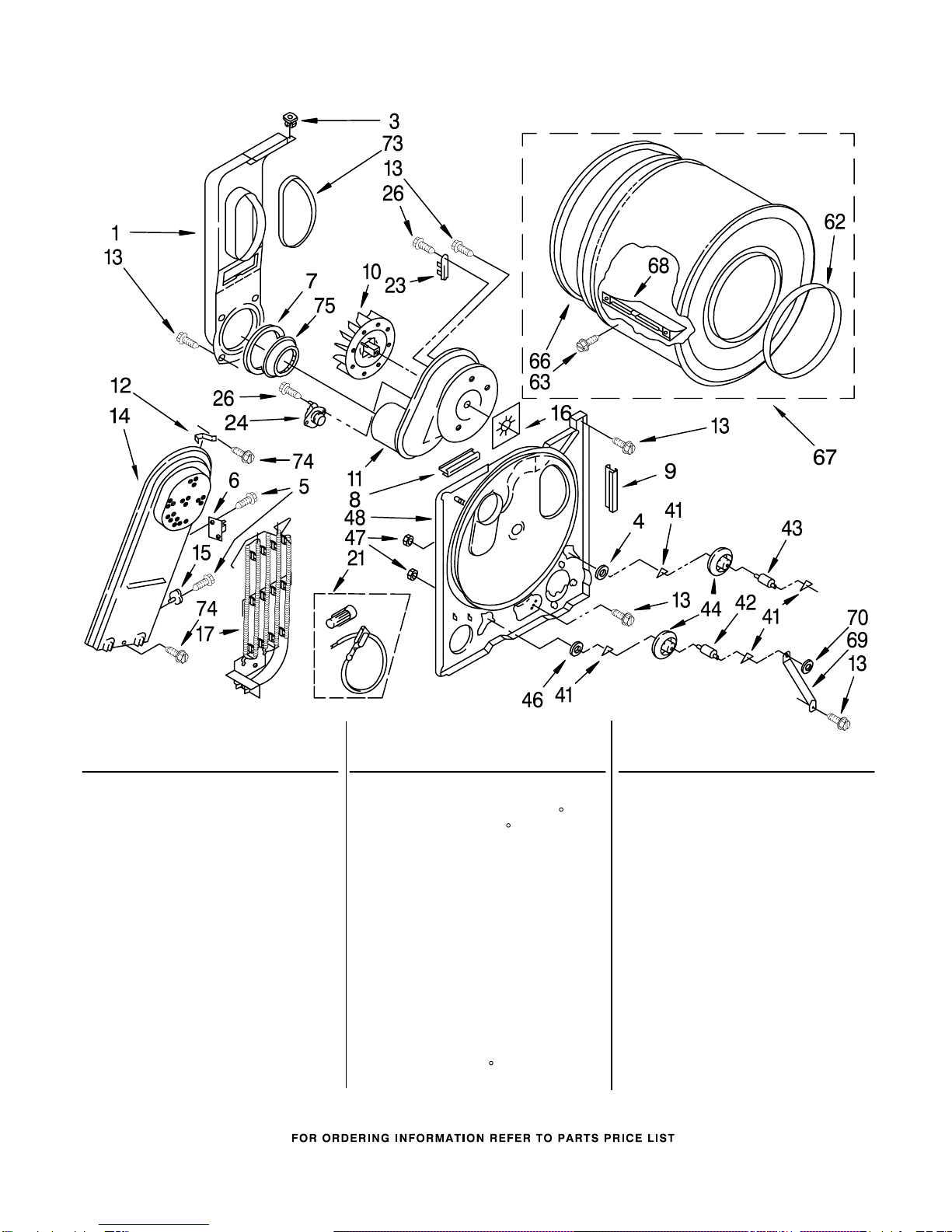

BULKHEAD PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: LER5624BW0, LER5624BN0

(White) (Almond)

4377130

1 694283 Lint Chute Assembly

3 98460 Nut, Push−In (2)

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3398671 Thermal, Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

8 686889 Pad, Cabinet

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10−16 x 1/2

14 695547 Box, Heater

15 3390291 Thermostat,

High Limit 250 F

(121.1 C) (60 Hz.)

16 3392123 Seal, Blower

Shaft

17 660982 Element, Heater

(For 240 Volt

Installation)

693300 (Alt.)

693298 (Alt.)

693062 (Alt.)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 660039 Thermostat,

150 F / 66C

26 695239 Screw, 8−18 x 3/8

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 685775 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10−16 x 1/2

75 696302 Shield, Exhaust
