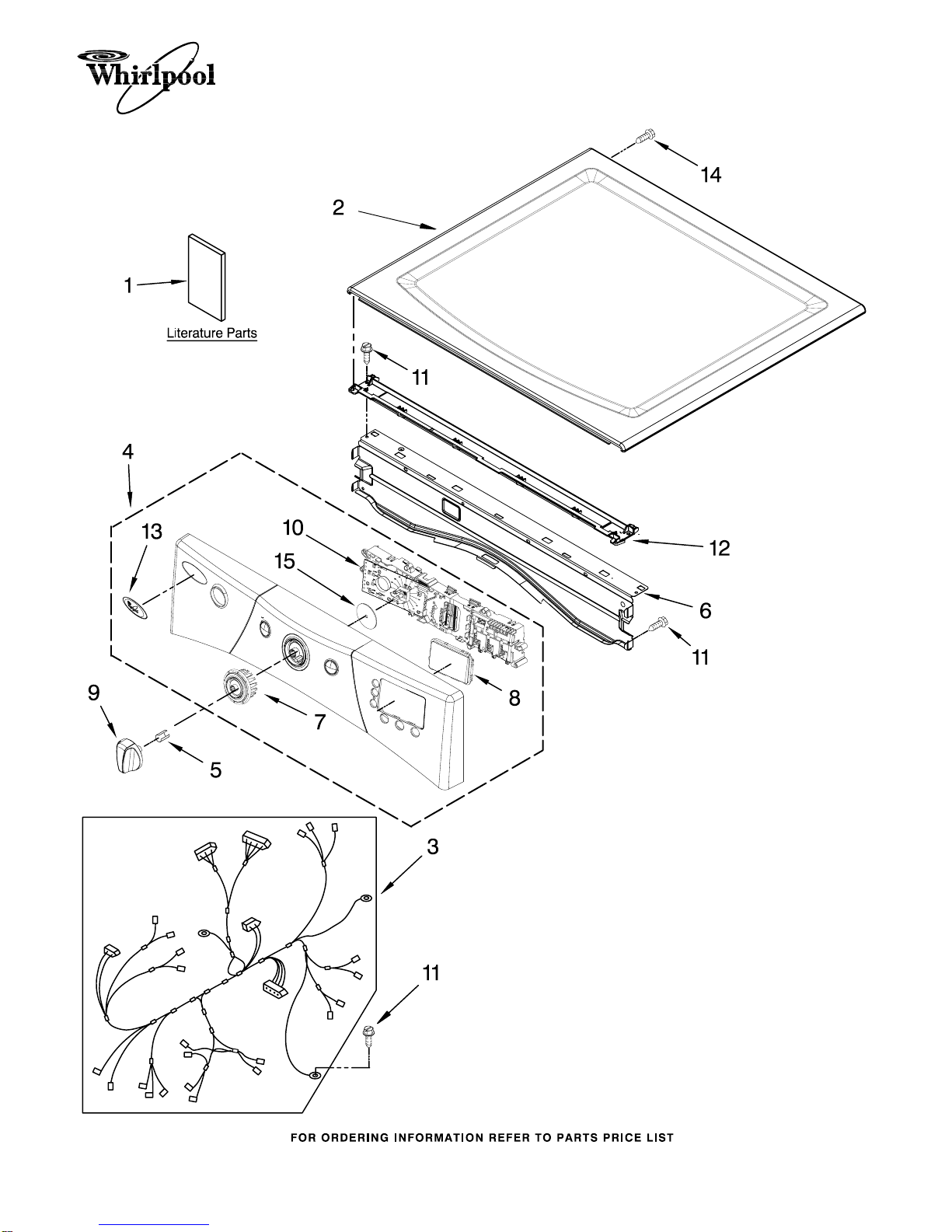

TOP AND CONSOLE PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

12−10 Printed in U.S.A. (L.T.)(bay) Part No. W10373372 Rev. A

27" Electric Dryer

TOP AND CONSOLE PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10293937

Use & Care Guide

W10340328

Tech Sheet

W10240579

Guide,

Quick Start

2 Top

W10336080

White

W10336090

Red

W10336091

Mercury

W10278759

Harness, Main

4 Panel, Console

(Include Items,

13,16,18 & 19)

W10329850

White

W10329852

Red

W10329851

Mercury

W10153920

Spring, Knob

6 8565237 Bracket, Console

W10237301

Cycle,

Light Guide

W10212742

Window, Led

Display

9 Assembly, Knob

W10215781

White

W10247262

For Red & Silver

Models

W10215475

Assembly,

User Interface

11 3390647 Screw, 8−18 x 1/2

W10266747

Chanel, Water

W10117943

Badge, Assembly

14 3400238 Screw, 2−28 x 1/2

15 8572039 Seal, User

Interface

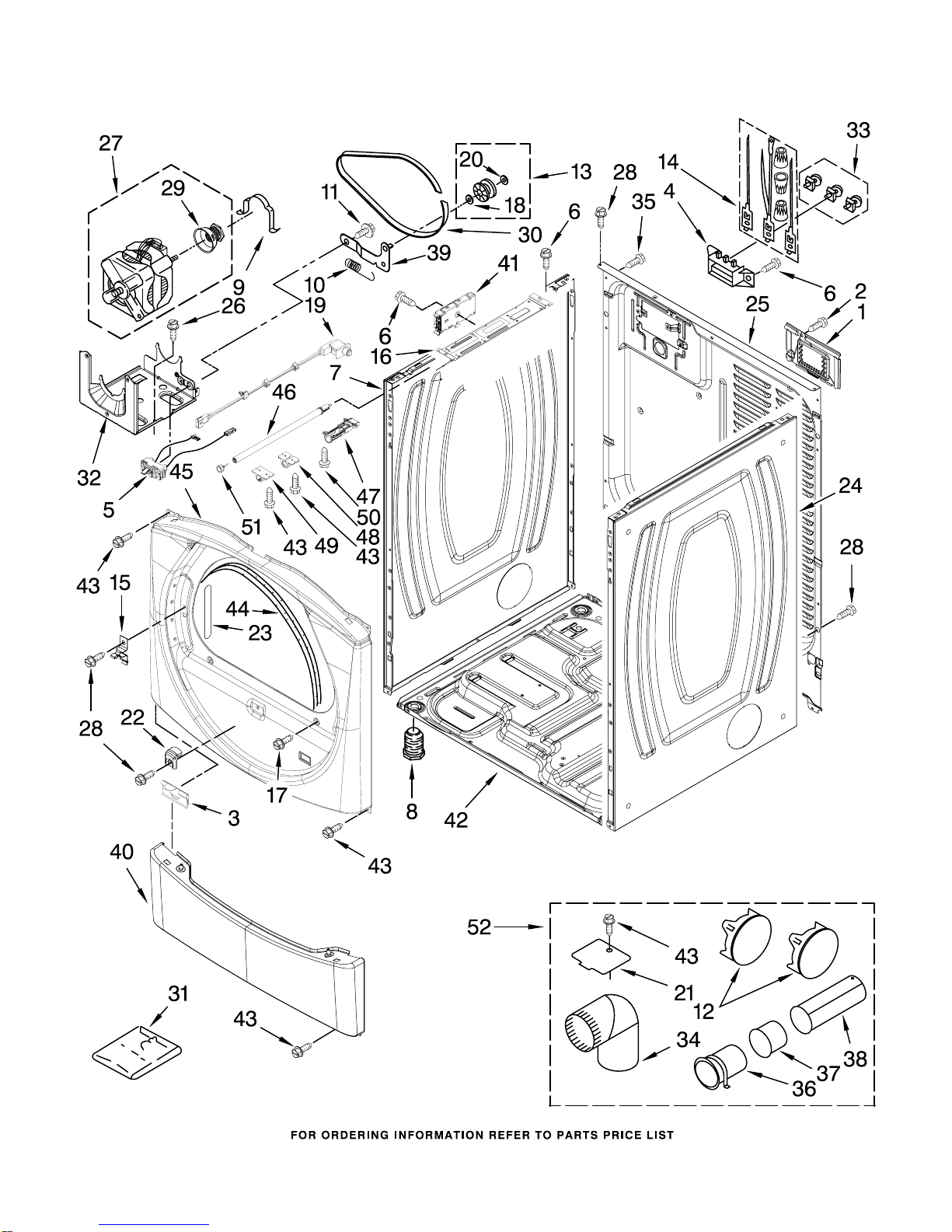

CABINET PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

CABINET PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10286180

Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8519459 Clip, Toe Panel

4 3397659 Block, Terminal

W10246525

Switch, Broken

Belt

6 90767 Screw, 8−18 x 3/8

7 Panel, Side (L.H.)

8565054 White

W10251216

Red

W10251218

Mercury

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

49252 White

W10151499

Midnight Grey

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Include,

Item. 33 )

15 8565122 Strike, Door

W10103443

Bracket, Control

Pogo

17 3357011 Screw,10−16 x 1/2

W10121334

Washer, Thrust

W10318609

Switch, Assembly

Door

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8580015 Ramp, Door

W10085210

Label−Hinge

Hole Cover

Front Panel

24 Panel, Side (R.H.)

8565048 White

W10251217

Red

W10251219

Mercury

W10281297

Panel, Rear

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor, Assembly

60 HZ.

28 3393008 Screw, 10−16 x 1/2

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8572546 Kit,

Stack Assembly

W10242878

Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 8533974 Screw, Ground

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 Toe Panel

8540621 White

W10251209

Red

W10251210

Mercury

W10286015

Control Board

42 8565046 Base, Cabinet

43 3390647 Screw, 8−18 x 1/2

W10212742

Window, Led

45 Front Panel

(Include,

Item. 44 )

8580257 White

W10251201

Red

W10251202

Mercury

W10103457

Pogo Bar

Assembly

W10101220

Housing Assembly

W10101183

Bushing−Sleeve

Stop

W10307561

Bushing−Sleeve

Rear

50 487909 Screw, 8−15 x 3/8

W10011740

End−Cap

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

W10331132

White

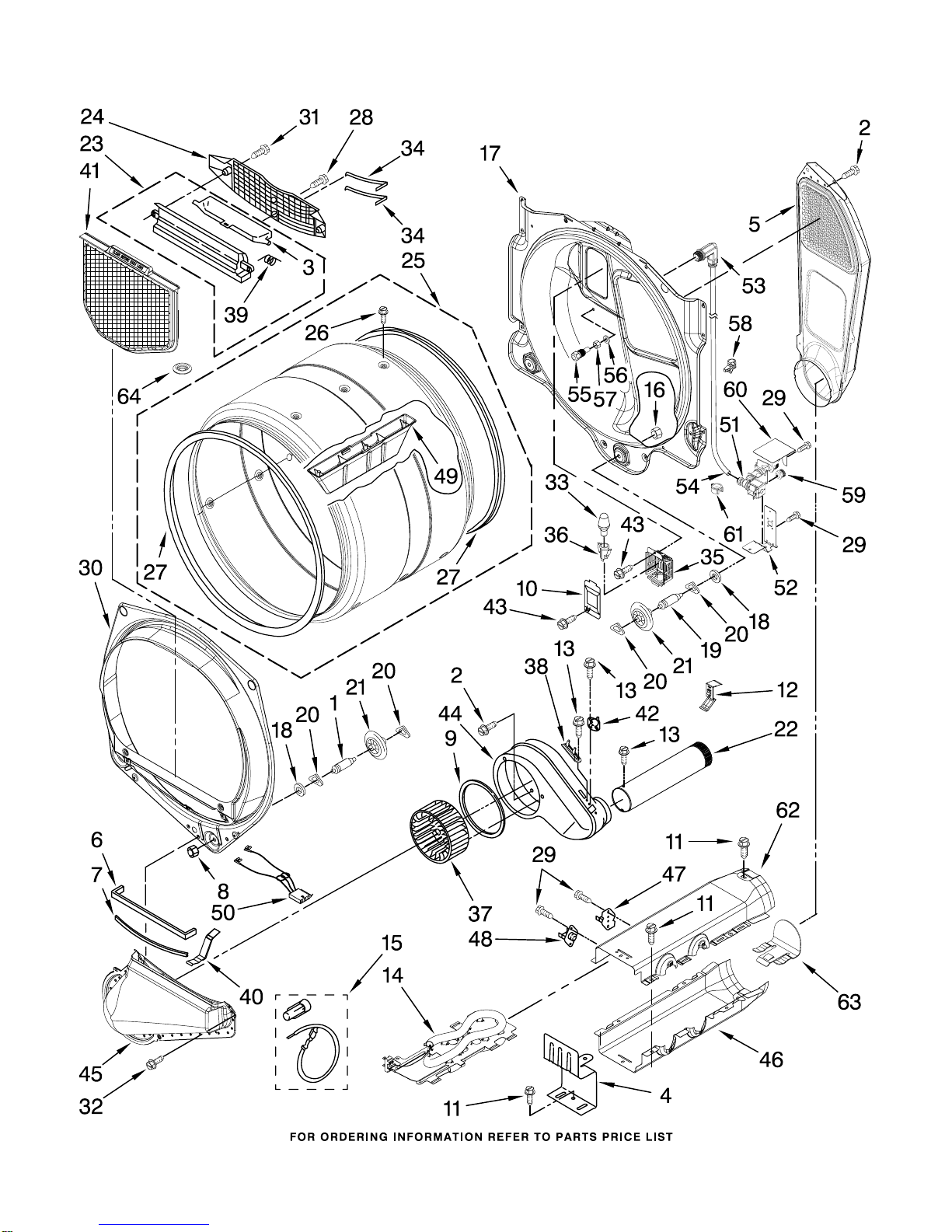

BULKHEAD PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

BULKHEAD PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10359271

Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

W10153413

Door, Lint

Screen

4 8066099 Bracket,

Heater Box

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 697770 Seal, Cover Plate

10 3402841 Lens,

Drum Light

11 693995 Screw, 8−18 x 3/8

12 8572105 Clip, Exhaust

13 8533971 Screw,8−18 x 5/16

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

W10133857

Bulkhead, Rear

18 3387459 Washer, Support

W10359272

Shaft, L.H. Thread

20 690997 Ring, Tri

W10314171

Roller, Support

22 8563728 Exhaust Pipe

W10153423

Housing, Outlet

W10153412

Grille, Outlet

W10153420

Complete Drum

Assembly

W10219342

Screw, 8−16 x 1/2

W10166807

Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 90767 Screw, 8−18 x 3/8

30 8565061 Bulkhead, Front

31 3387230 Screw, 10−16 x 1

32 489463 Screw, 8−18 x 5/8

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10214261

Socket Assembly

37 697772 Wheel, Blower

38 3392519 Thermal Fuse

(91 C)

39 3394986 Spring, Lint

Screen Door

40 8066208 Clip−Spring

W10049370

Lint, Screen

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544770 Housing−Tab

Heater Box

47 8318314 Thermal Cut−Off

(Include,

Item. 48 )

48 3391914 Thermostat 295 F

(146 C)

W10153409

Baffle, Drum

50 3406653 Harness, Sensor

W10346403

Valve,

Water Inlet

(Include Items,

29,58,59 & 60 )

W10346402

Bracket, Valve

W10154995

Nozzle Assembly

(Include Items,

55,56,57 & 58 )

W10044598

Hose, Nylon

(Not Servicable)

(Included With

Item. 53 )

W10277503

Nozzle

W10044579

Washer, Nozzle

W10044628

Brass Nut

9/16−24 x .336

58 3391018 Tie Cable

W10044605

Coupling, Hose

W10184825

Cover,

Inlet Valve

W10044615

Clip,

Push−To−Connect

62 8544769 Housing−Slot

Heater Box

63 8544776 Flange,

Heater Box

W10128544

Caplug

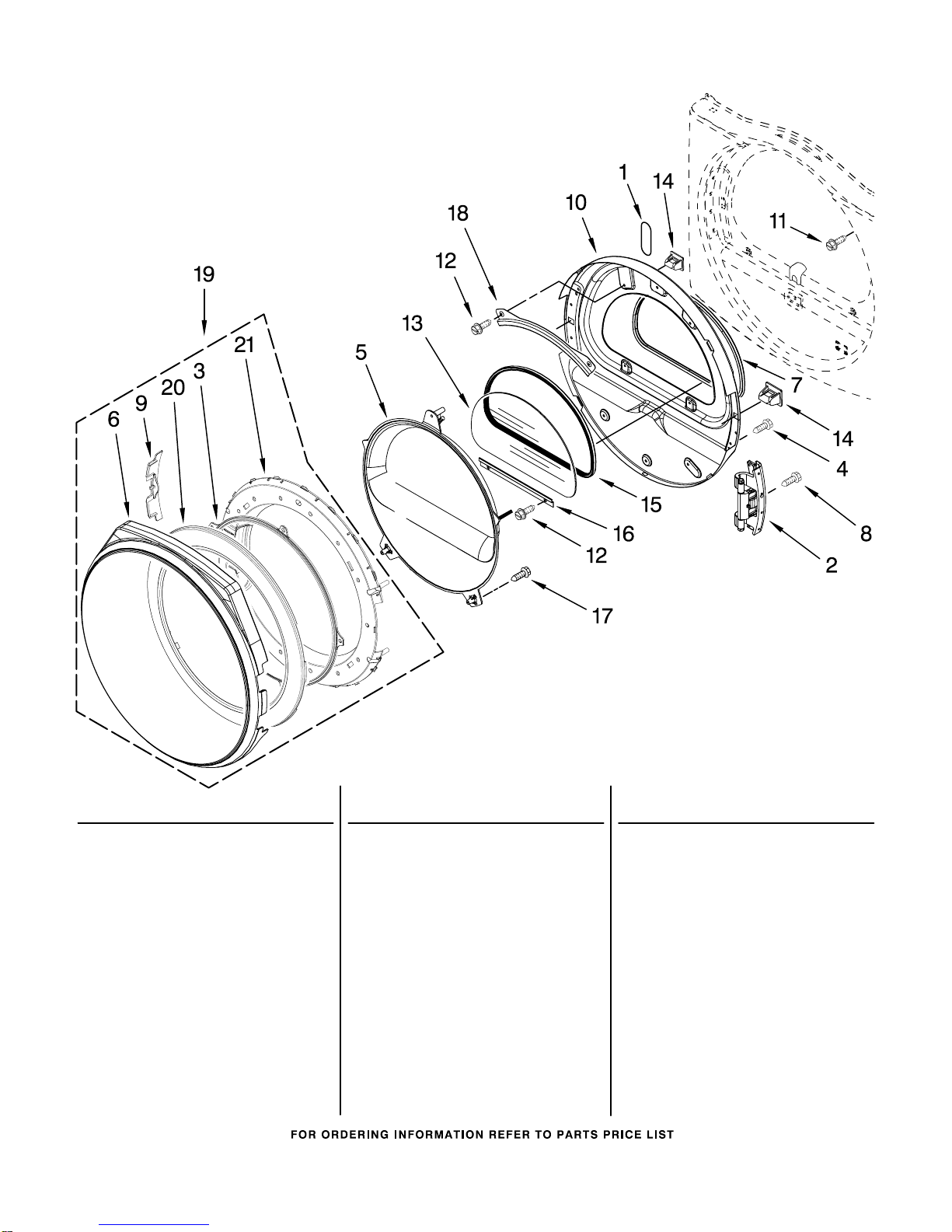

DOOR PARTS

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Label, Hinge

Hole Cover

W10215815

For White Model

W10085230

For Red & Silver

Models

W10304672

Door, HingeAssembly

3 Screen, Door

(Not Serviceable

Sperately, Order

Item. 19 )

4 8534044 Screw,8−18 x 1/2

W10215764

Door, Intermediate

Stationary

6 Door Trim

Outer Ring

W10215757

White

W10215824

Red

W10215823

Mercury

W10163915

Door Seal

W10159996

Screw,

9 Door Trim,

Hinge Cover

W10215766

White

W10215826

Red

W10215825

Mercury

W10363674

Door Assembly

Inner

(Includes

Item. 1 & 14 )

11 355515 Screw,

8−18 x 11/16

12 3393258 Screw, 10−16 x 1/2

W10286878

Window

14 690081 Door Catch

Assembly

15 8579663 Seal, Window

16 8519354 Retainer (Lower)

17 8534022 Screw

18 8519356 Retainer (Upper)

19 Door Assembly

Outer

W10215756

White

W10215831

Red

W10215830

Mercury

20 Trim−DoorInner Ring

(Not Serviceable

Seperately, Order

Item. 19 )

W10215762

Door Intermediate

Rotational

OPTIONAL PARTS (NOT INCLUDED)

For Model: WED9270XW2,WED9270XR2,WED9270XL2

(White) (Red) (Mercury Silver)

W10373372

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10218245

Magna Red

W10268217

Mercury Silver

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (uncut)

ACCESSORY PARTS

8529894 Hold Down Kit

8522199 Kit, Dryer

Vent Testing

80047 Kit,

Dryer Repair

ACCESSORY PARTS

The following power cord can be

ordered.

Important: Check local wiring code

requirements to see if one of these

meets your needs.

PT220L 4’ 30 Amp 3 Wire

Dryer Cord

PT400L 4’ 30 Amp 4 Wire

Dryer Cord

PT600L 6’ 30 Amp 4 Wire

Dryer Cord

Miscellaneous Parts Bag

W10362238

Bag Assembly

(Contains The

Following )

89503 Hose, Inlet

(5’ Hose)

W10342767

Hose, Inlet

(2’ Hose)

W10242307

Washer, Hose

W10336486

Connector,

Hose "Y"

This manual suits for next models
