Whirlpool WGD5200TQ - Dryer User guide

®Gas Dryer

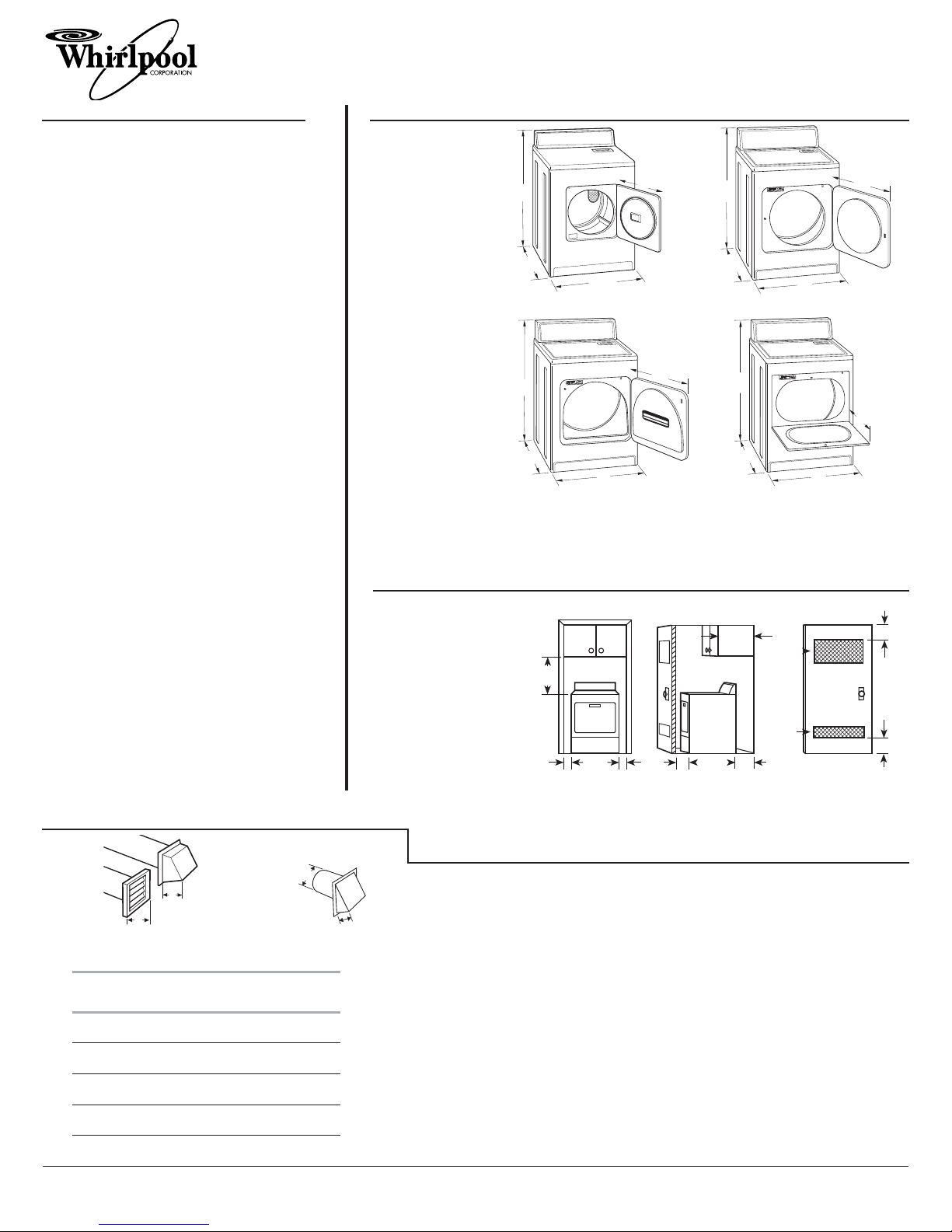

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

RECESSED AREA AND CLOSET INSTALLATION

EXHAUST VENTING

LGR8620P

LGR8648P

WGD5100S

WGD5200T

WGD5300S

WGD5500S

WGD5520S

WGD5530S

WGD5540S

WGD5550S

WGD5600S

WGD5700S

WGD5790S

WGD5800S

WGD5800V

WGD5810S

WGD5820S

WGD5830S

WGD5840S

WGD5850S

WGD5900S

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8562582 Rev B

09-23-08

43³⁄₈"

(

110cm)

*26"

(66cm)

29"

(73.66cm)

15¹⁄₄"

(38.74cm) 43³⁄₈"

(110cm)

*27³⁄₄"

(70.5cm)

29"

(73.66cm)

22³⁄₄"

(57.8cm)

43³⁄₈"

(110cm)

13³⁄₄"

(34.9cm

)

*27³⁄₄"

(70.5cm)

29"

(73.66cm)

43³⁄₈"

(

110cm)

*27³⁄₄"

(70.5cm)

29"

(73.66cm)

22³⁄₄"

(57.8cm)

(10.2 cm)

2.5"

(6.4 cm)

Louvered style Angled style

(10.2 cm)

Box hood style

A. Recessed area

B. Side view - closet or confined area

C. Closet door with vents

ABC

18"

(45.7 cm)

(2.5 cm)

29"

(73.66 cm)

(2.5 cm)

14" max.

(35.6

cm)

27³⁄₄"

(70.5 cm)

5¹⁄₂"

(14 cm)

48 in.

(310 cm )

24 in.

(155 cm )

(7.6 cm)

For closet installation

with a door, minimum

ventilation openings in

the top and bottom of

the door are required.

Louvered doors with

equivalent air openings

are acceptable.

1. Select the route that will provide the straightest and most direct path outdoors. Plan

the installation to use the fewest number of elbows and turns. When using elbows or

making turns, allow as much room as possible. Bend vent gradually to avoid kinking.

Avoid 90° turns.

2. Determine vent length.

The maximum length of the exhaust system depends upon:

• The type of vent (rigid metal or flexible metal).

• The number of elbows used.

• Type of hood.

See the exhaust vent length chart that matches your hood type for the maximum vent

lengths you can use.

3. Determine the number of elbows you will need.

NOTE: Do not use vent runs longer than specified in the Vent Length Chart.

The chart at left helps you determine your maximum vent length based on the number

of 90° turns or elbows you will need and the type of vent (rigid or flexible metal) and

hood that you will use.

Vent Length Chart

Number of

90°turns

or elbows

Type of

vent

Box or

Louvered

hoods

Angled

hoods

0 Rigid metal

Flexible metal

64 ft (20 m)

36 ft (11 m)

58 ft (17.7 m)

28 ft (8.5 m)

1 Rigid metal

Flexible metal

54 ft (16.5 m)

31 ft (9.4 m)

48 ft (14.6 m)

23 ft (7 m)

2 Rigid metal

Flexible metal

44 ft (13.4 m)

27 ft (8.2 m)

38 ft (11.6 m)

19 ft (5.8 m)

3 Rigid metal

Flexible metal

35 ft (10.7 m)

25 ft (7.6 m)

29 ft (8.8 m)

17 ft (5.2 m)

4 Rigid metal

Flexible metal

27 ft (8.2 m)

23 ft (7 m)

21 ft (6.4 m)

15 ft (4.6 m)

Gas supply:

1/2" IPS pipe is recommended.

3/8" approved tubing is acceptable for lengths

under 20 ft (6.1 m) if local codes and gas supplier

permit.

Must include 1/8" NPT minimum plugged tapping

accessible for test gauge connection, immediately

upstream of the gas connection to the dryer.

Must include a shutoff valve:

An individual manual shutoff valve must be

installed within six (6) feet (1.8 m) of the dryer in

accordance with the National Fuel Gas Code, ANSI

Z223.1. The location should be easy to reach for

opening and closing.

The gas pipe that comes out through the rear of

your dryer has a 3/8" male pipe thread.

Electrical: 120-Volt, 60-Hz., AC-only, 15- or

20-amp fused electrical supply is required. (Time-

delay fuse or circuit breaker is recommended.) It is

recommended that a separate circuit serving only

this dryer be provided.

Exhaust venting: Exhaust your dryer to the

outside. Four-inch diameter vent is required. Rigid

or flexible metal exhaust vent must be used. Do Not

use plastic or metal foil vent. Exhaust outlet hood

must be at least 12" (30.5 cm) from the ground or

any object that may be in the path of the exhaust.

A. Small Opening

Side-Swing Door

B. Large Opening

Side-Swing Door

C. Wide Opening

Side-Swing Door

D. Wide Opening

Hamper Door

*Most installations require a minimum 5-1/2" (14 cm) clearance

behind the dryer for the exhaust vent with elbow.
