Whirlpool YWED92HEFC2 User manual

W11101368A

W11101371A-SP

GAS DRYER INSTALLATION INSTRUCTIONS

CANADIAN ELECTRIC DRYER INSTRUCTIONS

INSTRUCTIONS POUR L’INSTALLATION

DE LA SÉCHEUSE À GAZ (É.-U. ET CANADA)

ÉLECTRIQUE (CANADA UNIQUEMENT)

Table of Contents

DRYER SAFETY .......................................................................... 2

INSTALLATION REQUIREMENTS.............................................. 4

Tools and Parts ...................................................................... 4

LOCATION REQUIREMENTS..................................................... 5

ELECTRIC DRYER POWER HOOKUP – CANADA ONLY......... 7

GAS DRYER POWER HOOKUP ................................................. 7

INSTALL LEVELING LEGS.......................................................... 9

MAKE GAS CONNECTION....................................................... 10

VENTING.................................................................................... 10

Venting Requirements......................................................... 10

Plan Vent System ................................................................. 11

Install Vent System .............................................................. 12

CONNECT INLET HOSE (STEAM MODEL ONLY)................... 13

CONNECT VENT ....................................................................... 14

LEVEL DRYER........................................................................... 15

COMPLETE INSTALLATION CHECKLIST ............................... 15

DOOR REVERSAL (OPTIONAL)............................................... 16

INSTALLATION NOTES

Date of purchase: _________________________________

Date of installation: ________________________________

Installer: ________________________________________

Model number: ___________________________________

Serial number: ____________________________________

Date d’achat: _____________________________________

Date d’installation: ________________________________

Installateur: ______________________________________

Numéro de modéle: ________________________________

Numéro de série: __________________________________

NOTES CONCERNANT L’INSTALLATION

Para una version de estas instrucciones en español, visite www.Whirlpool.com

Table des matières

SÉCURITÉ DE LA SÉCHEUSE ................................................. 26

EXIGENCES D’INSTALLATION ................................................ 28

Outillage et pièces ............................................................ 28

EXIGENCES D’EMPLACEMENT.............................................. 29

SÉCHEUSE ÉLECTRIQUE RACCORDEMENT À

L’ALIMENTATION ÉLECTRIQUE – CANADA SEULEMENT ... 31

RACCORDEMENT D’UNE SÉCHEUSE À GAZ ....................... 31

INSTALLATION DES PIEDS DE NIVELLEMENT ..................... 33

RACCORDEMENT AU GAZ...................................................... 34

ÉVACUATION ............................................................................ 34

Exigences concernant l’évacuation ................................ 34

Planication du système d’évacuation ........................... 35

Installation du système d’évacuation.............................. 37

RACCORDEMENT DU TUYAU D’ALIMENTATION

(MODÈLE À VAPEUR UNIQUEMENT) ..................................... 37

RACCORDEMENT DU CONDUIT D’ÉVACUATION ................ 39

RÉGLAGE DE L’APLOMB DE LA SÉCHEUSE......................... 39

ACHEVER L’INSTALLATION LISTE DE VÉRIFICATION.......... 40

INVERSION DE LA PORTE (FACULTATIF)............................... 40

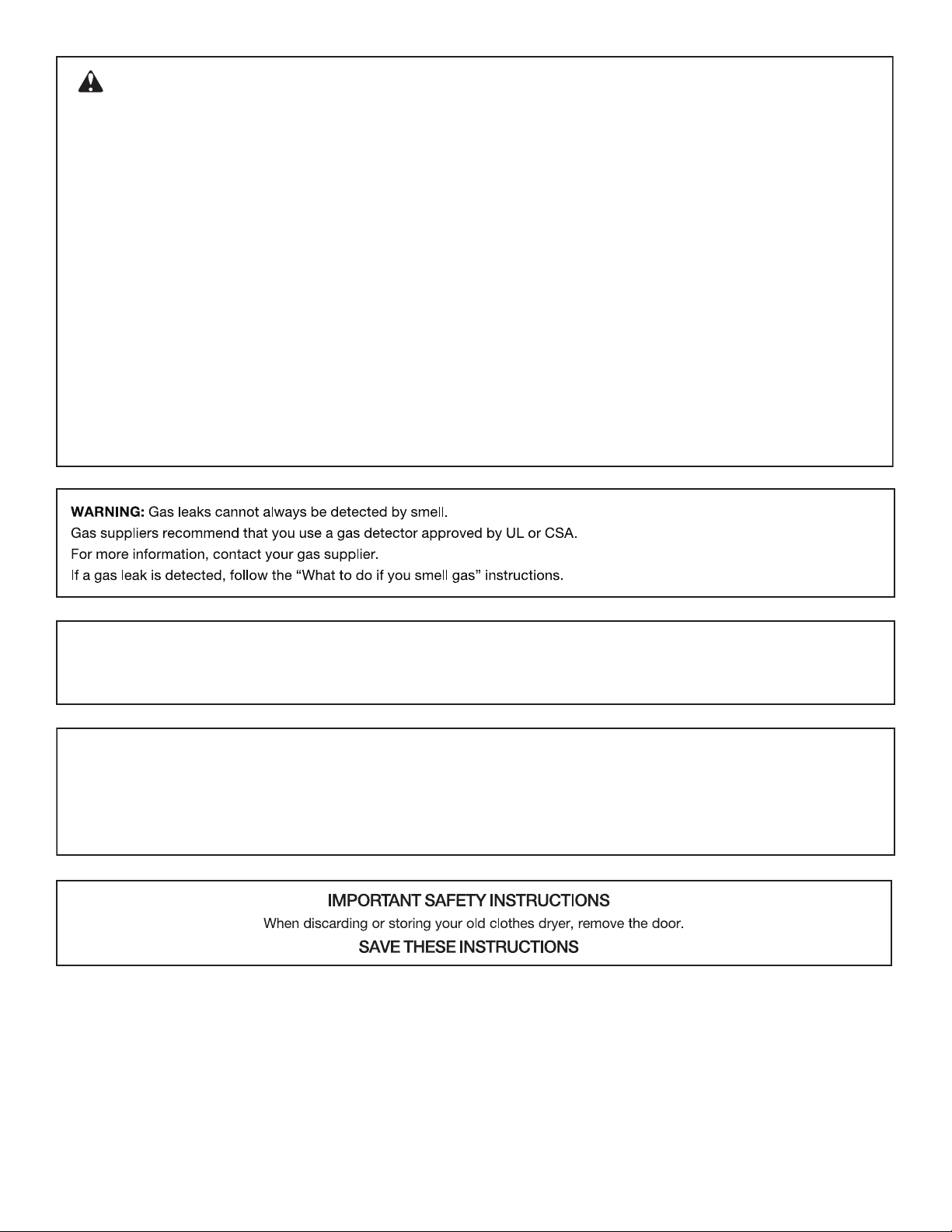

DRYER SAFETY

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property

damage.

Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this

or any other appliance.

–

–WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

•If you cannot reach your gas supplier, call the re department.

–Installation and service must be performed by a qualied installer, service agency, or

the gas supplier.

•Clear the room, building, or area of all occupants.

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National

Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1.

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gas fitter qualified or licensed by

the State of Massachusetts.

■ Acceptable Shut-off Devices: Gas Cocks and Ball Valves installed for use shall be listed.

■ A flexible gas connector, when used, must not exceed 4 feet (121.9 cm).

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Tools needed for all installations:

Level

Tape measure Pliers

Flat-blade screwdriver #2 Phillips screwdriver

Adjustable wrench that

opens to 1" (25 mm) or

hex-head socket wrench

Tin snips (new vent

installations)

Caulking gun and

compound (new vent

installations)

1/4" (6 mm) and

5/16" (8 mm) nut driver

(recommended)

Leveling legs (4)

Tools needed for gas installations:

8" (203 mm) or 10"

(254 mm) pipe wrench 8" (203 mm) or 10"

(254 mm) adjustable wrench

(for gas connections)

Pipe-joint compound

resistant to propane gas

Utility knife

“Y” connector

Parts package is located in dryer drum. Check that all parts

are included.

NOTE: Do not use leveling legs supplied with dryer if installing

with a pedestal or a stack kit.

Parts supplied (all models):

Parts needed (steam models):

2' (0.6 m) inlet hose

5' (1.52 m) inlet hose

Parts needed (not supplied with dryer):

■Vent clamps

■Vent elbows and vent work

Rubber washer

LOCATION REQUIREMENTS

You will need:

■A location allowing for proper exhaust installation.

See “Venting Requirements.”

■A separate 15- or 20-amp circuit for a gas dryer or 30-amp

circuit for an electric dryer.

■If using power supply cord, a grounded electrical outlet

located within 2 ft. (610 mm) of either side of dryer.

See “Electrical Requirements.”

■Floor must support dryer weight of 200 lbs. (90.7 kg).

Also consider weight of companion appliance.

■Cold water faucets located within 4 ft. (1.2 m) of the water

ll valves, and water pressure of 20–120 psi (138–827 kPa).

You may use your washer’s water supply by purchasing the

necessary parts noted in “Parts needed.”

■Level oor with maximum slope of 1" (25 mm) under entire

dryer. If slope is greater than 1" (25 mm), install Extended

Dryer Feet Kit, Part Number 279810. If not level, clothes

may not tumble properly and automatic sensor cycles may

not operate correctly.

■For garage installation, place dryer at least 18" (460 mm)

above oor. If using a pedestal, you will need 18" (460 mm)

to bottom of dryer.

■The dryer must not be installed or stored in an area where

it will be exposed to water and/or weather.

IMPORTANT: Do not operate, install, or store dryer where

it will be exposed to water, weather, or at temperatures below

40°F (4°C). Lower temperatures may cause dryer not to

shut off at end of automatic sensor cycles, resulting in longer

drying times.

27"

(686 mm)

383/4" Min.

(984 mm)

39" Max.

(990 mm)

Back view: 61/4"

(159 mm)

297/8"*

(759 mm)

31/2"*

(89 mm)

53/4"*

(146 mm)

61/8"*

(156 mm)

143/8"

(365 mm)

253/4"

(654 mm)

3/4"*

(18 mm)

NOTE: Most installations require a minimum of 5" (127 mm)

clearance behind dryer for exhaust vent with elbow. See

“Venting Requirements.”

Side view:

Front view:

*Approx. measurement

DRYER DIMENSIONS

Additional parts may be required, depending on your installation.

Check local codes. Check existing electrical supply and venting.

Read “Electrical Requirements” and “Venting Requirements”

before purchasing parts.

Optional Equipment (not supplied with dryer):

Refer to your Use and Care Guide for information about

accessories available for your dryer.

Gas

*Approx. measurement

Water inlet

(Steam Models Only)

Vent

Installation spacing for recessed area

or closet installation

All dimensions show recommended and minimum

spacing allowed.

■Additional spacing should be considered for ease of

installation and servicing.

■Additional clearances might be required for wall, door,

oor moldings, dryer venting, and gas line.

■Additional spacing should be considered on all sides

of the dryer to reduce noise transfer.

■For closet installation with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings

are acceptable.

■Companion appliance spacing should also be considered.

Recommended installation clearances (dryer only):

Mobile home installations require:

■Metal exhaust system hardware, available for purchase

from your dealer. For further information, see “Assistance

or Service” in your Use and Care Guide.

■Special provisions must be made in mobile homes to

introduce outside air into dryer. Openings (such as a

nearby window) should be at least twice as large as dryer

exhaust opening.

For mobile home installation of gas dryers:

■Mobile Home Installation Hold-down Kit Part Number 346764

is available to order. For further information, see “Assistance

or Service” in your Use and Care Guide.

0" (0 mm) rear spacing is allowed for straight back venting only.

For steam models only, inlet hose must not be kinked.

Installation Clearances

For each arrangement, consider allowing more space for ease

of installation and servicing, spacing for companion appliances,

and clearances for walls, doors, and oor moldings. Space

must be large enough to allow door to fully open. Add spacing

on all sides of dryer to reduce noise transfer. If a closet door

or louvered door is installed, top and bottom air openings

in door are required.

Check code requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector.

NOTE: No other fuel-burning appliance can be installed in the

same closet as a dryer.

Mobile home – Additional installation requirements:

This dryer is suitable for mobile home installations.

The installation must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile home

construction and Safety, Title 24, HUD Part 280) or Standard

CAN/CSA-Z240 MH.

Front Sides Rear Top

Recessed NA 0" (0 mm) 0" (0 mm)* 0" (0 mm)

Closet NA 0" (0 mm) 0" (0 mm)* 0" (0 mm)

Minimum installation clearances (dryer only):

*0"(0 mm) spacing is allowed for straight back venting only.

Custom under-counter installation:

18" min.

(457 mm)

(25 mm)

24 in.2 min.

(155 cm2)

48 in.2 min.

(310 cm2)

(76 mm)

(25 mm)

0–5"

(0–127 mm)

ELECTRIC DRYER POWER HOOKUP –

CANADA ONLY

ELECTRICAL REQUIREMENTS

It is your responsibility:

■To contact a qualied electrical installer.

■To be sure that the electrical connection is adequate and in

conformance with Canadian Electrical Code, C22.1 – latest

edition and all local codes. A copy of above codes standard

may be obtained from: Canadian Standards Association,

178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.

■To supply the required 4-wire, single phase, 120-/240-volt,

60 Hz, AC-only electrical supply on a separate 30-amp

circuit, fused on both sides of the line. A time-delay fuse or

circuit breaker is recommended. Connect to an individual

branch circuit.

■This dryer is equipped with a UL Listed

and/or CSA International Certied Power

Cord intended to be plugged into a

standard 14-30R wall receptacle. The

cord is 5 ft. (1.52 m) long. Be sure wall

receptacle is within reach of dryer’s

nal location.

4-wire receptacle

(14-30R)

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug provided with

the dryer: if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

GAS DRYER POWER HOOKUP

ELECTRICAL REQUIREMENTS

■120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is also recommended that a separate

circuit serving only this dryer be provided.

If using a replacement power supply cord, it is recommended that

you use Power Supply Cord Replacement Part Number 8529008.

For further information, please reference service numbers located

in the “Assistance or Service” section of your Use and Care Guide.

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug provided with

the dryer: if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

†®TEFLON is a registered trademark of Chemours.

Option 2 (Alternate Method)

Approved aluminum or copper tubing:

■Must include 1/8" NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas

connection to the dryer. See illustration.

■1/2" IPS pipe is recommended.

■3/8" approved aluminum or copper tubing is acceptable for

lengths under 20 ft. (6.1 m) if local codes and gas supplier

permit.

■If you are using natural gas, do not use copper tubing.

■Lengths over 20 ft. (6.1 m) should use larger tubing and

a different size adapter tting.

■If your dryer has been converted to use propane gas, 3/8"

propane compatible copper tubing can be used. If the total

length of the supply line is more than 20 ft. (6.1 m), use

larger pipe.

NOTE: Pipe-joint compounds that resist the action

of propane gas must be used. Do not use TEFLON®† tape.

■Must include shut-off valve.

In the U.S.A.:

An individual manual shut-off valve must be installed within

six (6) ft. (1.8 m) of the dryer in accordance with the National

Fuel Gas Code, ANSI Z223.1. The location should be easy

to reach for opening and closing.

In Canada:

An individual manual shut-off valve must be installed in

accordance with the B149.1, Natural Gas and Propane

Installation Code. It is recommended that an individual

manual shut-off valve be installed within six (6) ft. (1.8 m)

of the dryer. The location should be easy to reach for

opening and closing.

A. 3/8" exible gas connector

B. 3/8" pipe to are adapter tting

C. 1/8" NPT minimum plugged tapping

D. 1/2" NPT gas supply line

E. Gas shut-off valve

GAS SUPPLY REQUIREMENTS

WARNING

Explosion Hazard

Use a new CSA International approved gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

If connected to propane, have a qualified person make

sure gas pressure does not exceed 13" (330 mm) water

column.

Examples of a qualified person include:

licensed heating personnel,

authorized gas company personnel, and

authorized service personnel.

Failure to do so can result in death, explosion, or fire.

GAS TYPE

Natural Gas:

This dryer is equipped for use with natural gas. It is certied

by UL for use with propane gas with appropriate conversion.

■Your dryer must have the correct burner for the type of gas

in your home. Burner information is located on the rating plate

in the door well of your dryer. If this information does not agree

with the type of gas available, contact your dealer or call the

phone numbers referenced in the “Assistance or Service”

section of your Use and Care Guide.

Propane Gas Conversion:

IMPORTANT: Conversion must be made by a qualied

technician.

No attempt shall be made to convert the appliance from the gas

specied on the model/serial rating plate for use with a different

gas without consulting your gas company.

GAS SUPPLY LINE

Option 1 (Recommended Method)

Flexible stainless steel gas connector:

■If local codes permit, use a new exible stainless steel gas

connector (Design Certied by the American Gas Association

or CSA International) to connect your dryer to the rigid gas

supply line. Use an elbow and a 3/8" are x 3/8" NPT adapter

tting between the stainless steel gas connector and the

dryer gas pipe, as needed, to prevent kinking.

*53/4"

(146 mm)

11/2"

(38 mm)

3/8" NPT dryer gas pipe

GAS SUPPLY CONNECTION REQUIREMENTS

■Use an elbow and a 3/8" are x 3/8" NPT adapter tting

between the exible gas connector and the dryer gas

pipe, as needed to avoid kinking.

■Use only pipe-joint compound. Do not use TEFLON®tape.

■This dryer must be connected to the gas supply line with a

listed exible gas connector that complies with the standard

for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

BURNER INPUT REQUIREMENTS

Elevations above 2,000 ft. (610 m):

■When installed above 2,000 ft. (610 m) a 4% reduction of the

burner Btu rating shown on the model/serial number plate is

required for each 1,000 ft. (305 m) increase in elevation.

Gas supply pressure testing

■The dryer must be disconnected from the gas supply

piping system during pressure testing at pressures greater

than 1/2 psi.

DRYER GAS PIPE

■The gas pipe that comes out through the rear of your dryer has

a 3/8" male pipe thread.

INSTALL LEVELING LEGS

To avoid damaging oor, use a large at piece of cardboard

from dryer carton; place under entire back edge of dryer.

Firmly grasp dryer body (not console panel) and gently lay

dryer down on cardboard.

Examine leveling legs and locate the diamond marking. Screw

legs into leg holes by hand – use a wrench to nish turning

legs until diamond marking is no longer visible.

Place a carton corner post from dryer packaging under each

of the two dryer back corners. Stand the dryer up. Slide the

dryer on the corner posts until it is close to its nal location.

Leave enough room to connect the exhaust vent.

1. Prepare dryer for leveling legs

2. Screw in leveling legs

diamond

marking

*NOTE: If the dryer is mounted on a pedestal, the gas

pipe height must be an additional 10" (254 mm) or

15.5" (394 mm) from the oor, depending on the pedestal

model. For a garage installation, the gas pipe height must

be an additional 18" (460 mm) from the oor. Diamond

marking

Venting Requirements

VENTING

WARNING: To reduce the risk of re, this dryer MUST BE

EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or exible metal vent shall be used

for exhausting.

■Only a 4" (102 mm) heavy metal exhaust vent and clamps

may be used.

■Do not use plastic or metal foil vent.

Rigid metal vent:

■Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

■Must be fully extended and supported in nal dryer location.

■Remove excess to avoid sagging and kinking that may

result in reduced airow and poor performance.

■Do not install in enclosed walls, ceilings, or oors.

■The total length should not exceed 7¾ ft. (2.4 m).

■The length of exible metal vent used must be included

in the overall vent system design as shown in the Vent

System Charts.

NOTE: If using an existing vent system, clean lint from entire

length of the system and make sure exhaust hood is not plugged

with lint. Replace plastic or metal foil vents with rigid metal

or exible metal vents. Review Vent System Charts and, if

necessary, modify existing vent system to achieve best drying

performance.

(102 mm)

4" (102 mm) heavy metal exhaust vent

1. Connect gas supply to dryer

Remove red cap from gas pipe. Using a wrench to tighten,

connect gas supply to dryer. Use pipe-joint compound

on threads of all non-ared male ttings. If exible metal

tubing is used, be sure there are no kinks.

NOTE: For propane gas connections, you must use pipe-

joint compound resistant to action of propane gas. Do not

use TEFLON®tape.

A. Flared male tting

B. Non-ared male tting

2. Plan pipe tting connection (option 1)

A combination of pipe ttings must be used to connect dryer

to existing gas line. A recommended connection is shown.

Your connection may be different, according to supply line

type, size, and location.

A. 3/8" exible gas connector

B. 3/8" dryer gas pipe

C. 3/8" to 3/8" pipe elbow

D. 3/8" pipe-to-are adapter

tting

3. Open shut-off valve

Open shut-off valve in supply line; valve is open when handle

is parallel to gas pipe. Then, test all connections by brushing

on an approved noncorrosive leak-detection solution.

Bubbles will show a leak. Correct any leak found.

A. Closed valve

B. Open valve

MAKE GAS CONNECTION

(gas models only)

This manual suits for next models

Table of contents

Languages:

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool 3XLER5435HQ2 User manual

Whirlpool

Whirlpool LE4905XM User manual

Whirlpool

Whirlpool WED6600VW0 User manual

Whirlpool

Whirlpool LE6090XSW1 User manual

Whirlpool

Whirlpool LE6880XS User manual

Whirlpool

Whirlpool WED8900BC0 User manual

Whirlpool

Whirlpool LE8600XW User manual

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER User manual

Whirlpool

Whirlpool CGD9150GW User manual

Whirlpool

Whirlpool WED4985EW User manual

Whirlpool

Whirlpool LE4440XW User manual

Whirlpool

Whirlpool WED8300SB0 User manual

Whirlpool

Whirlpool GGC9858EZ0 User manual

Whirlpool

Whirlpool WED72HEDW0 User manual

Whirlpool

Whirlpool WED9500E SERIES User manual

Whirlpool

Whirlpool LE7800XP User manual

Whirlpool

Whirlpool AWD712S User manual

Whirlpool

Whirlpool CEM2940TQ0 User manual

Whirlpool

Whirlpool LE6800XS User manual

Whirlpool

Whirlpool W10305728B User manual

Whirlpool

Whirlpool AWZ 3303 User manual

Whirlpool

Whirlpool duet GGW9200L Series User manual

Whirlpool

Whirlpool Personal Valet PVBM600LY0 User manual

Whirlpool

Whirlpool LE5700XK User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
