Whirlpool LEV6634DQ0 User manual

TOP AND CONSOLE PARTS

For Models: LEV6634DQ0, LEV6634DZ0

(Designer White) (Designer Almond)

6−95 Litho in U.S.A. (tpm) Part No. 4377523

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LEV6634DQ0, LEV6634DZ0

(Designer White) (Designer Almond)

4377523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

2 3396028 Wire−Jumper

Assembly

3 3390647 Screw, 8−18 x 1/2

4 Cap, End (L.H.)

3358531 White

3358532 Almond

6 357213 Stop, Push−In

7 3388706 Resistor

9 Cap, End (R.H.)

3358516 White

3358517 Almond

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3353145 Screw, Console

15 3399638 Switch,

Temperature

16 Top

3396022 White

3396023 Almond

17 693995 Screw, Hex

Washer Head

18 Knob, Temperature

Control

3358435 White

3358436 Almond

19 689180 Clip, Retainer

20 3397269 Connector, Timer

21 3392250 Timer 60 Hz.

22 3395683 Connector

(Motor)

23 3394427 Clip, Harness

29 3390646 Screw, 8−18 x 5/16

31 3399659 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 Timer Knob

& Dial Assembly

3396146 White

3396149 Almond

53 3396293 Bracket, Control

54 Panel, Control

3403658 White

3403659 Almond

62 688805 Clip

72 690853 Wire, Ground

81 Knob, Push

To Start

3396161 White

3396164 Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401092

Guide, Use & Care

LIT3397597

Instructions,

Installation

LIT3401728

Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

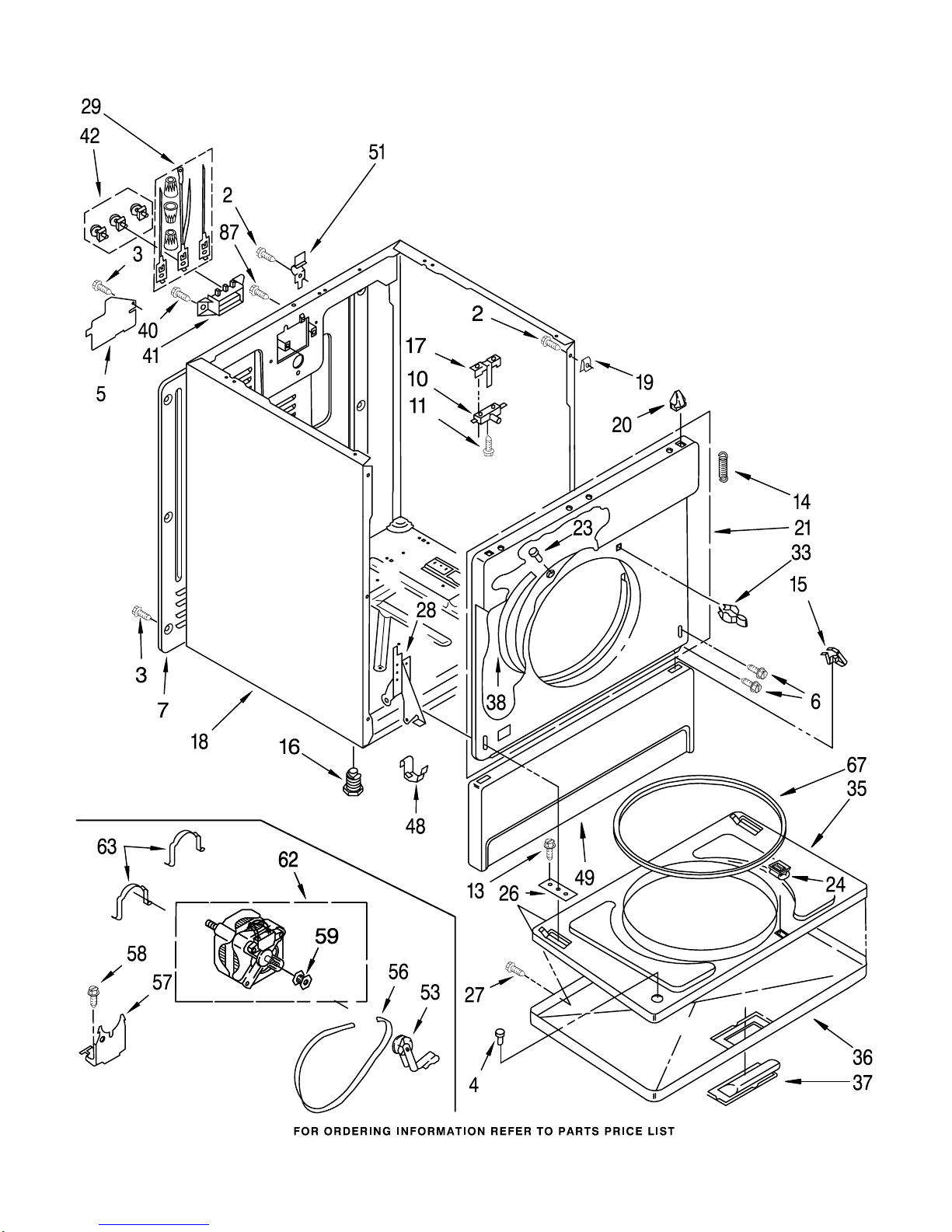

CABINET PARTS

For Models: LEV6634DQ0, LEV6634DZ0

(Designer White) (Designer Almond)

4377523

CABINET PARTS

For Models: LEV6634DQ0, LEV6634DZ0

(Designer White) (Designer Almond)

4377523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

4 238614 Bumper

5 3396795 Cover, Terminal

Block

6 342043 Screw, 10−32 x 1/2

7 3396807 Panel, Rear

10 347207 Switch, Door

11 98129 Screw,

6−20 x 7/8 (2)

13 3357011 Screw, 10−16 x 1/2

14 237979 Spring, Door (2)

15 3388229 Clip, Toe Panel (2)

16 3392100 Foot

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 691581 Lever, Door

Switch

18 Cabinet

(Includes Illus.

Nos. 5, 7, 16,

41 & 57)

3399580 White

3399581 Almond

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Panel Assembly,

Upper Front

338012 White

689533 Almond

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

26 337189 Clip, Hinge (2)

27 694091 Screw (6)

28 687905 Hinge, R.H.

687906 Hinge, L.H.

29 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 42)

33 696144 Strike, Door

35 695954 Door, Rear

36 Door, Front

348728 White

689330 Almond

37 Handle, Door

690270 White

690271 Almond

38 349464 Seal & Bearing

Assembly

40 3393008 Screw

41 690261 Block, Terminal

42 279393 Terminal Block

Kit For

Terminal Block

48 297092 Clip, Hinge (2)

49 Panel, Toe

692427 White

692428 Almond

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly,

60 Hz.

63 660658 Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

67 3390733 Seal, Door

87 697776 Screw, 10−32 x 1/2

(Grounding)

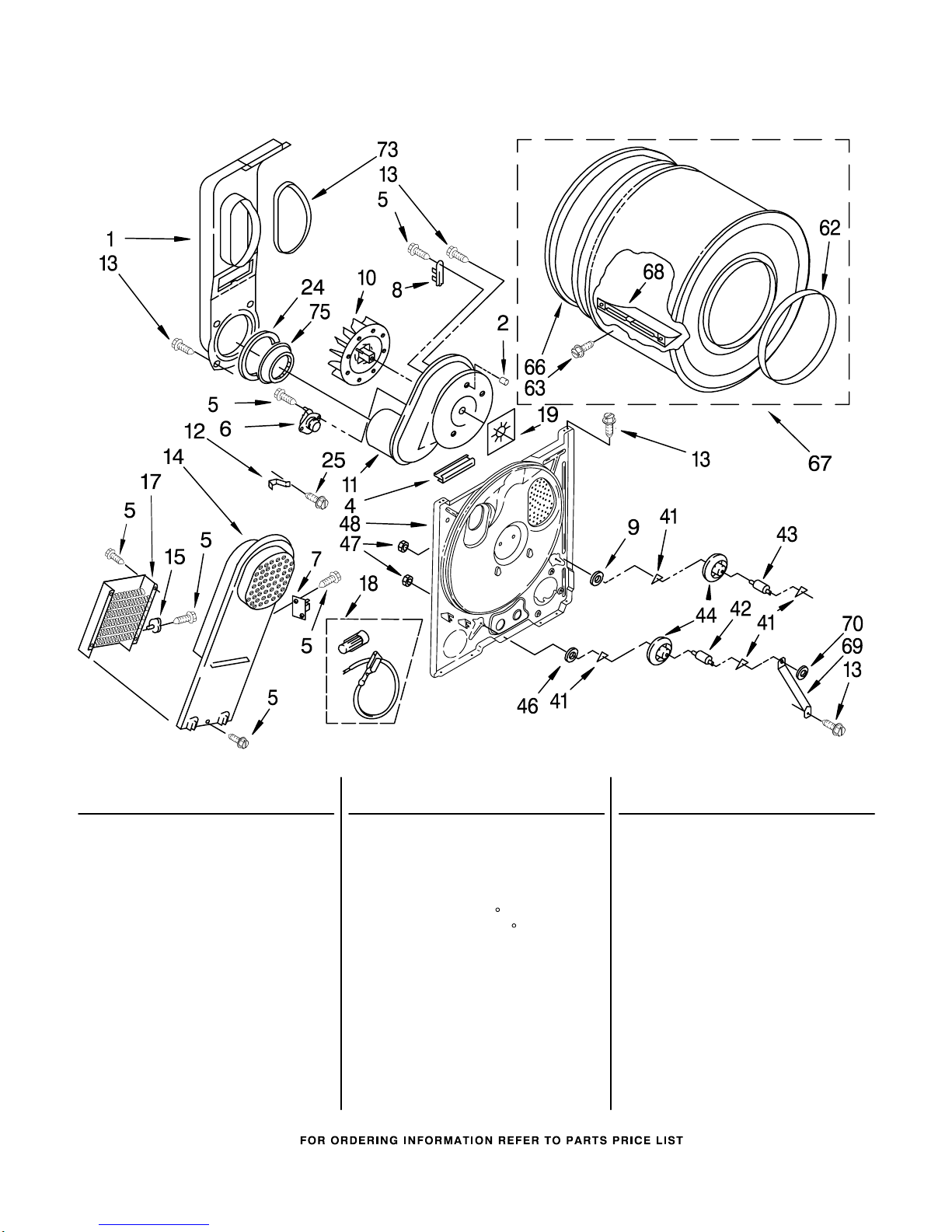

BULKHEAD PARTS

For Models: LEV6634DQ0, LEV6634DZ0

(Designer White) (Designer Almond)

4377523

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute

Assembly

2 359702 Cap, Screw

4 3392247 Pad, Blower

Housing

5 90767 Screw, 8 x 3/8

6 3387134 Thermostat,

Internal−Bias

7 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No. 15 Included)

8 3392519 Thermal Fuse

9 3388703 Washer, Support

10 694089 Wheel, Blower

(Includes Illus.

No. 19)

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

(High Limit)

250 F

(121.1 C)

17 3398064 Element, Heater

(For 240 Volt

Installation)

18 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

19 3392123 Seal, Blower

24 347139 Seal, Lint

Chute

25 3400800 Screw, 8−18 x 3/4

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer

Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394509 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396777 Drum Assembly

68 342847 Baffle, Drum

69 3394133 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
