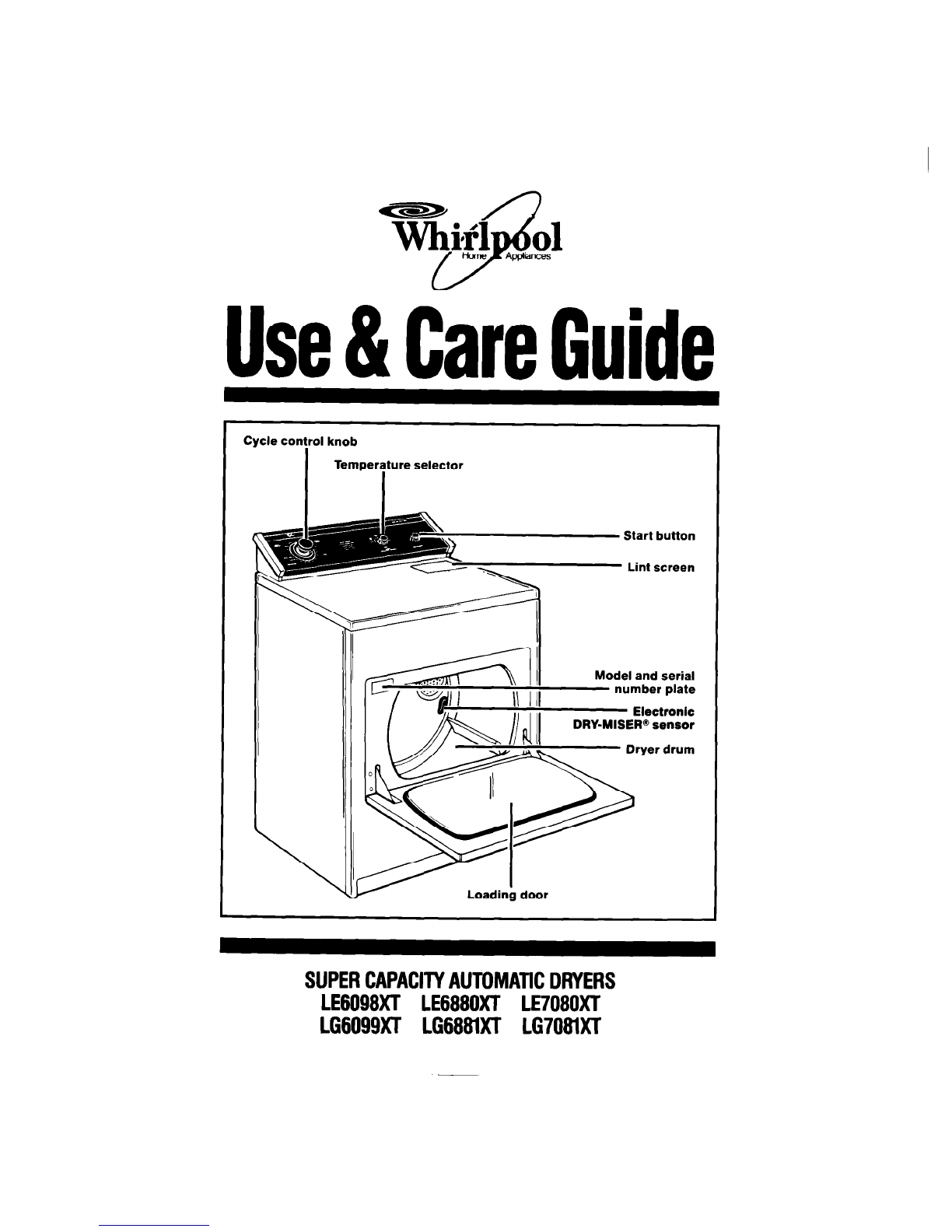

Whirlpool LE6098XT User manual

Xfl 01

Use&

CareGuide

Cycle control knob

Temperature selector

Start button

Lint screen

Model and serial

DRY-MISER@ sensor

Loading door

SUPERCAPACITYAUTDMATICDRYERS

LE6098XT LE6880XT LE7080XT

LG6099XT LG688lXT LG708lXl

Contents

Page

Important Safety

Instructions 3..................

Additional safety instructions

and your responsibilities 9.....

Operating Instructions

Starting your dryer. ...........

The automatic cycles i

.........

Timed drying ................

Using fluff air 5

................

Using TUMBLE PRESS@ ......

Using damp dry i

..............

End-of-cycle signal 9...........

Lint signal ................... 8

Additional Dryer Features

Electronic DRY-MISER@ control

Gentle heat system i

...........

FINISH GUARD@ setting 9......

Caring For Your Dryer

Cleaning the lint screen 10.......

Cleaning the dryer interior 10.....

Lint removal 11.................

If You Need Service Or

Assistance 12...................

Whirlpool Automatic

Dryer Warranty. .............. 16

01990 Whirlpool Corporation

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used.

To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue

as described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers from

plate (on the frame behind the door)

and purchase date from sales slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1, Open windows.

2. Don’t touch electrical

switches.

3. Mteguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gasoline

or other flammable vapors

and liquids in the vicinity of

this or any other appliance.

The fumes can create a fire

hazard or explosion.

ImportantSafetyInstructions

Read all instructions before

You are responsible for making

using the dryer. sure that your dryer is installed,

NEVER dry items cleaned, repaired and parts replaced by a

washed. soaked in or

SDOtkd

with aualified oerson.

wax, pa/m, gasoline or flammable

fluids in the dryer. The fumes can

create a FIRE HAZARD or

EXPLOSION. ALWAYS hand

launder and air dry fabrics contain-

ing these materials.

NEVER allow children to operate,

play with or crawl inside the dryer.

Close supervision of children is

necessary when the dryer is used

near children.

DO NOT reach into a dryer if the

drum is moving.

When discarding an old dryer,

ALWAYS remove the door to

prevent accidental entrapment.

DO NOT install or store dryer

where it will be exposed to the

weather.

DO NOT tamper with the controls.

- SAVE THESE

Use only fabric softeners specifi-

cally labeled as not being harmful

to the dryer.

FIRE HAZARD and DAMAGE to

materials can result from:

-drying rubber, rubber-like and

heat sensitive materials with heat.

-allowing lint build-up inside the

dryer or exhaust system. Clean-

ing should be done periodically

by a qualified person.

Clean lint screen before or after

each load.

DO NOT let dust, lint, paper, rags,

chemicals, etc. pile up around or

under the dryer.

Dryer must be electrically

grounded. See the Installation

Instructions.

INSTRUCTIONS -

Additionalsafetyinstructionsandyourresponsibilities

NEVER operate the dryer if:

-it is not working right (i.e. noisy, too hot).

- it is damaged.

-parts are missing (i.e. door latch).

-all panels are not in place.

-the lint screen is loose, damaged

or missing.

l ALWAYS

shut off the gas valve

before leaving on vacation if you have

a gas dryer.

ALWAYS unplug the power supply

cord or turn off electrical power before

attempting to service the dryer. Shut

off GAS VALVE if you have a gas dryer.

You are responsible for making

sure that your dryer:

-is properly maintained.

- is properly installed and leveled

on a floor that can support the

weight in a well ventilated room.*

- is located in an area where the

temperature is above 45°F (7.2%).

- is connected to the proper outlet

and electrical supply.*

- is properly connected to fuel and

exhaust systems.*

- is not installed against drapes or

curtains.*

- is used only for jobs normally

expected of home clothes dryers.

- is not used by anyone unable to

operate it properly.

‘See the Installation Instructions for

complete information.

OperatingInstructions

The drawings in this book may vary slightly from your dryer model. They are

designed to show the different features of all the models covered by this book.

Startingyourdryer

sure to refer to the chart below and the

Dryer

Guide for proper sorting, loading

and control setting information before starting it.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

Cottons and linens AUTOMATIC REGULAR

EXTRA HEAVY - Bedspreads, mattress HEAVY HIGH

pads, quilts

HEAVYWEIGHT - Towels, jeans, PERM’T PRESS

corduroys, work clothes MED

MEDIUMWEIGHT- Sheets, pillowcases,

cotton, underwear, diapers

LIGHTWEIGHT - Batistes. organdies, MEDIUM LOW

lingerie

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes,

jackets, raincoats

MEDIUMWEIGHT - Shirts, play clothes,

sheets, slacks

LIGHTWEIGHT - Lingerie, blouses,

dresses

AUTOMATIC

PERMANENT PRESS PERM’T PRESS

MED

MEDIUM LOW

KNITS GENTLE

LOW

Knits

HEAVYWEIGHT - Cottons, rayons,

blends, T-shirts, slacks, shirts

LIGHTWEIGHT - Synthetic (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

AUTOMATIC

PERMANENT PRESS PERM’T PRESS

MED

MEDIUM LOW

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace, etc.

AUTOMATIC

PERMANENT PRESS EX LOW

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER - Pillows, bras,

stuffed toys

PLASTIC -Shower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

DO NOT OVERDRY. Overdrying can cause shrinkage,

static

cling, and damage

some fabrtcs.

1. Select a cycle by turning the Cycle

Control Knob either way to point to

the cycle and setting you want. See

pages 6-6 for further cycle

information.

2. Set the Temperature Selector on

or between any desired temperature

settings.

3. Push the Start Button to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

trol Knob to OFF to stop the dryer.

Close the door, select a cycle (if nec-

essary) and push the Stan Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

Operating Instructions

Continued

Theautomaticcycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The electronic DRY-MISER@ control

is an electronic sensor that determines

the amount of moisture in the clothes.

The dryer automatically shuts off when

the proper dryness is reached.

The Cycle Control Knob will not move

until the clothes load is almost dry, or

the Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

shrinkage, static c%ng and damage to

some fabrics.

TIMEDDRYING

Use the TIMED DRYING cycle for any

load you want to dry by time.

. Turn the Cycle Control Knob to the

number of minutes you want from

10 to 70.

The last 5 minutes of this cycle are

without heat to help make the load

easier to handle.

Drying plastic or rubber items

1 ~;;lw~;~~~~~the items 1

UsingFLUFFAIR

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry bed-

ding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to

the number of minutes you want

in FLUFF AIR.

2. Push the Start Button.

UsingTUMBLEPRESS”

The TUMBLE PRESS setting removes

wrinkles from clothing that has been

packed in a suitcase or closet, and from

items not removed from the dryer at the

end of a cycle.

1. Set the Cycle Control Knob on

TUMBLE PRESS.

2. Set the Temperature Selector on

PERM’T PRESS MED.

3. Push the Start Button.

The load will tumble in heated air for

15 minutes, Then the dryer will tumble

the clothes for 5 more minutes without

heat.

For best results, put only a few items

at a time in this cycle. As soon as the

dryer stops, put the items on hangers or

fold them.

Operating Instructions

Continued

UsingDAMPDRY

Use this setting to dry damp items or to

leave wet items damp. (Heavy cottons,

for example, are easier to press when

damp and do not become stiff.)

1. Set the Cycle Control Knob on

DAMP DRY in the TIMED DRYING

cycle.

2. Push the Start Button.

The dryer tumbles the load with heat

for 25 minutes, then without heat for

5 minutes.

End-of-cyclesignal

‘5

Y-

’ ,\-

The dryer sounds a signal to let you

know when the cycle is finished. The

signal cannot be turned off and is not

adjustable.

The signal is helpful when you are

drying permanent press, synthetic and

other items that should be taken out

as soon as the dryer stops.

Lintsignal

Clean the lint screen before each

load. If you neglect to clean your lint

screen, the signal will sound. The

(whistle tone) signal lets you know the

air flow is being restricted. Restricted

air flow reduces drying efficiency.

Turn off the dryer and clean the lint

screen as shown on page 10.

AdditionalDryerFeatures

ElectronicDRY-MISER”

control

The electronic DRY-MISER control is

an electronic sensor that determines

the amount of moisture in the clothes.

The dryer automatically shuts off when

the proper dryness is reached.

GentleHeatSystem

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERM’T PRESS MED. During the last

few minutes of each of these tempera-

ture settings the dryer temperature

gradually reduces to a lower heat set-

ting. This helps prevent overdrying.

FINISHGUARD”setting

When you are unable to remove a load

from the dryer as soon as it stops,

wrinkles can form.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid wrinkles

that set in when the load remains in

the drum.

You don’t have to set the Cycle Con-

trol Knob for FINISH GUARD. FINISH

GUARD takes over automatically to

protect the load if you don’t open the

door within 5 minutes after the PERMA-

NENT PRESS cycle stops.

A signal will sound every 5 minutes

during FINISH GUARD, for up to 40

minutes. The signal will stop when the

dryer door is opened.

CaringForYourDryer

Cleaningthelintscreen

The lint screen is located under a lid on top of the dryer, Clean it before each

load. A screen blocked by lint can increase drying time.

Do not run the dryer with the lint screen

loose, damaged, blocked or missing. Doing so

can cause overheating, damage and be a

FIRE HAZARD.

I. Open the lid and pull the lint screen

stratght out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

Cleaningthedryerinterior

Electric Shock Hazard

Unplug the power supply cord

or turn off the electrical power

before cleaning the interior.

Failure to do so could result in

electrical shock or injury.

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer interior. If the interior is discolored,

clean with one of the following methods

to avoid staining later load items.

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool 7MWGD7120LW User manual

Whirlpool

Whirlpool Duet WED9600T Parts list manual

Whirlpool

Whirlpool WGD9450WW - 27" Gas Dryer User guide

Whirlpool

Whirlpool LER3622HQ1 User manual

Whirlpool

Whirlpool Gold GEQ8831LL0 User manual

Whirlpool

Whirlpool Maytag NED7500VM0 User manual

Whirlpool

Whirlpool LE9680XW User manual

Whirlpool

Whirlpool WED9290FC HybridCare User manual

Whirlpool

Whirlpool LE781OXP User manual

Whirlpool

Whirlpool AWZ220 User manual

Whirlpool

Whirlpool LE5800XP User manual

Whirlpool

Whirlpool W10680140D-SP User manual

Whirlpool

Whirlpool Gold GGX9868JQ0 User manual

Whirlpool

Whirlpool LGR7620LQ0 User manual

Whirlpool

Whirlpool Duet WED9200S User manual

Whirlpool

Whirlpool W10385092A User manual

Whirlpool

Whirlpool ELECTRIC DRYER User manual

Whirlpool

Whirlpool LER3622PQ0 User manual

Whirlpool

Whirlpool LE6600XP User manual

Whirlpool

Whirlpool WED5500BW0 User manual

Whirlpool

Whirlpool GCEM2990TQ User manual

Whirlpool

Whirlpool duet GEW9250PL0 User manual

Whirlpool

Whirlpool W10858720B - SP User manual

Whirlpool

Whirlpool WGD5800S User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
