Whirlpool LE5800XP User manual

AUTOMATIC

DRYERS

Electric Model

LE5800XP

and

Gas Model

LG5801XP

wave Ovens, Trash Compactors. Room Au Condltloners. Oehumldlfwrs. Automallc Washers, Clothes Dryers. Freezers. RefrlgeralOr-Freeze1

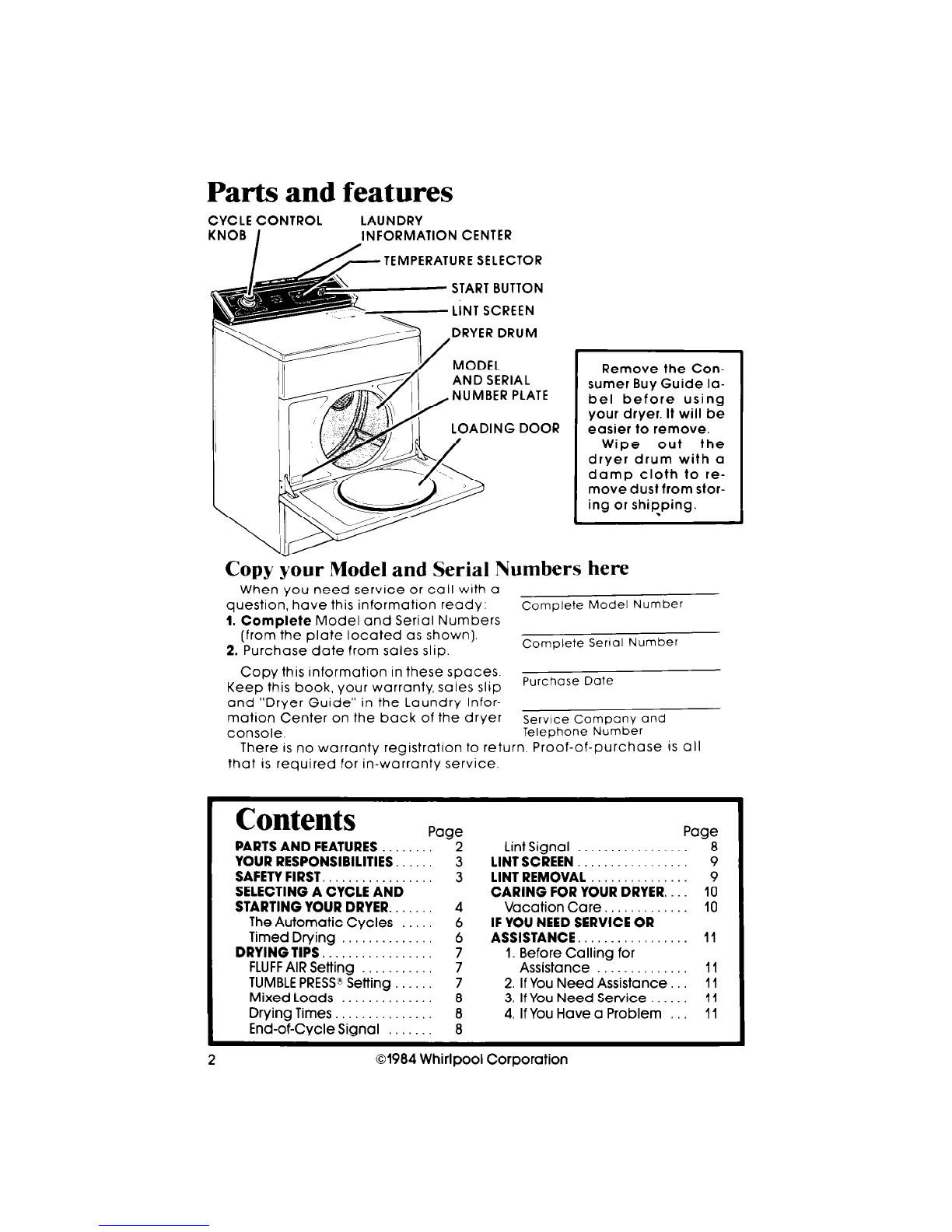

Parts and features

CYCLE CONTROL LAUNDRY

KNoB /

START BUTTON

!g@g&l. LINT SCREEN

DRYER DRUM

NUMBER PLATE

ADING DOOR

Remove the Con-

1 sumer Buy Guide lo-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here!

When you need service or call with a

question, have this information ready:

Complete Model Number

1. Complete Model and Serial Numbers

(from the plate located as shown).

2. Purchase date from sales slip.

Complete Serial Number

Copy this information in these spaces.

Keep this book, your warranty, sales slip

Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer Service Company

and

console. Telephone Number

There is no warranty registration to return. Proof-of-purchase is all

that is required for in-warranty service.

Contents

PARTS AND FEATURES

YOUR RESPONSIBILITIES.

SAFETY FIRST.

SELECTING A CYCLE AND

STARTING YOUR DRYER.

The Automatic Cycles

Timed Drying

DRYING TIPS.

FLUFFAIR Setting

TUMBLE PRESS8Setting

Mixed Loads

Drying Times

End-of-Cycle Signal

Page

Lint Signal

LINT SCREEN

LINT REMOVAL

CARING FOR YOUR DRYER.

Vacation Care.

IF YOU NEED SERVICE OR

ASSISTANCE.

1. Before Calling for

Assistance

2. If You Need Assistance

3. IfYou Need Service

4. IfYou Have a Problem

Page

2 01984 Whirlpool Corporation

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room* on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2.C).

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems.’

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

‘See the “Installation Instructions” for

complete information.

TYPE OF LOAD SMEf;ED SUGGESTED

TEMPERATURE

EXTRA HEAVY - Bedspreads,

mattress pads, quilts.

HEAVYWEIGHT FABRICS -Towels,

jeans, corduroys, work clothes AUTOMATIC

MEDIUMWEIGHT COTTONS - REGULAR

Sheets, pillowcases, cotton

underwear,diapers

LIGHTWEIGHT COTTONS - Batistes,

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVY

HIGH

COTTONS - LINENS

HEAVYWEIGHT FABRICS -Work clothes,

jackets, raincoats AUTOMATIC PERM’T

MEDIUMWEIGHT FABRICS - Shirts, play PERMANENT PRESS

clothes,sheets,slacks PRESS MED

LIGHTWEIGHT FABRICS - Lingerie,

blouses. dresses

KNITS

HEAVYWEIGHT - Cottons, rayons, PERMIT PRESS

blends,T-shirts,slacks,shirts AUTOMATIC MED

LIGHTWEIGHT - Synthetics [polyester, PERMANENT

PRESS KNITS GENTLE

acrylic, etc.) and blends, lingerie, LOW

blouses, dresses

LIGHTWEIGHT AND DELICATE FABRICS AUTOMATIC KNITS

Sheer Curtains (2 or 3 panels] PERMANENT GENTLE

Gauze,lace,etc. . ..____................. PRESS LOW

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

FOAM RUBBER - Pillows, bras,

stutted toys . .

PLASTIC - Shower curtains,

tablecloths .,,..,...,,...........

RUBBER-BACKED RUGS . .

OLEFIN, POLYPROPYLENE, SHEERNYLON

TIMED FLUFF

DRYING AIR

Select a

I. CYCLE Set TEMPERATURE

SELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for InformatIon on

the cycles.

Push the

3. START Button

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

The dryer will start tumbling when

you push the START Button.

To stop

the dryer, open the door (or

turn the Control Knob to OFF)

To restart

the dryer. close the door,

select cycle, II necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Control Knob moves and stops

several times until the load reaches

the dryness setting you selected. Then

the knob automatically moves to

OFF and tumbling stops.

weight cotton items. The load tum-

bles without heat during the last 5

minutes. This helps make the load

easier to handle.

Use

AUTOMATIC

PERMANENT

PRESSto dry

oermanent

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in.

For the first few loads, set the Control

Knob to point to an* in either auto-

matic cycle. When the dryer stops,

feel the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like,

use a setting to the left of the *the

next time you dry a similar load.

Timeddrying

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want - from 10 to 60.

. The last 5 minutes of this cycle are

without heat - a cool-down time. This

helps make the load easier to

handle.

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc.

Turn the Temperature Selector to

FLUFFAIR.

Turn the Control Knob to the num-

ber of minutes you want in the

TIMED DRYING Cycle.

Push the STARTButton.

TUMBLE PRESS” Setting

The TUMBLE PRESS setting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to HEAVY

HIGH.

3. Push STARTButton.

The load will tumble in heated air

far 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Mixed loads Drying times

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as fumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

Drying times will vary depending on.

0 amount of moisture in the clothes.

type and weight of the fabric.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

0 dryer temperature selection.

See page 6 in your “Dryer Guide”

for more information.

End-of-cycle signal The dryer sounds a signal to let you know

when the cycle is finished.The signal cannot be

turned off and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

Lint signal

Clean lint screen before each load. If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

Lint screen

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

Open the lid and pull the lint screen

straight out. ROLL the lint off the screen

with your fingers.

DO NOT rinse or wash the screen

Push the screen firmly back into

place.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard -unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

1. Remove back panel (electric)

or lower access panel (gas).

2. Avoid damaging wires,

thermostats, funnel or igniter.

3. Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

4. Replace panel; reconnect and

re-level dryer.

Caring for your dryer

Remove sharp objects from clothing

before drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp, soft

cloth.Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry in

your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Non-colorfast items can stain the Some pretreatment products can

drum. Wipe carefully after drying to damage dials, console and finish. Do

make sure there is no dye to be not use these products on or near

transferred to items in the next load. your dryer.

Vacation care

Unplug power cord or For gas dryers, close

turn off electrical power. gas valve

Clean lint screen.

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WGD5200TQ - Dryer User guide

Whirlpool

Whirlpool LER7646AQ2 User manual

Whirlpool

Whirlpool 8280527 User manual

Whirlpool

Whirlpool Gold GGQ9800PW3 User manual

Whirlpool

Whirlpool LE6150XS User manual

Whirlpool

Whirlpool DUET W10224575B User manual

Whirlpool

Whirlpool LEQ9557KQ0 User manual

Whirlpool

Whirlpool LE6098XS User manual

Whirlpool

Whirlpool Duet Steam WED9270X User manual

Whirlpool

Whirlpool W10115229B-S User manual

Whirlpool

Whirlpool GEW9250PT User manual

Whirlpool

Whirlpool 3LWED4705FW User manual

Whirlpool

Whirlpool LEC8858EQ1 User manual

Whirlpool

Whirlpool w10097013a User manual

Whirlpool

Whirlpool DUET W10224575B User manual

Whirlpool

Whirlpool WED9050X Parts list manual

Whirlpool

Whirlpool LE6098XT User manual

Whirlpool

Whirlpool WED94HEA Manual

Whirlpool

Whirlpool 8527902 User manual

Whirlpool

Whirlpool DryAire LMA1053L User manual

Whirlpool

Whirlpool 29" Wide Models User manual

Whirlpool

Whirlpool 8578198 User manual

Whirlpool

Whirlpool W10096895A User manual

Whirlpool

Whirlpool LE6800XS User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
