INSTALLATION INSTRUCTIONS

ELECTRIC DRYER

for models:

3RLEC8600

3RLEQ8033

W10131579A

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools

listed here.

Tools needed

■level

■20 to 30 cm (8" or l0") adjustable wrench that opens

to 2,5 cm (1")

■flat-blade screwdriver

■nut driver or socket wrench — 0,62 cm (1/4")

■caulking gun and compound

■knife

■duct tape

■hex-head socket wrench — 2,5 cm (1")

■tin snips

Table of Contents

DRYER SAFETY............................................................................ 2

INSTALLATION REQUIREMENTS .............................................. 2

Tools and Parts .......................................................................... 2

Location Requirements.............................................................. 3

Electrical Requirements ............................................................ 4

Venting Requirements .............................................................. 5

Plan Vent System ...................................................................... 5

INSTALLATION INSTRUCTIONS ............................................ 6

Install Vent System .................................................................... 6

Install Leveling Legs .................................................................. 6

Electrical Connection ................................................................ 7

Level the Dryer .......................................................................... 7

Connect Vent ............................................................................ 7

Complete Installation ................................................................ 7

DRYER SAFETY

IMPORTANT SAFETY INSTRUCTIONS

When discarding or storing your old clothes dryer, remove the door.

SAVE THESE INSTRUCTIONS

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

Parts supplied

Remove parts bag from dryer drum. Check that all parts were

included.

Parts needed

Check local codes, and read electrical and venting requirements

before purchasing parts.

Location Requirements

Observe all governing codes and ordinances.

You will need

■A location that allows for proper exhaust installation. The

dryer must be exhausted to the outdoors. See “Venting

Requirements.”

■A sturdy floor to support the dryer and a total weight (dryer

and load) of 79,4 kg (175 lb). The combined weight of a

companion appliance should also be considered.

■A level floor with a maximum slope of 2,5 cm (1") under entire

dryer. If slope is greater than 2,5 cm (1"), install Extended

Dryer Feet Kit, Part No. 279810. Clothes may not tumble

properly and models with automatic sensor cycles may not

operate correctly if dryer is not level.

■It is important to make sure the room has an adequate air

supply for drying operation. The operation of this appliance

may affect the operation of other appliances which take their

air supply for safe combustion from the same room.

■Adequate ventilation must be provided to avoid a backflow of

gases into the room from appliances burning other fuels,

including open fires. If in doubt consult the appliance

manufacturers.

Do not operate your dryer at temperatures below 7ºC (45ºF). At

lower temperatures, the dryer might not shut off at the end of an

automatic cycle.

The dryer must not be installed or stored in an area where it will

be exposed to water and/or weather.

Check code requirements. Some codes limit, or do not permit,

installation of the dryer in garages, closets, mobile homes, or

sleeping quarters. Contact your local building inspector.

4 leveling legs

NOTE: No other fuel-burning appliance can be installed in the

same closet as a dryer.

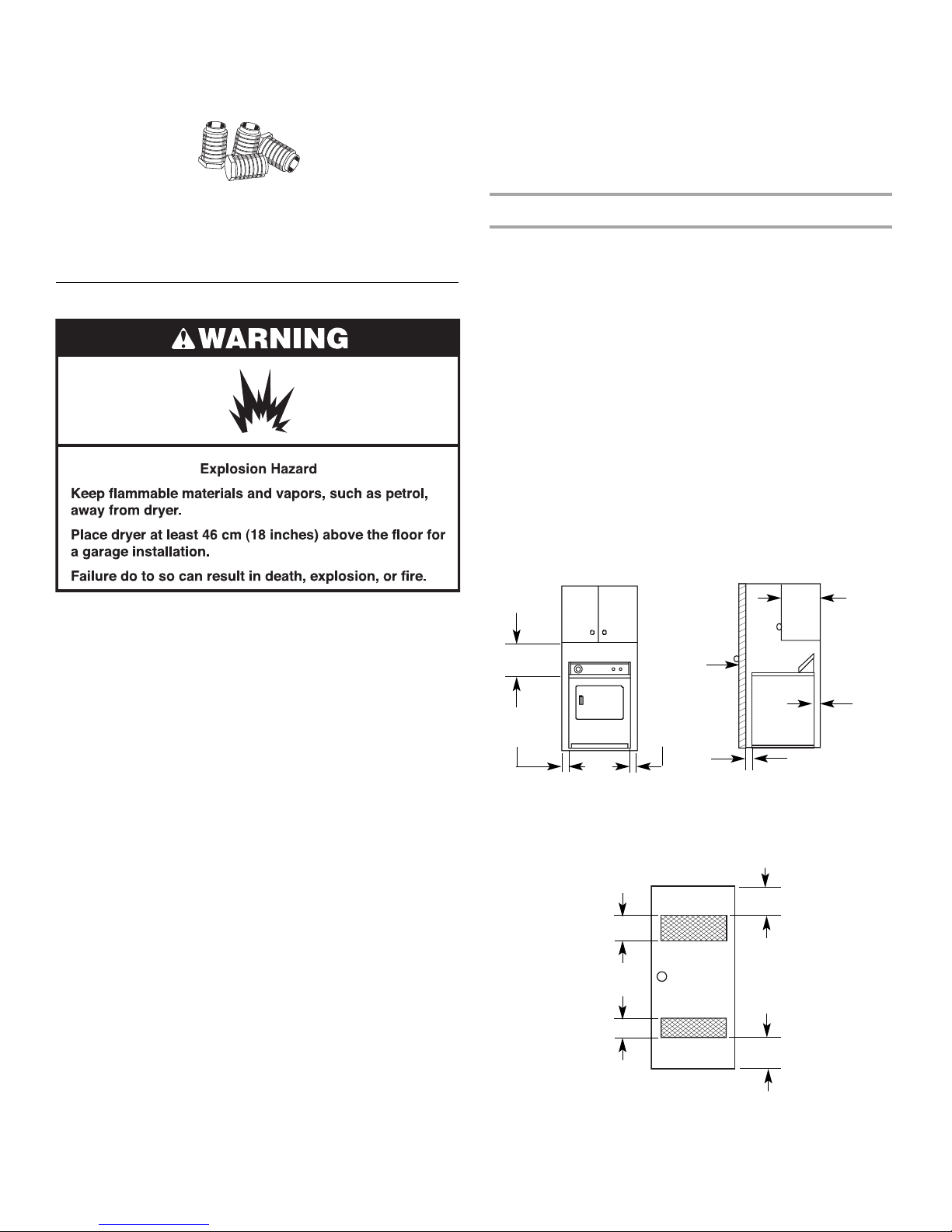

Installation Clearances

The location must be large enough to allow the dryer door to

open fully.

Recessed Area and Closet Installation Instructions

This dryer may be installed in a recessed area or closet. For

recessed area and closet installations, minimum clearances can

be found on the serial tag on the dryer.

The installation spacing is in centimeters (inches) and is the

minimum allowable. Additional spacing should be considered for

ease of installation, servicing, and compliance with local codes

and ordinances.

If closet door is installed, the minimum unobstructed air opening

in the top and bottom is required. Louvered doors with equivalent

air openings are acceptable.

This dryer must not be installed behind a lockable door, a sliding

door or a door with a hinge on the opposite side to that of the

dryer.

The dryer must be exhausted outdoors.

No other fuel-burning appliance may be installed in the same

closet as the dryer.

Recessed front view Closet side view

Minimum Installation Clearances

Additional clearances for wall, door and floor moldings may be required or if external

exhaust elbow is used.

closet

door

Front

View

7,6 cm (3")

155 cm2*

(24"2)

310 cm2*

(48"2)

*Opening is the minimum for a closet door.

Louvered doors with equivalent air openings are acceptable.

2,5 cm (1")

Closet

door

35,6 cm

(14") max.

2,5 cm (1")

68,6 cm

(27")

2,5 cm (1")

45,7 cm

(18")

10 cm

(4")

Electrical Requirements

This dryer is supplied without an electric cord and plug. It must

be connected by a competent electrician to a single-phase

electricity supply at the voltage shown on the dataplate, using a

suitable fixed wiring installation in accordance with local and

national wiring regulations.

■A 3-wire circular cord of minimum conductor size 2.5 mm2

cross-section area should be used.

■A 30A supply fuse should be used, and a switch with a

minimum contact separation of 3 mm in both poles must be

incorporated into the fixed wiring for dryer disconnection. The

dryer should be positioned so that the disconnection switch is

easily accessible to the user.

■A cord clamp bush is provided on the dryer, and should be

tightened on completion of wiring. The electrical mains

terminals are located behind the small rear access panel

(terminal block cover), and connections should be made in

accordance with the terminal markings. Remember to replace

the terminal access panel (terminal block cover).

NOTE: In accordance with the European EMC Directive

(89/336/EEC) the maximum electricity supply system impedance

to which the electric dryer should be connected is declared to be

0.302 Ohm + j0.189 Ohm.

If codes permit and an additional earth bond wire is used, it is

recommended that a competent electrician determine that the

earth bond path is adequate.

Product Dimensions

Dimensions shown with feet extended 2,5 cm (1") from bottom of dryer.

left or right

side exhaust

back exhaust

10,8 cm

(4¹⁄₄")

26 cm

(10¹⁄₄")

35,9 cm

(14¹⁄₈")

10 cm

(4")

Exhaust dimensions

Side swing door clearances

Location must be large enough to fully open dryer door.

57,8 cm (22³⁄₄")

9,8 cm (3⁷⁄₈")

48,9 cm

(19¹⁄₈")

The dryer door

extends

35,6 cm (14")

from the front

of the dryer

when fully

opened.

74,3 cm

(29¹⁄₄")

terminal block cover

power supply

cord/cable

strain relief

109,5 cm

(43¹⁄₈")

27,9 cm

(11")

97,2 cm

(38¹⁄₄")

68,6 cm (27")

35,6 cm

(14")

Electric Shock Hazard

Electric earthing is required on this dryer.

Do not earth to a gas pipe.

Do not have a fuse in the neutral or earthing circuit

Check with a qualified electrician to be sure the dryer is

properly earthed.

Failure to follow these instructions could result in

death, fire, or serious injury.

WARNING

WARNING: To reduce the risk of fire, this dryer MUST BE

EXHAUSTED OUTDOORS.

■The dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, or concealed space of a building.

■Do not use an exhaust hood with a magnetic latch.

■Do not install flexible non-metal vent.

■Do not install metal vent that is smaller than 10 cm (4") in

diameter.

■Do not install flexible vent in enclosed walls, ceilings or floors.

■10 cm (4") heavy metal vent and clamps must be used.

■Use 10 cm (4") clamps to seal all joints. Vent must not be

connected or secured with screws or other fastening devices

which extend into the interior of the vent. Do not use duct

tape.

Improper venting can cause moisture and lint to collect

indoors, which may result in:

■Moisture damage to woodwork, furniture, paint,

wallpaper, carpets, etc.

■Housecleaning problems and health problems.

IMPORTANT: Observe all governing codes and ordinances.

Use a heavy metal vent. Do not use plastic or metal foil vent.

Rigid metal vent is recommended to prevent crushing and

kinking.

Flexible metal vent must be fully extended and supported when

the dryer is in its final position. Remove excess flexible metal vent

to avoid sagging and kinking that may result in reduced airflow

and poor performance.

An exhaust hood should cap the vent to prevent rodents and

insects from entering the home.

Exhaust hood must be at least 30,5 cm (12") from the ground or

any object that may be in the path of the exhaust (such as

flowers, rocks or bushes, etc.).

If using an existing vent system, clean lint from the entire length

of the system and make sure exhaust hood is not plugged with

lint. Replace any plastic or metal foil vent with rigid metal or

flexible metal vent.

Plan Vent System

Route the Vent

The exhaust outlet is located at the center of the rear of the dryer.

The exhaust vent can be routed up, down, left, right or straight

out the back of the dryer.

The design of the flue system should ensure that any condensate

formed when operating the appliance from cold, is either retained

and subsequently evaporated or discharged. Following these

installation instructions should adequately meet this requirement.

A. Standard rear offset exhaust installation

B. Left or right side exhaust installation

C. Bottom exhaust installation

EARTHING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

Recommended Earthing Method

■It is your responsibility to contact a qualified electrical installer

to ensure that the electrical installation is adequate and in

conformance with all local codes and ordinances.

Venting Requirements

Vent System Length

1. Select the route that will provide the straightest and most

direct path outdoors. Plan the installation to use the fewest

number of elbows and turns. Avoid making 90° turns. When

using elbows or making turns, allow as much room as

possible. Bend vent gradually to avoid kinking.

2. Determine vent length.

The maximum length of the exhaust system depends upon:

■The type of vent (rigid metal or flexible metal).

■The number of elbows used.

■Type of hood.

See the exhaust vent length chart that matches your hood type

for the maximum vent lengths you can use.

Exhaust systems longer than specified will:

■Accumulate lint, creating a potential fire hazard.

■Shorten the life of the dryer.

■Reduce performance, resulting in longer drying times and

increased energy usage.

6,4 cm

(2¹₂")

10 cm

(4")

3. Determine the number of elbows needed.

NOTE: Do not use vent runs longer than specified in the Vent

Length Chart.

The following chart helps you determine your maximum vent

length based on the number of 90° turns or elbows you will

need and the type of vent (rigid or flexible metal) and hood

that you will use.

Vent Length Chart

Number of Type of vent Box or Angled

90º turns louvered hoods

or elbows hoods

0Rigid metal 15,8 m (52 ft.) 13,4 m (44 ft.)

Flexible metal 9,4 m (31 ft.) 7,0 m (23 ft.)

1Rigid metal 13,4 m (44 ft.) 11,0 m (36 ft.)

Flexible metal 7,9 m (26 ft.) 5,5 m (18 ft.)

2Rigid metal 11,0 m (36 ft.) 18,5 m (28 ft.)

Flexible metal 6,7 m (22 ft.) 4,3 m (14 ft.)

3Rigid metal 8,2 m (27 ft.) 6,4 m (21 ft.)

Flexible metal 6,1 m (20 ft.) 3,7 m (12 ft.)

4Rigid metal 6,1 m (20 ft.) 4,3 m (14 ft.)

Flexible metal 5,5 m (18 ft.) 3,0 m (10 ft.)

NOTE: Side and bottom exhaust installations have a 90º turn

inside the dryer. To determine maximum exhaust length, add one

90º turn to the chart.

The maximum length using a 5,1 cm x 15,2 cm (2" x 6")

rectangular vent with 2 elbows and a 6,4 cm (2-1/2") exhaust

hood is 2,4 m (8 ft.).

For exhaust systems not covered by exhaust vent length charts

(such as multiple unit hookups, plenums, and power-assist fans),

see Service Manual, Part No. 603197. (To purchase the Service

Manual, contact your local authorised service company).

INSTALLATION INSTRUCTIONS

Install Vent System

1. Install exhaust hood. Use caulking compound to seal exterior

wall opening around exhaust hood.

2. Connect vent to exhaust hood. Vent must fit inside exhaust

hood. Secure vent to exhaust hood with 10 cm (4") clamp.

3. Run vent to dryer location. Use the straightest path possible.

See “Vent System Length.” Avoid 90º turns. Use 10 cm (4")

clamps to seal all joints. Do not use duct tape, screws or

other fastening devices that extend into the interior of the vent

to secure vent.

Install Leveling Legs

1. Open dryer door and remove drying rack, if included. Wipe

drum with damp cloth to remove any dust.

2. Take two cardboard corners from dryer carton and place them

on floor in back of dryer. Firmly grasp body of dryer and

gently lay it on its back on the cardboard corners.

Angled hood style acceptable.

10 cm (4") 10 cm (4")

A. Box hood style

B. Louvered hood style

Recommended hood styles

are shown here.

Exhaust Air Flow

A. Better

B. Good

A. diamond marking

Electrical Connection

This is a 3-wire dryer which must be earthed.

This dryer is supplied without an electric cord and plug, it must

be connected by a competent electrician. See “Electrical

Requirements.”

Level the Dryer

1. Move dryer close to its permanent location. Leave enough

room to connect the exhaust vent. Remove the cardboard

from under the dryer.

2. Check levelness of dryer by placing a level on top of dryer,

first side to side, then front to back.

If dryer is not level, use a wrench to adjust dryer legs up or

down and check again for levelness.

If legs are not long enough to level dryer, order Extended

Dryer Feet Kit, Part No. 279810 (sold two legs per kit), from

your dealer.

The dryer must be level to reduce noise and assure proper

performance.

WARNING

Electric Shock Hazard

This dryer must be earthed.

Securely tighten all electrical connections.

Failure to do so can result in death, fire, or

electric shock.

Connect Vent

1. Connect vent to dryer outlet using 10 cm (4") clamp. If

connecting to existing vent, make sure the vent is clean. The

vent must fit over the dryer outlet and inside the exhaust

hood.

2. Move dryer into final position. Do not crush or kink exhaust

vent. Make sure dryer is level.

Complete Installation

1. Check to be sure all parts are now installed. If there is an

extra part, go back through the steps to see which step was

skipped.

2. Check to be sure you have all of your tools.

3. Properly dispose of all packaging materials.

4. Check the dryer’s final location. Be sure the vent is not

crushed or kinked.

5. Check to be sure the dryer is level. See “Level the Dryer.”

6. Read the Use & Care Guide to fully understand your

new dryer.

7. Select a full heat cycle (not the air cycle) and start dryer. After

five minutes, open dryer door. You should feel heat inside the

dryer or on the exhaust vent.

If dryer makes an unusual noise, check that dryer is level.

Technical Specifications

(see rating plate in door opening for full model details)

220-240V ~ 50 Hz, 1 ph

4575W, IPX4

Clothes capacity: 9.0 Kg max.

3. Start to screw legs into holes by hand. Use an adjustable

wrench or 2,5 cm (1") hex-head socket wrench to finish

turning legs until you reach the ridge with the diamond

marking.

4. To protect the floor, use a large flat piece of cardboard from

the dryer carton. Stand dryer up on the cardboard.

W10131579A 10/2007

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WGD8800YC User manual

Whirlpool

Whirlpool AWZ8CDS/PRO Installation guide

Whirlpool

Whirlpool WGD8300S User manual

Whirlpool

Whirlpool WED8700EC User manual

Whirlpool

Whirlpool 8533582 User manual

Whirlpool

Whirlpool LGQ8000JQ5 User manual

Whirlpool

Whirlpool GLE7900XM User manual

Whirlpool

Whirlpool 4KNED4400 User manual

Whirlpool

Whirlpool AWZ 865 User manual

Whirlpool

Whirlpool LE6405XP User manual

Whirlpool

Whirlpool Cabrio W10164159A User manual

Whirlpool

Whirlpool WED8300SE - 27in Electric Dryer User manual

Whirlpool

Whirlpool LE5700XP User manual

Whirlpool

Whirlpool WGD9600TA1 User manual

Whirlpool

Whirlpool W10296184B User manual

Whirlpool

Whirlpool AWD712S User manual

Whirlpool

Whirlpool 7MWGD1750EQ User manual

Whirlpool

Whirlpool YCEP2760KQ0 User manual

Whirlpool

Whirlpool YWED9550WR0 User manual

Whirlpool

Whirlpool LE9500XT User manual

Whirlpool

Whirlpool WFC7500VW User manual

Whirlpool

Whirlpool GCEM2990TQ User manual

Whirlpool

Whirlpool 8577208 User manual

Whirlpool

Whirlpool LE5780XK User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
