Whirlpool WGD9600TA1 User manual

TOP AND CONSOLE PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

2−08 LITHO IN U.S.A. (LAN) Part No. W10189037 Rev. A

27" GAS DRYER

TOP AND CONSOLE PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10136970

Use & Care Guide

W10177462

Tech Sheet

W10139791

Guide,

Quick Start

W10139322

Sheet, Tip

Steam Dry

2 Top

8519251 White

W10140290

Aspen

W10114785

Ultimate Silver

8579997 Black/Chrome

W10111015

Harness, Main

4 Panel, Console

(Includes Illus:

20,21,22,27,28

& 29)

W10153650

White

W10153655

Aspen

W10153654

Ultimate Silver

W10153652

Black/Chrome

5 3391018 Tie, Cable

W10006840

Bracket, Console

(Includes No.12)

W10112268

Clip, Harness (4)

8 94614 Terminal

9 3936144 Plug, Terminal

W10117943

Badge

11 3390647 Screw, 8−18 x 1/2

W10112267

Foam−Seal

W10030070

Array−Power

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 98139 Screw, 8−32 x 5/16

17 2203186 Connector,

5−Circuit

W10110659

User−Interface

(Right)

W10110658

User−Interface

Center

(Includes Illus:

13.)

W10012430

Encoder−Wheel

W10012440

Retainer−Snap

W10012410

Knob, Light Ring

(Includes:

Illus. 21 )

W10012810

Rast, Wheel Assy.

(Service Only

With Item. 28 )

W10012460

Detent Wheel

(Service Only

With Item. 28 )

W10095960

Harness,

Communication

W10012820

Knob, Spring

(Service Only

With Item. 28 )

27 Knob, Control

W10116702

White

W10153663

Aspen

W10116704

Ultimate Silver

W10116705

Black/Chrome

(Includes:

Item. 21 )

28 280230 Encoder, Wheel

Kit

(Includes Items:

23, 24 & 26 )

W10111020

Power Cable,

CABINET PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

CABINET PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 8533974 Screw, 10−32 x 5/8

(Ground)

4 Panel, Side (R.H.)

W10139003

White

W10139013

Aspen

W10139009

Ultimate Silver

W10139010

Black/Chrome

5 3394881 Switch, Broken

Belt

6 3357011 Screw,10−16 x 1/2

7 Panel, Side (L.H.)

W10138989

White

W10138999

Aspen

W10138995

Ultimate Silver

W10138996

Black/Chrome

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

W10136987

Aspen

8579117 Ultimate Silver

3388309 Black/Chrome

13 3388672 Pulley Assembly

14 3978776 Bracket,

Gas Pipe

15 8066120 Lever, Snap

Switch

W10167612

Wire, Belt Switch

W10128772

Sound Panel

W10121334

Washer

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

23 90767 Screw, 8−18 x 3/8

24 693995 Screw, 8−18 x 3/8

W10116475

Rear, Panel

26 343641 Screw, 10−16 x 1/2

27 8538263 Motor Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8529757 Bracket, Burner

32 3387118 Bracket, Motor

33 3401401 Cord, Power

34 49026 4" − 90 Elbow

35 3389682 Space−Toe Panel

User−Interface

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 62825 Clip−S Type

W10182365

Control Board

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 8519207 Base, Cabinet

48 Front Panel

(Includes

Illus. 44)

W10180423

White

W10180432

Aspen

W10180429

Ultimate Silver

W10180425

Black/Chrome

49 696144 Strike, Door (2)

W10181464

Harness,

Digital Interface

51 8563727 Bracket, Control

52 Toe Panel

W10116271

White

W10140572

Aspen

W10116277

Ultimate Silver

W10116273

Black/Chrome

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

53 279818 White

279820 Black

W10152954

Aspen

280171 Ultimate Silver

BULKHEAD PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

BULKHEAD PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 8066208 Clip−Spring

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

W10128544

Cap−Plug

10 3402841 Lens,

Drum Light

11 359625 Screw, 8−18 x 1/2

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 8529007 Plug,

Rear Bulkhead

15 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

W10124071

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8066224 Exhaust Pipe

23 3394985 Housing, Outlet

24 8573713 Thermal, Cut−Off

W10181467

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

W10166807

Seal, Drum

W10128629

Shield,

Blower Housing

(Includes Illus.

32. )

29 90767 Screw, 8−18 x 3/8

W10049370

Lint, Screen

W10044605

Coupling, Hose

32 3390647 Screw, 8−18 x 1/2

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

W10044615

Clip,

Push−To−Connect

39 3394986 Spring, Lint

Screen Door

W10044596

Valve, Water Inlet

(Includes Illus.

29,31,52,55)

41 695240 Screw, 8−18 x 1/2

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

(Includes Illus.

49.)

45 8066168 Lint Duct Assembly

46 8573824 Funnel, Burner

47 8573028 Thermostat,

High−Limit 205 F

(96 C)

48 338906 Sensor, Radiant

49 489463 Screw, 8−18 x 5/8

50 3401710 Jumper, TCO

Hi−Limit

51 3387230 Screw, 10−16 x 1

W10184825

Cover, Inlet Valve

W10113136

Baffle, Drum

54 8519245 Bulkhead, Front

(Includes Illus.

28 & 32)

W10044597

Bracket, Valve

W10044598

Hose

(Not Servicable

Included With

Illus. 57)

W10179730

Nozzle & Hose

Assembly

(Includes Illus.

56,59,61,62,63)

58 8299979 Grill, Outlet

59 3391018 Tie, Cable

60 697770 Seal, Cover Plate

W10044579

Washer, Nozzle

W10044580

Nut, Brass

W10044629

Nozzle & Screen

Assembly

64 3392519 Thermal−Fuse

(91 C)

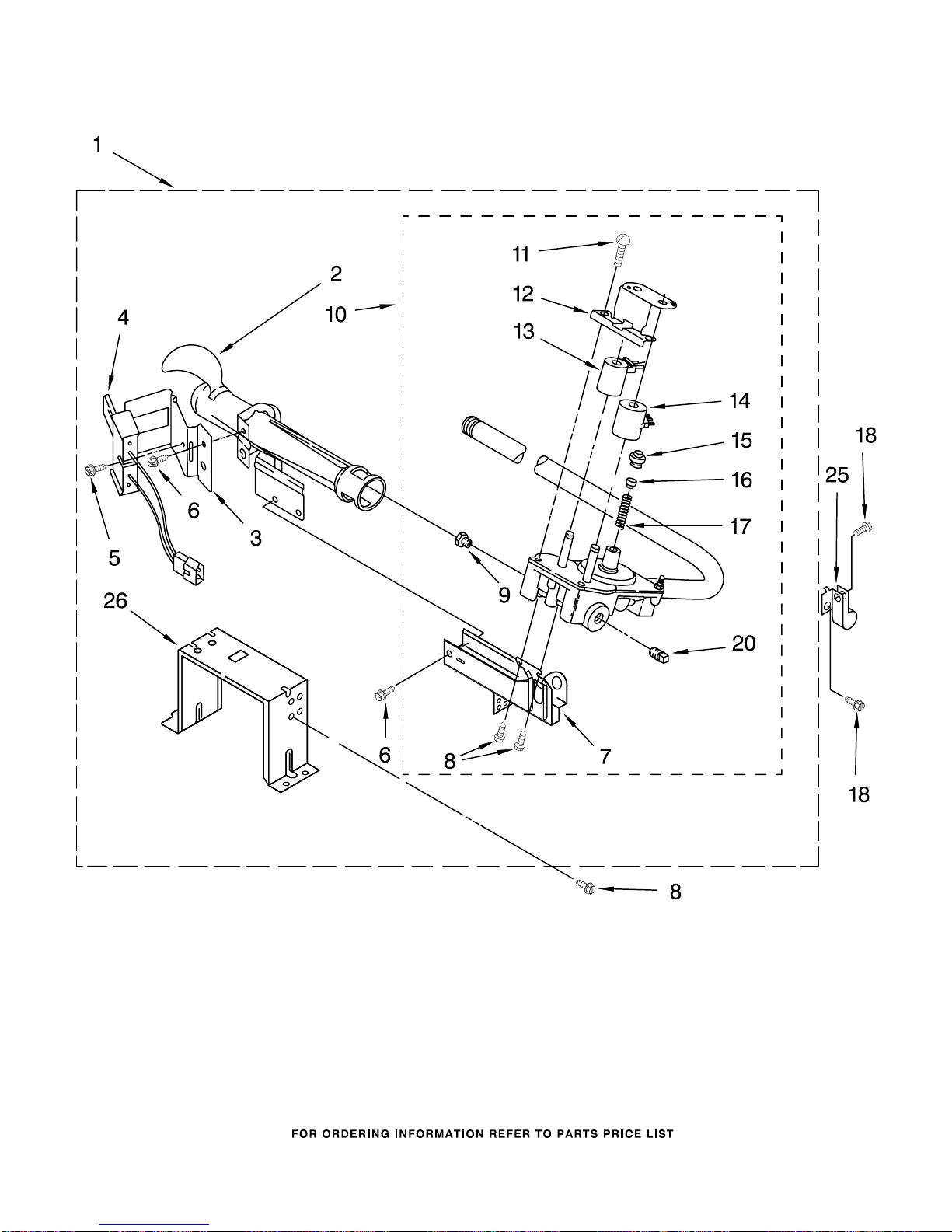

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

8576353 BURNER ASSEMBLY

BA−153A

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION

BA−153A

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

W10118347

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

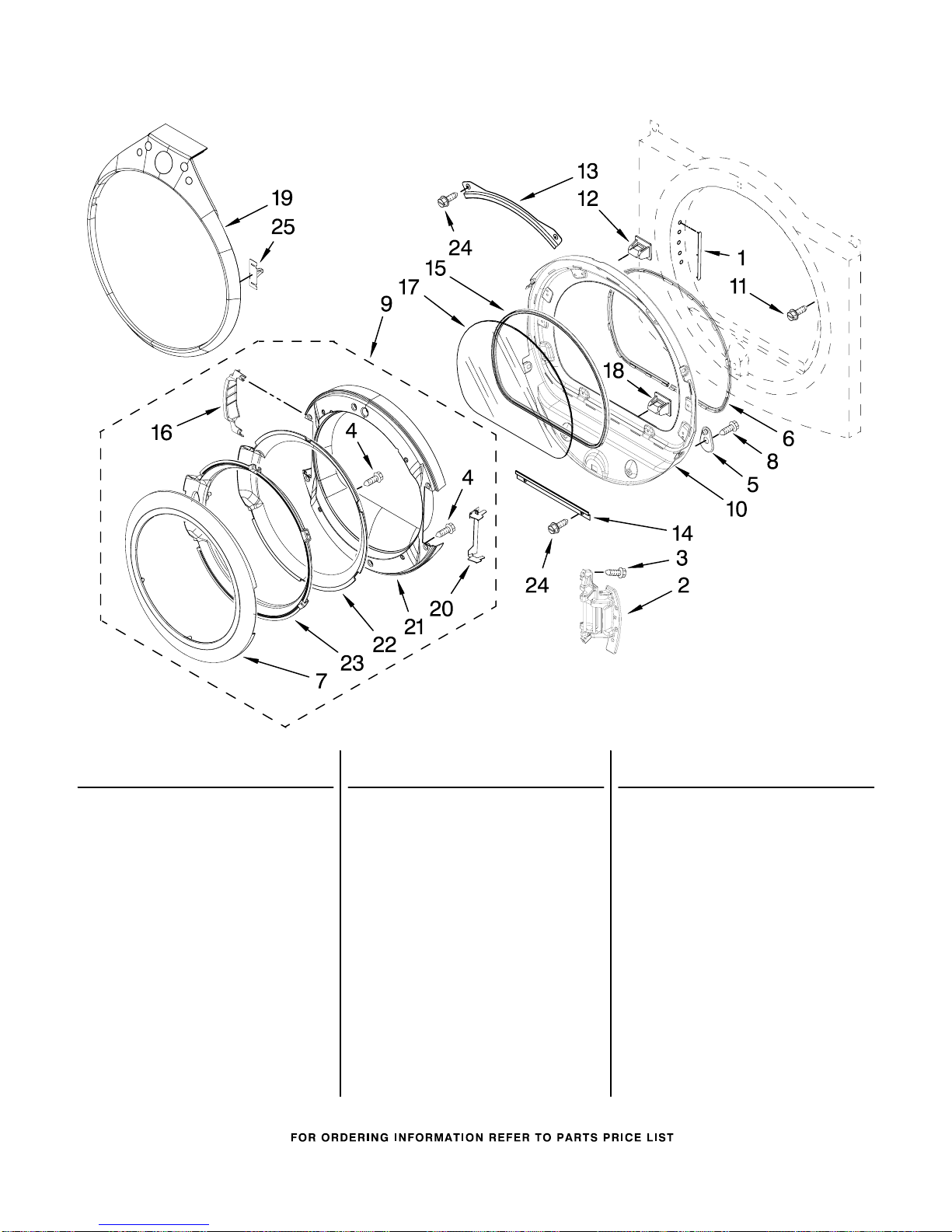

DOOR PARTS

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Label, Hinge Hole

W10085210

White

W10085230

Silver

W10139920

Door Hinge

Assembly

W10159996

Screw,

10−24 x 3/64

4 9742177 Screw, 8−18 x 5/8

W10048910

Screw−Plug

W10139457

Seal−Door

7 Handle, Ring & Pad

Assembly

8579502 Silver

8579503 Gold

8 3400224 Screw, 10−16 x 1/2

W10180115

Door Assembly

(Outer)

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 12 & 18)

11 355515 Screw,

8−18 x 11/16

12 3398175 Door Catch

AssemblY (Upper)

13 8519356 Retainer−Window

(Upper)

14 8519354 Retainer−Window

(Lower)

15 8579662 Gasket, Window

W10180119

Cover−Hinge,

Stationary (LH)

(Following Parts

Not Included)

Cover−Hinge

W10181197

Stationary (RH)

17 8566254 Window

18 690081 Door Catch

Assembly (Lower)

19 Tear−Drop Trim &

Clip Assembly

W10180500

White

W10180504

Aspen

W10180503

Ultimate Silver

W10180501

Black/Chrome

W10180120

Door Shield

W10180118

Door, Intermediate

W10180117

Door Mask

23 8578155 Door Screen

24 3393258 Screw, 10−16 x 3/8

W10129065

Clip−Trim (8)

OPTIONAL PARTS (NOT INCLUDED)

For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1

(White) (Aspen) (Ultimate Silver) (Black/Chrome)

W10189037

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

8212605 Ultimate Silver

W10157756

New Aspen

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

ACCESSORY PARTS

8529894 Kit,

Hold Down

8579666A Kit,

Door Reversing

8541503 Kit,

Stack Assembly

80047 Kit,

Dryer Repair

8521957 Dry Rack

Miscellaneous Parts Bag

W10044609

Bag Assembly

Contains

The Following:

76314 (Hose Inlet)

6’ Hose With Elbow

W10044603

(Hose Inlet)

1’ Hose

3976300 Washer

W10044604

Connector Hose

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool Duet YGEW9200LQ2 User manual

Whirlpool

Whirlpool 8533772 User manual

Whirlpool

Whirlpool 3LWED4705FW User manual

Whirlpool

Whirlpool W10096985A User manual

Whirlpool

Whirlpool WED7300XW User manual

Whirlpool

Whirlpool Duet WGD9200SQ0 User manual

Whirlpool

Whirlpool LEB6400KQ1 User manual

Whirlpool

Whirlpool LGR4624BW0 User manual

Whirlpool

Whirlpool DWFC8002GW User manual

Whirlpool

Whirlpool LE4905XM User manual

Whirlpool

Whirlpool LER5848EQ4 User manual

Whirlpool

Whirlpool Electric and Gas Dryers User manual

Whirlpool

Whirlpool Duet W10151592A User manual

Whirlpool

Whirlpool Gold GGQ8831LL0 Operating and installation instructions

Whirlpool

Whirlpool WED6200SW1 User manual

Whirlpool

Whirlpool AWZ220 User manual

Whirlpool

Whirlpool WED5800 User manual

Whirlpool

Whirlpool Duet Steam WED9270X User manual

Whirlpool

Whirlpool WGD5000DW User manual

Whirlpool

Whirlpool WED9500TU0 User manual

Whirlpool

Whirlpool duet GGW9260 User manual

Whirlpool

Whirlpool LE3300XP User manual

Whirlpool

Whirlpool LE4900XS, LE4930XS, LG4931XS User manual

Whirlpool

Whirlpool LE5805XP User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
