User’s Guide
Free and Total Chlorine Meter
FC
6742
Introduction:
We thank you for purchasing 6742 pocket free and total
chlorine meter
Before using the instrument, please note that the
operation instructions should be read carefully, which will
help you to operate and maintain the instrument, as well
as to avoid trouble caused by unsuitable operation and
maintenance.
6742 pocket meter employ leading edge
technology with integrated microprocessor, which is
suitable for measurement in water solutions for institutes,
industrial labs and production fields.
The information presented in this manual is subject to
change without notice as improvements are made.
Features:
1. Microprocessor based for fast and accurate
measurements.
2. Large LCD display
3. EPA approved DPD method.
4. Low battery alarm and auto shut off after 10 minutes of
non use.
Specifications:
FCL and TCL
Range 0 ~ 3.50 ppm
Resolution 0.01 ppm
Accuracy ± 0.05 + 1 digit at＜2.00 ppm
± 5% FS + 1 digit at＞2.00 ppm
Response ＜5 seconds
Operating 0 ~ 50 ℃, ＜85% RH
Sample 5 ml
Power DC 1.5V (UM4, AAA) battery x 4
Dimension Meter: 42 x 33 x 183 mm
Weight Meter: 168 g(including battery)
Accessories:
Upon receiving the shipment, please inspect the container
and equipment for any signs of damage. Please verify
that you have received the corresponding accessories as
below:
FCL Reagent strip x 100 pcs (DPD-1) for free chlorine
TCL Reagent strip x 100 pcs (DPD-4) for total chlorine
Cup
Battery
Carrying case
Battery change:
1. Please loosen the collar, and remove the bottom cap
2. Lift the battery cap to open it.
3. Please mind the polarity of the batteries when install
them into the meter.
Battery Cap
<FCL and TCL>

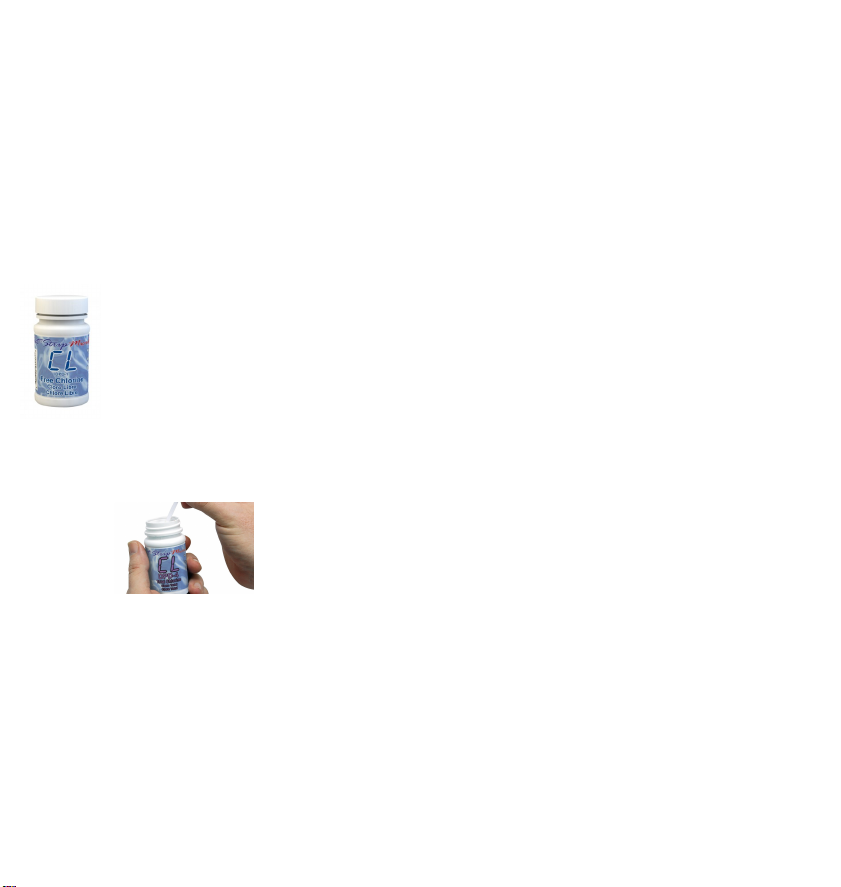

1. Take one FCL (DPD-1) or TCL (DPD-4) reagent strip
from the bottle.
2. Press “Power/Cal” key to turn the meter on.
3. Press and hold “FCL/TCL” key for two seconds to
choose FCL (Free Chlorine) or TCL (Total chlorine).
5. Open the top lid of this meter.
6. Fill the sample solution into the cell, and rinse the cell
with sample solution at 3 times.
7. Fill up the sample solution into the cell and replace the
lid back.
8. Press And hold “ZERO” button down and when 0.00
blinks on and off, release “ZERO” button and wait for
meter to display 0.00
9. Open the top lid again, and put one FCL (DPD-1) or
TCL (DPD-4) reagent strip into the sample solution
and move the strip in a gentle back and forth motion
(approx. 2 strokes/sec) for 20 seconds.
10.After 20 second, remove and discard strip.
11.Replace the lid back, and Press “FCL/TCL” to get the
FCL or TCL reading.
Important: Please rinse the cell after each testing to
prevent the reagent remaining in the cell.
