Vivo MOUNT-VW06 User manual
TV Wall Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-vw06
SKU: MOUNT-VW06
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

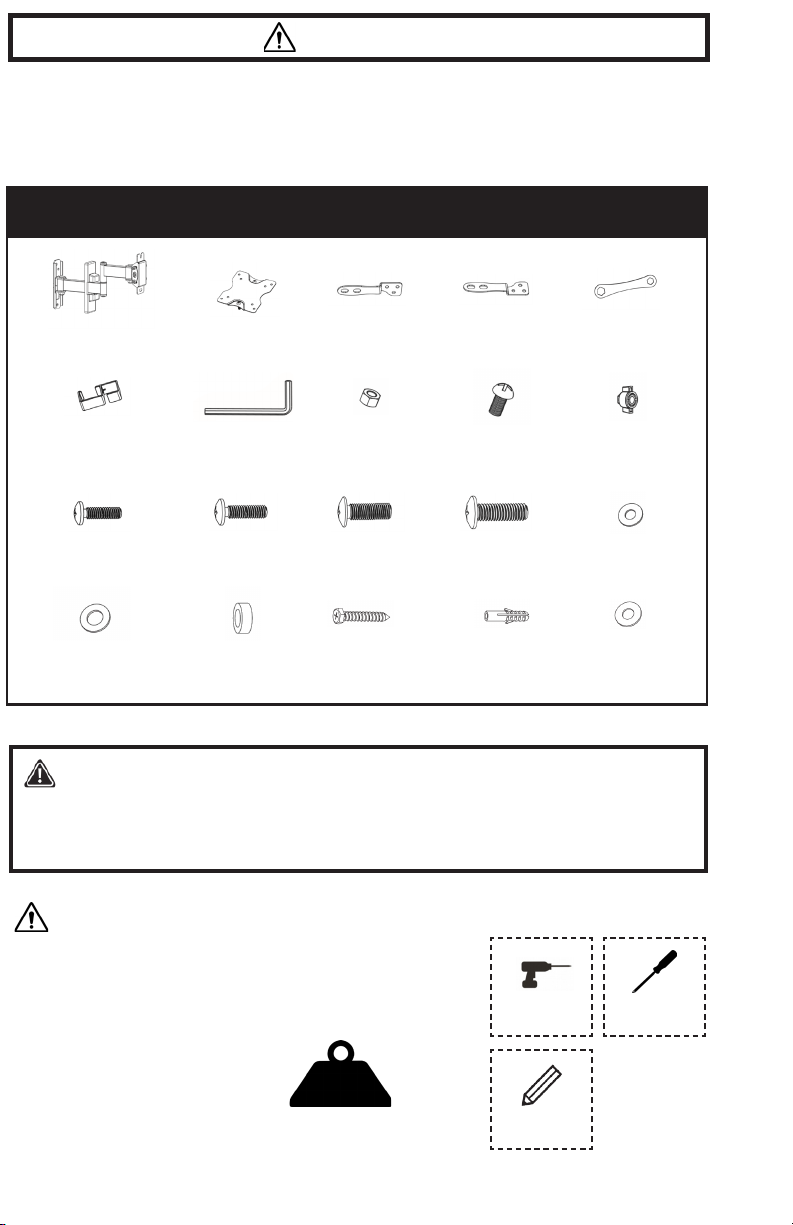

PACKAGE CONTENTS
44lbs
(19.96kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
B(x1)
VESA Plate
M-F (x4)
D8 Washer
M-G x8)
Spacer
W-A (x3)
Bolt
M-E (x4)
D5 Washer
M-A (x4)
M4x14
M-B (x4)
M5x14
M-C (x4)
M6x14
M-D (x4)
M8x20
If you do not understand these directions, or if you have any doubts about the safety of the installation,
please call a qualified technician. Check carefully to make sure there are no missing or defective parts.
Improper installation may cause damage or serious injury. Do not use this product for any purpose that is
not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or
injury caused by improper mounting, incorrect assembly or inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
W-C (x3)
Washer
W-B (x3)
Anchor
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
F (x1)
Cable Clip
G(x1)
Allen Wrench
I(x8)
Bolt
C(x2)
VESA Adapter
D(x2)
VESA Adapter
H(x8)
Nut
A (x1)
Mount
J (x2)
Nut
E(x1)
Wrench
TOOLS NEEDED
Phillips
Screwdriver
Drill
Pencil
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS.
ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
STEP 1

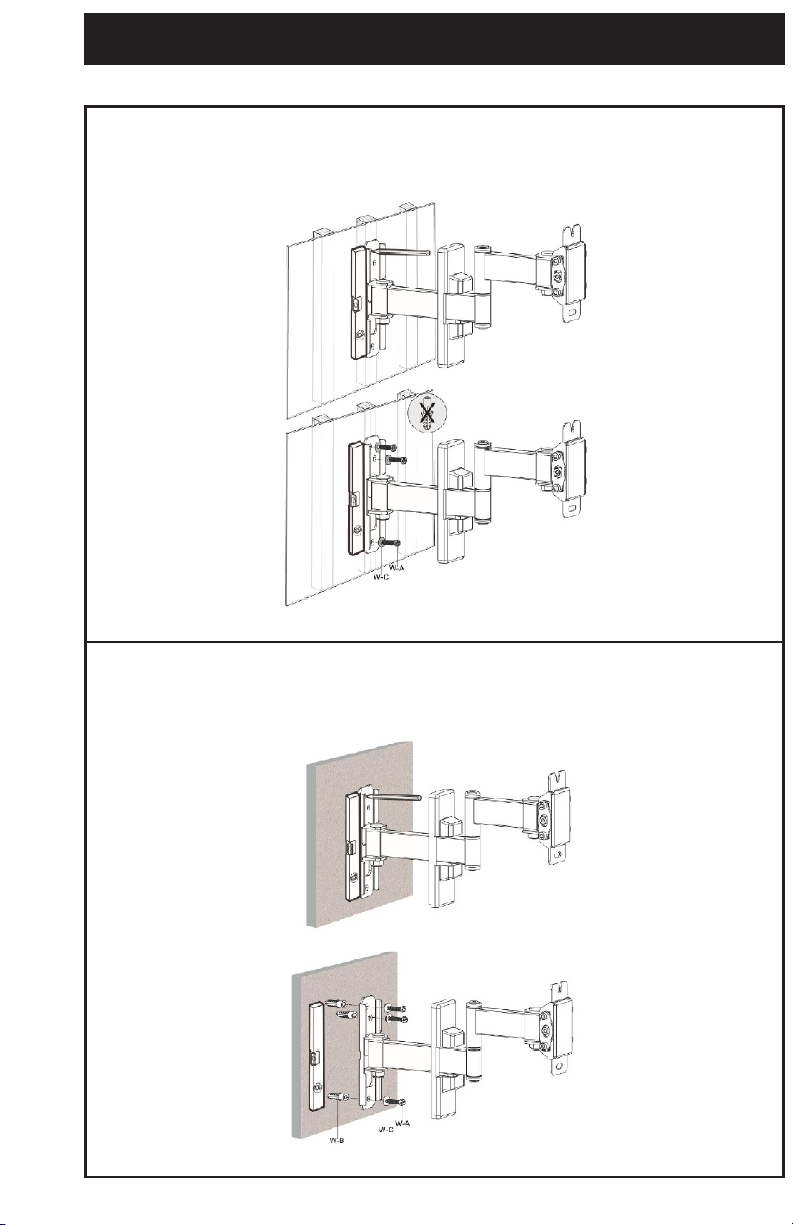

OPTION A: Wood Wall
Use mount (A) to mark mounting holes on wall where stud is located. Using a 3/16” bit, drill
approximately 2.2” into marked locations. Secure mount (A) to wall using bolts (W-A) and washers
(W-C).
OPTION B: Concrete/Brick Wall
Use mount (A) to mark mounting holes on wall. Using a 3/8” bit, drill approximately 2.4” into marked
locations. Secure mount (A) to wall using anchors (W-B) bolts (W-A) and washers (W-C).
4
STEP 2
STEP 3

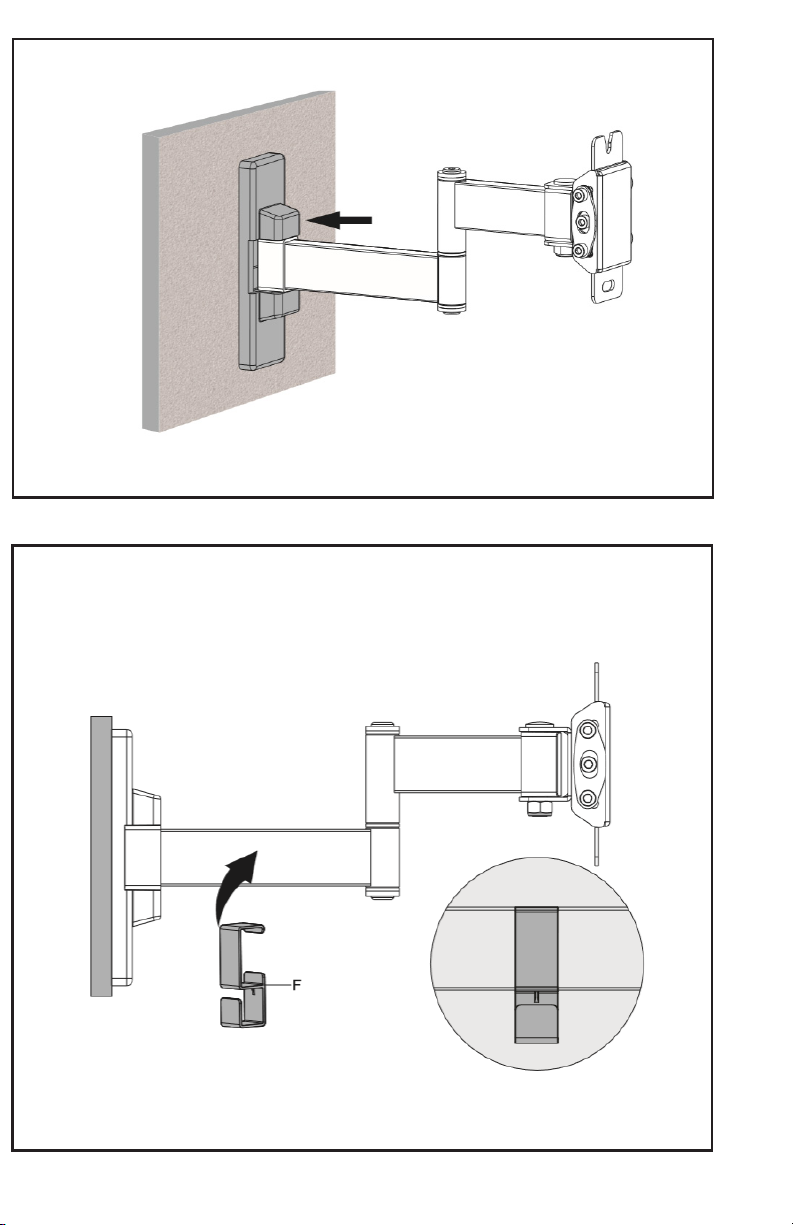

Attach plastic cover to mount (A).
Attach cable management clip (F) as shown in diagram.
5
STEP 4

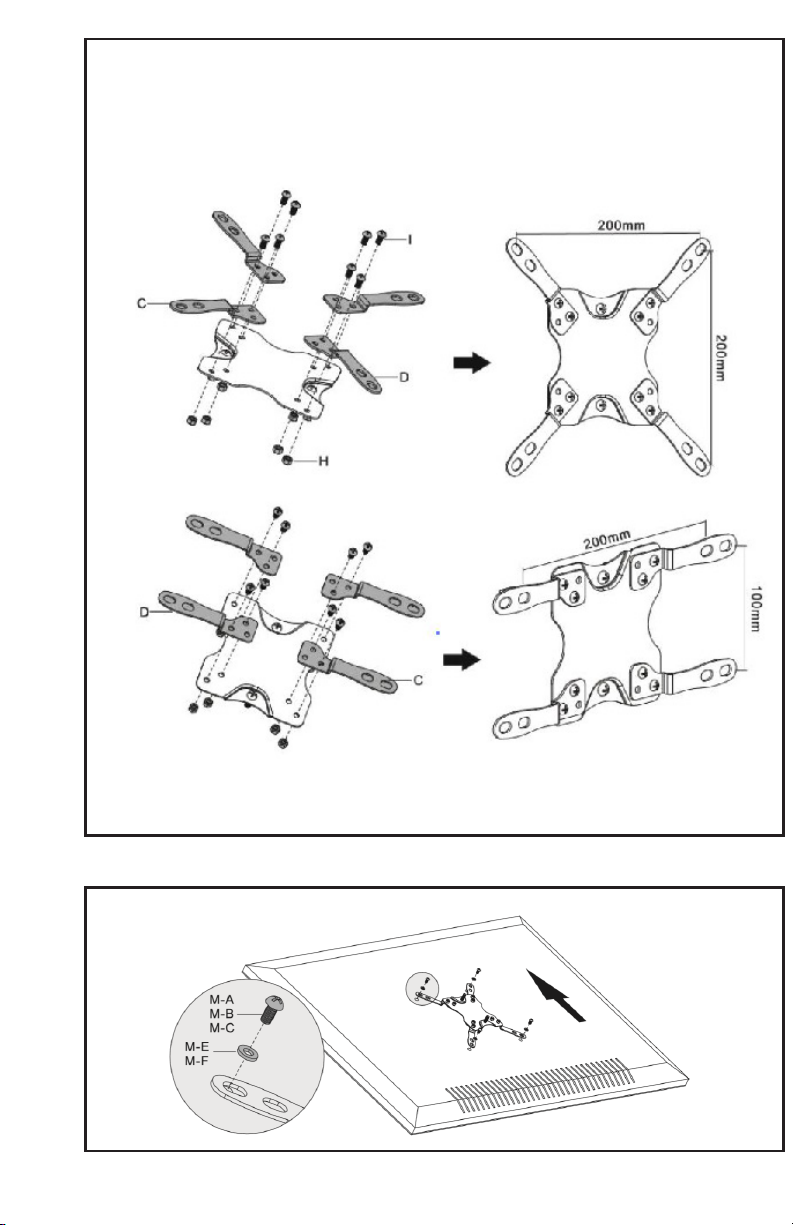

Mount VESA adapters (C) and (D) to VESA plate (B) using bolts (I) and nuts (H) in the appropriate
configuration to match your television’s mounting holes.
STEP 5
Mount VESA plate (B) to back of TV using bolts (M-A, M-B, M-C) and washers (M-E, M-F).
6
STEP 5 (Continued)
If bolts are too long, spacers (M-G) may be required as shown in diagram.
STEP 6
Attach TV to mount (A) using nuts (J).
7
STEP 7

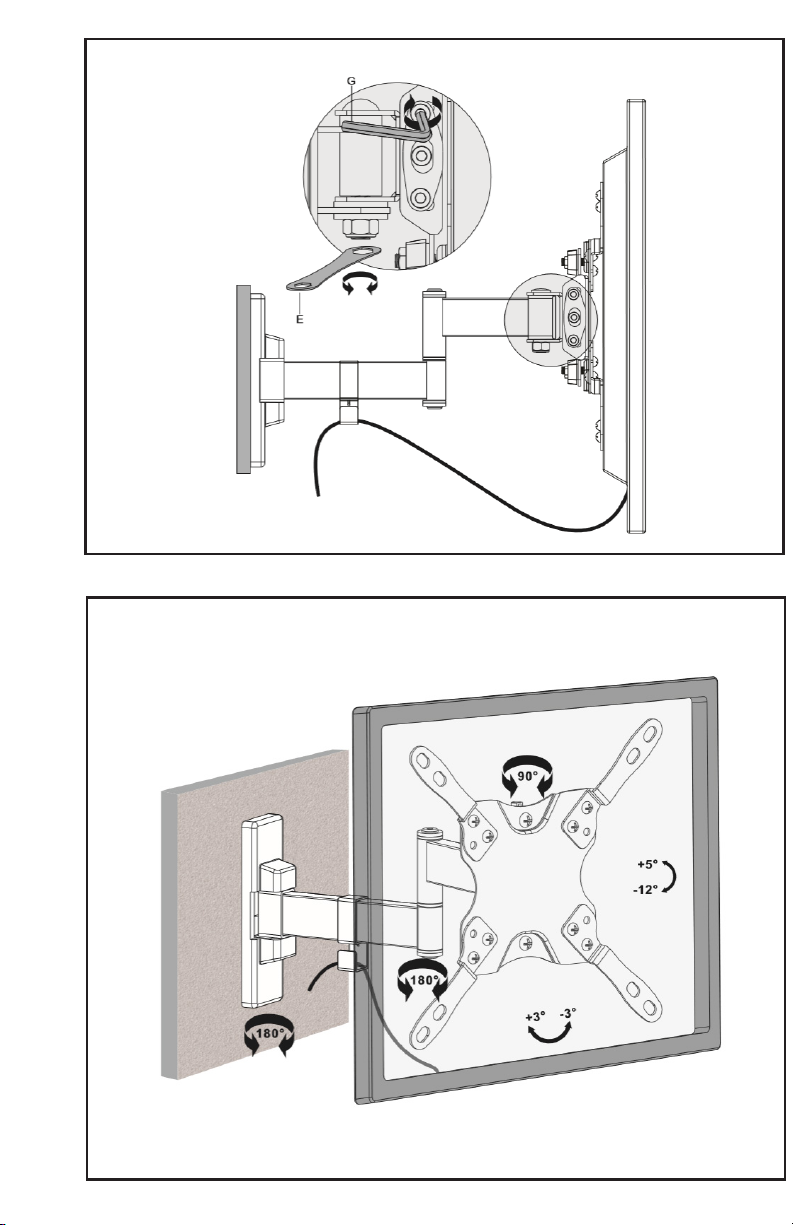

Adjust mount (A) using allen wrench (G) and wrench (E).
Adjust as Desired
