Vivo STAND-V104A User manual
Quad Monitor Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v104a
SKU: STAND-V104A
2
PACKAGE CONTENTS
WARNING!
a (x1)
Pole
b1 (x1)
Clamp
c(x1)
Decorative
Cover
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED
d1 (x1)
Monitor Arm
d2 (x2)
Monitor Arm
f (x4)
Plastic Pad
g (x2)
M10x47
h (x3)
Clamp Brace
Bolt
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
q (x16)
M4x30
r (x16)
M4 Spacer
i (x2)
M10x15
j(x4)
M8x10
s (x2)
Spare Cap
t (x1)
Allen Wrench
u(x1)
Wrench
v1 (x2)
VESA Plate
k(x1)
M10 Bolt
l (x1)
Support Plate
m (x1)
M10 Washer
n (x1)
Spring Washer
o (x1)
Foam Pad
p (x16)
M4x12
b2 (x1)
Clamp Brace
e (x4)
Arm Cover
w1 (x2)
Nut
w2 (x2)
M4x6
x (x4)
Wire Clip
d3 (x1)
Monitor Mount
v2 (x2)
VESA Plate
3
ASSEMBLY STEPS
TOOLS NEEDED
Phillips
Screwdriver
STEP 1
OPTION A: Weighted Base Installation
Attach clamp brace (b2) to pole (a) with clamp brace bolts (h). Attach clamp (b1) to clamp brace at
desired height using M10x15 bolts (i) with Allen wrench (t). Tighten clamp to desk and slide decorative
cover (c) into place.
OPTION B: Existing Grommet Base Installation
Apply foam pad (o) to base of pole (a). Mount pole to grommet hole in desk using M10 bolt (k), spring
washer (n), M10 washer (m) and support plate (l). Tighten with wrench (u) and slide decorative cover
(c) into place.
a
h
b2
t
i
b1 eye bolt
c
Figure 3 Figure 4
o
a
c
a
l
k
m
n
Drill
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
4
STEP 2
Place plastic pads (f) onto ends of monitor arms (d2), insert into arms (d1), and secure using M10x47
bolts (g) with Allen wrench (t). Press monitor arm covers (e) onto joints.
2.1
d2
d2
d1
e
e
g
t
f
2.2
2.3
STEP 1 (Continued)
OPTION C: Self-Drilled Grommet Base Installation
Drill a 3/8” (10mm) diameter hole at desired location. Apply foam pad (o) to base of pole (a). Mount
pole to grommet hole in desk using M10 bolt (k), spring washer (n), M10 washer (m) and support
plate (l). Tighten with wrench (u) and slide decorative cover (c) into place.
o
a
c
a
l
k
m
n
5
STEP 4
STEP 3
Install wire clips (x) on arms (d1,d2). Install arms on pole (a)
at desired height using M8x10 bolts (j) with Allen wrench (t),
making sure wire clips are facing down. Repeat for monitor
mount (d3).

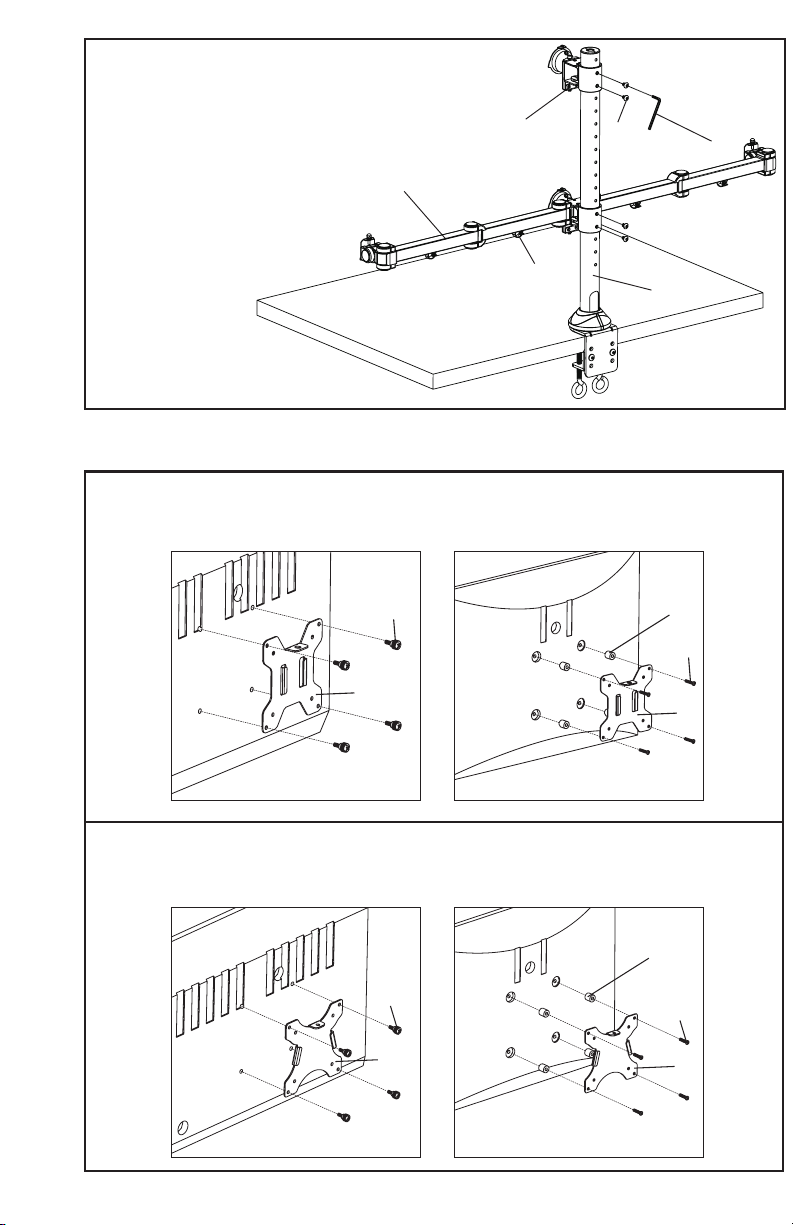

4A: Side VESA Plates
For monitors with flat back attach VESA plates (v1) with thumb screws (p). For monitors with curved
back attach VESA plates (v1) with screws (q) and spacers (r). Screws need only to be finger-tight.
4B: Center VESA Plates
For monitors with flat back attach VESA plates (v2) with thumb screws (p). For monitors with curved
back attach VESA plates (v2) with screws (q) and spacers (r). Screws need only to be finger-tight.
t
a
j
d1,d2
x
d3
p
v1
r
q
v1
p
v2
r
q
v2
6
5B: Center VESA Plates
Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with screw (w2). Slide top
monitor onto mount (d3) in same fashion. Secure with screw (w2).
STEP 6
Adjust Tilt Angle of Monitors. Remove plastic cover and use wrench (u) to tighten the nut if the tilt
angle cannot be fixed. Fasten the grub screws on the center monitors to fix the tilt angle using Allen
wrench (t).
w2
d1,d2
t
grub
screw
Fix the tilt angle
u
Pry off the
plastic cover
STEP 5
5A: Side VESA Plates
Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with nut (w1).
w1
d1,d2
7
STEP 7
Adjust the height of Center Monitors: Turn the bolt counter-clockwise to lower the center monitors.
Turn the bolt clockwise to raise the center monitors. Use allen wrench (t). Adjust the height of the
Side Monitors: Remove nut (w1) and turn the bolt counter-clockwise to raise the monitor. Use allen
wrench (t).
t
STEP 8
To adjust swivel joint tension, remove the monitor arm cover (e) and turn the bolt underneath with
the Allen key (t).
STEP 9
Use wire clips (x) to help manage wires.
t
Last Updated: 08/29/2019
If any parts are received damaged or defective, please contact us. We are happy to
replace parts to ensure you have a fully functioning product.
For more VIVO products, check out our website at:
www.vivo-us.com.
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
