Vivo STAND-LIVE1M User manual

Mobile All-In-One Livestream Multi-Mount

Floor Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-live1m

SKU: STAND-LIVE1M

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

M-B (x4)

M5x12mm

Screw

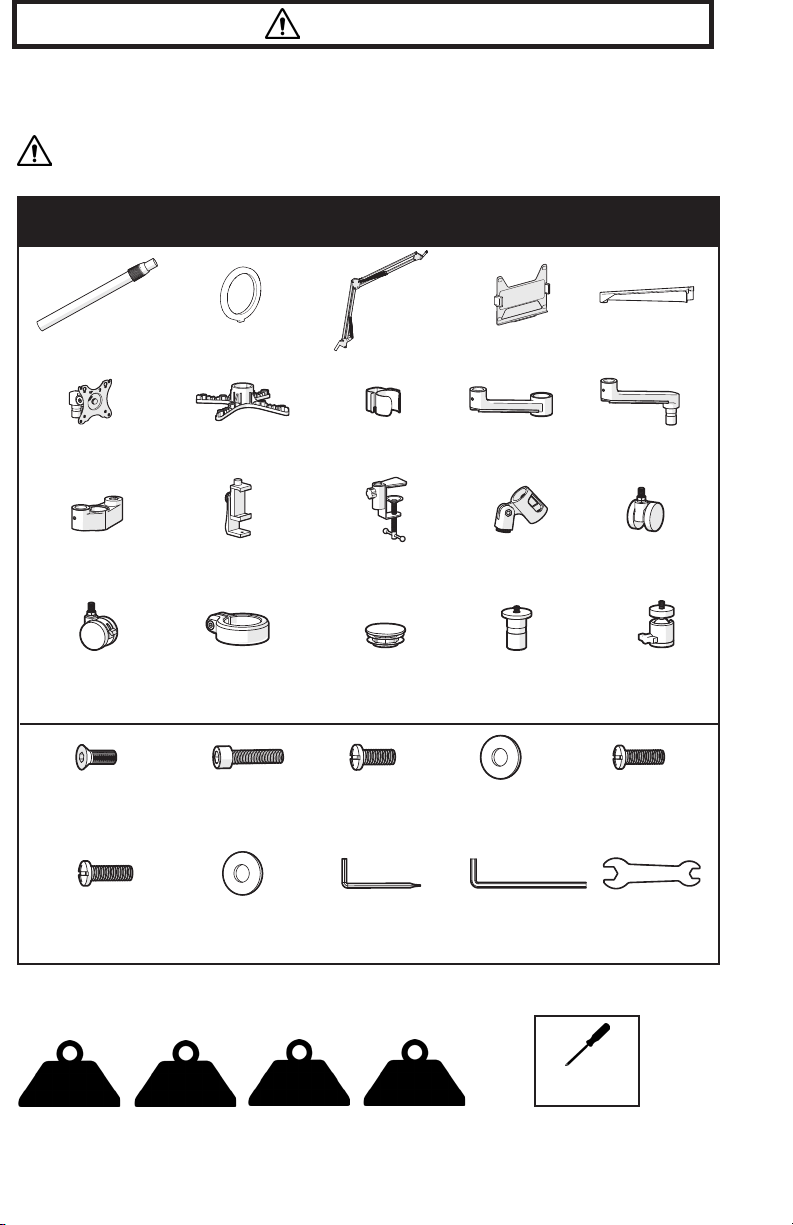

PACKAGE CONTENTS

WARNING!

A (x1)

Adjustable

Pole

B(x1)

Ring Light

C(x1)

Mic Boom

J (x4)

Upper Arm

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

Laptop Tray

E(x4)

Legs

F (x1)

VESA Plate

G(x1)

Base

H (x2)

Cable Clip

I (x2)

Lower Arm

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

K (x1)

Dual Connector

L (x1)

Phone/Tablet

Holder

M (x1)

Mic Boom

Clamp

N(x1)

Mic Mount

O (x2)

Caster

P (x2)

Locking Caster

Q (x4)

Locking Pole

Ring

R(x1)

Pole Cover

TOOLS NEEDED

6.6lbs

(3kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

2.2lbs

(1kg)

MICROPHONE CAMERA & PHONE

11lbs

(5kg)

MONITOR

11lbs

(5kg)

LAPTOP

S(x2)

Threaded

Connector

T (x2)

Ball Head

S-A (x3)

M6x20mm

Screw

S-B (x8)

M6x25mm

Screw

S-C (x4)

M4x8mm

Screw

S-D (x4)

M5 Washer

T-A (x1)

4mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

T-C (x1)

Wrench

M-A (x4)

M4x12mm

Screw

M-C (x4)

M5 Washer

Phillips

Screwdriver

ASSEMBLY STEPS

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

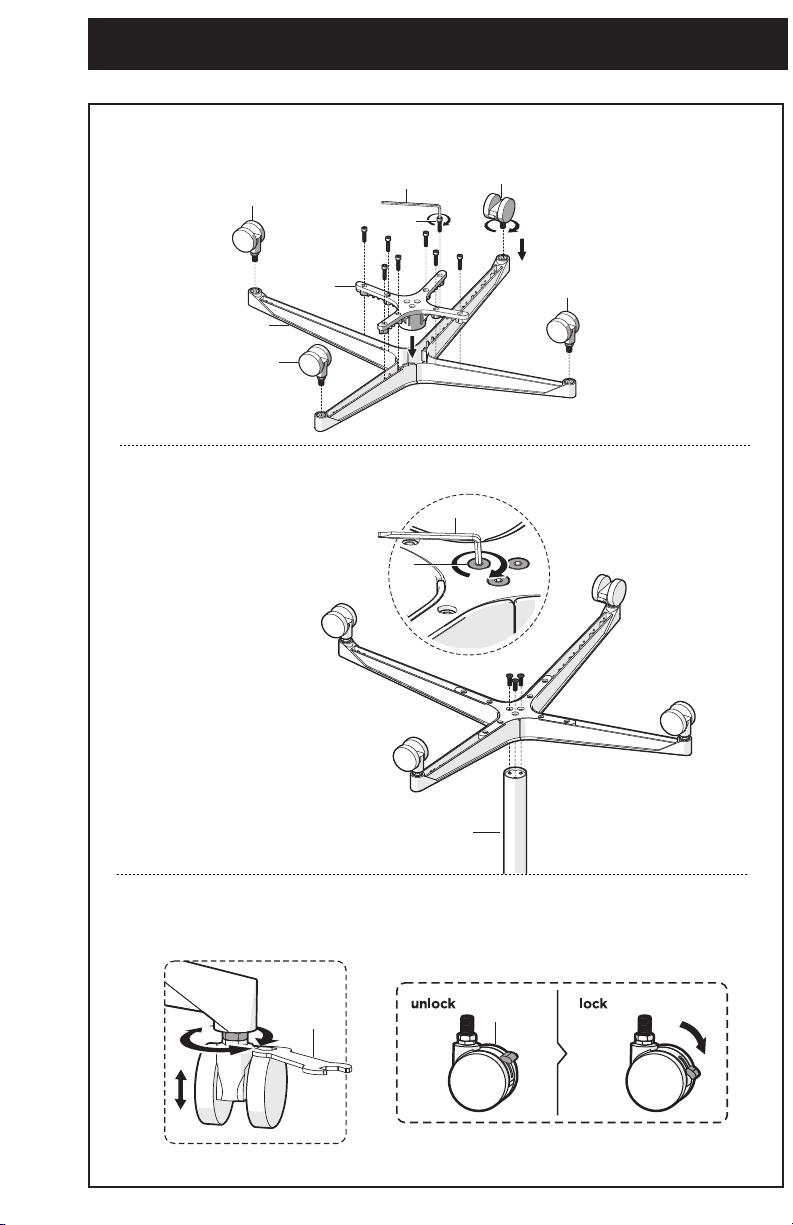

Connect Legs (E) to Base (G) using M6x25mm Screws (S-B) and 5mm Allen Wrench (T-B). Attach

Casters (O) and Locking Casters (P) to Legs (E).

STEP 1

T-A

S-A

T-B

S-B

Secure assembled base to Adjustable Pole (A) using M6x20mm Screws (S-A) and 4mm Allen

Wrench (T-A).

Turn assembly over and adjust Caster (P) height using Wrench (T-C). Use side tab on Locking

Casters (P) to lock wheels in place during assembly of stand.

T-C P

STEP 2

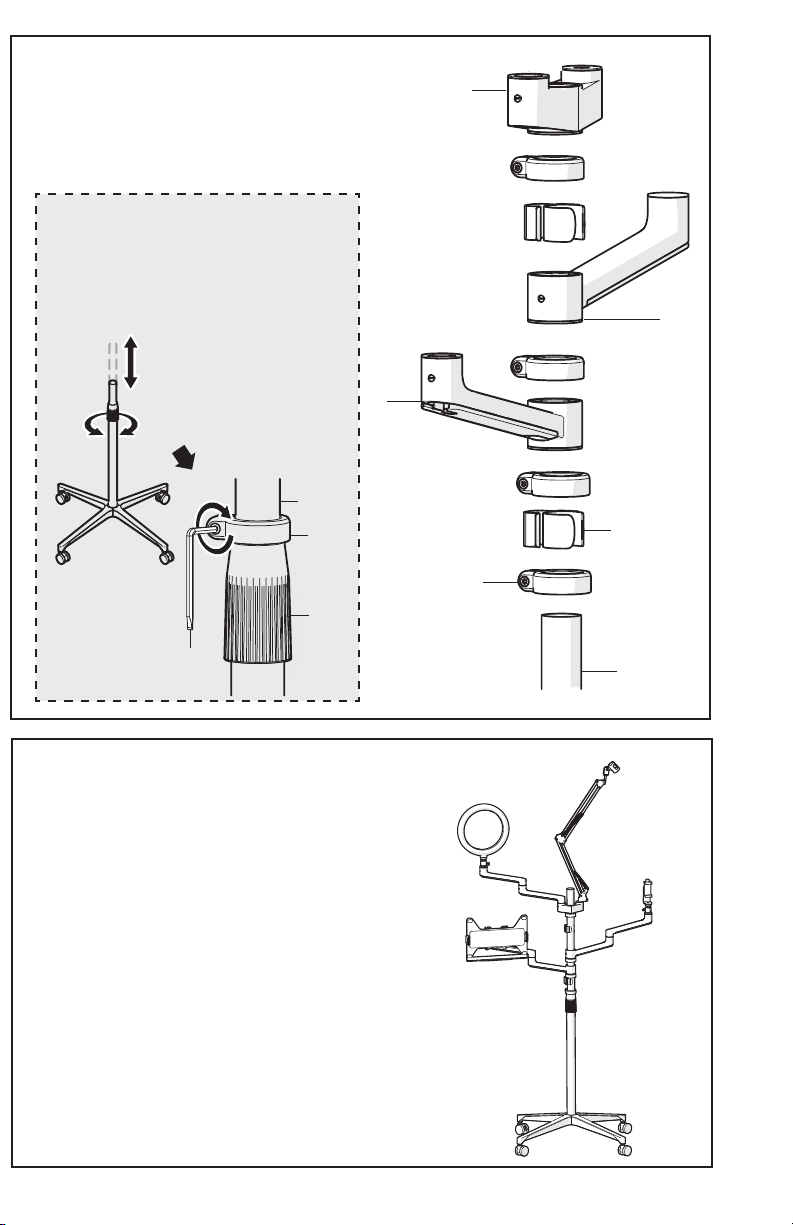

Slide Cable Clip x2 (H), Locking Pole Ring x4 (Q), Lower

Arm x2 (I), and Dual Connector (K) onto Adjustable Pole

(A) following the order shown below.

Tighten set screw of Locking Pole Ring (Q) using 4mm

Allen Wrench (T-A).

Stand can now be customized as desired

with mounting arms and accessories.

The following steps give an example of how

stand arms and accessories can be mounted.

CAUTION : Properly balance the le and right weight

distribution of the arms to prevent tipping.

Height Adjustment

Twise the Height Adjuster (A1) on Pole (A)

to raise or lower the Pole. Lock into place

by tightening the set screw on Locking Pole

Ring (Q) directly above Height Adjuster

(A1) using 4mm Allen Wrench (T-A).

T-A

STEP 3

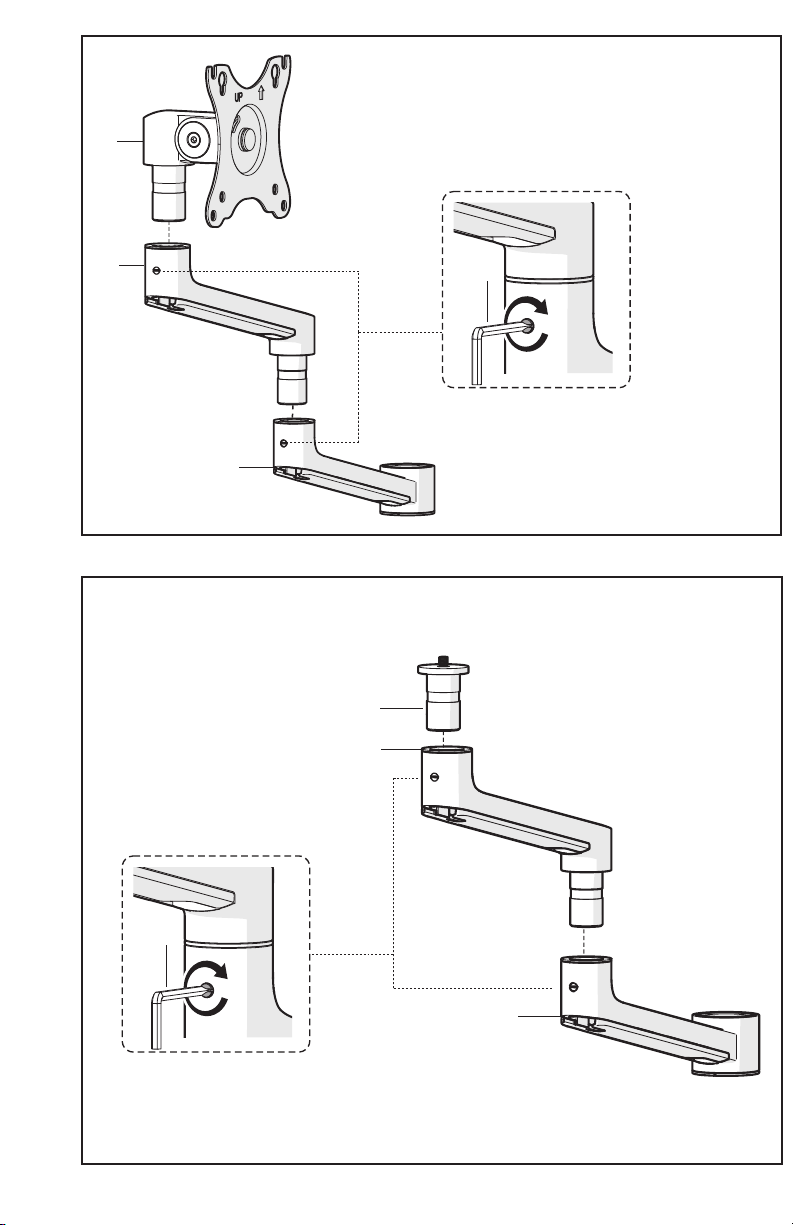

Connect Upper Arm (J) to right side Lower Arm (I), then install VESA

Plate (F) to Upper Arm (J). Secure by tightening set screws using

4mm Allen Wrench (T-A).

Attach Upper Arm (J) to le side Lower Arm (I), and secure by tightening set screws using 4mm Allen

Wrench (T-A). Insert Threaded Connector (S) into Upper Arm (J).

T-A

STEP 4

T-A

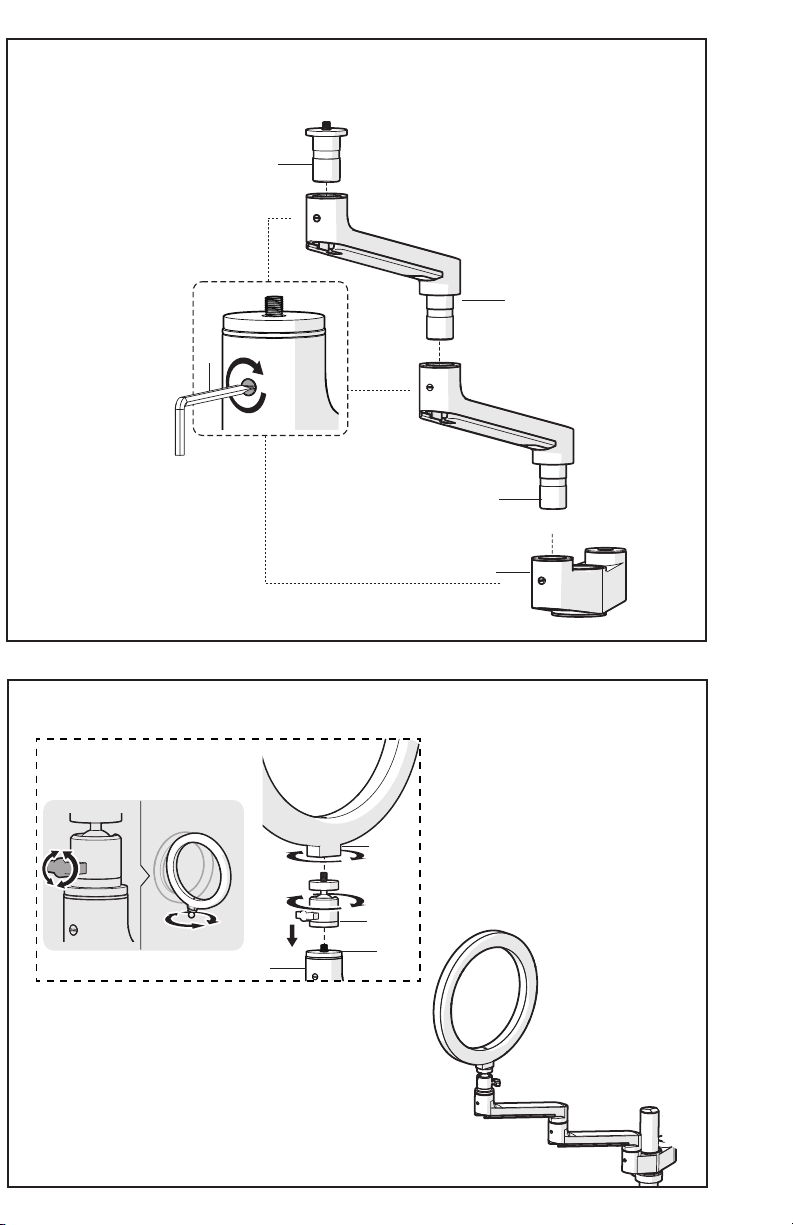

Screw Ball Head (T) onto Threaded Connector (S), then screw Ring Light (B) onto Connector.

STEP 6

STEP 5

Connect Upper Arm (J) to Dual Connector (K), then connect a second Upper Arm (J), as shown

below. Install Threaded Connector (S) to Upper Arm (J).Secure by tightening set screws using 4mm

Allen Wrench (T-A).

T-A

STEP 7

If needed, install the

5/8” Adapter, as shown.

T-A

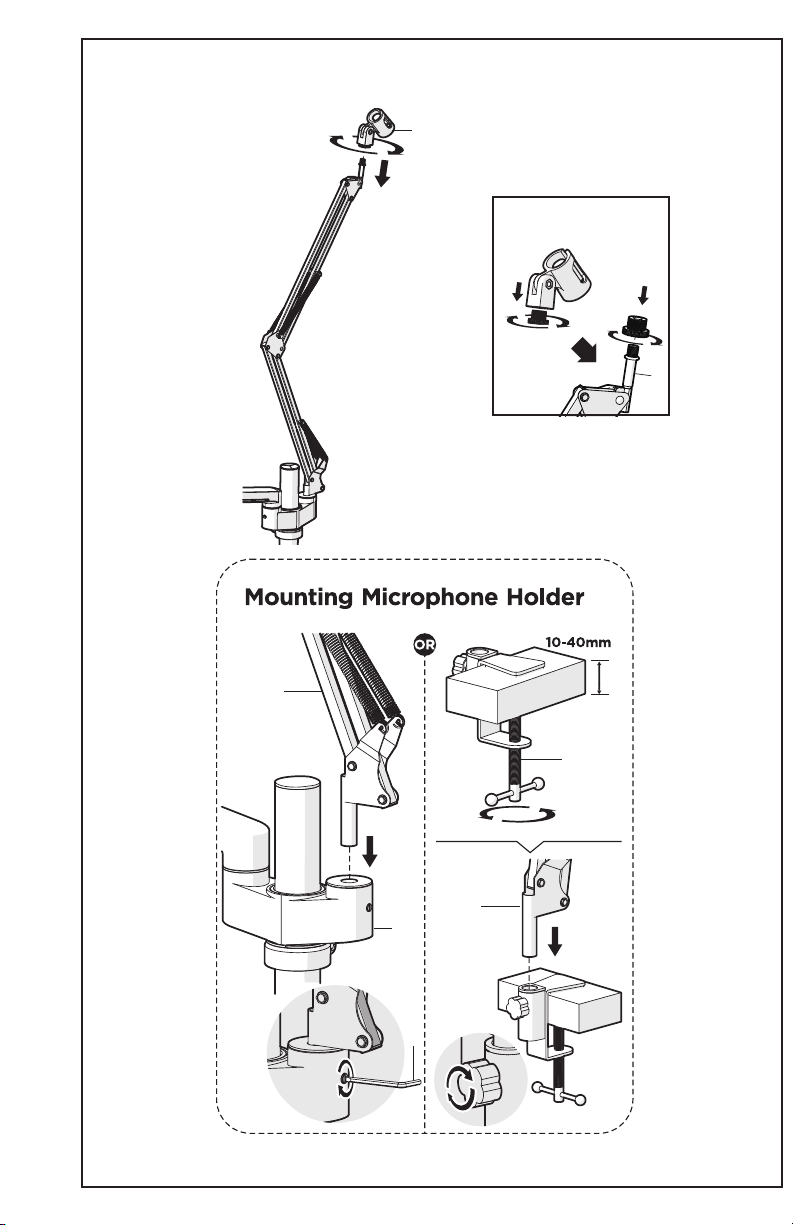

Connect Mic Boom (C) to remaining mounting hole in Dual Connector (K). Twist Mic Mount (N) onto

Mic Boom (C). Optional: Mic Boom (C) can be desk mounted using Mic Boom Clamp (M).

STEP 8

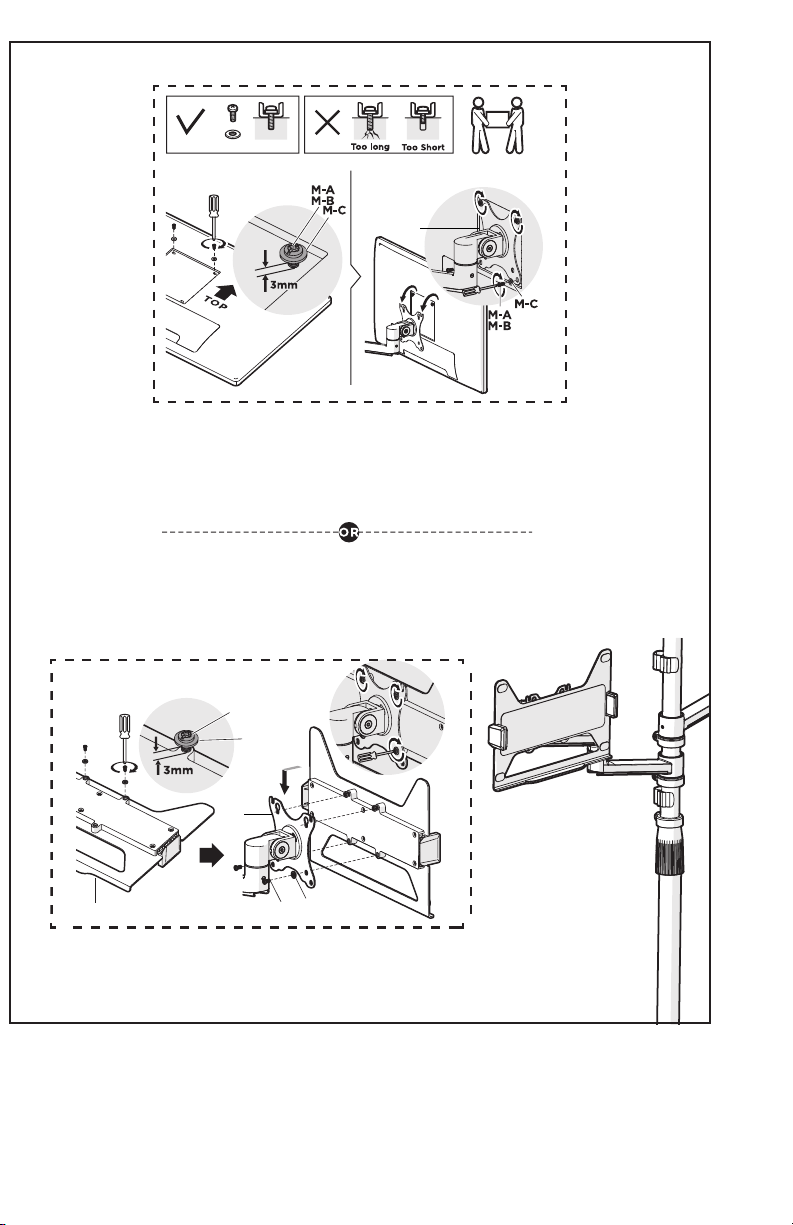

For VESA Plate (F), choose between Monitor or Laptop Holder.

Monitor: Attach Screws (M-A or M-B) and M5 Washers (M-C) in the top VESA holes on monitor,

using a Phillips screwdriver. Slide onto VESA Plate (F) and attach remaining two Screws (M-A or

M-B) and M5 Washers (M-C).

Laptop: Attach M4x8mm Screws (S-C) and M5 Washer (S-D) into Laptop Tray, partially protruding,

using Phillips screwdriver. Slide onto VESA Plate (F) and attach remaining M4x8mm Screws (S-C)

and M5 Washers (S-D).

S-C

S-D

S-CS-D

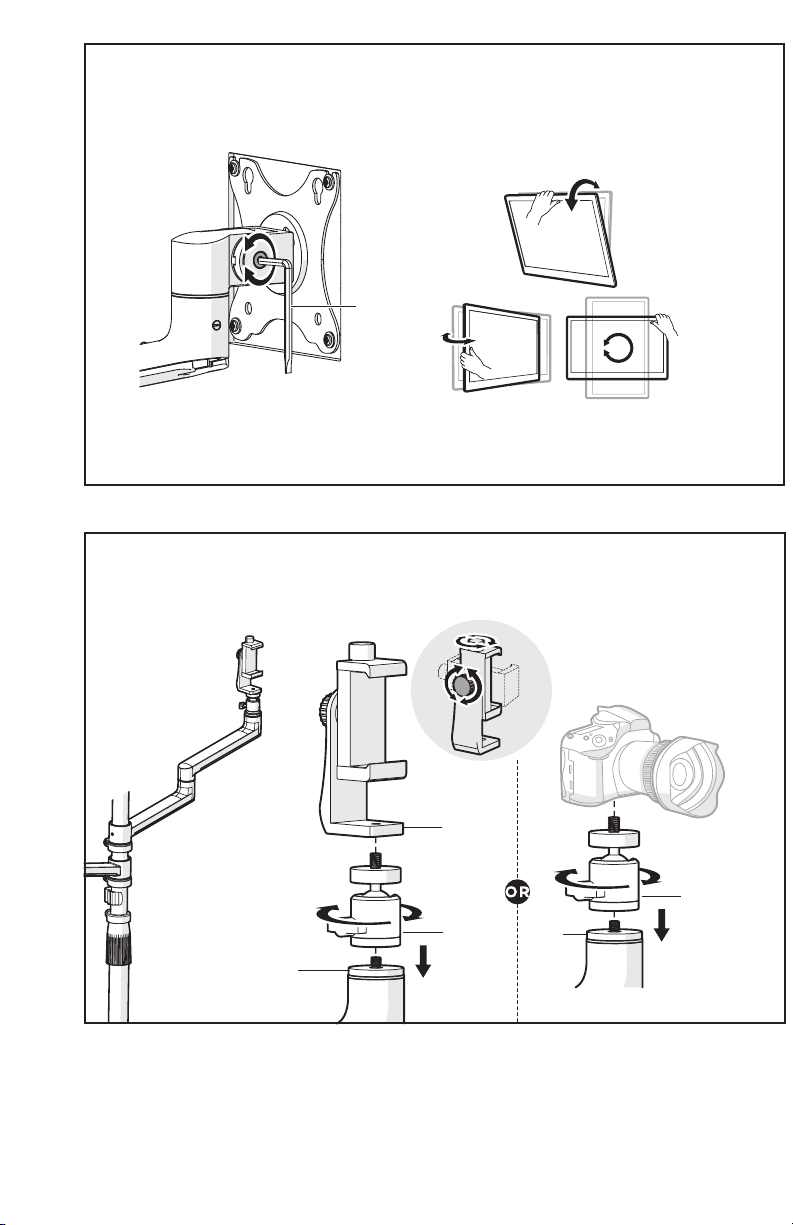

STEP 9

T-A

Twist Ball Head (T) onto Threaded Connector (S), then connect Phone/Tablet Holder (L).

NOTE: Ball Head (T) can also be used to mount cameras, and other multi-media devices.

VESA Plate (F) can be adjusted using 4mm Allen Wrench (T-A) to allow monitor to tilt, turn, and

swivel.

Optional

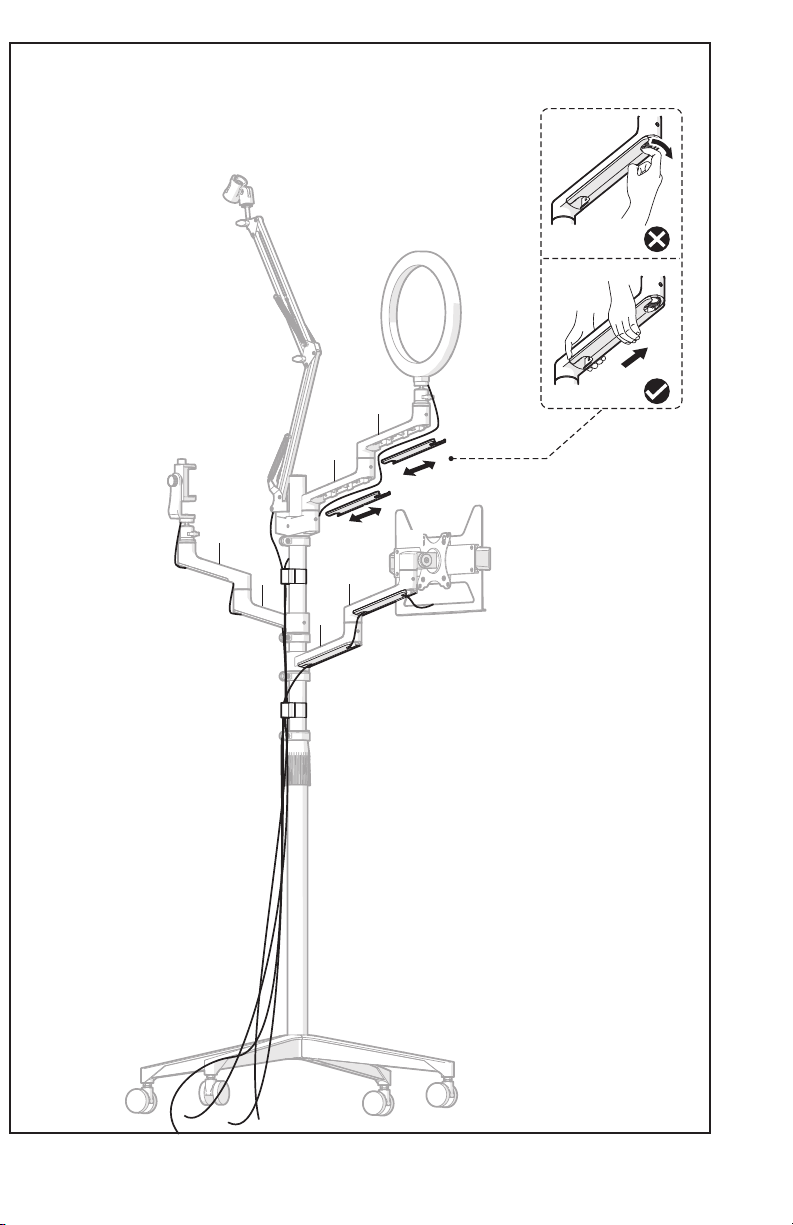

Remove bottom covers from Lower Arms (I) and Upper Arms (J) by sliding o. Organize cables

and slide covers back on.

STEP 10
