Triple Monitor Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v003m

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: STAND-V003M

2 3

ASSEMBLY STEPS

STEP 1

OPTION A: Clamp Installation

Stick so pads (I) to bottom of clamp base (D). Slide cable management clip (G) and base cover (H)

on to bottom of pole (B). Thread pole (B) onto clamp (D). Tighten grub screws in bottom of clamp (D)

using 3mm allen wrench (K). Secure clamp (D) to desktop as shown in diagram.

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

OPTION B: Grommet Base Installation

Remove screw from top of bolt in clamp (D). Stick so pads (I) to bottom of grommet base (E). Slide

cable management clip (G) and base cover (H) on to bottom pole (B). Thread bottom pole (B) onto

grommet base (E). Tighten grub screws in bottom of grommet base (E) using 3mm allen wrench

(K). Slide metal pad (J) over bolt and slide through grommet hole in bottom of desktop. Thread into

bottom of pole (B).

PACKAGE CONTENTS

A (x1)

Arm

B(x1)

Pole

C(x1)

VESA Bracket

M-A (x12)

M4x12

M (x1)

6mm Allen

Wrench

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

D(x1)

C-Clamp

E(x1)

Grommet Plate

F (x6)

Cable Clip

G(x1)

Cable Clip

H (x1)

Base Cover

L (x1)

5mm Allen

Wrench

M-C (x12)

D5 Washer

M-B (x12)

M5x12

J (x1)

Support Plate

I (x5)

So Pad

K (x1)

3mm Allen

Wrench

I

10-88mm

K

G

H

D

B

DE

I

10-8 0 mm

G

H

J

K

B

17.6 lbs

Per Arm

(7.98 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

4 5

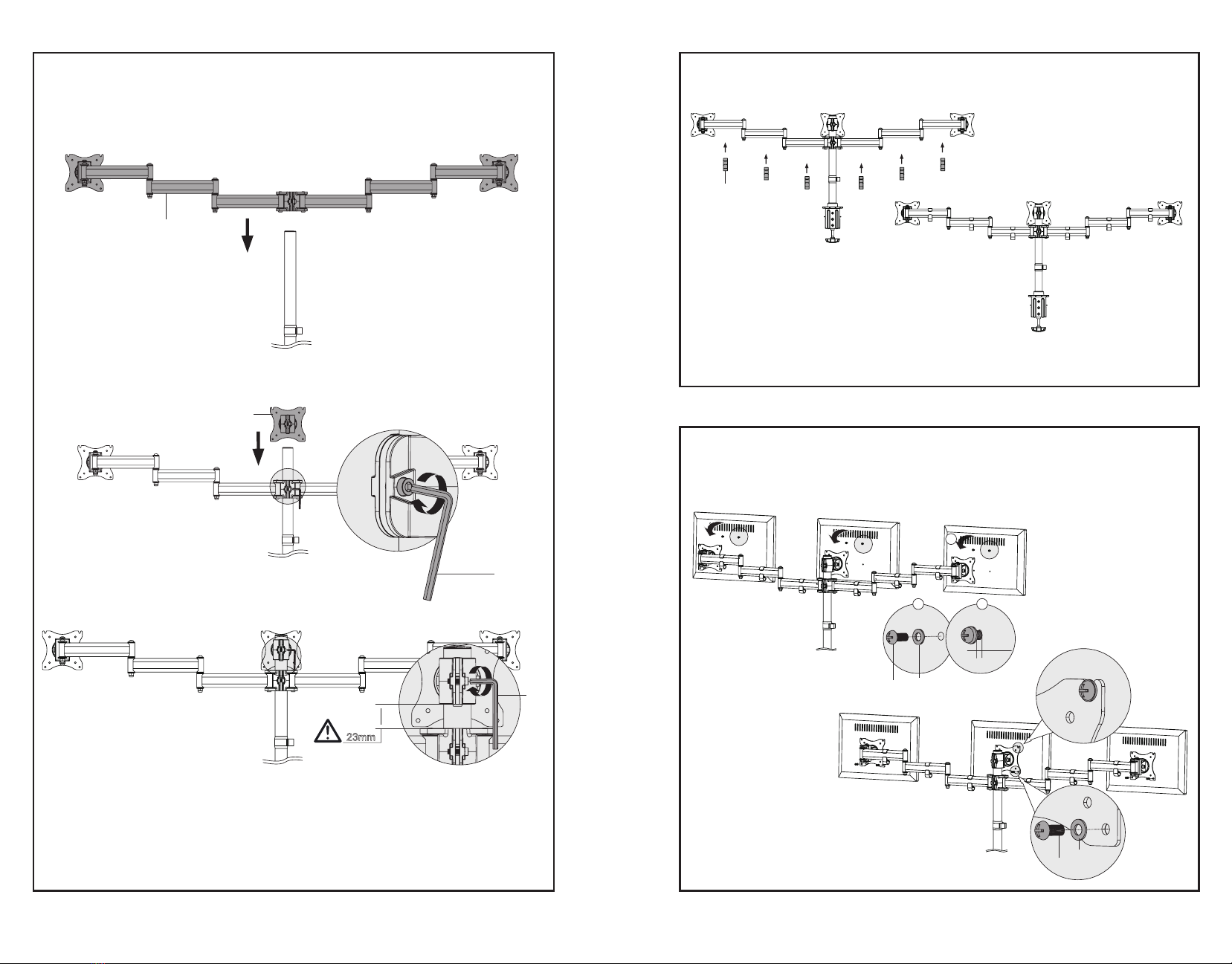

STEP 2

Slide arm (A) and bracket (C) over top of pole and tighten using 5mm allen wrench (L).

STEP 3

Attach cable management clips (F) as shown in diagram.

STEP 4

Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of monitor, making sure

to leave 3mm of threads exposed. Align bolts (M-A or M-B) in VESA plate. Secure using two more

bolts (M-A or M-B) and washers (M-C) in the bottom two holes. Tighten all four bolts using phillips

screwdriver.

C

A

L

23mm

L

F

M- A

M- B

M- C

12

3m m

3

M- A

M- B

M- C

6 7

STEP 5 STEP 7

STEP 6

Store allen wrenches (M, L) in cable management clip (G) for future adjustment.

Adjust tension in monitor bracket with 6mm allen wrench (M) as shown in diagram. Adjust height of monitors using 5mm allen wrench (L) as shown in diagram.

+45°

-45°

M

L

M

L

Last Updated: 11/06/2018

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.
