Vivo STAND-V004P User manual

Quad Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v004p

SKU: STAND-V004P

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

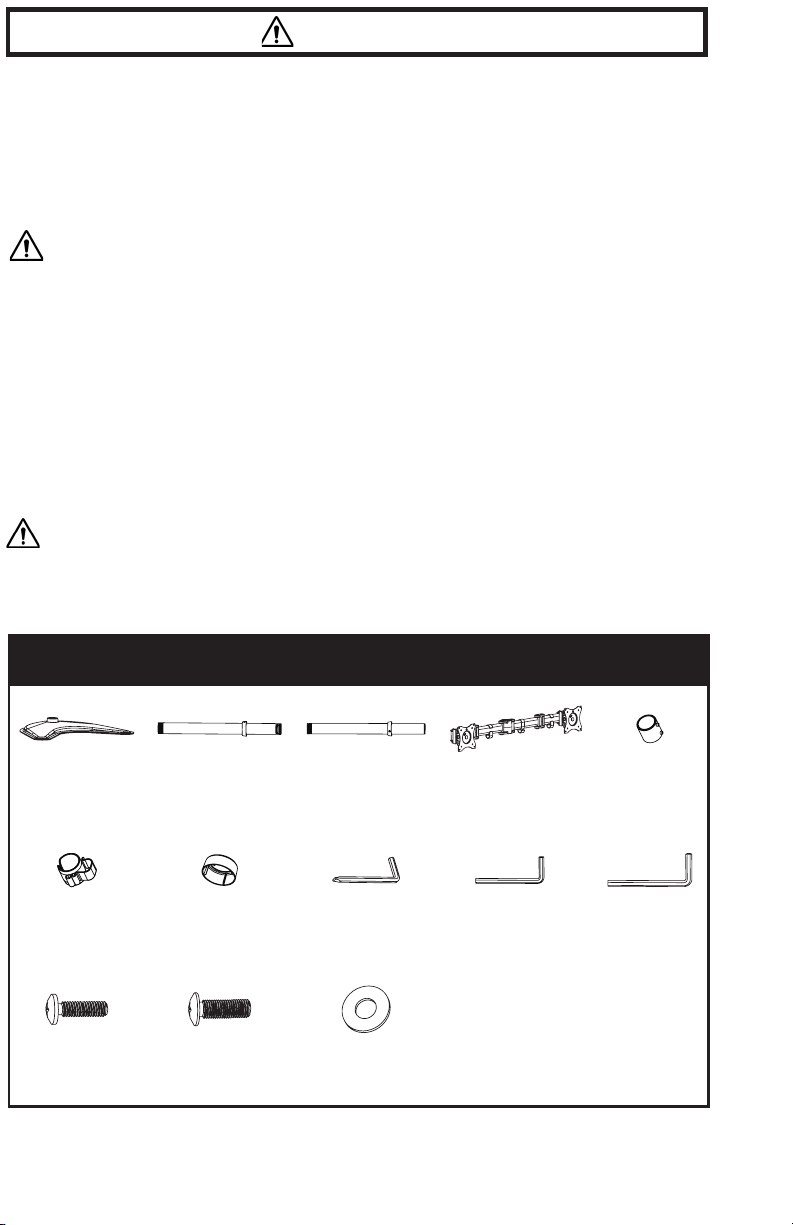

PACKAGE CONTENTS

WARNING!

A (x1)

Base

B(x1)

Pole

C(x1)

Pole

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D (x2)

Arm

E (x1)

Pole Adapter

F (x2)

Cable Clip

G (x1)

Cover

H (x1)

3mm Allen

Wrench

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-C (x16)

D5 Washer

I (x1)

5mm Allen

Wrench

J(x1)

6mm Allen

Wrench

M-B (x16)

M5x12

M-A (x16)

M4x12

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

3

ASSEMBLY STEPS

TOOLS NEEDED

Phillips

Screwdriver

STEP 1

STEP 2

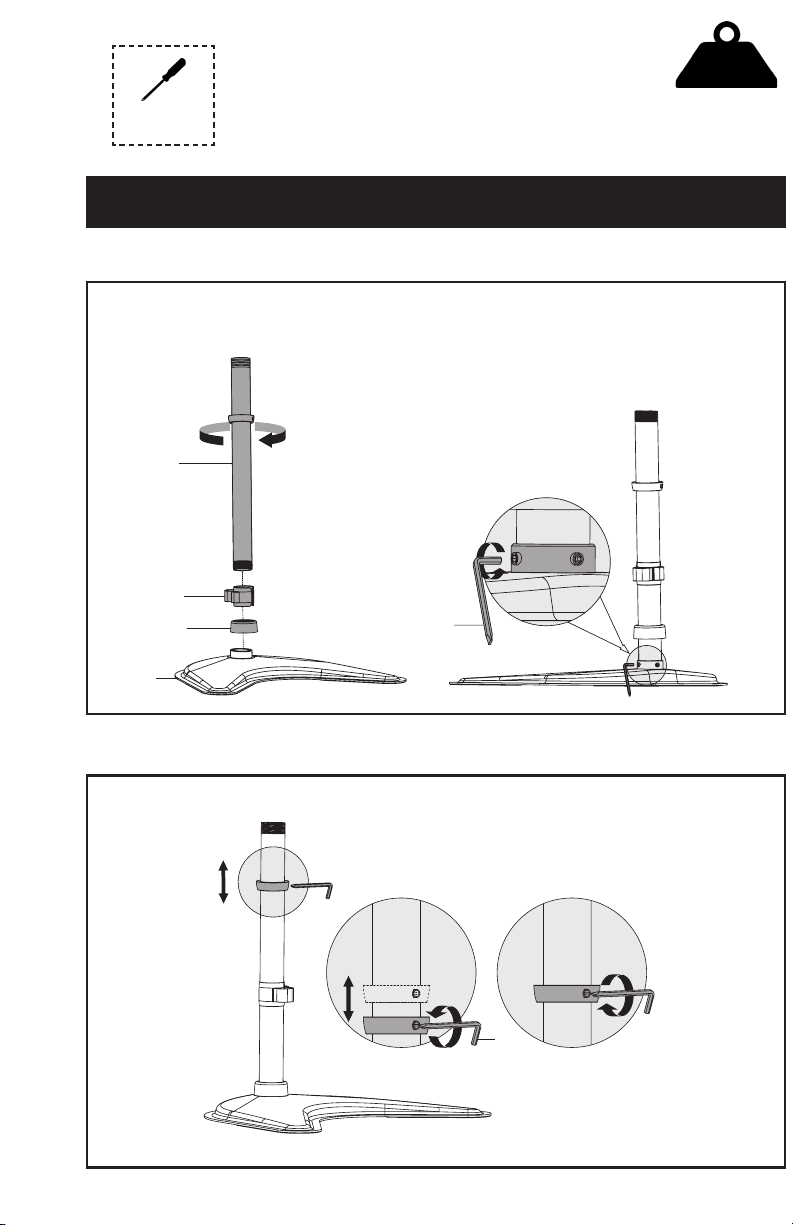

Slide one cable management clip (F) and cover (G) onto pole (B) from bottom. Thread pole (B) into

base (A). Tighten grub screws at base using 3mm allen wrench (H). Slide cover down.

Adjust stopper at desired height using 3mm allen wrench (H).

B

F

GH

A

H

17.6lbs

(8 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

4

STEP 3

STEP 4

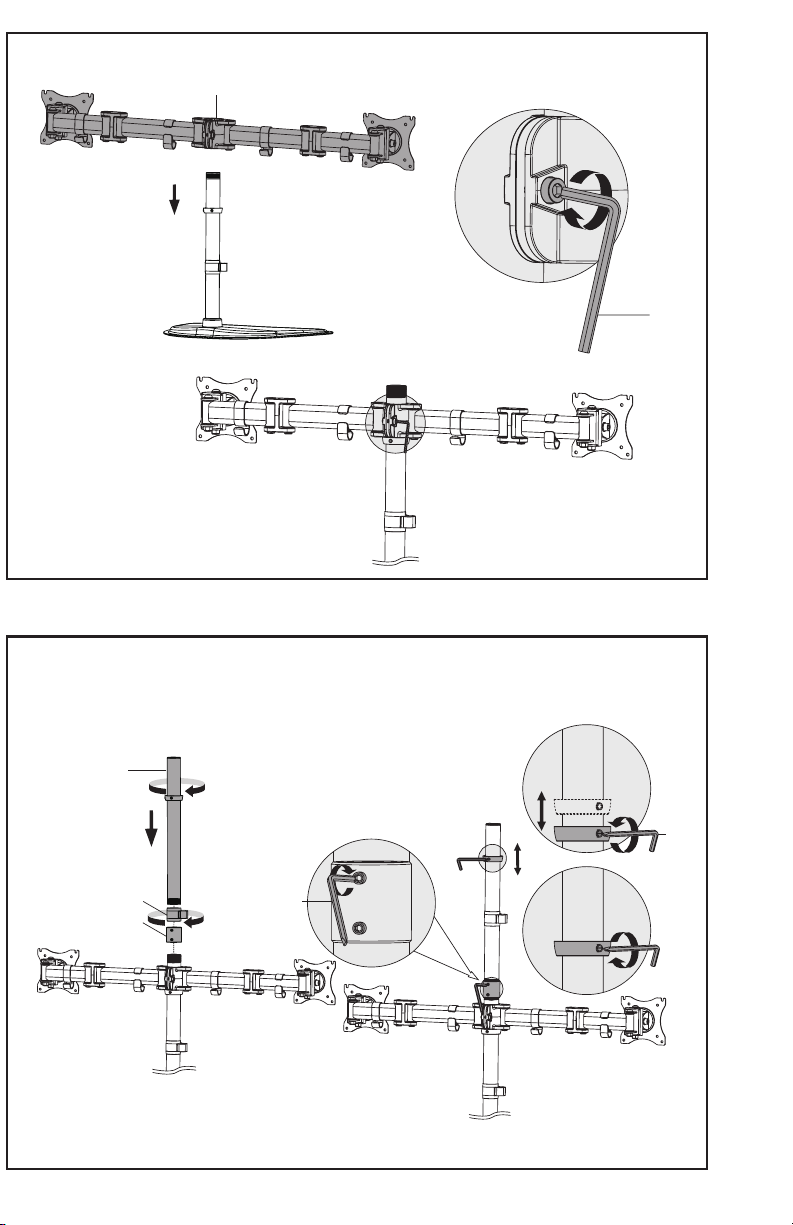

Slide arm (D) onto pole (B). Tighten with 5mm allen wrench (I).

Thread pole adapter (E) onto pole (B). Slide cable management clip (F) onto pole (C) from bottom.

Thread pole (C) into pole adapter (E). Tighten grub screws in pole adapter (E) with 3mm allen wrench

(H). Adjust stopper as desired using 3mm allen wrench (H).

I

D

F

E

C

H

H

5

STEP 5

STEP 6

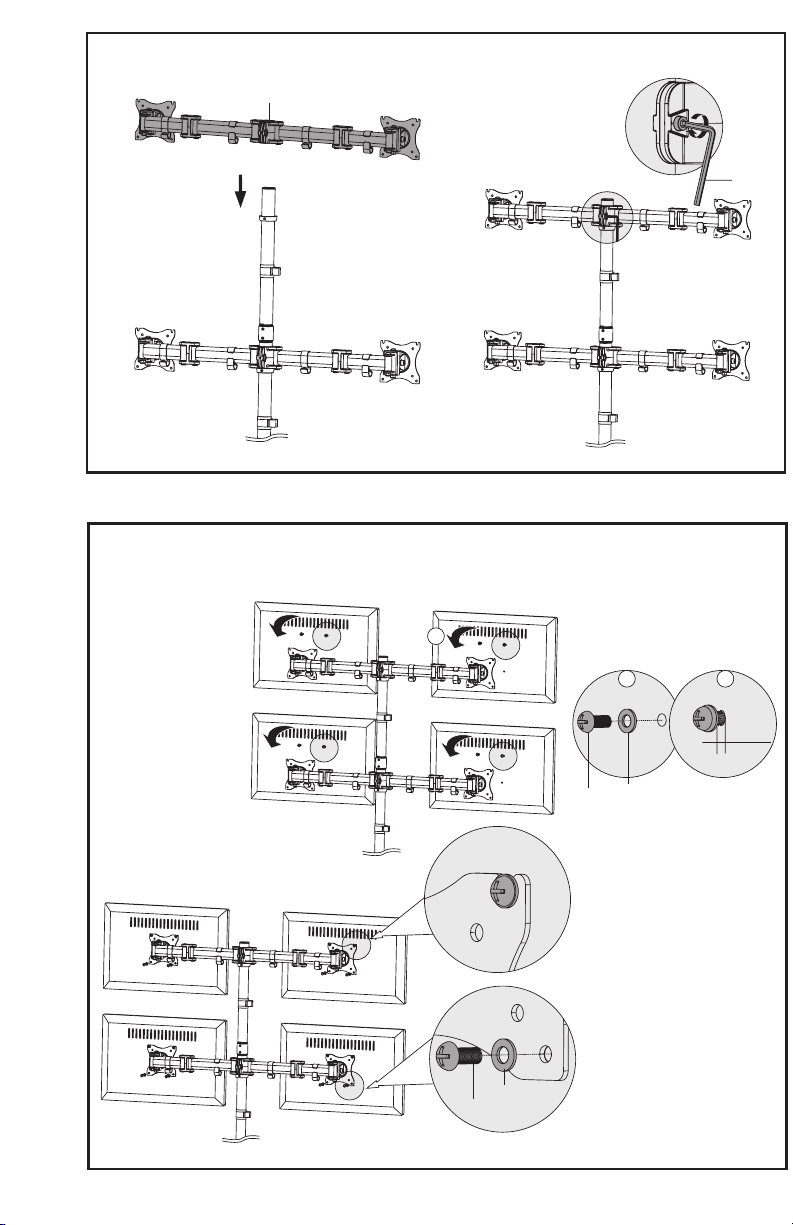

Slide arm (D) onto pole (C). Tighten with 5mm allen wrench (I).

Insert screws (M-A or M-B) with washers (M-C) into top 2 holes of monitors. Leave slightly loosened.

Slide monitors onto VESA Plates from above. Insert screws (M-A or M-B) with washers (M-C) into

bottom 2 holes of monitors. Tighten all screws.

D

I

M- A

M- B

M- C

1 2

3m m

3

M- A

M- B

M- C

6

STEP 7

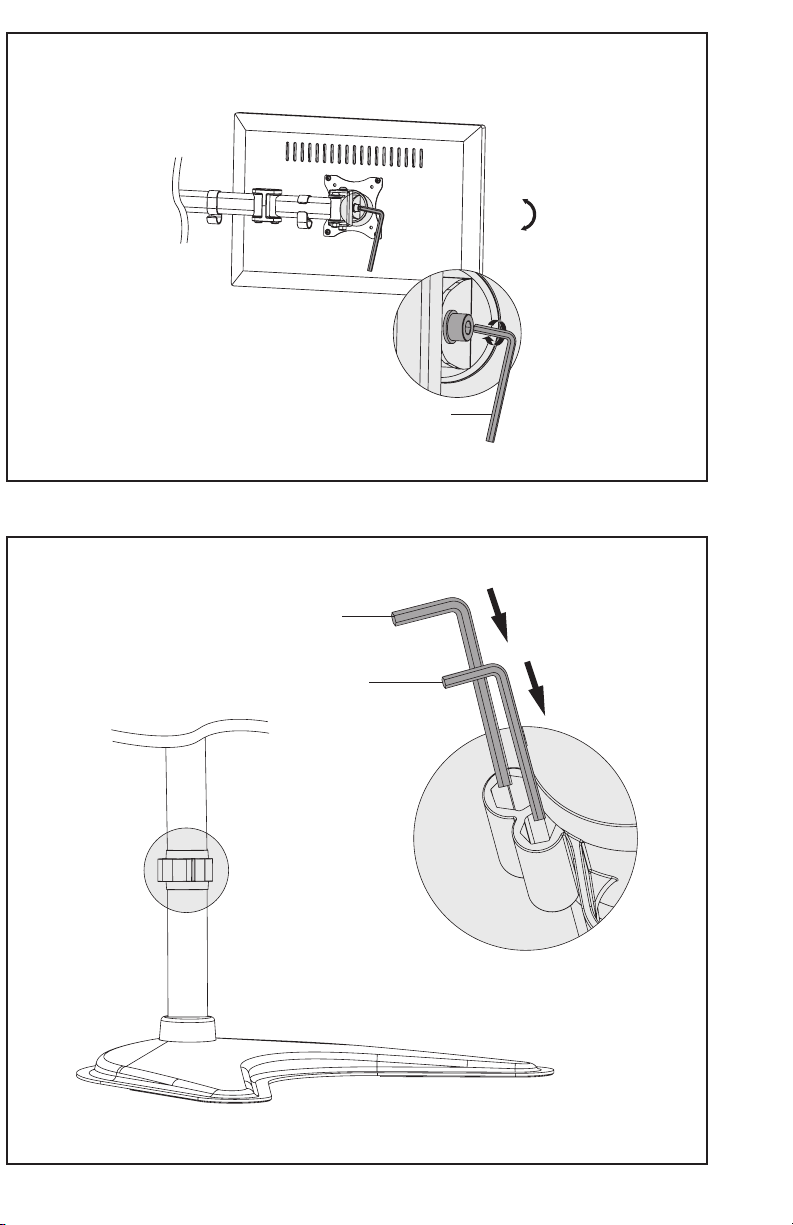

Adjust the tilt angle of the monitors. If the weight of the monitors is not supported, tighten joints with

6mm allen wrench (J) as shown in diagram.

STEP 8

Store allen wrenches (H, I, J) as shown in diagram.

+45 °

-45°

J

I

J

7

STEP 9

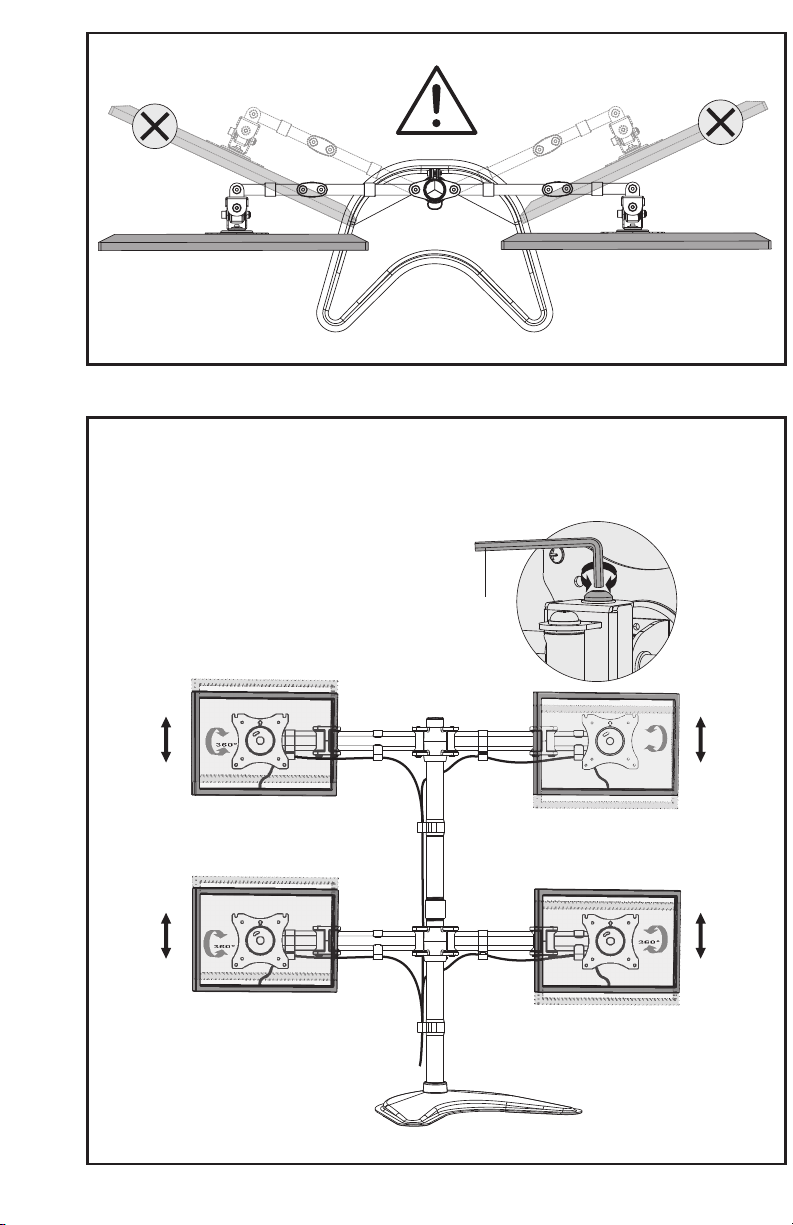

Do not push monitors too far back.

STEP 10

If monitor heights are not aligned, turn the screw behind each VESA plate using the 5mm allen wrench

(I). Clockwise will raise the monitor and counter-clockwise will lower the monitor.

I

360°

360°

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M
