Vivo STAND-V012/W User manual
Dual Monitor Extra Tall Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v012
SKU: STAND-V012/W
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

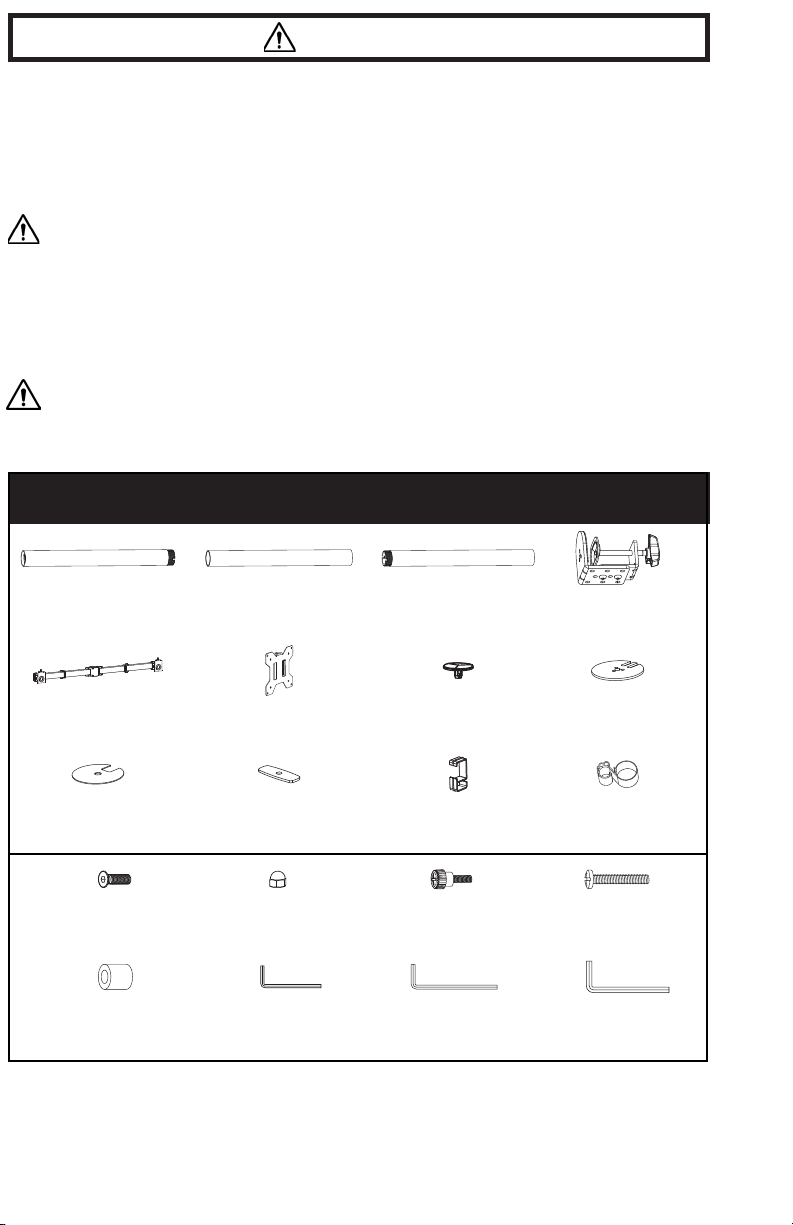

PACKAGE CONTENTS
WARNING!
A (x1)
Bottom Pole
E (x1)
Arm
F (x2)
VESA Plate
G (x1)
Pole Cover
H (x1)
Grommet Plate
I (x1)
So Pad
S-A (x3)
M6x16mm Screw
T-A (x1)
3mm Allen Wrench
T-B (x1)
5mm Allen Wrench
T-C (x1)
6mm Allen Wrench
S-B (x2)
M6 Security Nut
M-A (x8)
M4x12mm Thumbscrew
M-B (x8)
M4x30mm Screw
M-C (x8)
Spacer
J (x1)
Support Plate
K (x4)
Arm Cable Clip
L (x3)
Pole Cable Clip
B (x1)
Middle Pole
C (x1)
Top Pole
D (x1)
Clamp
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
3
ASSEMBLY STEPS
TOOLS NEEDED
Phillips
Screwdriver
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.

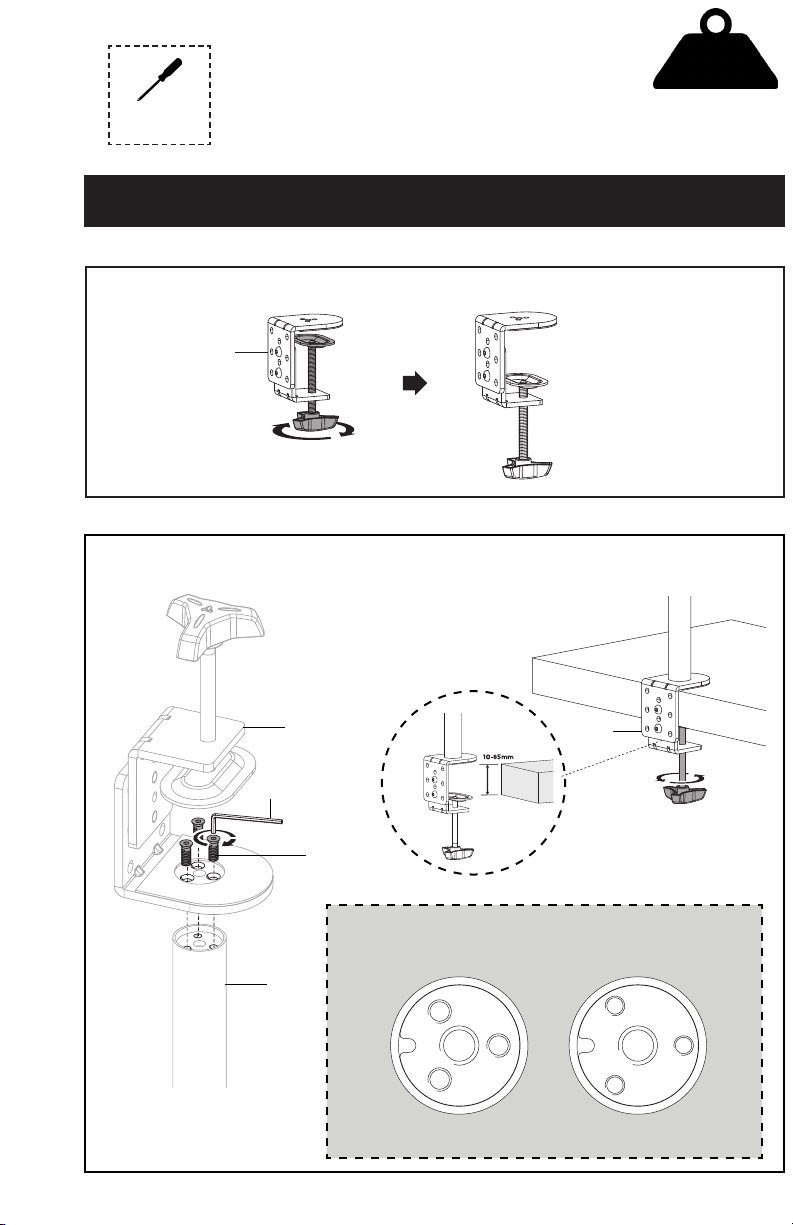

STEP 1
Fully loosen the knob on Clamp (D).
D
Per Arm
Connect Clamp (D) to Lower Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A).
Place assembly on desktop and secure by tightening knob on Clamp (D).
T-A
S-A
DD
A
STEP 2: Option A - Desk Clamp
Lower Pole (A) & Upper Pole (C) may look similar. To dierentiate,
match the hole pattern to images below. The holes on Lower Pole (A)
are spaced closer together than Upper Pole (C).
Lower Pole Upper Pole
(A) (C)
4

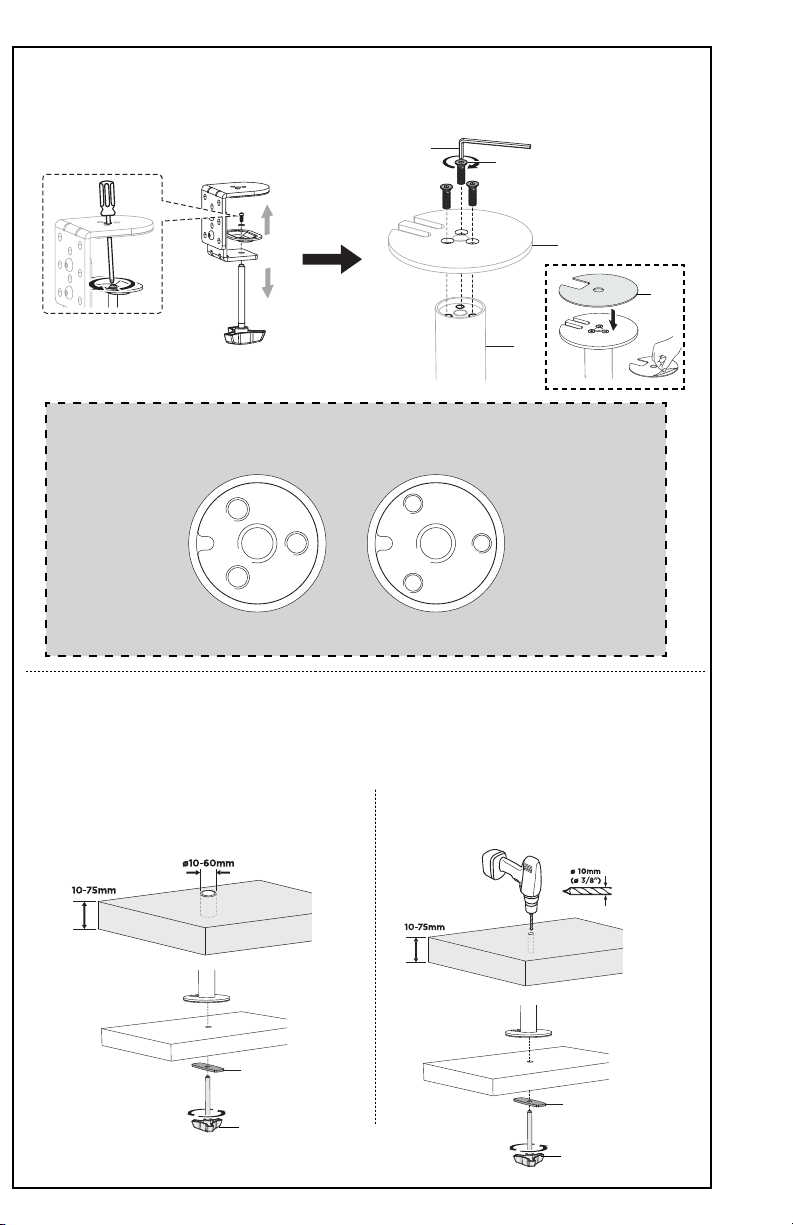

STEP 2: Option B - Grommet
Using a phillips screwdriver, remove the screw from Clamp (D) and disassemble. Set Knob (D1)
aside. Connect Grommet Plate (H) to Bottom Pole (A) using M6x16mm Screws (S-A) and 3mm Allen
Wrench (T-A). Remove adhesive backing from So Pad (I) and adhere to Grommet Plate (H).
Place the pole assembly over grommet hole in desk, and connect using Support Plate (J) and
previously removed Knob (D1) from underneath desk, as shown. Secure by tightening Hand Bolt
(D1). For desktops without an existing gromment hole, use a 3/8” (10mm) drill bit to drill through
desktop, then secure assembly as previously described.
J
J
D1
D1
EXISTING
GROMMET HOLE
DRILLING A
GROMMET HOLE
A
H
S-A
I
T-A
Lower Pole (A) & Upper Pole (C) may look similar. To dierentiate,
match the hole pattern to images below. The holes on Lower Pole (A)
are spaced closer together than Upper Pole (C).
Lower Pole Upper Pole
5

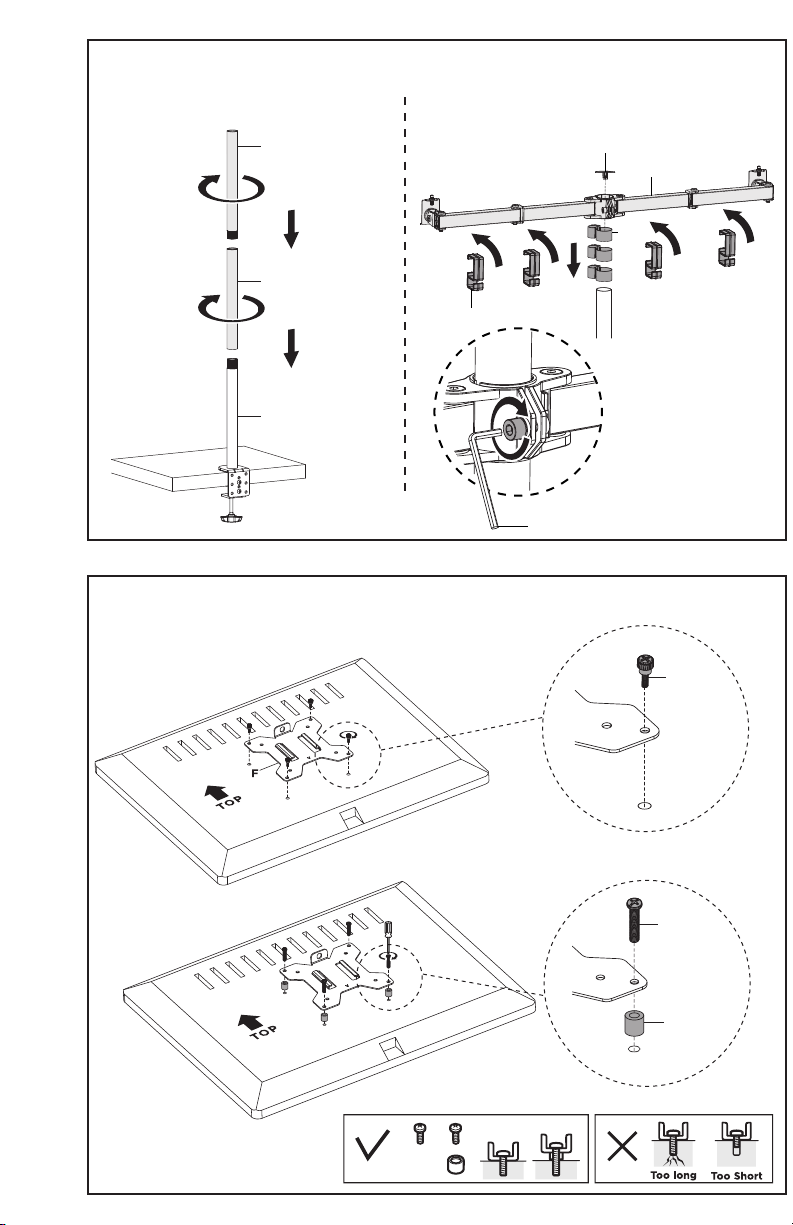

STEP 3
Install Middle Pole (B) and Top Pole (C) to Bottom Pole (A). Slide Pole Cable Clips (L) and Arm (E) onto
assembled pole and tighten with 6mm Allen Wrench (T-C). Insert Pole Cap (G) into Top Pole (C). Attach
Arm Cable Clips (K) to Arm (E).
B
A
CG
E
K
L
T-C
STEP 4
Install VESA Plates (F) to back of monitors using appropriate screws (M-A, M-B) and Spacers (M-C).
M-A
M-B
M-C
6

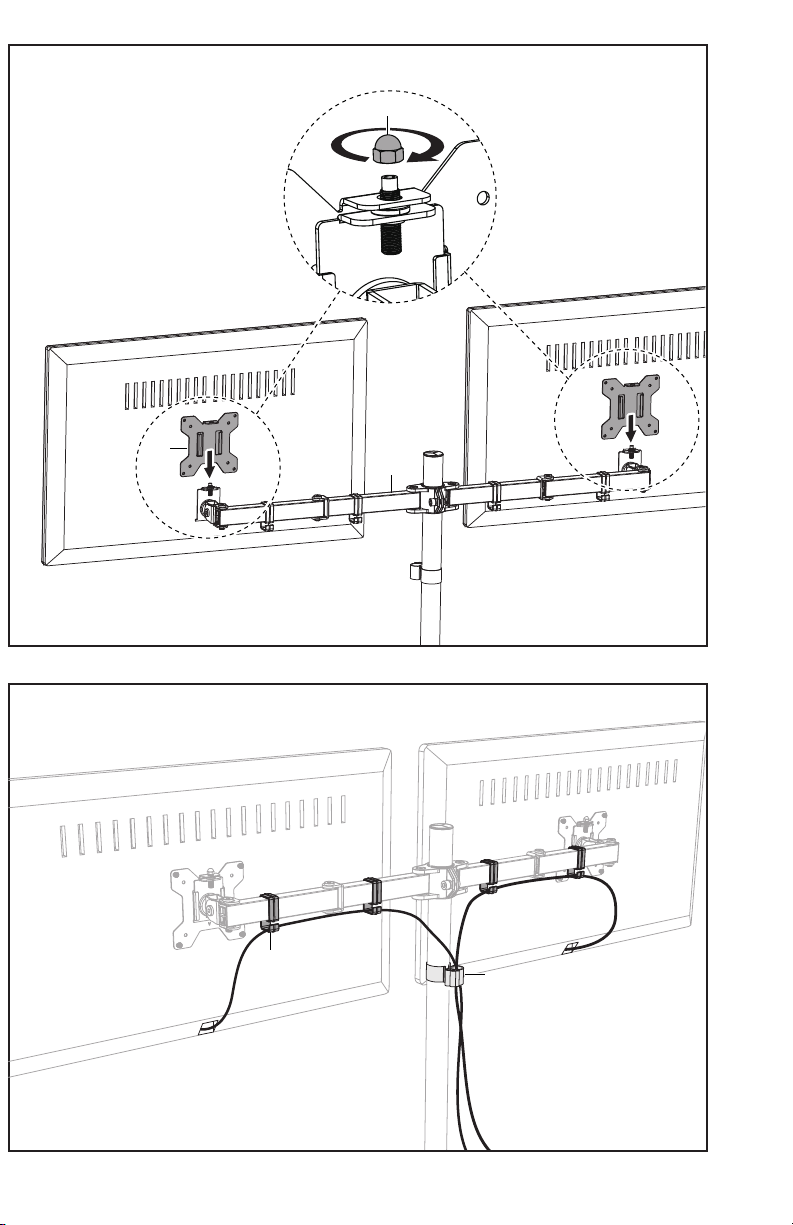

STEP 5
Place VESA Plates (F) with monitors on Arm (E) and secure with M6 Security Nuts (S-B).
E
STEP 6
Use Pole Cable Clips (L) and Arm Cable Clips (K) to manage cables as needed.
K
S-B
LL
F
7

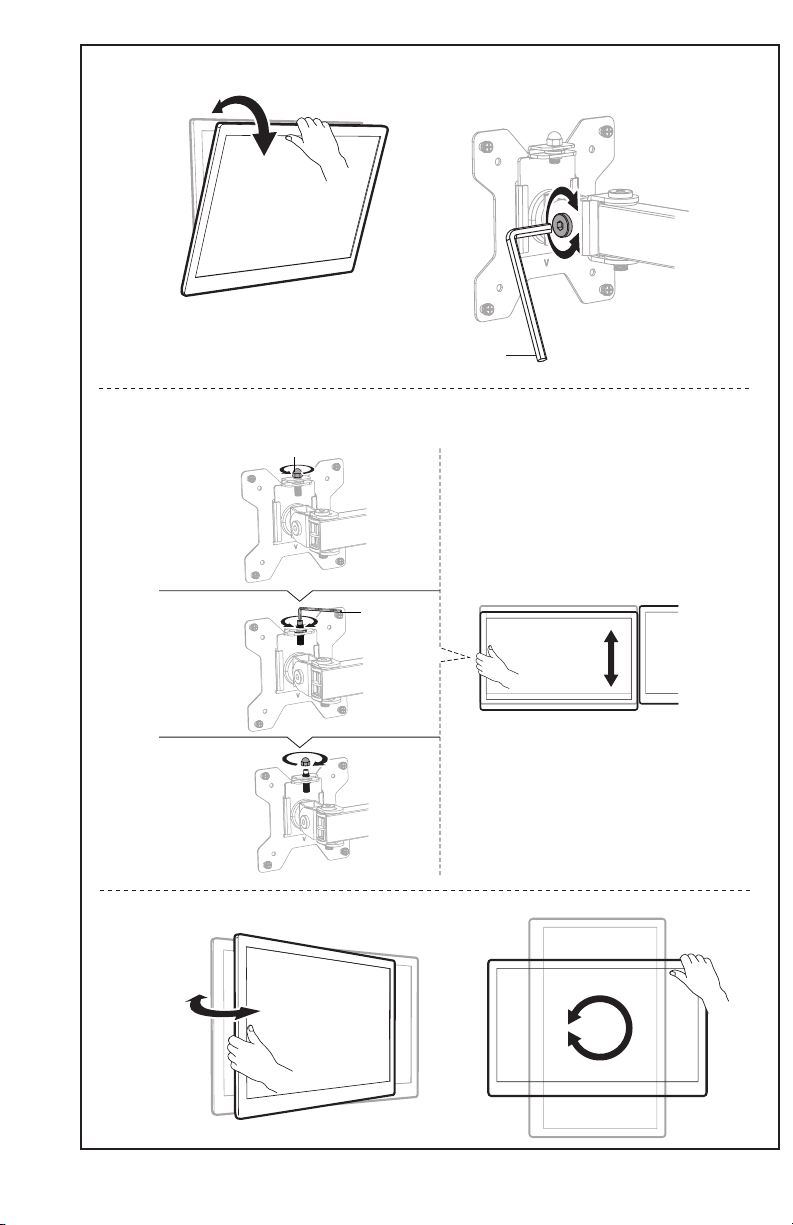

STEP 7
Adjust the monitor tilt using 5mm Allen Wrench (T-B). Adjust as desired.
To level the monitors with each other, remove M6 Security Nut (S-B) and use 3mm Allen Wrench
(T-A) to loosen security screw. Adjust as desired. Replace M6 Security Nut (S-B).
T-B
S-B
T-A
LAST UPDATED: 11/17/2022
REV1.1L
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
