Vivo STAND-V102D User manual
Dual Monitor Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v102d
SKU: STAND-V102D
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
PACKAGE CONTENTS
a (x1)
Pole
b(x1)
Clamp
c(x1)
Clamp Brace
j (x1)
Support Plate
d(x1)
Swivel Arm
e(x2)
VESA Plate
f (x3)
M5x14
g(x2)
M8x12
h (x2)
M4x6
i (x1)
M10
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
k (x1)
M10 Washer
n1 (x1)
Wire Clip
o(x1)
Allen Key Set
p (x1)
Wrench
l (x1)
Spring Washer
m (x1)
Grommet
Base Plate
s (x8)
M4 Spacer
q (x8)
M4x12
r (x8)
M4x30
t1 (x1)
So Pad
t2 (x1)
So Pad
n2 (x2)
Wire Clip
3
ASSEMBLY STEPS
TOOLS NEEDED
Phillips
Screwdriver
OPTION A: Clamp Installation
Install the “C” Clamp (b) to the Pole (a) using M5x14
Bolts (f), and tighten using the Allen Key (o). Attach
So Pad (t1) to the “C” Clamp Brace (c). Install the
“C” Clamp (b) to the pole assembly according to
the thickness of the desktop. The thickness can
be changed to three positions. Connect it using
M8x12 Bolts (g), and tighten using the Allen Key (o).
Tighten the “C” Clamp (b) to the desktop using the
plastic knob.
STEP 1
OPTION B: Grommet Base Installation
If the existing grommet hole comes with a plastic
protector, remove it to ensure a flat surface before
installing the desk mount. Install the Grommet
Base Plate (m) to the Pole (a) using M5x14 Bolts
(f), and tighten using the Allen Key (o). Attach So
Pad (t2) to the Grommet Base Plate (m). Position
the Pole (a) on the mounting surface and secure
using the Support Plate (j), M10 Washer (k), Spring
Washer (l) and M10 Bolt (i). Fasten the M10 Bolt
using provided Wrench (p).
g
o
b
Plasti c Knob
t1
Figure 2
a
c
f
Figure 1
Figure 3
22 lbs
(10 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
PER ARM
Drill
4
STEP 1 (Continued)
STEP 2
Install Swivel Arm (d) to the Pole (a). Fasten the bolt with supplied Allen Key (o). Attach the Wire Clip
(n1,n2) to the Pole (a) and Swivel Arm (d).
j
i
k
l
a
m
f
Figure 7
Figure 9
t2 Figure 8
d
o
n1
n2
OPTION C: Self-Drilled Grommet Base
Installation
Position the Pole (a) on the mounting
surface and mark the center hole. Drill a
3/8” (10mm) diameter hole at the marked
position through the mounting surface.
Install the Grommet Base Plate (m) to
the Pole (a) using M5x14 Bolts (f), and
tighten using the Allen Key (o). Attach So
Pad (t2) to the Grommet Base Plate (m).
Position the Pole (a) on the mounting
surface and secure using the Support Plate
(j), M10 Washer (k), Spring Washer (l) and
M10 Bolt (i). Fasten the M10 Bolt using
provided Wrench (p).
5

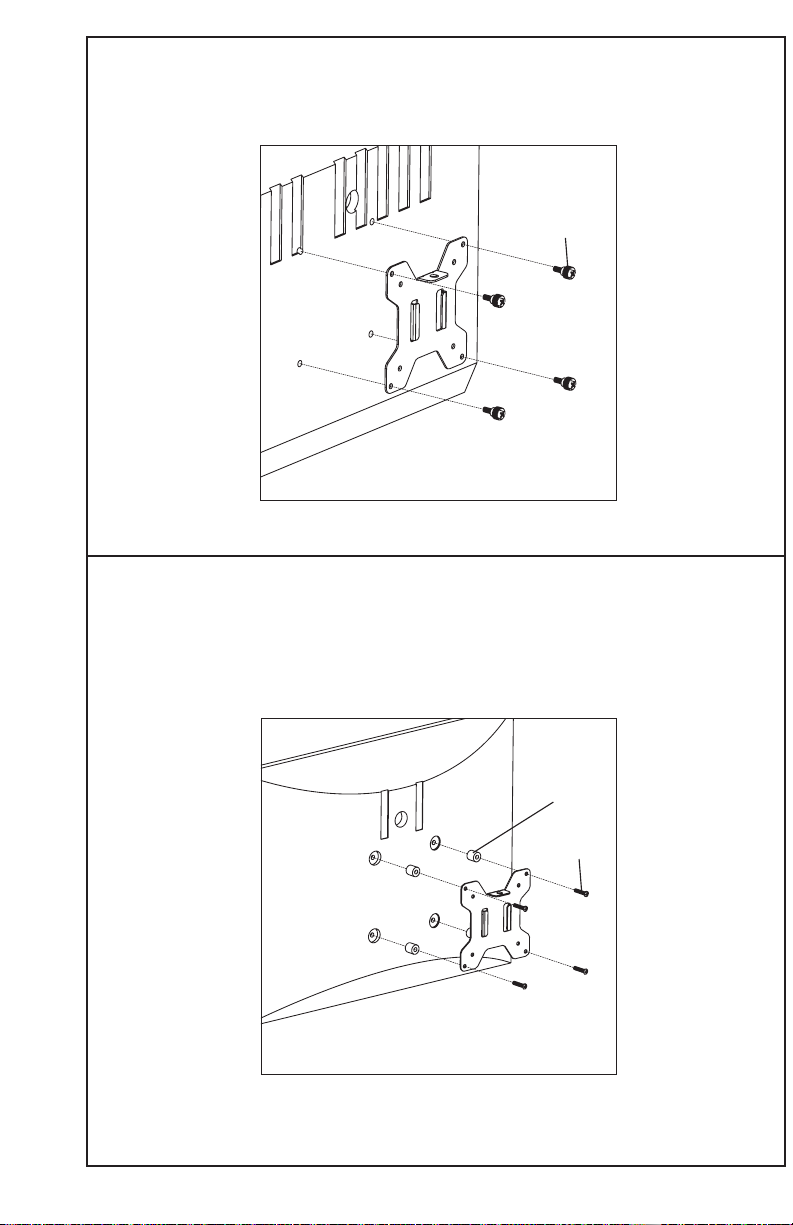

STEP 3
OPTION A: Flat Back Monitor
For flat back monitor, install VESA plate (e) to monitor using bolts (q).
OPTION B: Curved Back Monitor
For curved back monitor, install VESA plate (e) to monitor using bolts (r) and spacers (s).
q
s
r
6
STEP 5
Slide the monitor onto the head of Swivel Arm (d). Install the security Nut (h). Make sure the security
nut is installed before you rotate the monitor.
STEP 4
Slide the monitor onto the head of Swivel Arm (d). Install the security Nut (h). Make sure the security
nut is installed before you rotate the monitor.
h
o
Fix the tilt angle Ignore this step if
monitors are level
o
7
STEP 6
Use the supplied Allen Key (o) to make the necessary adjustments. Manage the wires and store the
Allen keys (o) in Wire Clip (n1) for future use.
o
n1
LAST UPDATED: 03/05/2020
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
