Vivo STAND-V002P User manual

Dual Monitor Desk Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-v002p

SKU: STAND-V002P

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

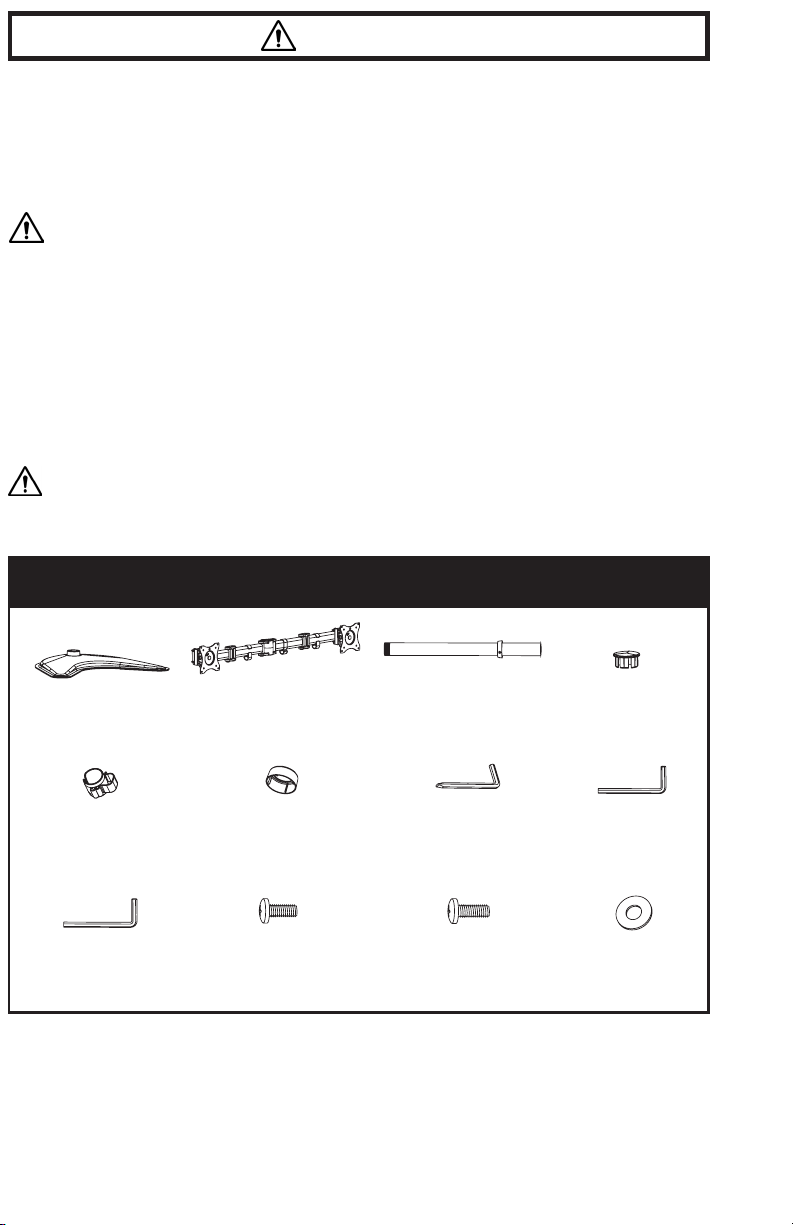

PACKAGE CONTENTS

A (x1)

Base

B(x1)

Arm

C(x1)

Pole

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

D(x1)

Pole Cover

E(x1)

Cable Clip

G (x1)

3mm Allen

Wrench

H (x1)

5mm Allen

Wrench

I (x1)

6mm Allen

Wrench

M-A (x8)

M4x12

M-B (x8)

M5x12

M-C (x8)

D5 Washer

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD

OR BACKWARD.

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

F(x1)

Base Cover

3

ASSEMBLY STEPS

STEP 1

STEP 2

TOOLS NEEDED

Phillips

Screwdriver

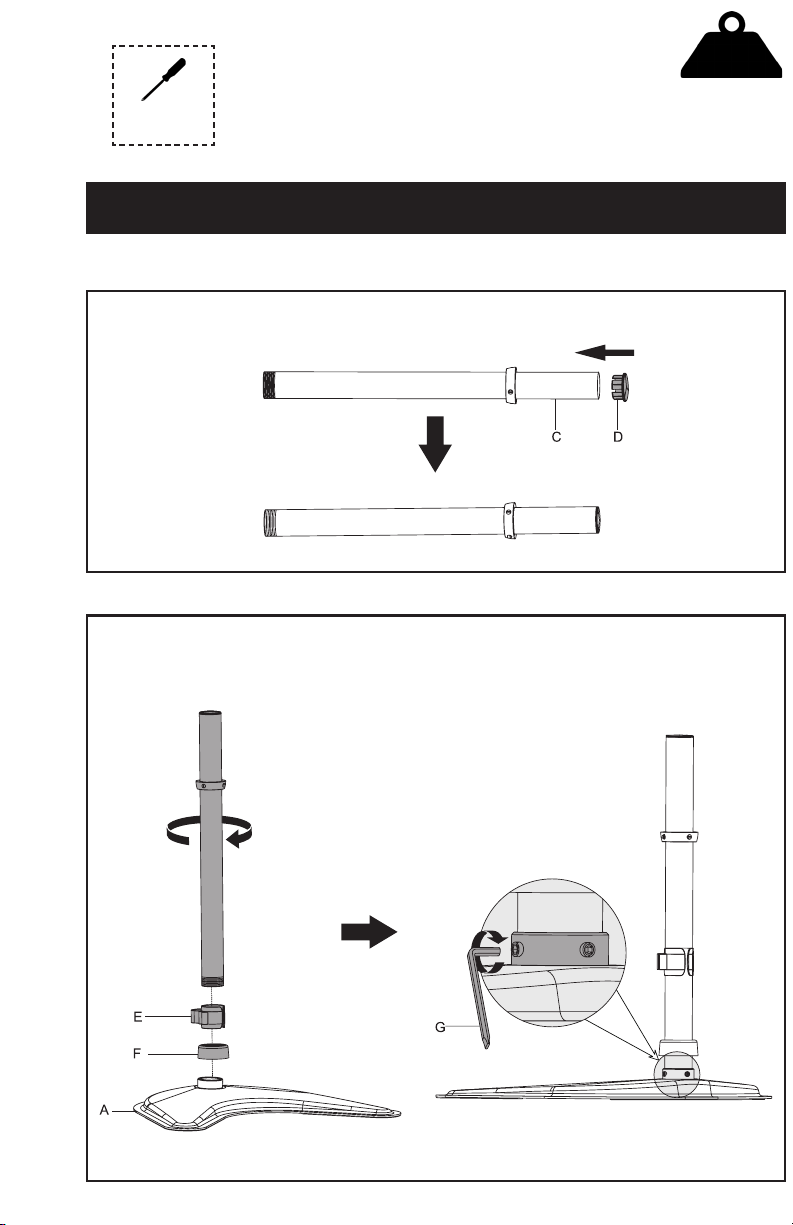

Slide the cable management clip (E) and base cover (F) onto the bottom of the pole (C). Loosen the

grub screws in the base (A) using the 3mm Allen wrench (G) and screw the pole into the base. Tighten

the grub screws using the 3mm Allen wrench (G).

Attach the pole cover (D) to the pole (C).

17.6 lbs

(8 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

PER ARM

4

STEP 3

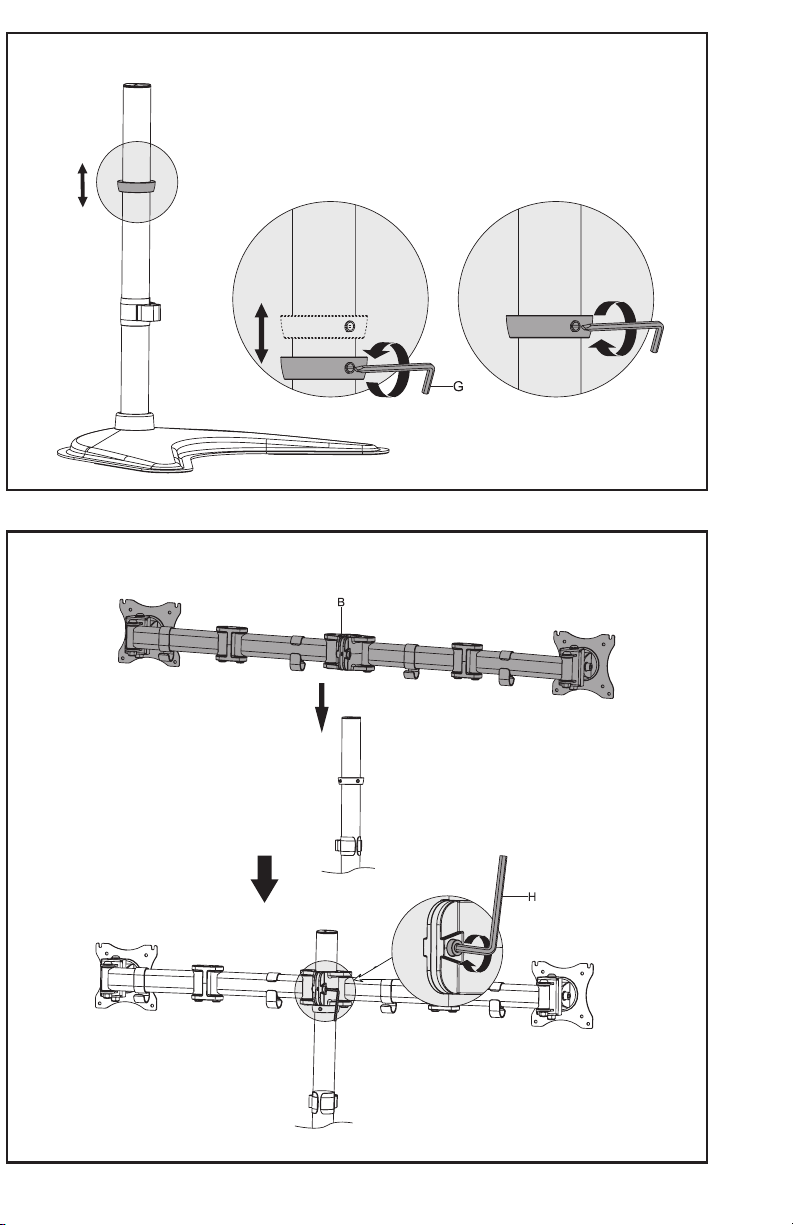

If needed, adjust the support collar height using the 3mm Allen wrench (G).

STEP 4

Slide the arm (B) onto the top of the pole and tighten using the 5mm Allen wrench (H).

5

STEP 5

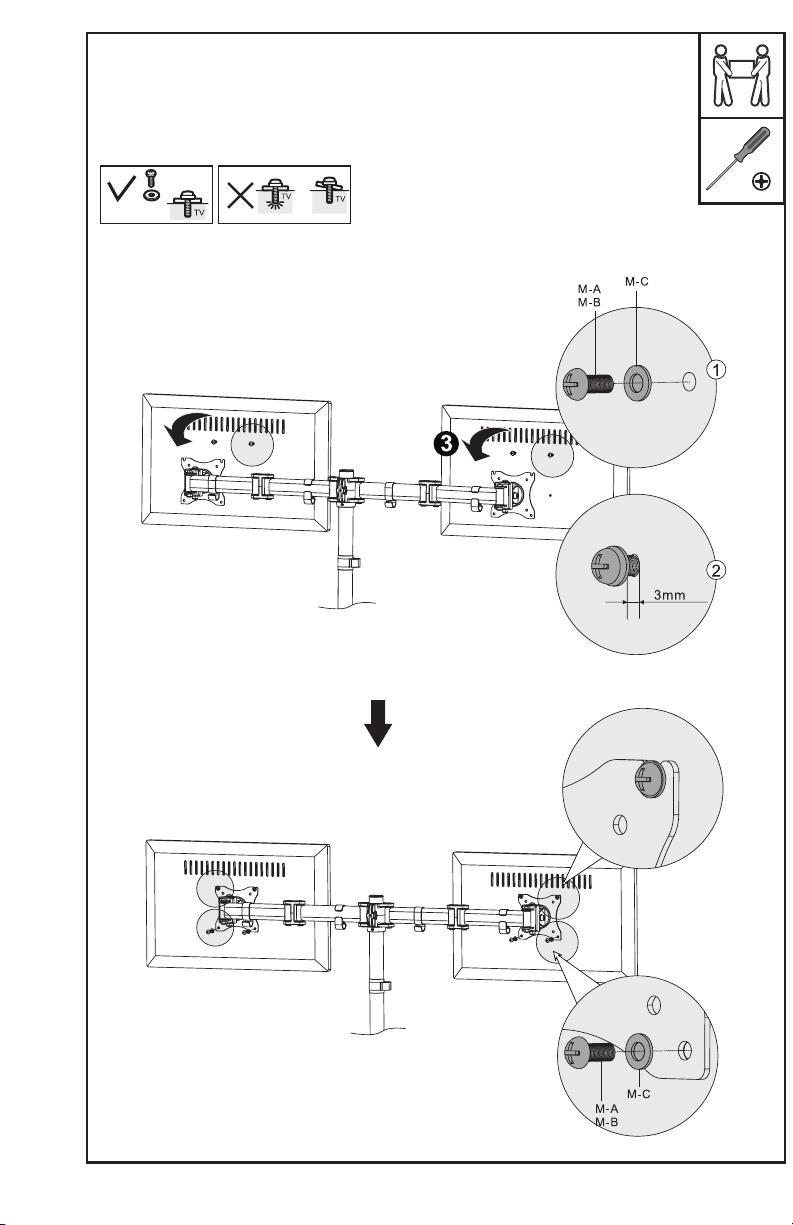

Insert two bolts (M-A or M-B) and washers (M-C) into the top mounting holes of the

monitors, making sure to leave 3mm of thread exposed. Align bolts (M-A, M-B) in VESA

plates. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom

two holes of each monitor. Tighten all bolts using a Phillips screwdriver.

6

STEP 6

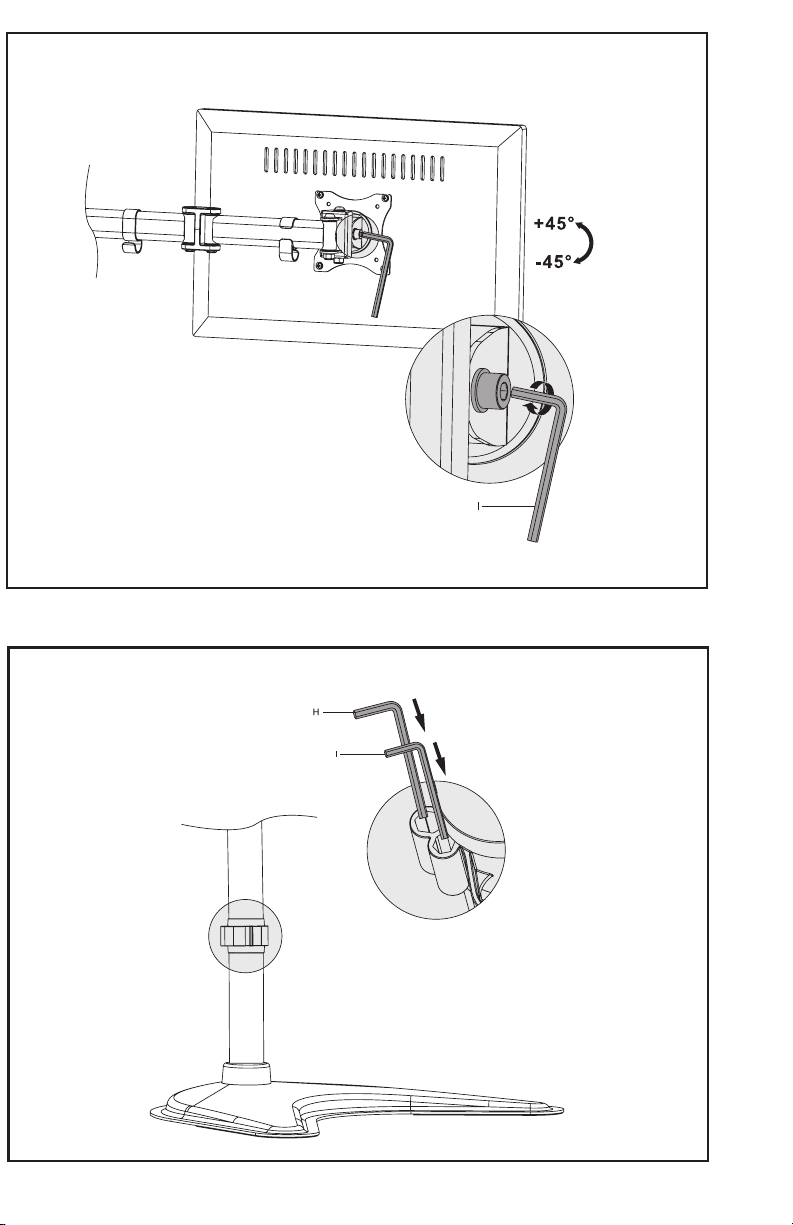

Tighten or loosen the tilt joints using the 6mm Allen wrench (I).

STEP 7

Store the Allen wrenches (H, I) in the cable management clip (E) for future adjustments.

7

STEP 8

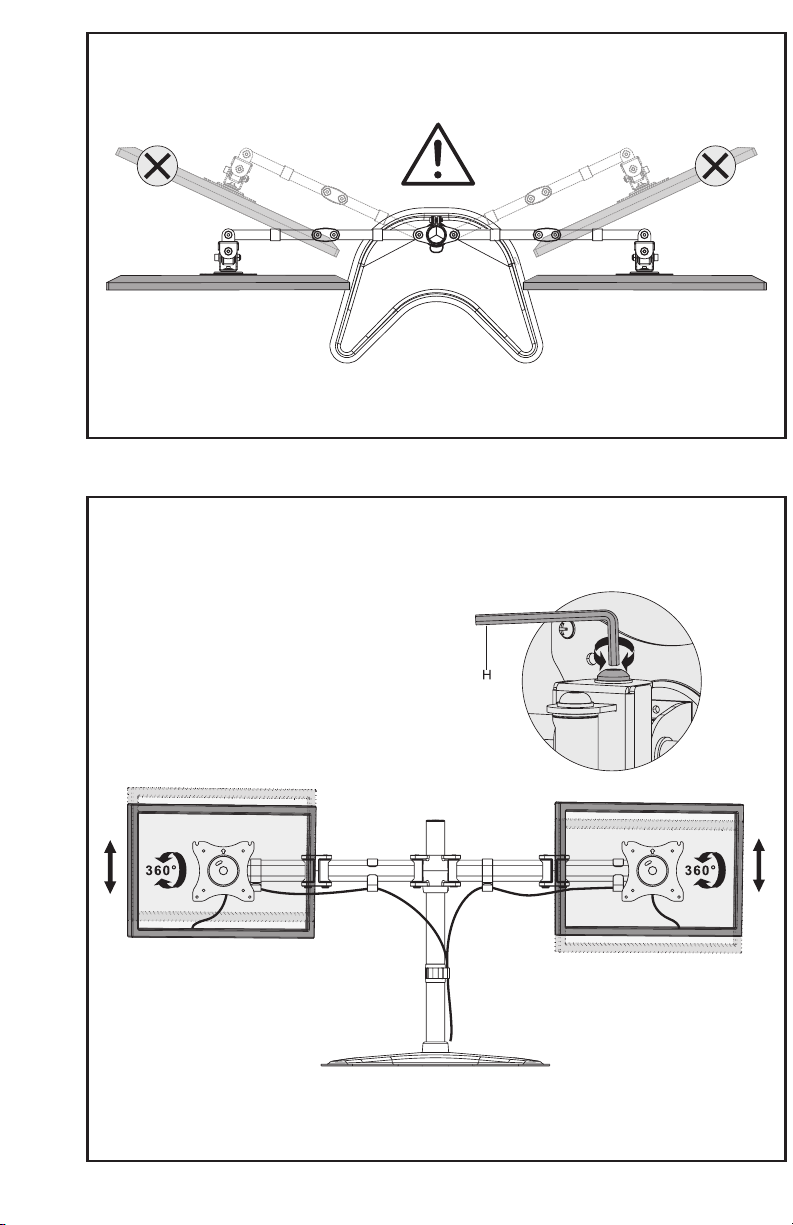

Do not move monitors past the center point of gravity. This could result in tipping.

STEP 9

If monitor heights are not aligned, turn the screw behind each VESA plate using the 5mm Allen

wrench (H). Clockwise will raise the monitor and counter-clockwise will lower the monitor.

LAST UPDATED: 11/20/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
