Vivo MOUNT-VP07DP User manual

Projector Ceiling Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vp07dp

[email protected]om www.vivo-us.com 1-800-371-5654

SKU: MOUNT-VP07DP

2 3

ASSEMBLY STEPS

STEP 1

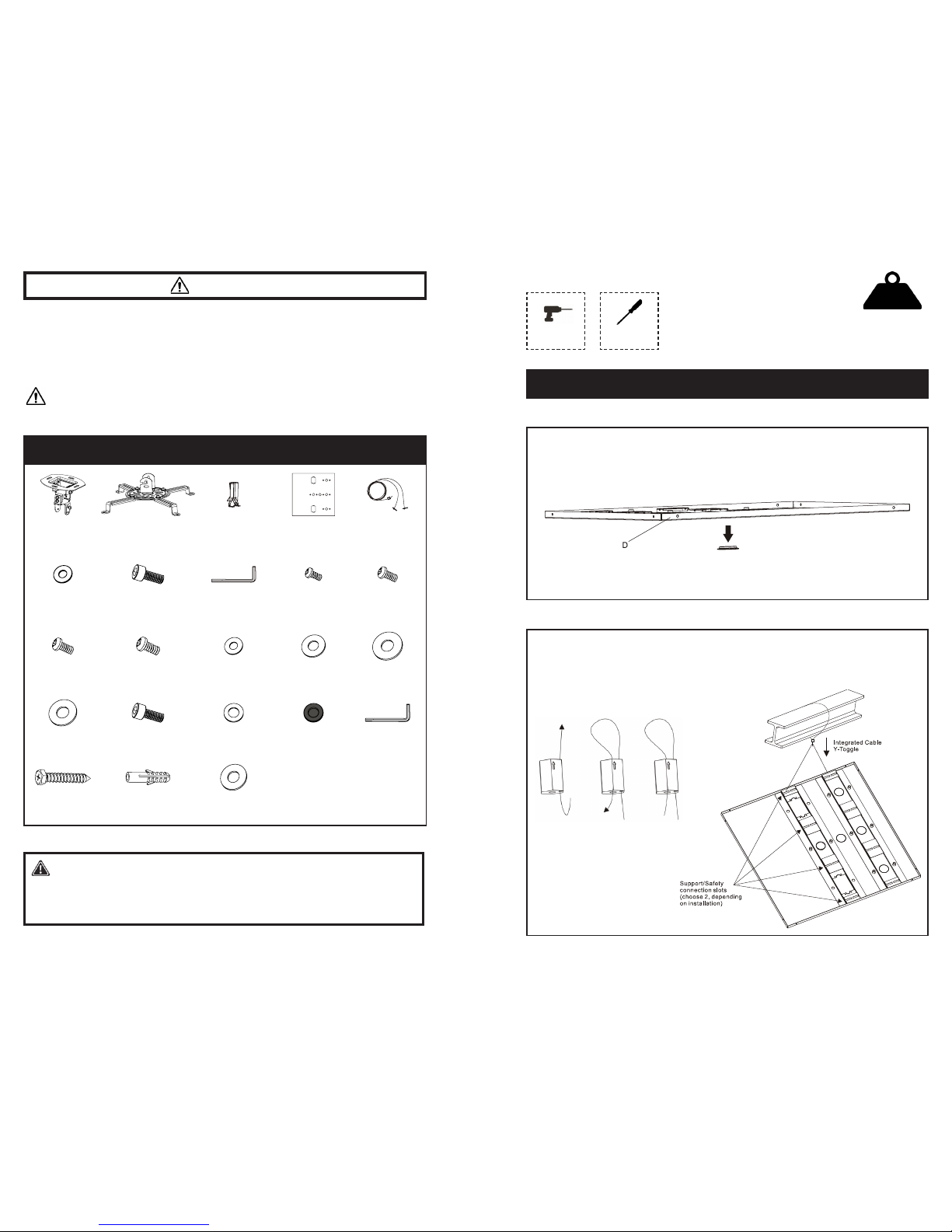

PACKAGE CONTENTS

A (x1)

Mount

B(x1)

Bracket

D(x1)

Ceiling Plate

TOOLS NEEDED

Phillips

Screwdriver

Drill

E(x1)

Y-Cable with

Lock

C (x2)

Clip

Remove plastic plug from Ceiling Plate (D).

F (x2)

D6 Washer

G(x2)

M6x18mm

H (x1)

5mm Allen

Wrench

M-A (x4)

M3x8

M-B (x4)

M4x10

M-C (x4)

M5x10

M-D (x4)

M6x10

M-E (x4)

D3 Washer

M-F (x4)

D4 Washer

M-G (x4)

D5x12 Washer

29.7 lbs

(13.5 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

STEP 2

Insert toggles at end of Y-Cable (E) into 2 of the 16 slots on the top of the Ceiling Plate, making sure

the slots chosen will provide optimal support for the mount with projector. Place Ceiling Plate into

suspended-ceiling grid. Thread end of cable through the side hole in the lock in the direction of the

arrow, wrap cable around beam or other support, then insert cable down through center hole in lock

and pull down to secure.

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS

TO MOUNT. We include mounting for brick and concrete. If unsure, please contact us at vivo-us.com,

email at [email protected], or call us at 1-800-371-5654.

M-H (x4)

D6 Washer

M-I (x2)

M5x12

M-J (x2)

D5x10 Washer

M-K (x2)

D5 Plastic

Washer

M-L (x1)

4mm Allen

Wrench

W-A (x4)

Screw

W-B (x4)

Anchor

W-C (x4)

Washer

4 5

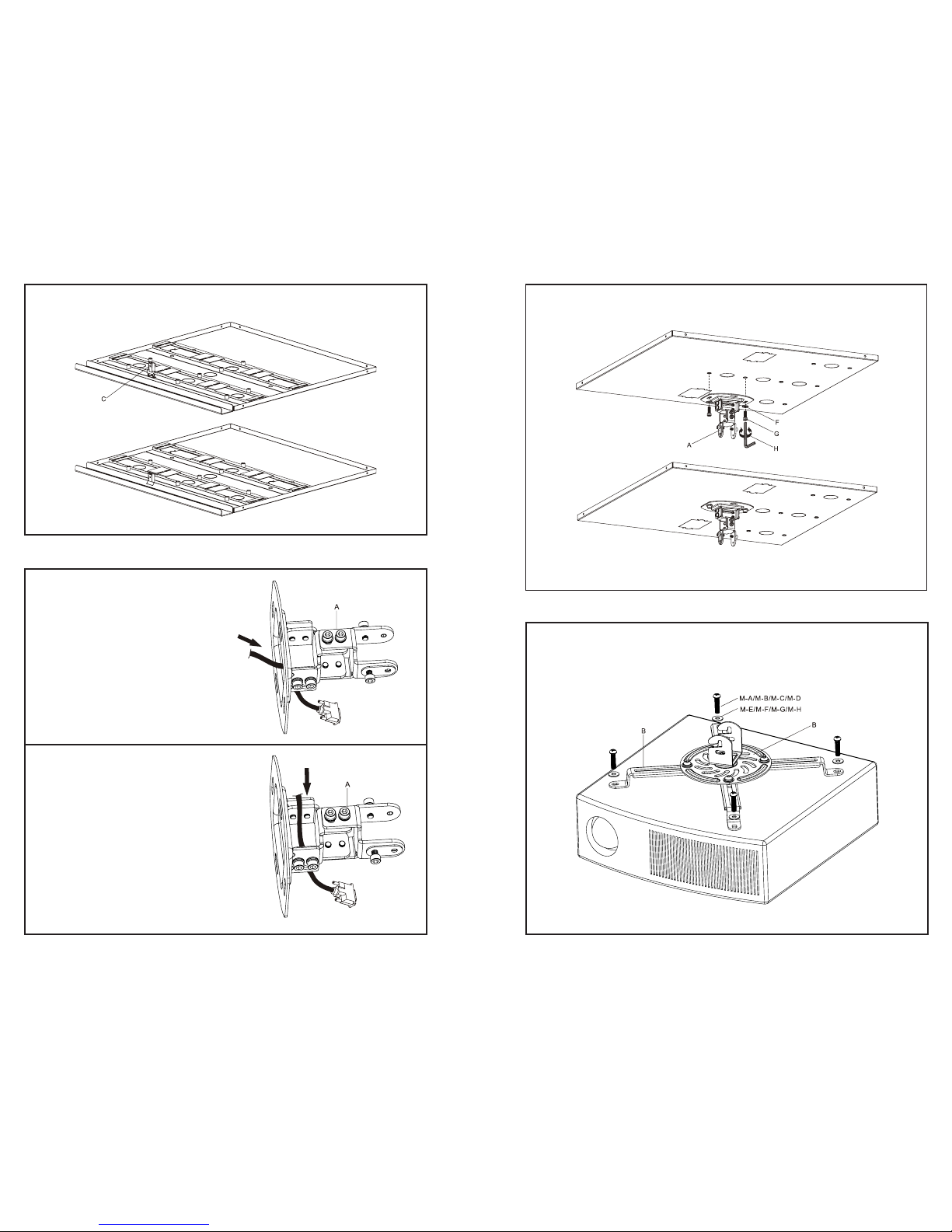

STEP 3

OPTION B: Insert cables through side of

Mount (A) if cables will be exposed below

ceiling.

Push Clips (C) down over T-bar to hold the Ceiling Plate down.

STEP 4

OPTION A: Insert cables through center

of Mount (A) if cables will be hidden

above ceiling.

STEP 5

Attach Mount to Ceiling Plate at desired location using M6x18mm Bolts (G) with D6 Washers (F), and

tighten with 5mm Allen Wrench (H).

STEP 6

Align arms on Bracket (B) with mounting holes in projector, and mount to projector using screws and

washers most appropriate for your projector. If your projector has 3 mounting holes, simply remove

one of the arms, or for mini projectors with a single hole, remove all arms and mount projector directly

to Bracket.

6 7

STEP 7

Hang Bracket with projector over pre-installed screws on Mount, making sure plastic oval washers are

positioned between the Bracket and Mount.

STEP 8

Secure Bracket using M5x12 Bolts (M-I), D5x10 washers (M-J) and D5 Plastic Washers (M-K). Tighten

with 4mm Allen Wrench (M-L).

STEP 9

Adjust angle and rotation of projector.

STEP 10 (Optional)

OPTION B: Concrete Ceiling Installation

Mark drilling locations in ceiling. Drill 60mm (2.4”) deep holes using 10mm or 3/8” drill bit. Press

Anchors (W-B) into drilled holes, and attach Mount to stud using Screws (W-A) and Washers (W-C).

OPTION A: Wood Ceiling Installation

Align holes in Mount (A) with wood stud and mark drilling locations. Use of a stud nder is

recommended for nished ceilings. Drill 55mm (2.2”) deep holes using 4.5mm or 3/16” drill bit. Attach

Mount to stud using Screws (W-A) and Washers (W-C). Do not use (W-B) concrete anchors.

W-A

W-C

W- B

W- C

W- A

Last Updated: 12/11/2018

If any parts are received damaged or defective, please contact us. We are happy to

replace parts to ensure you have a fully functioning product.

For more VIVO products, check out our website at:

www.vivo-us.com.

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om www.vivo-us.com 1-800-371-5654
